Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 6,655
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Q-2I03B0005.75M Amphenol | 1 $55.7100 | Datasheet | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 7,208 Cart + RFQ |
Q-0D0040005006F Amphenol | 1 $55.9000 | Datasheet | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | 1,235 Cart + RFQ |
Q-2I00D0005001F Amphenol | 1 $55.9300 | Datasheet | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 1,551 Cart + RFQ |
Q-2N02Y0008007F Amphenol | 1 $55.9800 | Datasheet | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | 3,050 Cart + RFQ |
Q-2I0040005002F Amphenol | 1 $56.2400 | Datasheet | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 9,599 Cart + RFQ |
Q-2K02K000M002F Amphenol | 1 $56.2500 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | Shielded | - | - | 1,846 Cart + RFQ |
Q-2J00B000H001M Amphenol | 1 $56.6100 | Datasheet | BNC to N-Type | BNC Jack | Female | - | - | N-Type Plug | Male | - | - | 39.4" (1.0m) 3.3' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | 6,431 Cart + RFQ |
Q-2I0030005004F Amphenol | 1 $56.9200 | Datasheet | BNC to N-Type | BNC Jack | Female | - | - | N-Type Plug | Male | - | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 7,619 Cart + RFQ |
Q-090360008002M Amphenol | 1 $57.0800 | Datasheet | BNC to SMA | BNC Jack | Female | - | - | SMA Plug, Right Angle | Male | - | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | 8,800 Cart + RFQ |
Q-0E02Y0008003F Amphenol | 1 $57.1300 | Datasheet | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | 2,146 Cart + RFQ |
Q-0D0040005002M Amphenol | 1 $57.2300 | Datasheet | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | 1,332 Cart + RFQ |
Q-2K02K000M.75M Amphenol | 1 $57.2400 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 29.53" (750.00mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | Shielded | - | - | 8,220 Cart + RFQ |
Q-2J00F000H.75M Amphenol | 1 $57.2600 | Datasheet | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 29.53" (750.00mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | 9,103 Cart + RFQ |

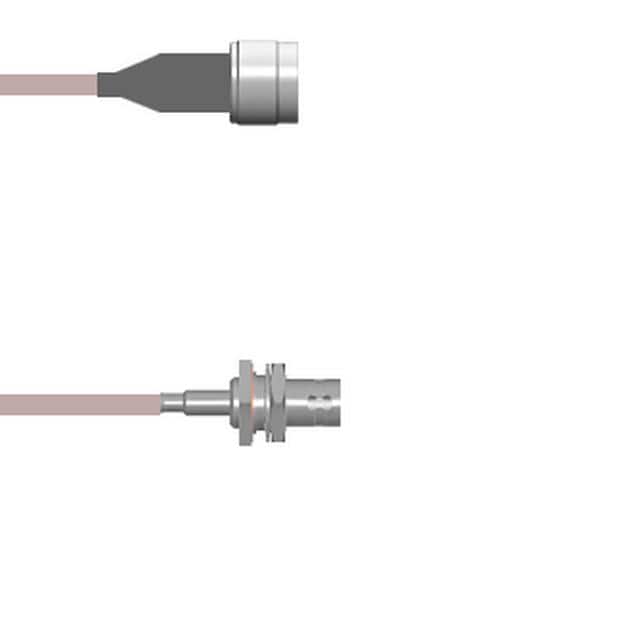

Q-2I0040005.75M Amphenol | 1 $57.3400 | Datasheet | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 1,858 Cart + RFQ |

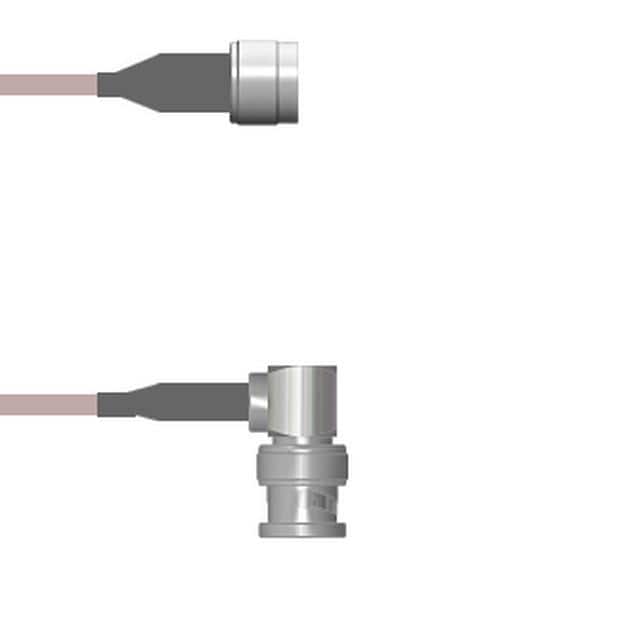

Q-2I00D00050.5M Amphenol | 1 $57.4000 | Datasheet | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 7,983 Cart + RFQ |

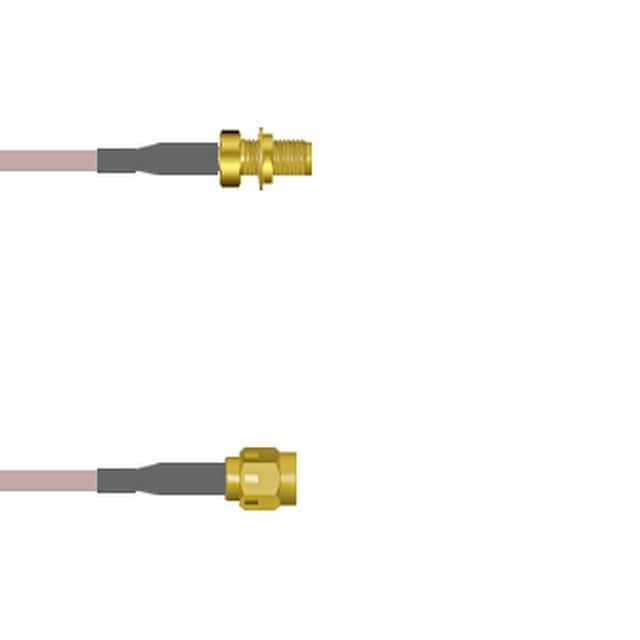

Q-2W03B0005005F Amphenol | 1 $57.4100 | Datasheet | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | 6,338 Cart + RFQ |

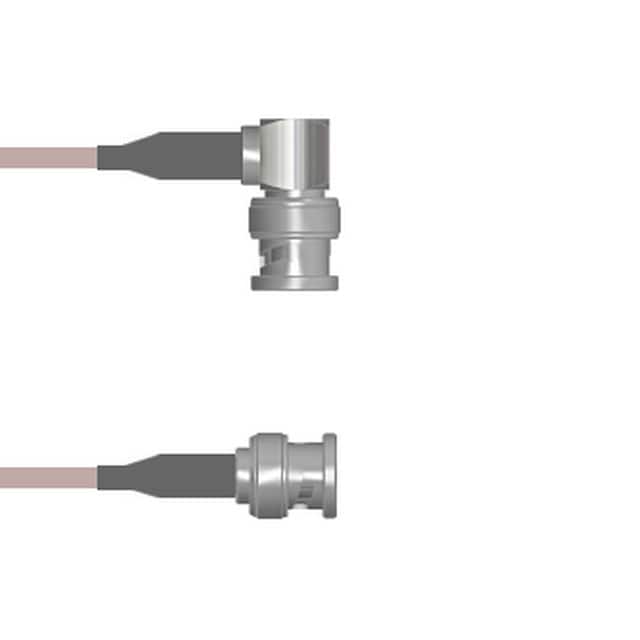

Q-0F00M000H.75M Amphenol | 1 $57.4900 | Datasheet | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug | Male | - | - | 29.53" (750.00mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | 6,745 Cart + RFQ |
Q-0E02Y0008001M Amphenol | 1 $57.5800 | Datasheet | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | 4,708 Cart + RFQ |

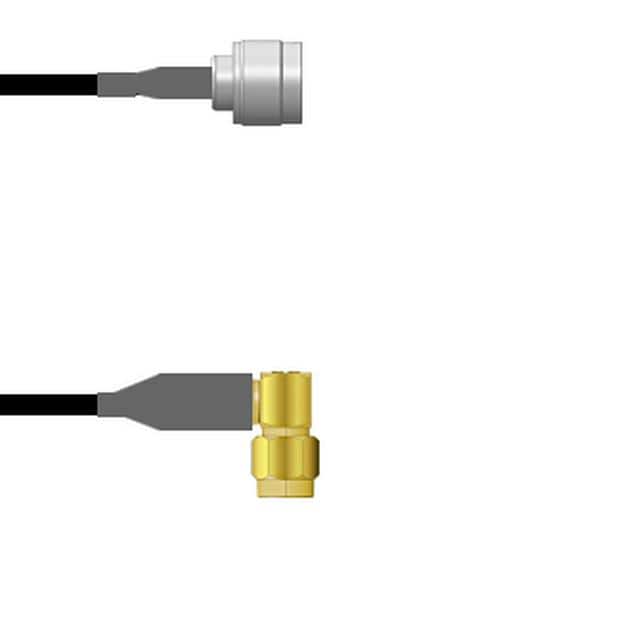

Q-2N0360008002M Amphenol | 1 $57.6000 | Datasheet | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | 2,308 Cart + RFQ |

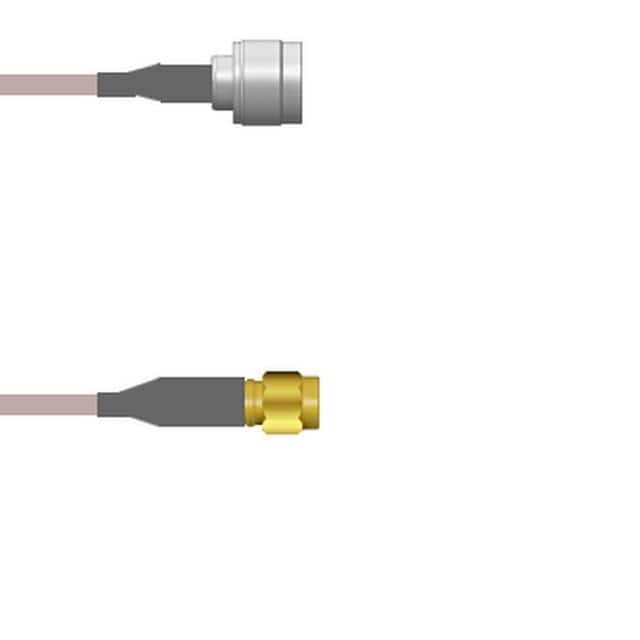

Q-2J03F000H.75M Amphenol | 1 $57.7000 | Datasheet | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | 29.53" (750.00mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Copper | Shielded | - | - | 5,417 Cart + RFQ |
