Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 49
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CSI-UFFR-100-UFFR Linx Technologies | 1 $3.0800 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 2,835 Cart + RFQ |
CSI-RGFB-100-UFFR Linx Technologies | 1 $5.1900 | Datasheet | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 1,775 Cart + RFQ |
CSI-RGFB-200-UFFR Linx Technologies | 1 $5.2900 | Datasheet | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 6,195 Cart + RFQ |

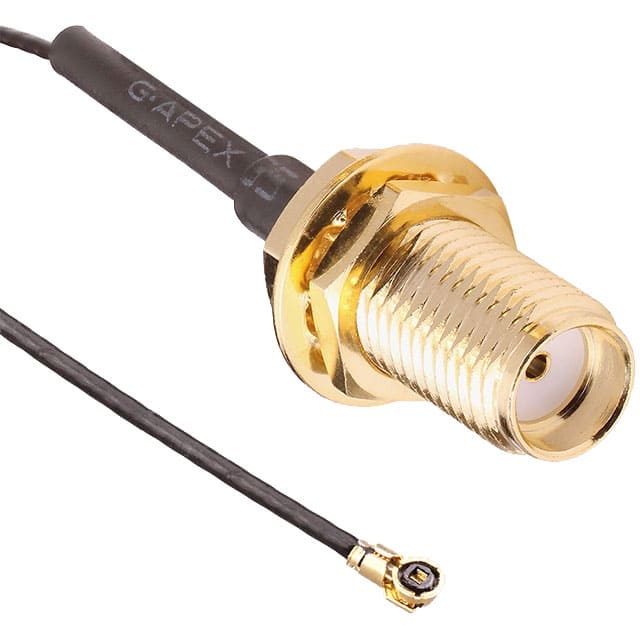

CSJ-SGFB-100-MHF4 Linx Technologies | 1 $5.8300 | Datasheet | SMA to IPEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | 5,361 Cart + RFQ |

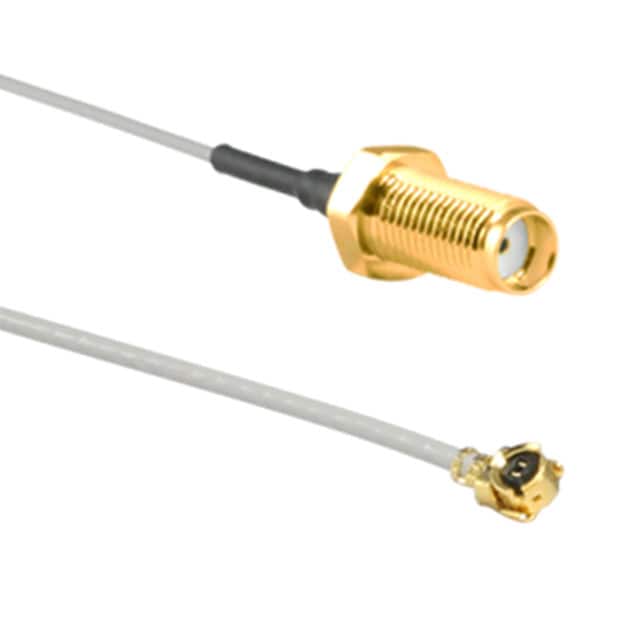

CSI-SGFB-100-UFFR Linx Technologies | 1 $6.0300 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 5,180 Cart + RFQ |

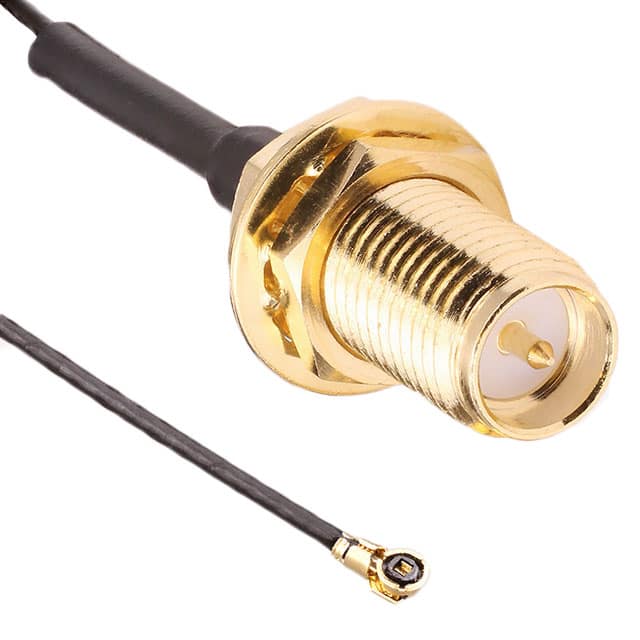

CSJ-RGFB-100-MHF4 Linx Technologies | 1 $6.1000 | Datasheet | RP-SMA to IPEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | 5,165 Cart + RFQ |
CSJ-SGFB-200-MHF4 Linx Technologies | 1 $6.2200 | Datasheet | SMA to IPEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | 8,205 Cart + RFQ |
CSI-SGFB-200-UFFR Linx Technologies | 1 $6.2400 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 6,530 Cart + RFQ |

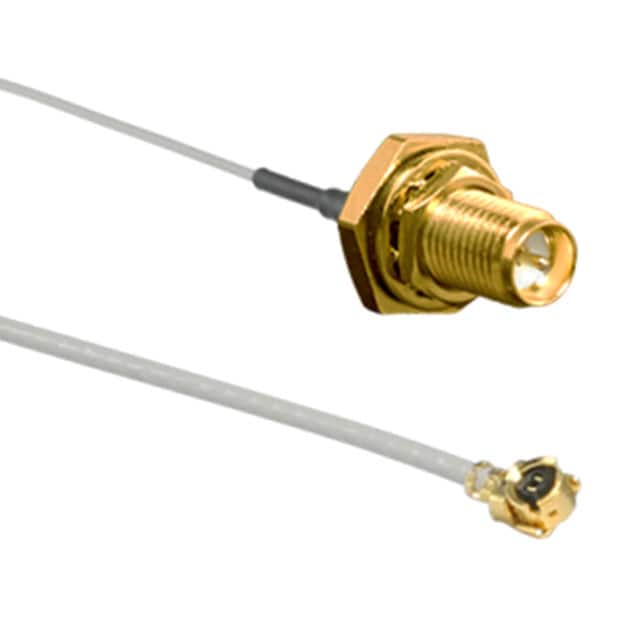

CSI-RGFI-100-UFFR Linx Technologies | 1 $6.9500 | Datasheet | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 3,111 Cart + RFQ |

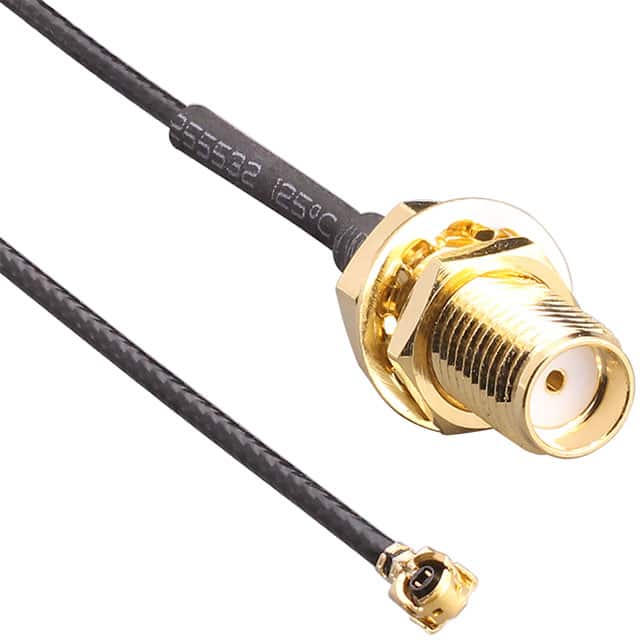

CSH-SGFB-200-UFFR Linx Technologies | 1 $7.6400 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | Shielded | -40°C ~ 90°C | - | 9,826 Cart + RFQ |

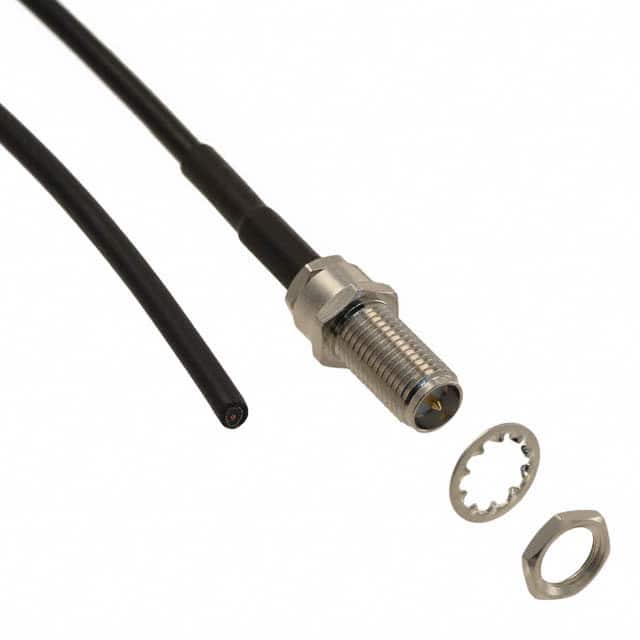

CONREVSMA005-C08.5 Linx Technologies | 1 $8.5400 | Datasheet | RP-SMA to Cable | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 8.500" (215.90mm) | RG-174 | 50 Ohms | - | - | - | Black | Shielded | - | - | 7,311 Cart + RFQ |
CSH-SGFB-100-UFFR Linx Technologies | 1 $7.6300 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | Shielded | -40°C ~ 90°C | - | 2,084 Cart + RFQ |

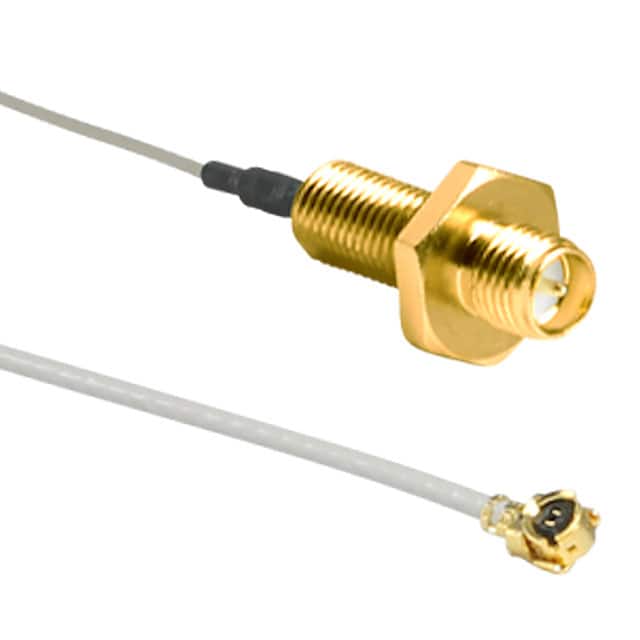

CSI-RGFE-100-UFFR Linx Technologies | 1 $8.6400 | Datasheet | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 5,487 Cart + RFQ |

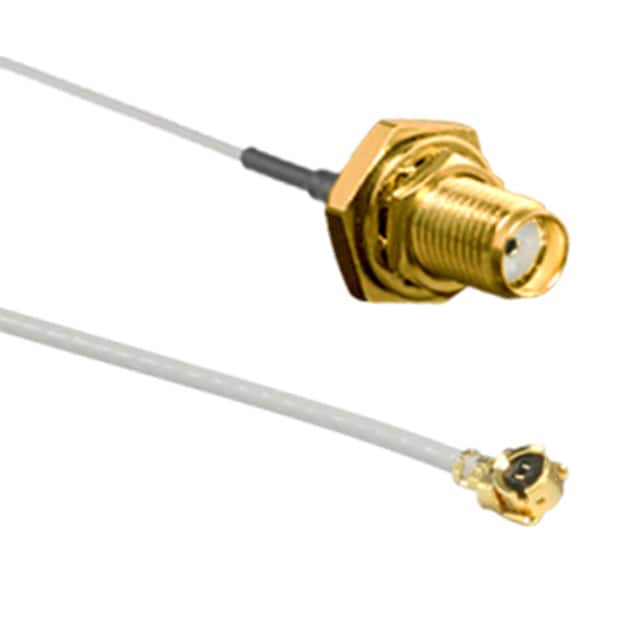

CSI-SGFI-100-UFFR Linx Technologies | 1 $9.6600 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 8,648 Cart + RFQ |

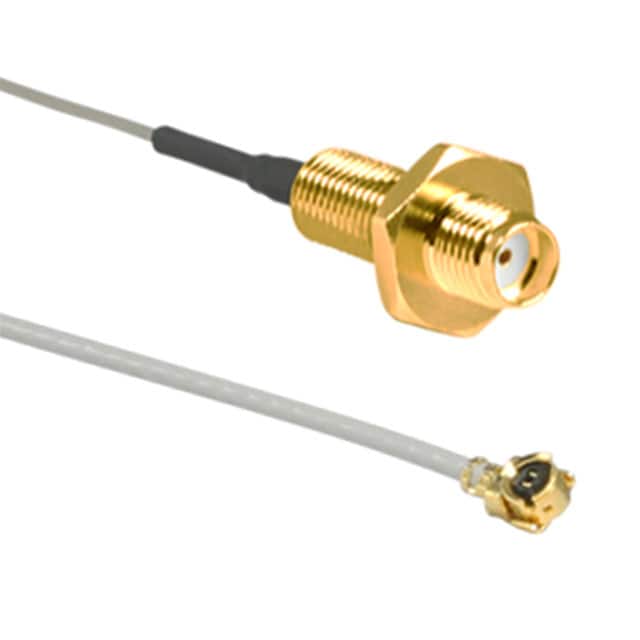

CSI-SGFE-200-UFFR Linx Technologies | 1 $9.4500 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 6,208 Cart + RFQ |
CSI-SGFI-200-UFFR Linx Technologies | 1 $10.9300 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 4,088 Cart + RFQ |

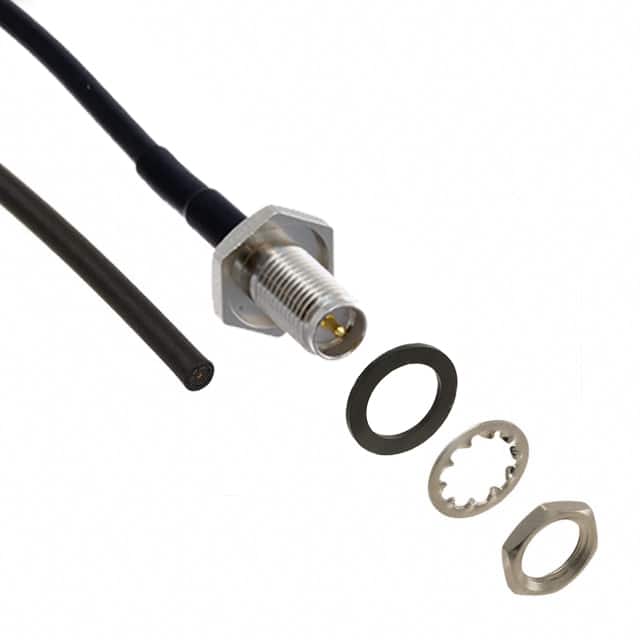

CONREVSMA014-C08.5 Linx Technologies | 1 $8.3100 | Datasheet | RP-SMA to Cable | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 8.500" (215.90mm) | RG-174 | 50 Ohms | - | - | - | Black | Shielded | - | - | 2,107 Cart + RFQ |
CSI-RSFB-300-UFFR Linx Technologies | 1 $13.5000 | Datasheet | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | 6,851 Cart + RFQ |
CSD-NM-914-NM Linx Technologies | 1 $17.6300 | Datasheet | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | 6,476 Cart + RFQ |

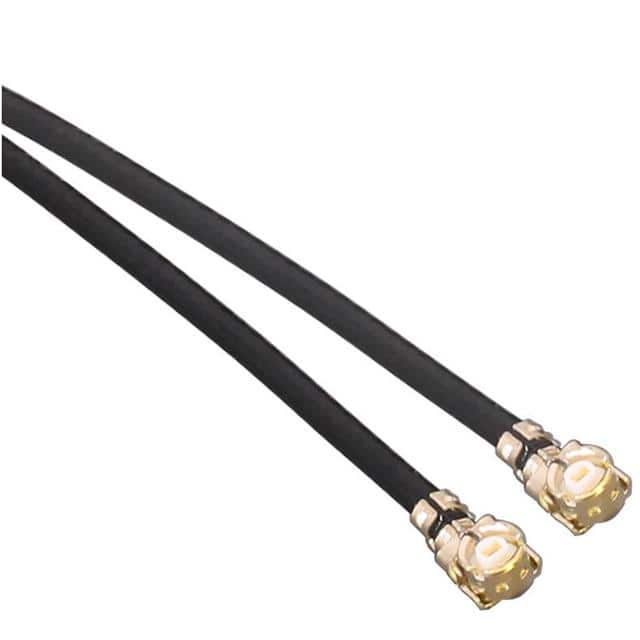

CSG-UFFR-100-UFFR Linx Technologies | 1 $2.4800 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.940" (100.08mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | 200°C | - | 7,723 Cart + RFQ |
