Panel Meters
Panel meters are instruments that display a visual representation of an input signal using an analog needle or other physical indicator or digital characters. Many panel meters also include auxiliary outputs that may be used for alarm options as well as the ability to transfer data or a reference signal to a computer or microcontroller. Panel meters are selected by measuring range, display type, character/indicator attributes and supply voltage. Meters types include current, voltage, frequency, process, resistance, temperature, and wattage.
Product List
Total Components: 27
| Product | Pricing | Datasheet | Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DMS-20LCD-1-5-C Murata Power Solutions | 1 $40.8100 | Datasheet | Voltage (Voltmeter) | ±2VDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | - | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - | 9,867 Cart + RFQ |
 DMS-20PC-0-GS-C Murata Power Solutions | 1 $49.2300 | Datasheet | Voltage (Voltmeter) | ±200mVDC | LED - Green Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - | 1,182 Cart + RFQ |
 DMS-20PC-2-RL-C Murata Power Solutions | 1 $53.9100 | Datasheet | Voltage (Voltmeter) | ±20VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - | 3,605 Cart + RFQ |
 DMS-30PC-1-GS-C Murata Power Solutions | 1 $63.2900 | Datasheet | Voltage (Voltmeter) | ±2VDC | LED - Green Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - | 4,478 Cart + RFQ |
 DMS-30PC-2-RL-C Murata Power Solutions | 1 $67.9800 | Datasheet | Voltage (Voltmeter) | ±20VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - | 2,436 Cart + RFQ |
DMS-30PC-1-RH-C Murata Power Solutions | 1 $67.9800 | Datasheet | Voltage (Voltmeter) | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - | 6,458 Cart + RFQ |
 DMS-20PC-1-DCM-B-C Murata Power Solutions | 1 $69.1400 | Datasheet | Voltage (Voltmeter) | 8 ~ 50VDC | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - | 5,983 Cart + RFQ |
 DMS-40PC-2-GS-C Murata Power Solutions | 1 $91.4300 | Datasheet | Voltage (Voltmeter) | ±20VDC | LED - Green Characters | 4.5 | 0.520" (13.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - | 9,544 Cart + RFQ |
 DMS-30798-C Murata Power Solutions | 1 $91.4300 | Datasheet | Current (Ammeter) | 0 ~ 30A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Built In Current Transformer (Primary) | 1,769 Cart + RFQ |
 DMS-40LCD-1/2-5-C Murata Power Solutions | 1 $91.4300 | Datasheet | Voltage (Voltmeter) | ±20V | LCD - Black Characters | 4.5 | 0.401" (10.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - | 6,212 Cart + RFQ |

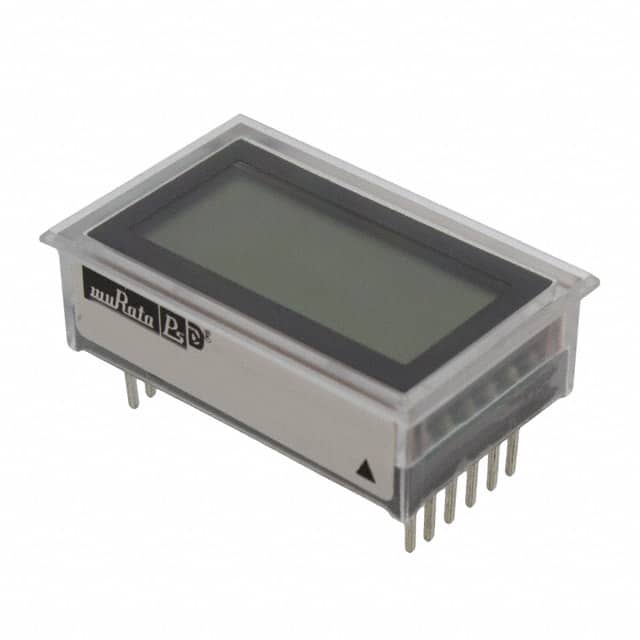

 DMS-20LCD-2-9-C Murata Power Solutions | 1 $40.5000 | Datasheet | Voltage (Voltmeter) | ±20VDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | - | 9VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - | 1,329 Cart + RFQ |

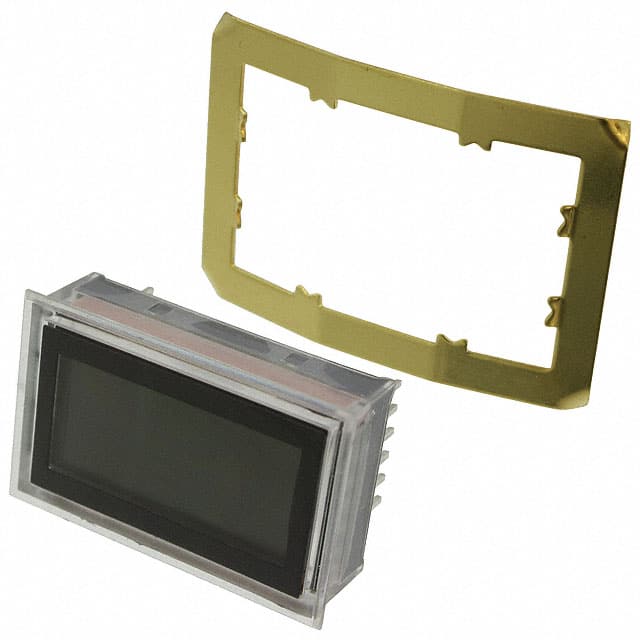

 DMS-20LCD-2-5B-C Murata Power Solutions | 1 $45.8800 | Datasheet | Voltage (Voltmeter) | ±20VDC | LCD - Black Characters, Aqua Backlight | 3.5 | 0.370" (9.40mm) | - | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - | 3,638 Cart + RFQ |
 DMS-20PC-8-DCM-C Murata Power Solutions | 1 $52.5700 | Datasheet | Voltage (Voltmeter) | 30 ~ 199.9VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - | 6,617 Cart + RFQ |

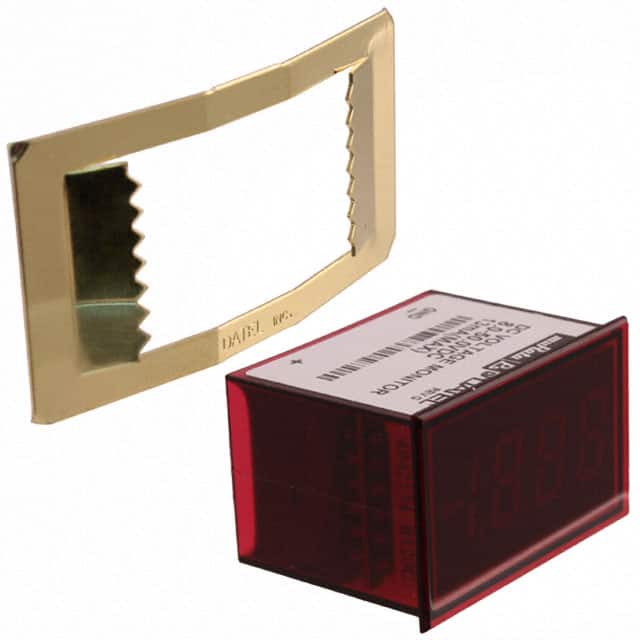

 DMS-20PC-2-DCM-C Murata Power Solutions | 1 $58.6000 | Datasheet | Voltage (Voltmeter) | 30 ~ 264VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - | 3,171 Cart + RFQ |
DMS-20PC-0-DCM-B-C Murata Power Solutions | 1 $69.1400 | Datasheet | Voltage (Voltmeter) | 4.5 ~ 19.99VDC | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - | 9,501 Cart + RFQ |

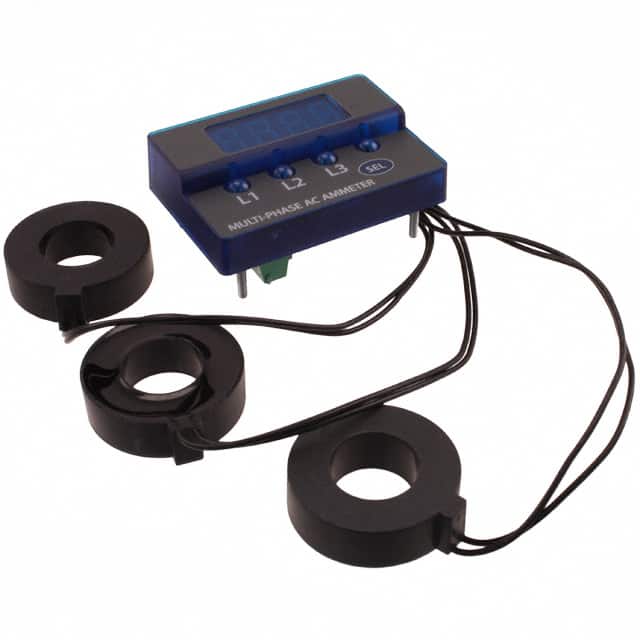

 ACM3P-4-AC1-B-C Murata Power Solutions | 1 $99.6400 | Datasheet | Current (3-Phase Ammeter) | 0 ~ 100A | LED - Blue Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) | 7,499 Cart + RFQ |

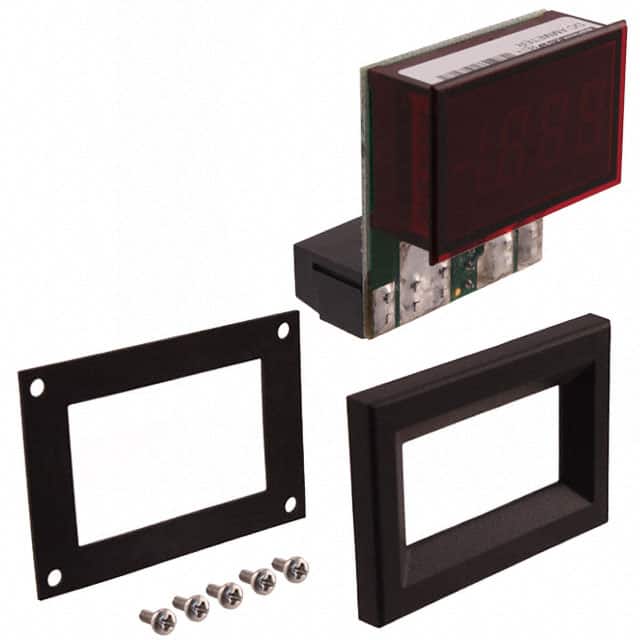

 DCA-20PC-6-DC4-BS-C Murata Power Solutions | 1 $106.9500 | Datasheet | Current (Ammeter) | 0 ~ 19.99A | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | 8 ~ 36VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Shunts | 7,990 Cart + RFQ |

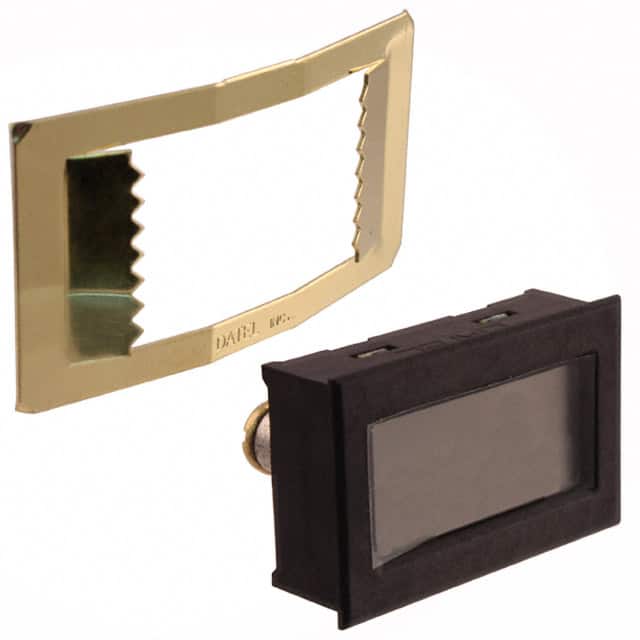

 DMS-20LCD-1-DCM-C Murata Power Solutions | 1 $38.2700 | Datasheet | Voltage (Voltmeter) | 8 ~ 50VDC | LCD - Black Characters | 3 | 0.370" (9.40mm) | - | 24VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately | 3,312 Cart + RFQ |

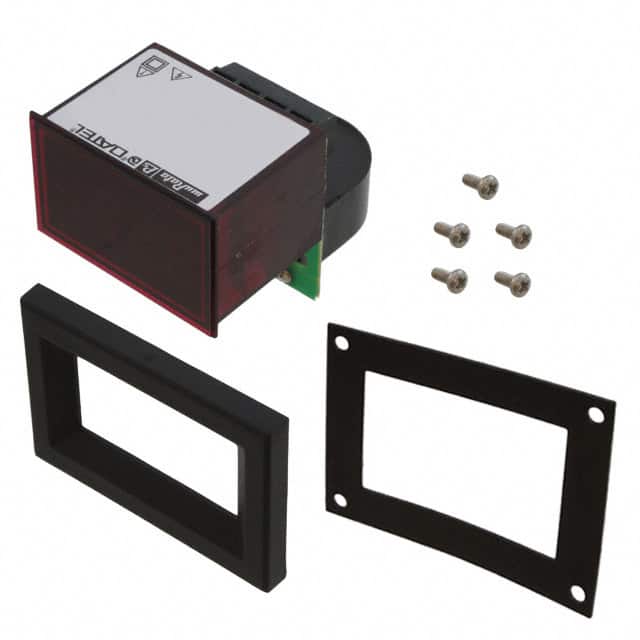

 ACA-20PC-2-AC1-RL-C Murata Power Solutions | 1 $91.4300 | Datasheet | Current (Ammeter) | 0 ~ 19.99A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) | 2,190 Cart + RFQ |

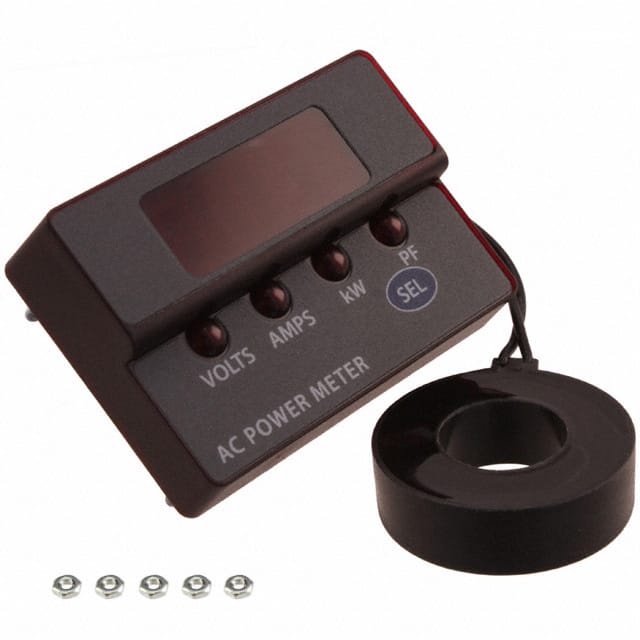

 ACM20-4-AC1-R-F-C Murata Power Solutions | 1 $76.2000 | Datasheet | Multifunction Meter (Current, Voltage, Wattage, Frequency) | 0 ~ 100A | LED - Red Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) | 1,507 Cart + RFQ |
