Patchbay, Jack Panels
Jack panel patchbays are arrays of similar jack connectors that allow the user to select signals and easily interconnect them using patch cables to desired inputs and outputs of connected devices. Patchbays are also used to monitor and test signals in a convenient, flexible manner. They are differentiated by termination style, number of rows and number of positions.
Product List
Total Components: 223
| Product | Pricing | Datasheet | Connector Type | Number of Positions | Number of Rows | Termination Style | Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|
 QGPK1B440 Conxall / Switchcraft | 1 $104.9700 | Datasheet | - | 16 | 1 | - | Audio/Video Panel | 8,038 Cart + RFQ |
 MT48FNX Conxall / Switchcraft | 1 $474.0900 | Datasheet | 1/4" Phone Jack | 48 | 2 | Solder | Telephone Jack Panel | 9,804 Cart + RFQ |
 2300X Conxall / Switchcraft | 1 $10.4400 | Datasheet | 1/4" Phone Jack (Not Provided) | 2 | 1 | - | Telephone Jack Panel | 5,905 Cart + RFQ |

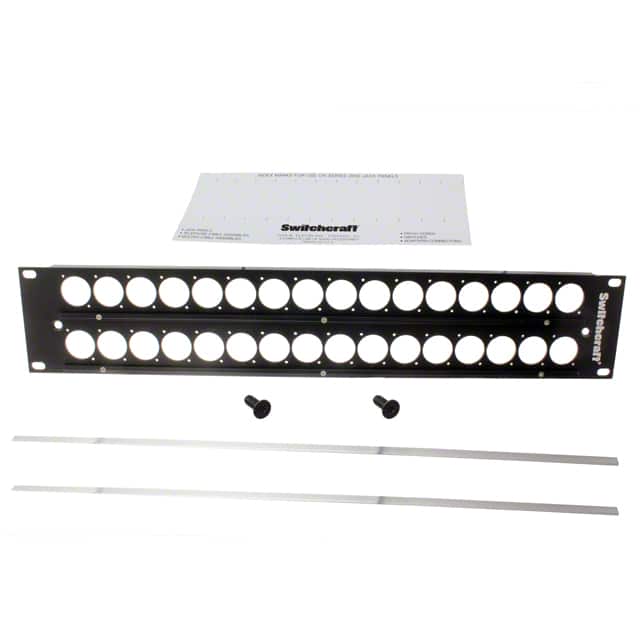

 QGPK3B440 Conxall / Switchcraft | 1 $148.1700 | Datasheet | - | 32 | 2 | - | Audio/Video Panel | 8,922 Cart + RFQ |

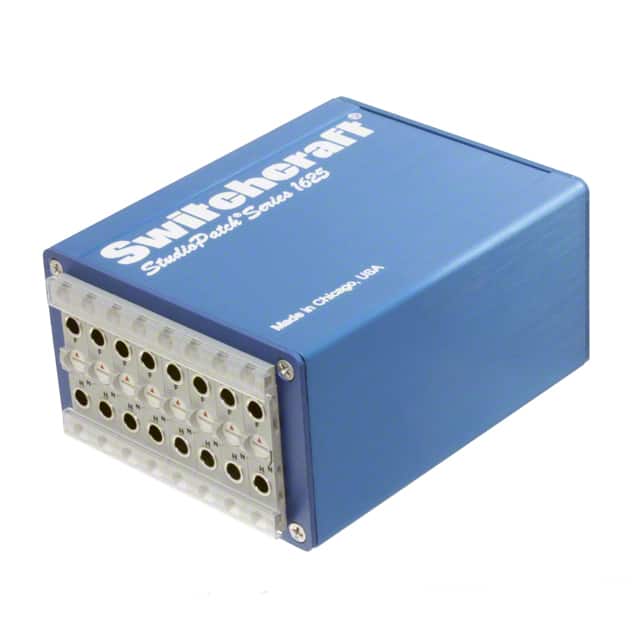

 1625 Conxall / Switchcraft | 1 $410.0600 | Datasheet | 0.173" Phone Jack | 16 | 2 | Connector | Audio Jack Panel | 3,900 Cart + RFQ |

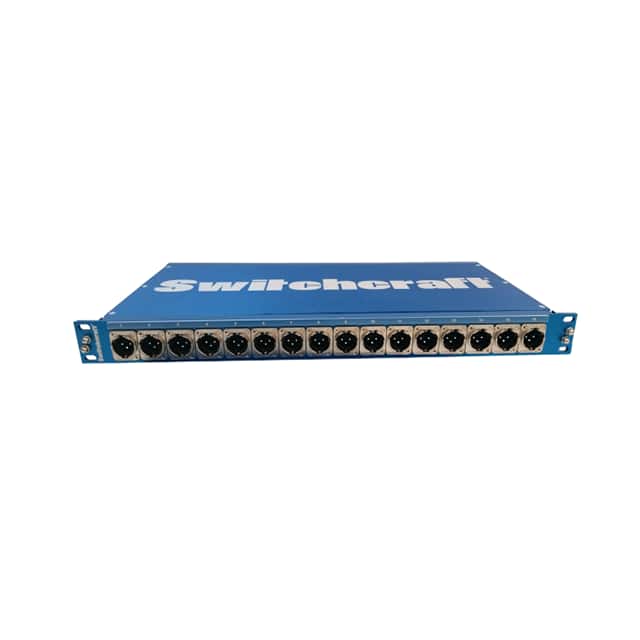

 PT16MX16F Conxall / Switchcraft | 1 $450.8100 | Datasheet | XLR, Male and Female | 16 | 1 | Connector | Audio Jack Panel | 7,231 Cart + RFQ |
 PT16TRS2DB25 Conxall / Switchcraft | 1 $513.8300 | Datasheet | 1/4" Phone Jack | 16 | 1 | Connector | Audio Jack Panel | 8,679 Cart + RFQ |

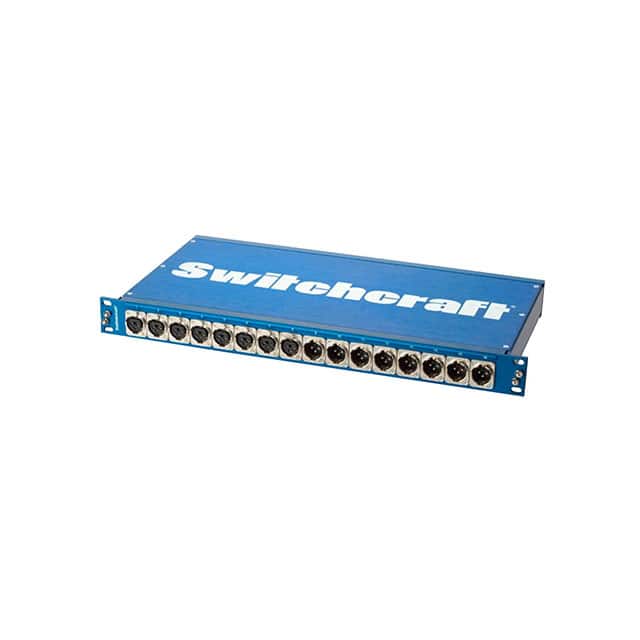

 PT16FX2DB25 Conxall / Switchcraft | 1 $731.2500 | Datasheet | XLR, Female | 16 | 1 | Connector | Audio Jack Panel | 2,704 Cart + RFQ |
PT16MX2DB25 Conxall / Switchcraft | 1 $731.2500 | Datasheet | XLR, Male | 16 | 1 | Connector | Audio Jack Panel | 4,484 Cart + RFQ |

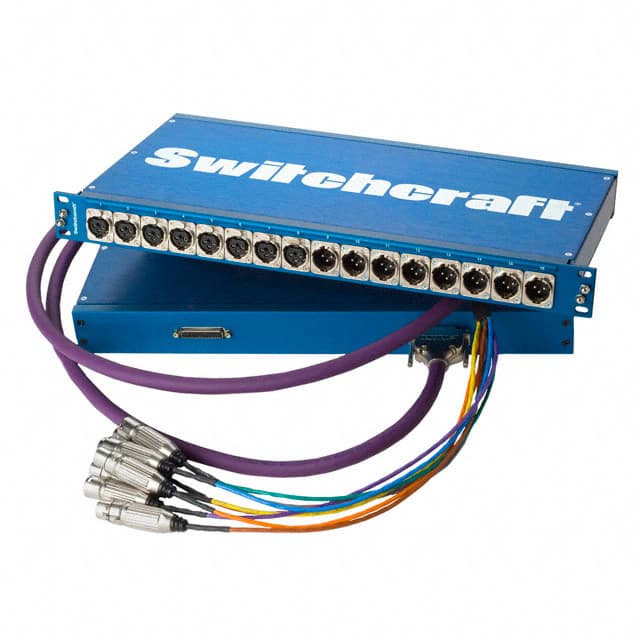

 PT8FX8MX2DB25 Conxall / Switchcraft | 1 $731.2500 | Datasheet | XLR, Male and Female | 16 | 1 | Connector | Audio Jack Panel | 4,308 Cart + RFQ |

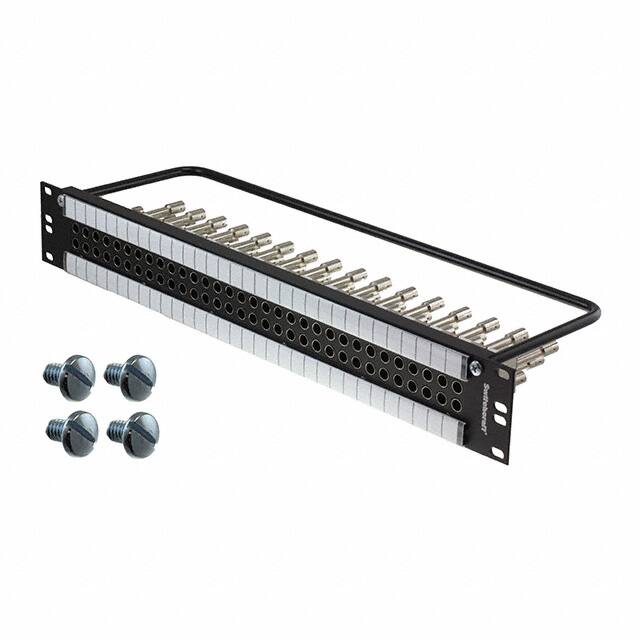

 MVP32K2NTX Conxall / Switchcraft | 1 $1.0000 | Datasheet | - | - | - | - | - | 3,516 Cart + RFQ |

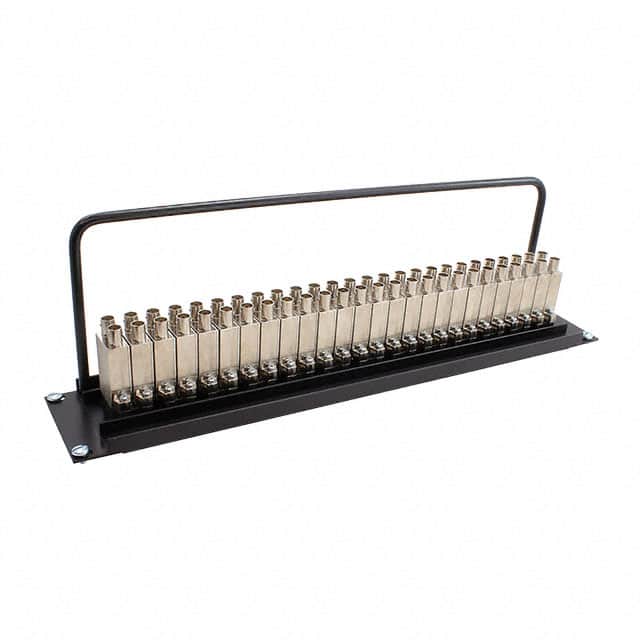

 VPP26K3HD75TX Conxall / Switchcraft | 1 $1.0000 | Datasheet | HD Jack, 75Ohm Terminated | 26 | 2 | - | Video Pass Through Panel | 4,317 Cart + RFQ |
 VPP26K1HD75TX Conxall / Switchcraft | 1 $1.0000 | Datasheet | HD Jack, 75Ohm Terminated | 26 | 2 | - | Video Pass Through Panel | 1,039 Cart + RFQ |

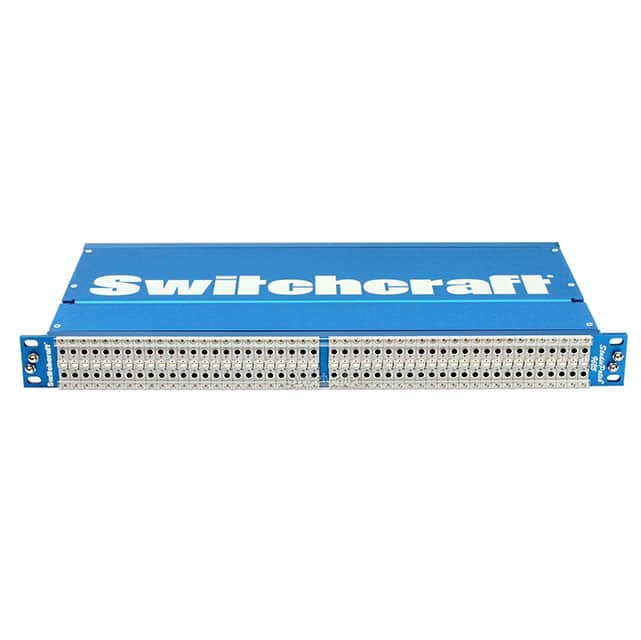

 9625 Conxall / Switchcraft | 1 $2.0000 | Datasheet | 0.173" Phone Jack | 96 | 2 | Connector | Audio Jack Panel | 9,243 Cart + RFQ |

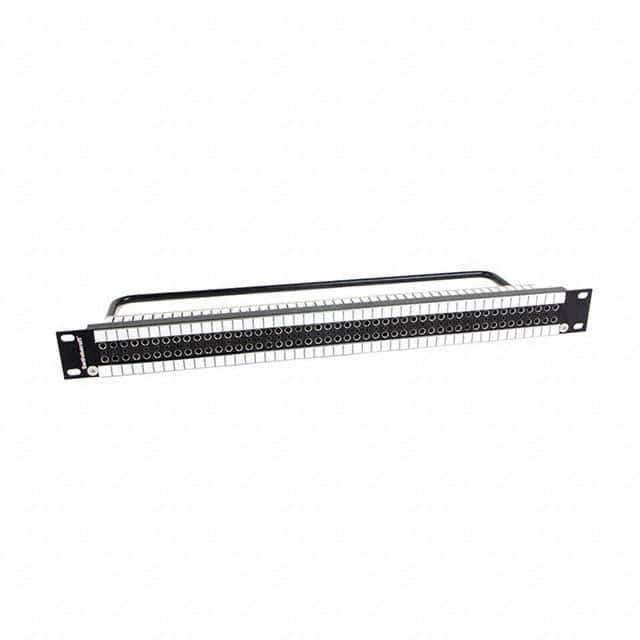

 MMVP48K2NT Conxall / Switchcraft | 1 $2.0000 | Datasheet | HD Jack, 75Ohm Non-Terminated | 96 | 2 | - | Video Pass Through Panel | 6,098 Cart + RFQ |

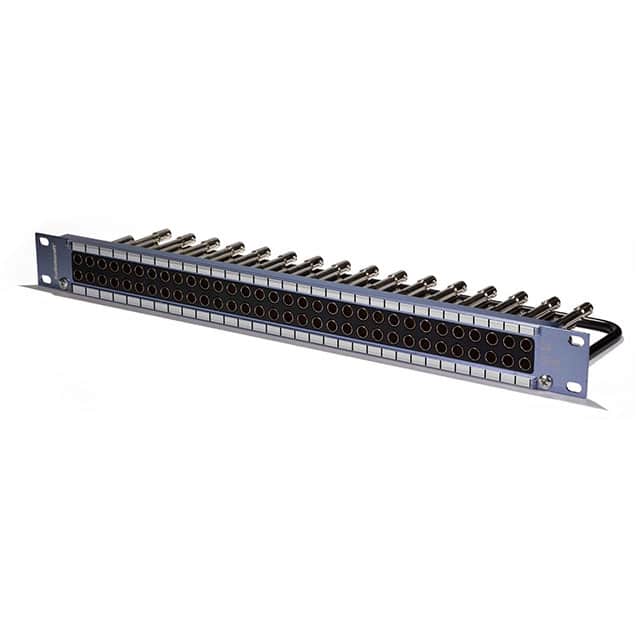

 MVP32K1UHD Conxall / Switchcraft | 1 $2.0000 | Datasheet | WECo Jack | 64 | 2 | - | Video Pass Through Panel | 1,764 Cart + RFQ |
 PK116B12D Conxall / Switchcraft | Datasheet | - | - | - | - | - | 8,160 Cart + RFQ | |
QGPK1B Conxall / Switchcraft | Datasheet | XLR (Not Provided) | 16 | 1 | Solder Cup | Audio Jack Panel | 4,925 Cart + RFQ | |
QGPK3B Conxall / Switchcraft | Datasheet | XLR (Not Provided) | 32 | 2 | Solder Cup | Audio Jack Panel | 8,144 Cart + RFQ | |
PK332B12D Conxall / Switchcraft | Datasheet | - | - | - | - | - | 6,948 Cart + RFQ |
