Wireless Charging Coils
Wireless charging coils generate an alternating electromagnetic field used to inductively transfer energy to other coils positioned parallel and in close proximity. The energy is used to charge batteries or run the device receiving the energy. The coils may be designed as receivers, transmitters or dual purpose having single or multiple coils and multiple layers of windings. They are rated by their inductance, self resonant frequency, saturation current and Q factor at a given frequency.
Product List
Total Components: 15
| Product | Pricing | Datasheet | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

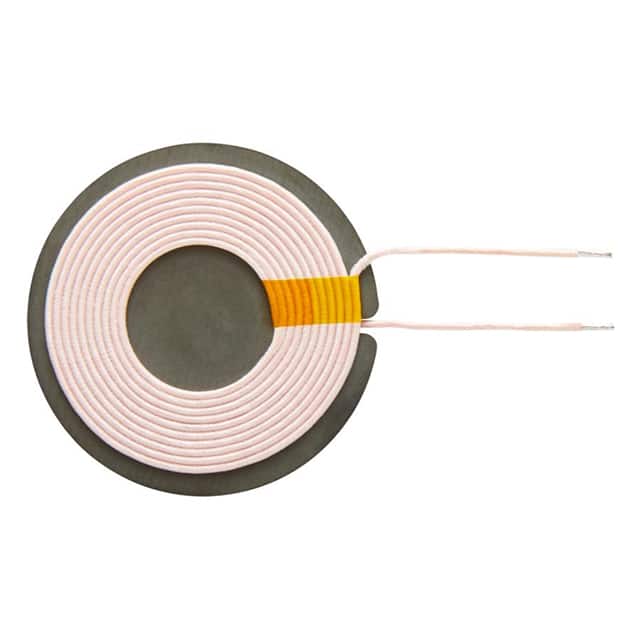

 WTSC-6R3K-A11B Signal Transformer | 1 $7.5600 | Datasheet | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 40mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) | 1,042 Cart + RFQ |

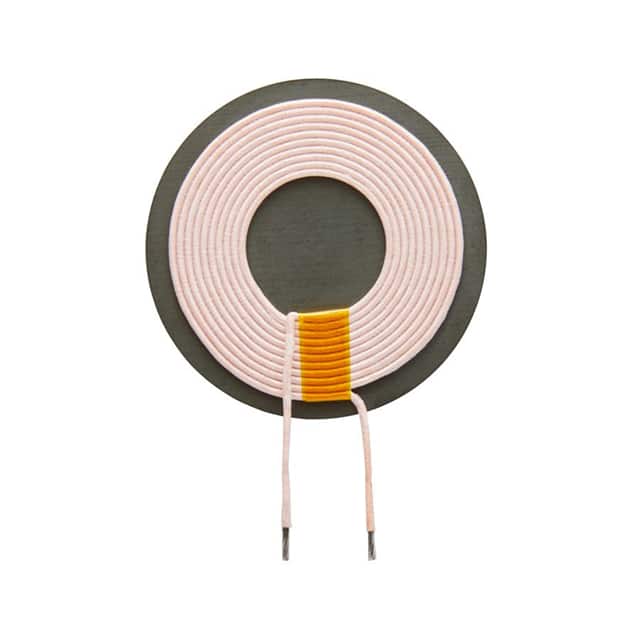

 WTSC-6R3K-A11 Signal Transformer | 1 $8.0500 | Datasheet | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 40mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.14" H (50.0mm x 3.5mm) | 5,611 Cart + RFQ |

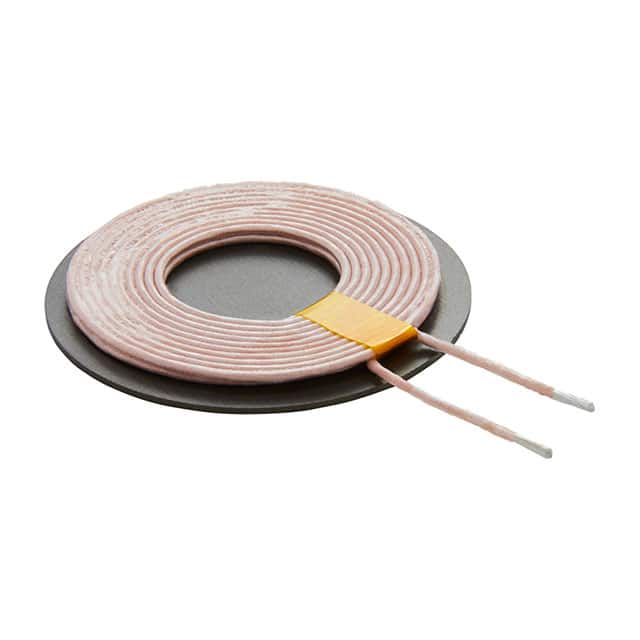

 WTSC-24R0K-A10 Signal Transformer | 1 $10.9900 | Datasheet | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 85mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) | 6,224 Cart + RFQ |
 WTM9R8K-A9 Signal Transformer | 1 $14.5400 | Datasheet | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 60mOhm Max, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) | 2,035 Cart + RFQ |
 WTM12R5K-A28 Signal Transformer | 1 $14.0000 | Datasheet | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) | 8,554 Cart + RFQ |
 WTM-12R5K-A6 Signal Transformer | 1 $14.2000 | Datasheet | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) | 9,927 Cart + RFQ |
WTSQ-6R3K-A11 Signal Transformer | 1 $3.0833 | Datasheet | Transmitter | 2 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 9A | 10A | - | -20°C ~ 85°C | 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) | 1,730 Cart + RFQ |
WTSC-10R0K-A3 Signal Transformer | 1 $4.6720 | Datasheet | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 75mOhm Max | - | 4A | 6A | - | -20°C ~ 85°C | 1.38" Dia x 0.13" H (35.0mm x 3.3mm) | 4,542 Cart + RFQ |
WTSQ-10R0K-MP-A5 Signal Transformer | 1 $6.6268 | Datasheet | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 48mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) | 4,333 Cart + RFQ |
WTM-7R1K-A28 Signal Transformer | 1 $10.2600 | Datasheet | Transmitter | 2 Coil, 1 Layer | 7.1µH | ±10% | 45mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) | 1,489 Cart + RFQ |
WTM-7R3K-S7 Signal Transformer | 1 $10.9654 | Datasheet | Transmitter | 2 Coil, 1 Layer | 7.3µH | ±10% | 50mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) | 3,958 Cart + RFQ |
WTM-7R0K-A28 Signal Transformer | 1 $10.9654 | Datasheet | Transmitter | 3 Coil, 1 Layer | 6.5µH, 7µH | ±10% | 45mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) | 5,323 Cart + RFQ |
WRSR-12R0K-13 Signal Transformer | 1 $5.5400 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | 6,069 Cart + RFQ |
WRSR-16R7K-11 Signal Transformer | 1 $5.5000 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | 6,558 Cart + RFQ |
WRSR-11R0K-16 Signal Transformer | 1 $5.0000 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | 4,580 Cart + RFQ |
