Board Supports
Board Supports are designed to create space between two boards or a surface and board at a specific height. These devices have mechanisms built into the part to attach the device to the boards. The characteristics are holding type, mounting type, between board height, length overall, support hole diameter, support panel thickness, mounting hole diameter, and mounting panel thickness.
Product List
Total Components: 42
| Product | Pricing | Datasheet | Holding Type | Mounting Type | Between Board Height | Length - Overall | Support Hole Diameter | Support Panel Thickness | Mounting Hole Diameter | Mounting Panel Thickness | Features | Material | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MSPM-3-01 Essentra Components | 1 $0.2400 | Datasheet | Snap Fit | Snap Lock | 0.188" (4.78mm) 3/16" | 0.480" (12.20mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 3,108 Cart + RFQ |
 DLMSPM-8-01 Essentra Components | 1 $0.2700 | Datasheet | Snap Lock | Snap Lock | 0.500" (12.70mm) 1/2" | 0.783" (19.87mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 8,456 Cart + RFQ |
 LCBS-8-01 Essentra Components | 1 $0.3200 | Datasheet | Snap Lock | Snap Lock | 0.500" (12.70mm) 1/2" | 1.232" (31.30mm) | 0.157" (3.99mm) | 0.062" (1.57mm) 1/16" | 0.187" (4.75mm) 3/16" | 0.031" ~ 0.078" (0.79mm ~ 1.98mm) | Winged | Nylon | 1,641 Cart + RFQ |
 RLCBSR-6-01 Essentra Components | 1 $0.3500 | Datasheet | Snap Lock | Snap Lock | 0.375" (9.53mm) 3/8" | 0.839" (21.30mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.187" (4.75mm) 3/16" | 0.059" ~ 0.063" (1.50mm ~ 1.60mm) | Locking, Reverse Mounting | Nylon | 6,689 Cart + RFQ |
 MDLSP1-05M-01 Essentra Components | 1 $0.3800 | Datasheet | Snap Lock | Snap Lock | 0.197" (5.00mm) | 0.484" (12.30mm) | 0.098" (2.50mm) | 0.065" (1.65mm) | 0.098" (2.50mm) | 0.065" (1.65mm) | - | Nylon | 9,520 Cart + RFQ |
 DLCBST-3-01 Essentra Components | 1 $0.3800 | Datasheet | Snap Lock | Snap Lock | 0.188" (4.78mm) 3/16" | 0.475" (12.06mm) | 0.100" (2.54mm) | 0.064" (1.63mm) | 0.100" (2.54mm) | 0.064" (1.63mm) | - | Nylon | 8,534 Cart + RFQ |
 LCBSBM-4-01A-RT Essentra Components | 1 $0.9900 | Datasheet | Snap Lock | Adhesive | 0.250" (6.35mm) 1/4" | 0.594" (15.09mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | - | - | Nylon | 8,855 Cart + RFQ |
MSPM-4-01 Essentra Components | 1 $0.2400 | Datasheet | Snap Fit | Snap Lock | 0.250" (6.35mm) 1/4" | 0.543" (13.80mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 7,935 Cart + RFQ |

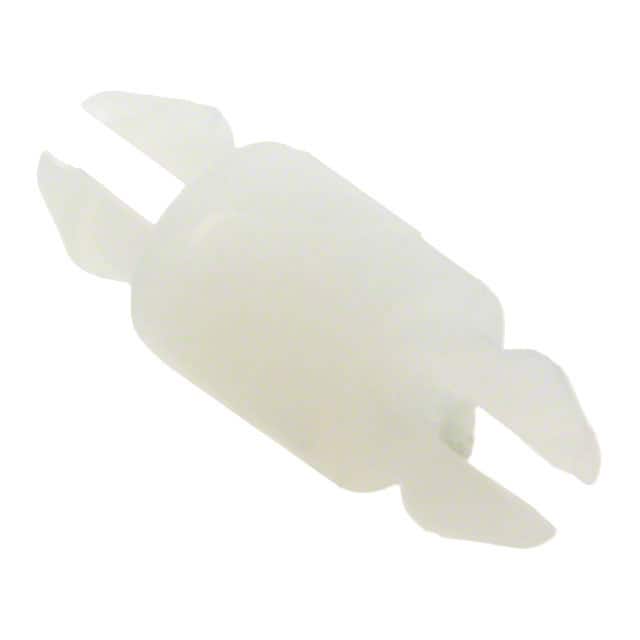

 DLMSPM-3-01 Essentra Components | 1 $0.2400 | Datasheet | Snap Lock | Snap Lock | 0.188" (4.78mm) 3/16" | 0.472" (12.00mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 5,392 Cart + RFQ |

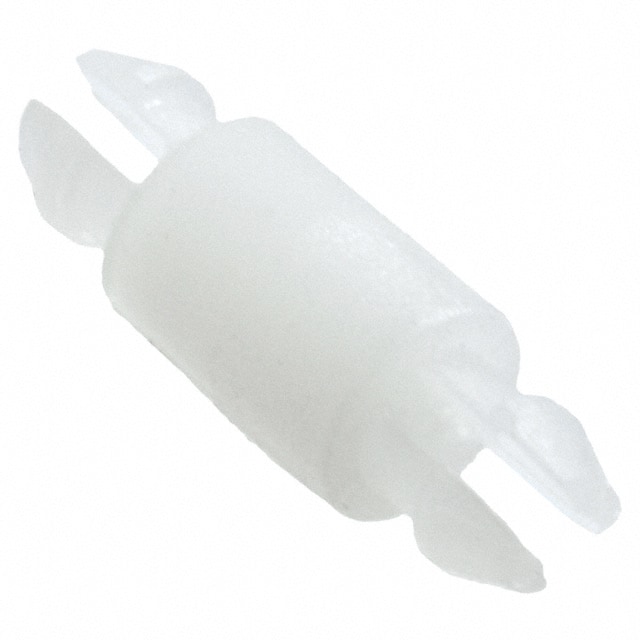

 DLMSPM-4-01 Essentra Components | 1 $0.2400 | Datasheet | Snap Lock | Snap Lock | 0.250" (6.35mm) 1/4" | 0.535" (13.60mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 2,155 Cart + RFQ |

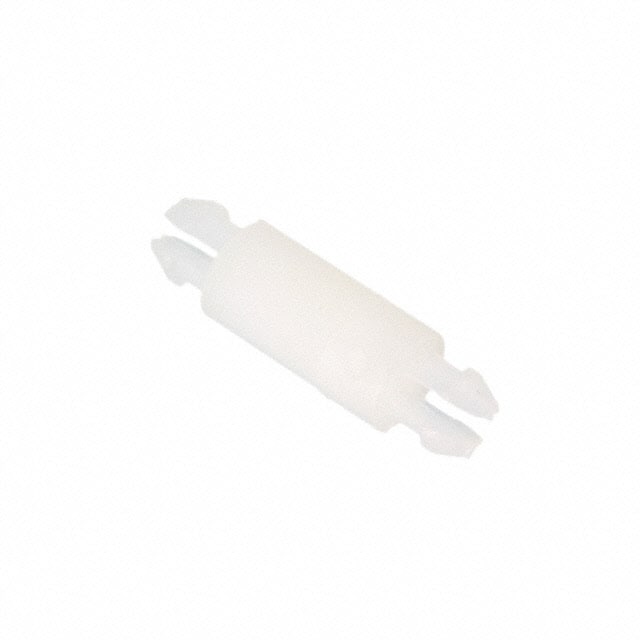

 DLMSPM-6-01 Essentra Components | 1 $0.2500 | Datasheet | Snap Lock | Snap Lock | 0.375" (9.53mm) 3/8" | 0.657" (16.70mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 5,529 Cart + RFQ |
MSPM-5-01 Essentra Components | 1 $0.2500 | Datasheet | Snap Fit | Snap Lock | 0.313" (7.95mm) 5/16" | 0.602" (15.30mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 1,796 Cart + RFQ |

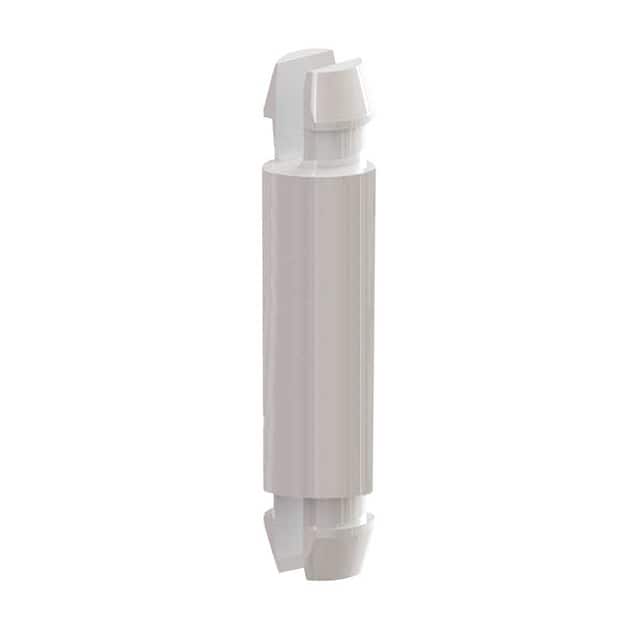

 DLMSPM-7-01 Essentra Components | 1 $0.2600 | Datasheet | Snap Lock | Snap Lock | 0.438" (11.13mm) 7/16" | 0.720" (18.30mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 8,474 Cart + RFQ |
MSPM-7-01 Essentra Components | 1 $0.2600 | Datasheet | Snap Fit | Snap Lock | 0.438" (11.13mm) 7/16" | 0.728" (18.50mm) | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | 0.125" (3.18mm) 1/8" | 0.062" (1.57mm) 1/16" | - | Nylon | 4,818 Cart + RFQ |

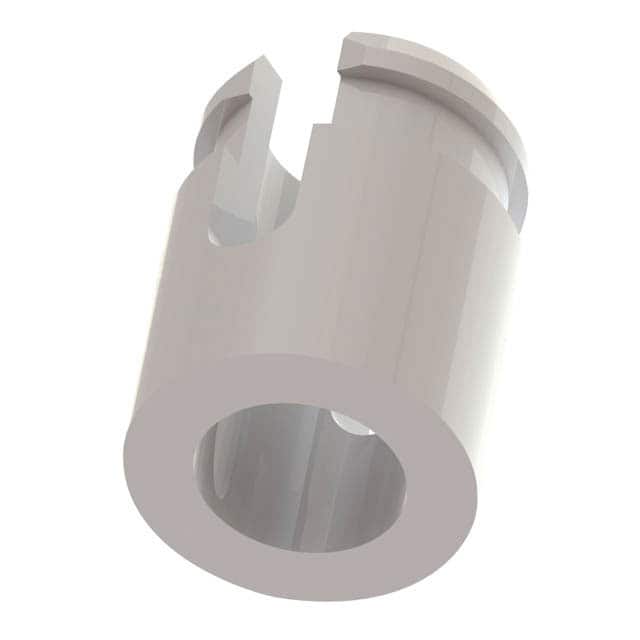

 SRS4-2-01 Essentra Components | 1 $0.2600 | Datasheet | Snap Lock | Screw Mount | 0.125" (3.18mm) 1/8" | 0.252" (6.40mm) | 0.187" (4.75mm) 3/16" | 0.062" (1.57mm) 1/16" | 0.187" (4.75mm) 3/16" | 0.062" (1.57mm) 1/16" | - | Nylon | 2,588 Cart + RFQ |

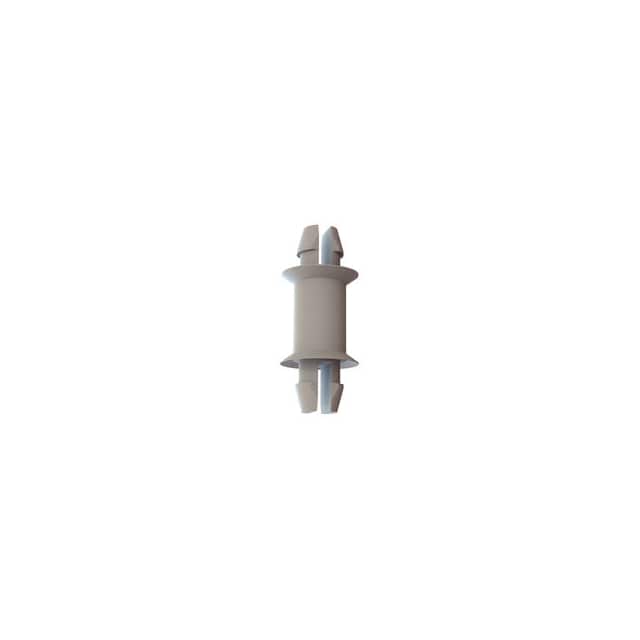

 27DMSP00250 Essentra Components | 1 $0.2700 | Datasheet | Snap Lock | Snap Lock | 0.250" (6.35mm) 1/4" | - | 0.125" (3.18mm) 1/8" | 0.063" (1.59mm) | 0.125" (3.18mm) 1/8" | 0.063" (1.59mm) | - | Nylon | 3,348 Cart + RFQ |
 BHL-3-01 Essentra Components | 1 $0.2700 | Datasheet | Snap Lock | Barbed Fastener | 0.188" (4.78mm) 3/16" | 0.933" (23.71mm) | 0.156" (3.96mm) 5/32" | 0.062" (1.57mm) 1/16" | 0.312" (7.92mm) 5/16" | 0.250" (6.35mm) 1/4" | Blind Hole Mating | Nylon | 1,135 Cart + RFQ |
SRS4-4-01 Essentra Components | 1 $0.2800 | Datasheet | Snap Lock | Screw Mount | 0.250" (6.35mm) 1/4" | 0.378" (9.60mm) | 0.187" (4.75mm) 3/16" | 0.062" (1.57mm) 1/16" | 0.187" (4.75mm) 3/16" | 0.062" (1.57mm) 1/16" | - | Nylon | 4,761 Cart + RFQ |
 27DMSP00437 Essentra Components | 1 $0.2800 | Datasheet | Snap Lock | Snap Lock | 0.437" (11.10mm) | - | 0.125" (3.18mm) 1/8" | 0.063" (1.59mm) | 0.125" (3.18mm) 1/8" | 0.063" (1.59mm) | - | Nylon | 2,907 Cart + RFQ |
 LCBS-4-01 Essentra Components | 1 $0.2800 | Datasheet | Snap Fit | Snap Lock | 0.250" (6.35mm) 1/4" | 0.984" (25.00mm) | 0.157" (3.99mm) | 0.062" (1.57mm) 1/16" | 0.187" (4.75mm) 3/16" | 0.031" ~ 0.078" (0.79mm ~ 1.98mm) | Winged | Nylon | 8,252 Cart + RFQ |
