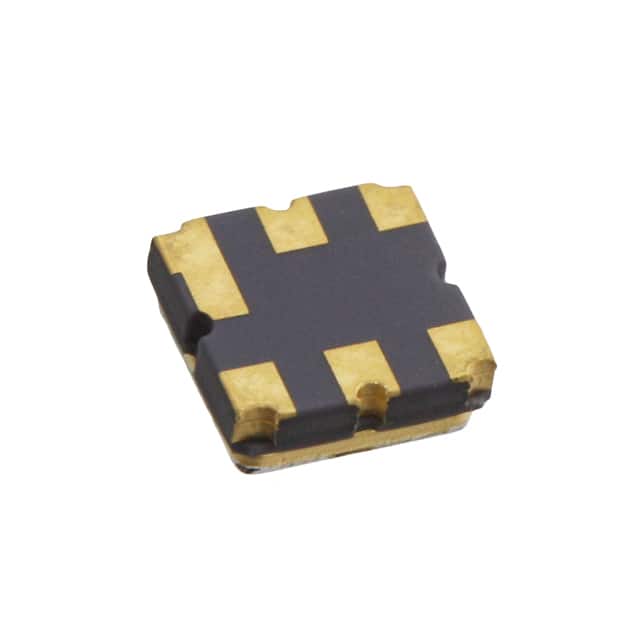

SAW Filters
SAW (Surface Acoustic Wave) Filters are designed to remove unwanted frequencies from a circuit. Items in this family convert signal voltages into acoustic waves at one end of the device. These waves travel the length of quartz device at a specific frequency. The waves are reconverted back to signal voltages on the other end. The bandwidth range is 25kHz to 328MHz with insertion losses of 0.44dB to 23dB.
Product List
Total Components: 31
| Product | Pricing | Datasheet | Frequency - Center | Bandwidth | Insertion Loss | Ratings | Applications | Mounting Type | Package / Case | Height (Max) | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

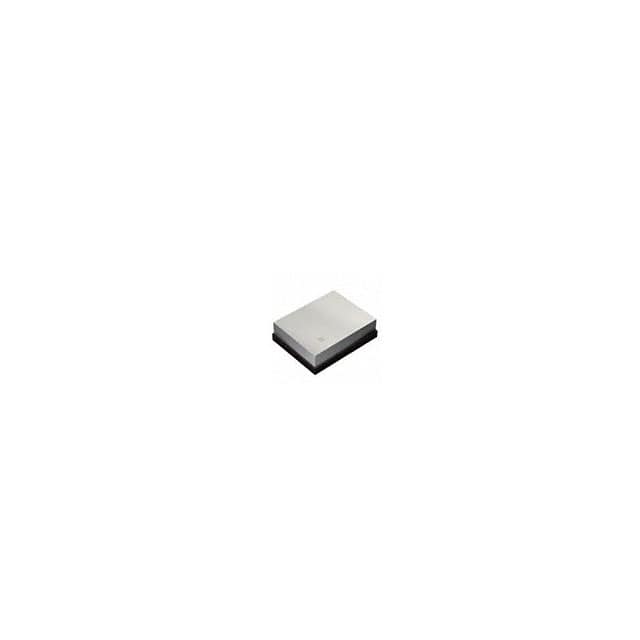

 F6QA1G582H2JM-J TAIYO YUDEN | 1 $0.1676 100 $0.1340 500 $0.1117 | Datasheet | 1.582GHz | - | 1.8dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 87,020 Cart + RFQ |
F5QA915M0M2AK-J TAIYO YUDEN | 1 $0.4800 | Datasheet | 915MHz | 26MHz | 1.8dB | - | ISM | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 7,810 Cart + RFQ |
F6KA1G575L4AJ-Z TAIYO YUDEN | 1 $0.4900 | Datasheet | 1.575GHz | 2MHz | 0.9dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.055" L x 0.039" W (1.40mm x 1.00mm) | 2,451 Cart + RFQ |
F6QA1G585M2AT-J TAIYO YUDEN | 1 $0.4800 | Datasheet | 1.585GHz | 40MHz | 1.2dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 7,204 Cart + RFQ |
F6QA1G581M2QZ-J TAIYO YUDEN | 1 $0.5000 | Datasheet | 1.581GHz | - | 1.4dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 4,577 Cart + RFQ |
F6QA1G575H2JF-J TAIYO YUDEN | 1 $0.5400 100 $0.4320 500 $0.3600 | Datasheet | 1.575GHz | - | 0.96dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 10,000 Cart + RFQ |

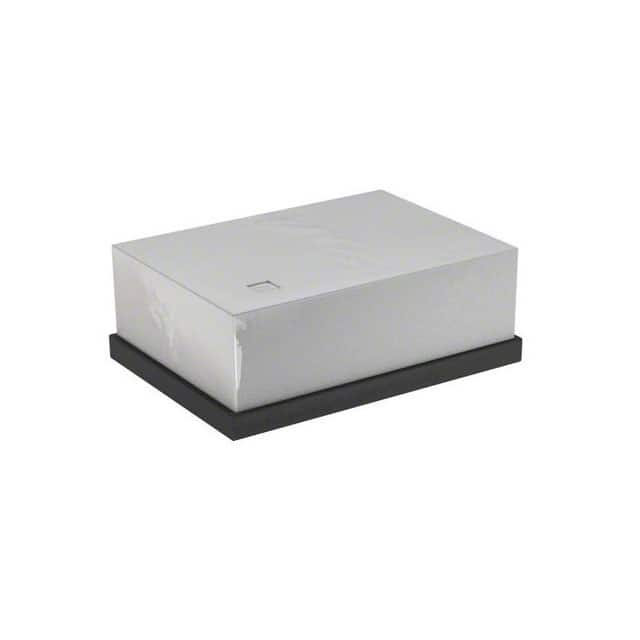

 D5FC847M0K3NE-Z TAIYO YUDEN | 1 $2.1700 | Datasheet | 847MHz | - | 1.8dB | - | General Purpose | Surface Mount | 8-SMD, No Lead | 0.017" (0.44mm) | 0.071" L x 0.055" W (1.80mm x 1.40mm) | 6,104 Cart + RFQ |
F6QB1G585P2BQ-J TAIYO YUDEN | 1 $0.4800 | Datasheet | 1.585GHz | 2MHz | 1.2dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 6,447 Cart + RFQ |
F5QA836M5M2AR-J TAIYO YUDEN | 1 $0.5000 | Datasheet | 836.5MHz | 25MHz | 1.9dB | - | Cellular, WCDMA | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 3,532 Cart + RFQ |
F5QA763M0M2QL-J TAIYO YUDEN | 1 $0.5000 | Datasheet | - | - | 2.2dB | - | General Purpose | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 6,321 Cart + RFQ |
FAR-F6KA-1G7400-D4DE-Z TAIYO YUDEN | 1 $0.4800 | Datasheet | 1.74GHz | 60MHz | 1.5dB | - | Cellular, WCDMA | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.055" L x 0.039" W (1.40mm x 1.00mm) | 2,008 Cart + RFQ |
FAR-F5KA-782M00-D4VP-Z TAIYO YUDEN | 1 $0.4800 | Datasheet | 782MHz | 10MHz | 1.5dB | - | Cellular, WCDMA | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.055" L x 0.039" W (1.40mm x 1.00mm) | 8,076 Cart + RFQ |
FAR-F6KA-1G9500-D4DG-Z TAIYO YUDEN | 1 $0.4800 | Datasheet | 1.95GHz | 60MHz | 1.6dB | - | Cellular, WCDMA | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.055" L x 0.039" W (1.40mm x 1.00mm) | 6,358 Cart + RFQ |
F6KA2G535L4AM-Z TAIYO YUDEN | 1 $0.4800 | Datasheet | 2.535GHz | 70MHz | 1.6dB | - | Cellular, WCDMA | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.055" L x 0.039" W (1.40mm x 1.00mm) | 6,560 Cart + RFQ |
F6FC2G441H4PE-J TAIYO YUDEN | 1 $0.8800 | Datasheet | - | - | 1dB | - | Bluetooth, WLAN | Surface Mount | 5-SMD, No Lead | 0.017" (0.44mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 3,730 Cart + RFQ |

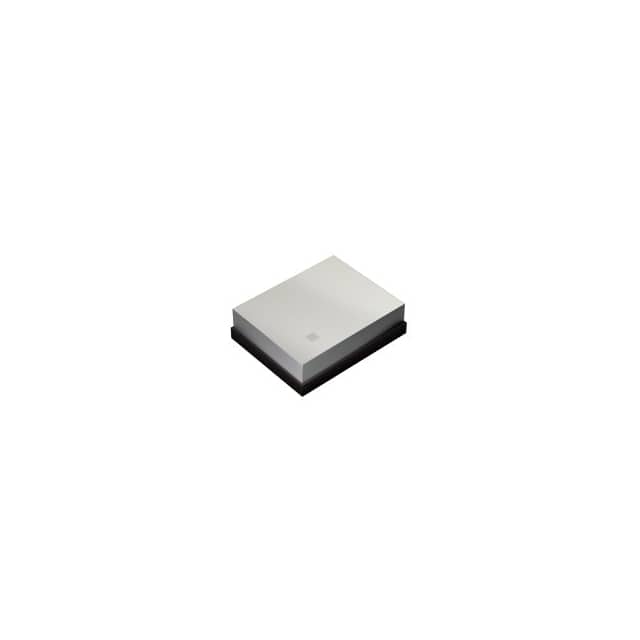

 F6FC1G197H4PF-J TAIYO YUDEN | 1 $0.9400 | Datasheet | - | - | 1dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 6,969 Cart + RFQ |
D5FC773M0K3NC-Z TAIYO YUDEN | 1 $2.1700 | Datasheet | 773MHz | - | 2.6dB | - | General Purpose | Surface Mount | 8-SMD, No Lead | 0.017" (0.44mm) | 0.071" L x 0.055" W (1.80mm x 1.40mm) | 9,923 Cart + RFQ |
 D6DA2G655K2F1-Z TAIYO YUDEN | 1 $2.5000 | Datasheet | - | - | - | - | - | - | - | - | - | 8,480 Cart + RFQ |
F6HG2G441EG65-J TAIYO YUDEN | 1 $2.7800 | Datasheet | 2.441GHz | - | 1.3dB | - | Bluetooth, WLAN | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 2,630 Cart + RFQ |
F5QA751M0M2QM-J TAIYO YUDEN | 1 $0.5000 | Datasheet | 751MHz | 10MHz | 1.9dB | - | CDMA, WCDMA, LTE | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 5,661 Cart + RFQ |
