SAW Filters
SAW (Surface Acoustic Wave) Filters are designed to remove unwanted frequencies from a circuit. Items in this family convert signal voltages into acoustic waves at one end of the device. These waves travel the length of quartz device at a specific frequency. The waves are reconverted back to signal voltages on the other end. The bandwidth range is 25kHz to 328MHz with insertion losses of 0.44dB to 23dB.
Product List
Total Components: 3
| Product | Pricing | Datasheet | Frequency - Center | Bandwidth | Insertion Loss | Ratings | Applications | Mounting Type | Package / Case | Height (Max) | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RSF-869.000-2000-3030-TR-NS4 Raltron | 1 $1.5300 | Datasheet | 869MHz | 2MHz | 2.2dB | - | General Purpose | Surface Mount | 6-SMD, No Lead | 0.051" (1.30mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1,359 Cart + RFQ |

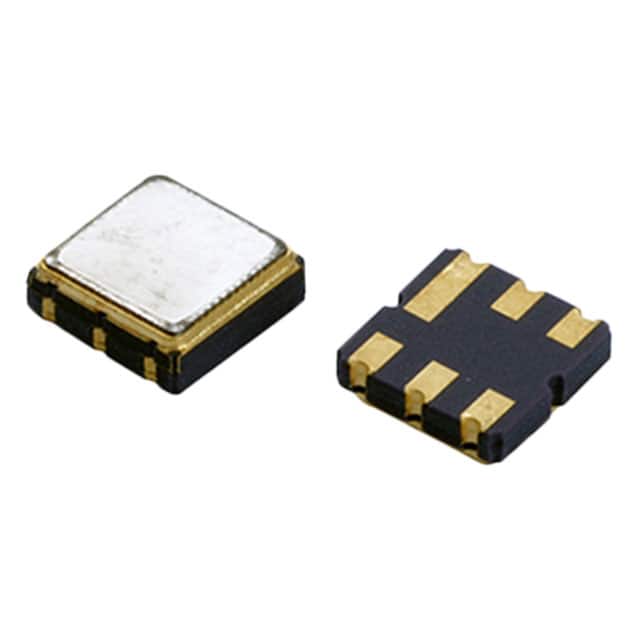

 RSF-942.500-35000-3030-TR-NS3 Raltron | 1 $4.6400 | Datasheet | 942.5MHz | 35MHz | 4.5dB | - | General Purpose | Surface Mount | 6-SMD, No Lead | 0.059" (1.50mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 5,250 Cart + RFQ |

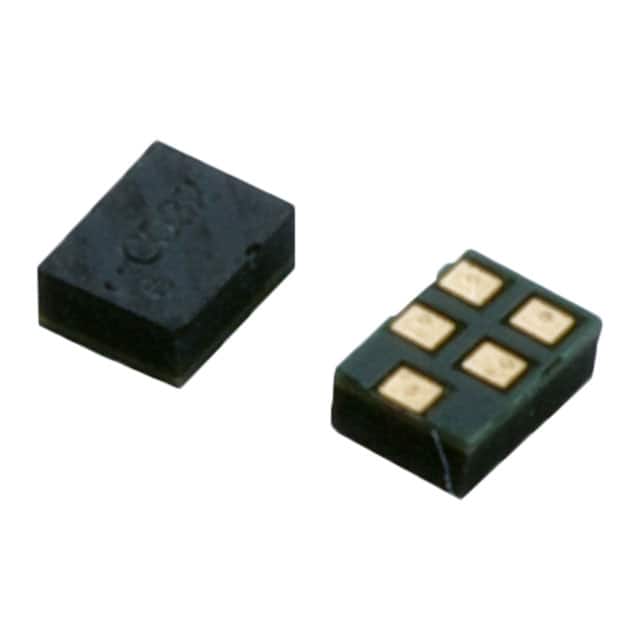

 RSF-1575.420-2000-1411-TR Raltron | 1 $0.3400 | Datasheet | 1.57542GHz | 2MHz | 1.3dB | - | General Purpose | Surface Mount | 5-SMD, No Lead | 0.028" (0.70mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 4,149 Cart + RFQ |
