SAW Filters
SAW (Surface Acoustic Wave) Filters are designed to remove unwanted frequencies from a circuit. Items in this family convert signal voltages into acoustic waves at one end of the device. These waves travel the length of quartz device at a specific frequency. The waves are reconverted back to signal voltages on the other end. The bandwidth range is 25kHz to 328MHz with insertion losses of 0.44dB to 23dB.
Product List
Total Components: 100
| Product | Pricing | Datasheet | Frequency - Center | Bandwidth | Insertion Loss | Ratings | Applications | Mounting Type | Package / Case | Height (Max) | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 F6QA1G582H2JM-J TAIYO YUDEN | 1 $0.1676 100 $0.1340 500 $0.1117 | Datasheet | 1.582GHz | - | 1.8dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 87,020 Cart + RFQ |
F5QA915M0M2AK-J TAIYO YUDEN | 1 $0.4800 | Datasheet | 915MHz | 26MHz | 1.8dB | - | ISM | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 7,810 Cart + RFQ |
F6KA1G575L4AJ-Z TAIYO YUDEN | 1 $0.4900 | Datasheet | 1.575GHz | 2MHz | 0.9dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.020" (0.50mm) | 0.055" L x 0.039" W (1.40mm x 1.00mm) | 2,451 Cart + RFQ |
 B39162B8813P810 Qualcomm® RF front-end (RFFE) filter products | 1 $0.5900 | Datasheet | - | - | - | - | - | Surface Mount | 5-SMD, No Lead | 0.018" (0.45mm) | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 5,825 Cart + RFQ |
B39162B9415K610 Qualcomm® RF front-end (RFFE) filter products | 1 $1.7400 100 $1.3920 500 $1.1600 | Datasheet | 1.575GHz | 2MHz | 0.6dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.016" (0.40mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 10 Cart + RFQ |
B39162B9416K610S 5 Qualcomm® RF front-end (RFFE) filter products | 1 $1.0800 | Datasheet | 1.575GHz | 2MHz | 0.9dB | - | GPS | Surface Mount | 5-SMD, No Lead | 0.016" (0.40mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 4,389 Cart + RFQ |
B39242B9413K610 Qualcomm® RF front-end (RFFE) filter products | 1 $1.0800 | Datasheet | 2.442GHz | 83.5MHz | 2dB | - | Bluetooth | Surface Mount | 5-SMD, No Lead | 0.016" (0.40mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 3,626 Cart + RFQ |
 B39431R0820H210 Qualcomm® RF front-end (RFFE) filter products | 1 $1.0000 | Datasheet | 433.92MHz | - | - | - | - | Surface Mount | 4-SMD, No Lead | 0.057" (1.45mm) | 0.197" L x 0.138" W (5.00mm x 3.50mm) | 3,966 Cart + RFQ |
B39242B8857L210 Qualcomm® RF front-end (RFFE) filter products | 1 $1.2500 | Datasheet | 2.442GHz | 79MHz | 1.6dB | - | Bluetooth, WLAN | Surface Mount | 5-SMD, No Lead | 0.028" (0.71mm) | 0.043" L x 0.035" W (1.09mm x 0.89mm) | 7,953 Cart + RFQ |
 B39431R0960H110 Qualcomm® RF front-end (RFFE) filter products | 1 $1.1000 | Datasheet | 433.92MHz | - | 1.3dB | AEC-Q200 | General Purpose | Surface Mount | 6-SMD, No Lead | 0.039" (1.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 8,866 Cart + RFQ |
B39242B8852P810 Qualcomm® RF front-end (RFFE) filter products | 1 $1.4100 | Datasheet | 2.442GHz | 79MHz | 1dB | - | Bluetooth, WLAN | Surface Mount | 5-SMD, No Lead | 0.018" (0.46mm) | 0.043" L x 0.035" W (1.09mm x 0.89mm) | 1,470 Cart + RFQ |
B39431R0900U410 Qualcomm® RF front-end (RFFE) filter products | 1 $1.2400 | Datasheet | 433.92MHz | - | 1.4dB | - | General Purpose | Surface Mount | 6-SMD, No Lead | 0.043" (1.10mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 6,754 Cart + RFQ |

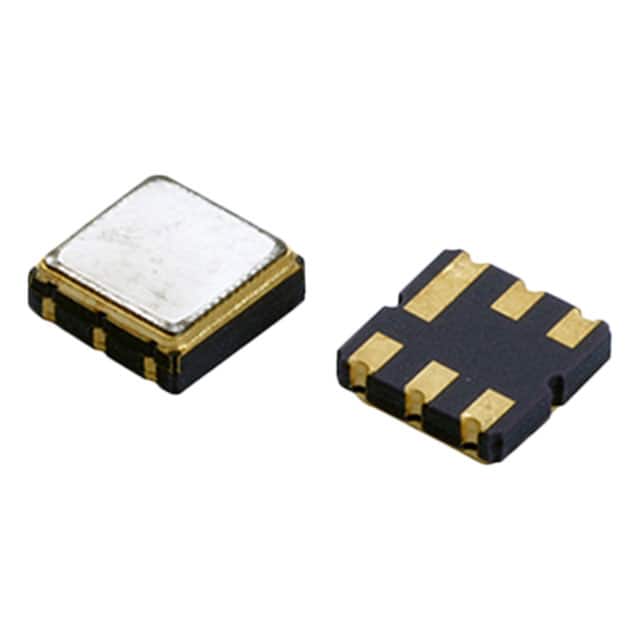

 RSF-869.000-2000-3030-TR-NS4 Raltron | 1 $1.5300 | Datasheet | 869MHz | 2MHz | 2.2dB | - | General Purpose | Surface Mount | 6-SMD, No Lead | 0.051" (1.30mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1,359 Cart + RFQ |
B39242B8328P810 Qualcomm® RF front-end (RFFE) filter products | 1 $1.5700 | Datasheet | 2.442GHz | 79MHz | 1.1dB | - | Bluetooth, WLAN | Surface Mount | 5-SMD, No Lead | 0.018" (0.45mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 3,535 Cart + RFQ |
B39871B4377P810 Qualcomm® RF front-end (RFFE) filter products | 1 $1.5800 | Datasheet | 866.5MHz | 7MHz | 2.3dB | AEC-Q200 | Remote Control | Surface Mount | 5-SMD, No Lead | 0.018" (0.45mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 3,596 Cart + RFQ |
B39921B2625P810 Qualcomm® RF front-end (RFFE) filter products | 1 $1.5800 | Datasheet | 915MHz | 26MHz | 1.7dB | AEC-Q200 | Remote Control | Surface Mount | 5-SMD, No Lead | 0.018" (0.45mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 6,377 Cart + RFQ |
B39921B2672P810 Qualcomm® RF front-end (RFFE) filter products | 1 $1.5800 | Datasheet | 915MHz | 26MHz | 1.1dB | - | General Purpose | Surface Mount | 5-SMD, No Lead | 0.018" (0.45mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 2,097 Cart + RFQ |
B39921B4301F210 Qualcomm® RF front-end (RFFE) filter products | 1 $1.5800 | Datasheet | 915MHz | 26MHz | 1.5dB | AEC-Q200 | Remote Control | Surface Mount | 5-SMD, No Lead | 0.016" (0.40mm) | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 8,357 Cart + RFQ |
B39431B3710U410 Qualcomm® RF front-end (RFFE) filter products | 1 $1.6100 | Datasheet | 433.92MHz | 1.7MHz | 2dB | AEC-Q200 | Remote Control | Surface Mount | 6-SMD, No Lead | 0.043" (1.10mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 7,491 Cart + RFQ |
B39921B3588U410 Qualcomm® RF front-end (RFFE) filter products | 1 $1.2857 100 $1.0285 500 $0.8571 | Datasheet | 915MHz | 26MHz | 2.9dB | AEC-Q200 | Remote Control | Surface Mount | 6-SMD, No Lead | 0.043" (1.10mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 9,000 Cart + RFQ |
