Power Line Filter Modules
Power line filter modules are modularized passive component assemblies that are used to inhibit current flow through power supply conductors at frequencies outside that which is nominal for the intended supply. Commonly used in conjunction with AC utility power sources, they are used both to mitigate interference caused by outside sources as well as suppress potential interference which might be caused by a connected device.
Product List
Total Components: 60
| Product | Pricing | Datasheet | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FN402-1.6-02 Schaffner EMC, Inc. | 1 $10.6000 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 1.6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 6mH | 1,823 Cart + RFQ |
 FN406-3-02 Schaffner EMC, Inc. | 1 $12.6200 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 2.5mH | 3,975 Cart + RFQ |
 FN405-1-02 Schaffner EMC, Inc. | 1 $12.7100 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 10mH | 2,204 Cart + RFQ |
 FN402-0.5-02 Schaffner EMC, Inc. | 1 $12.7500 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 500 mA | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 40mH | 7,093 Cart + RFQ |
 FN405-3-02 Schaffner EMC, Inc. | 1 $12.8300 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 2mH | 9,854 Cart + RFQ |
 FN2010-3-06 Schaffner EMC, Inc. | 1 $15.6000 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.5mH | 5,394 Cart + RFQ |
FN2010-6-06 Schaffner EMC, Inc. | 1 $15.9000 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH | 7,995 Cart + RFQ |
FN2010-10-06 Schaffner EMC, Inc. | 1 $16.2000 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 800µH | 4,796 Cart + RFQ |
 FN2030-3-06 Schaffner EMC, Inc. | 1 $16.2700 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 14mH | 6,596 Cart + RFQ |
 FN2030-6-06 Schaffner EMC, Inc. | 1 $17.8200 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH | 7,622 Cart + RFQ |

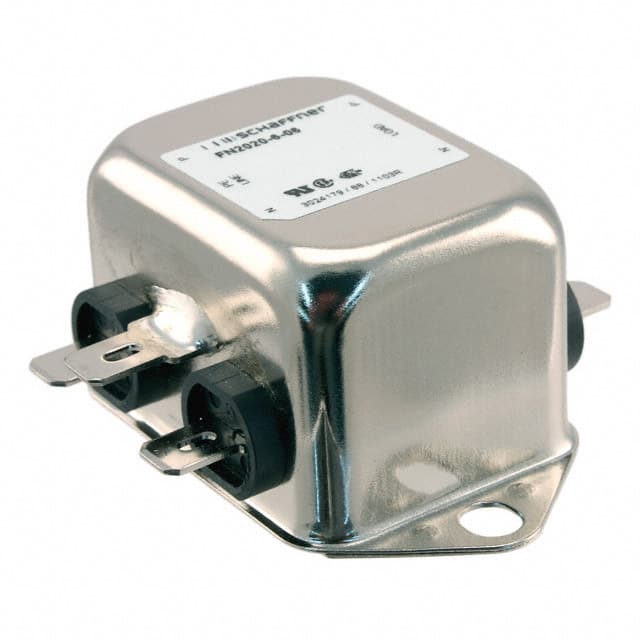

 FN2020-6-06 Schaffner EMC, Inc. | 1 $19.0100 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH | 8,417 Cart + RFQ |

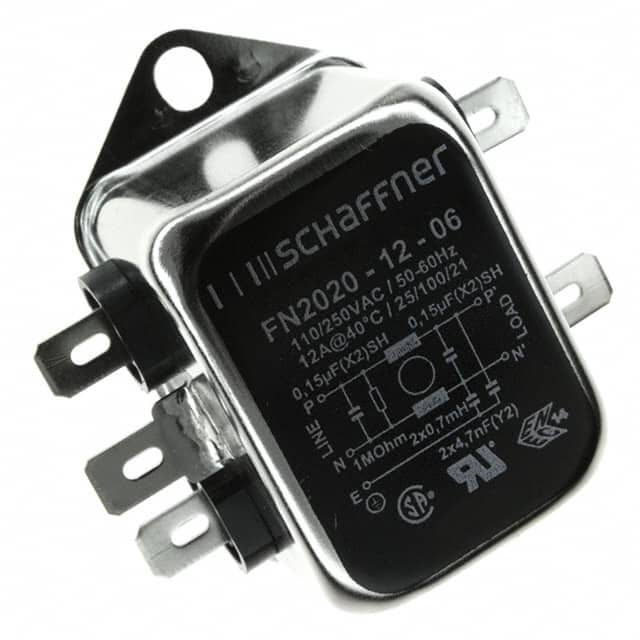

 FN2020-12-06 Schaffner EMC, Inc. | 1 $19.7300 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 12 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH | 9,115 Cart + RFQ |

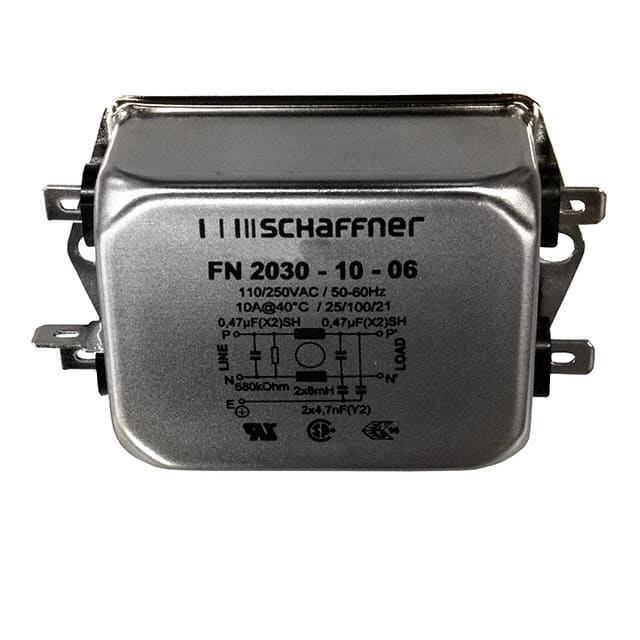

 FN2030-10-06 Schaffner EMC, Inc. | 1 $20.1600 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH | 5,282 Cart + RFQ |

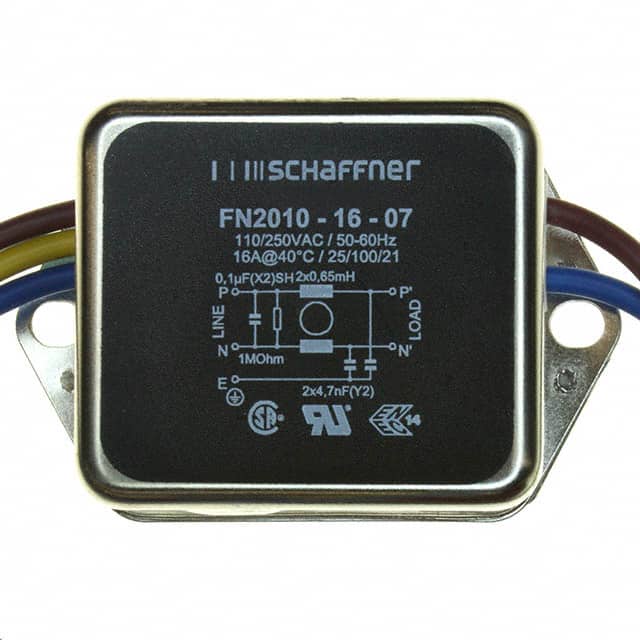

 FN2010-16-07 Schaffner EMC, Inc. | 1 $20.6400 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 700µH | 9,318 Cart + RFQ |

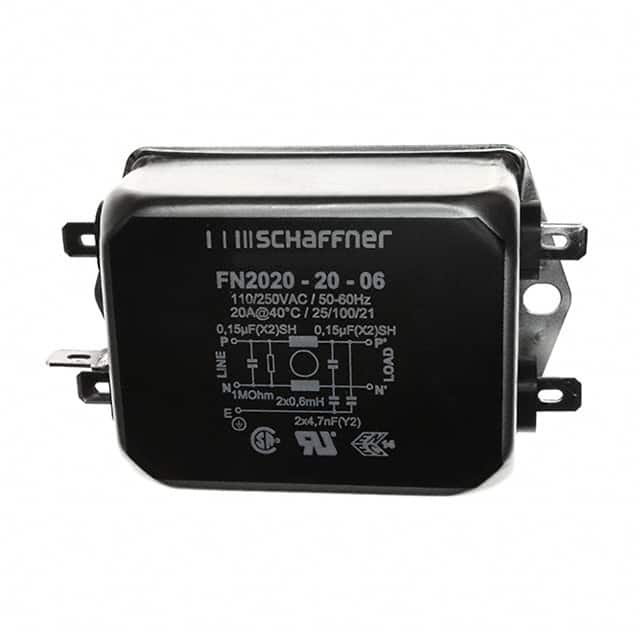

 FN2020-20-06 Schaffner EMC, Inc. | 1 $23.2400 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH | 9,713 Cart + RFQ |

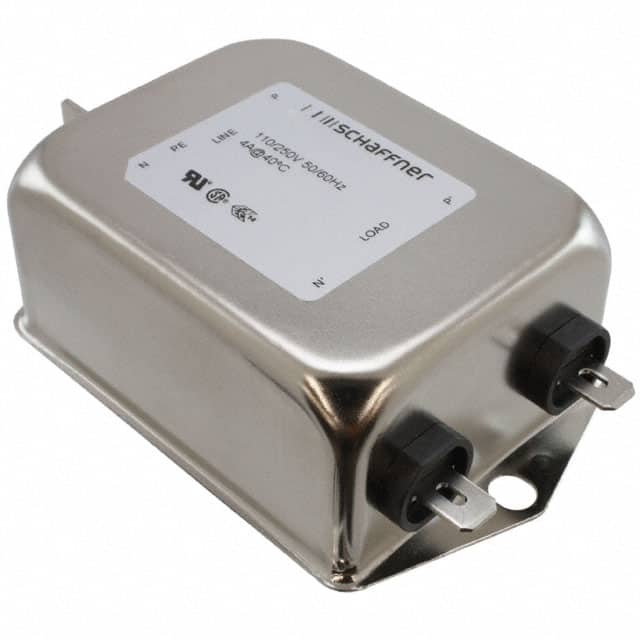

 FN2090-3-06 Schaffner EMC, Inc. | 1 $23.3600 | Datasheet | Single Phase | Two Stage | - | 110V, 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Quick Connect | 14mH | 1,006 Cart + RFQ |
FN2090-4-06 Schaffner EMC, Inc. | 1 $23.6800 | Datasheet | Single Phase | Two Stage | - | 110V, 250V | - | - | 4 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Quick Connect | 14mH | 5,444 Cart + RFQ |

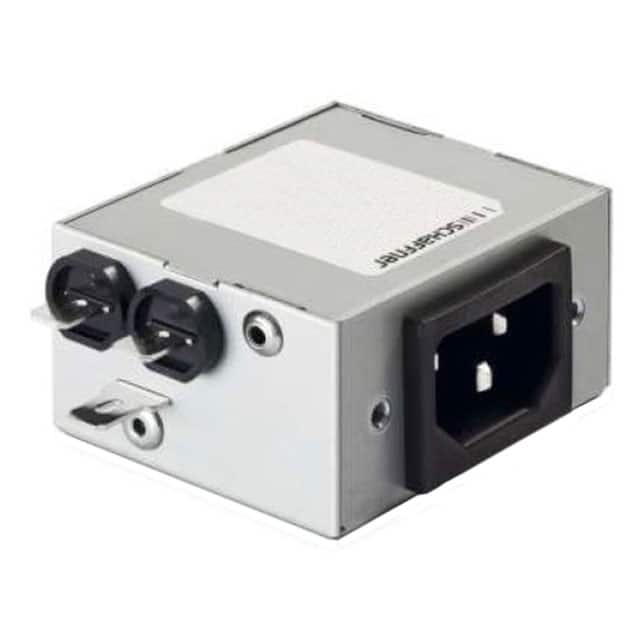

 FN9246-6-06 Schaffner EMC, Inc. | 1 $23.9900 | Datasheet | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | Lighting | CSA, SEMKO, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | 7mH | 4,395 Cart + RFQ |
FN2090B-6-06 Schaffner EMC, Inc. | 1 $24.5900 | Datasheet | Single Phase | Two Stage | - | 110V, 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Quick Connect | 8mH | 4,341 Cart + RFQ |
FN2090-6-06 Schaffner EMC, Inc. | 1 $24.7200 | Datasheet | Single Phase | Two Stage | - | 110V, 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -20°C ~ 100°C | Chassis Mount | Quick Connect | 8mH | 7,517 Cart + RFQ |
