Card Racks
Items in the card rack family (also known as sub-racks) are enclosure-like products designed to established dimensional standards that provide a mechanical means of assembling large, complex systems in a modular fashion. They provide a means by which multiple circuit boards or similar equipment components can be assembled together in a modular form, which can subsequently be mounted together with other such modularized equipment in a similar, larger enclosure known as a rack.
Product List
Total Components: 369
Product | Pricing | Datasheet | Type | Size / Dimension | Height | Card Size Range | Guide Method | Material | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|
CCM15S/90 Vector Electronics & Technology, Inc. | 1 $241.1700 | Datasheet | Assembled Card Mount Subracks | 12.000" L x 19.000" W (304.80mm x 482.60mm) | 4U = 7.000" (177.80mm) | 6.250" H x 9.600" L (158.75mm x 243.84mm) | No Card Guide | Aluminum | 2,015 Cart + RFQ |

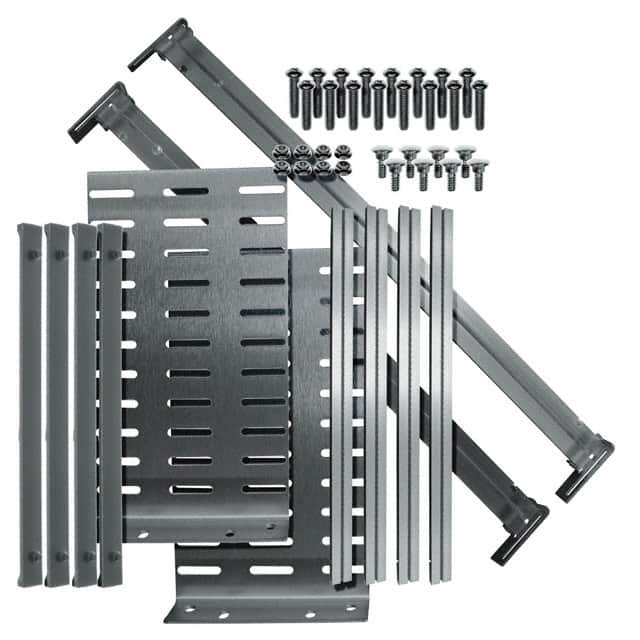

CCK13S/90 Vector Electronics & Technology, Inc. | 1 $172.5200 | Datasheet | Subrack Kit | 9.000" L x 19.000" W (228.60mm x 482.60mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 6.500" L (63.50mm ~ 114.30mm x 165.10mm) | Card Guide | Aluminum | 7,545 Cart + RFQ |

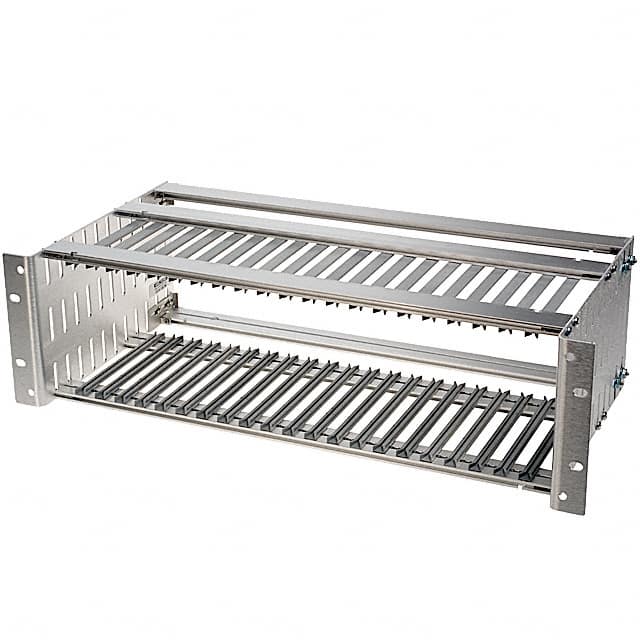

CCA13S/90 Vector Electronics & Technology, Inc. | 1 $186.6500 | Datasheet | Assembled Subracks with Card Guides | 9.000" L x 19.000" W (228.60mm x 482.60mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 6.500" L (63.50mm ~ 114.30mm x 165.10mm) | Card Guide | Aluminum | 5,896 Cart + RFQ |
CCM13S/90 Vector Electronics & Technology, Inc. | 1 $225.4600 | Datasheet | Assembled Card Mount Subracks | 9.000" L x 19.000" W (228.60mm x 482.60mm) | 3U = 5.250" (133.35mm) | 4.500" H x 6.500" L (114.30mm x 165.10mm) | No Card Guide | Aluminum | 8,520 Cart + RFQ |

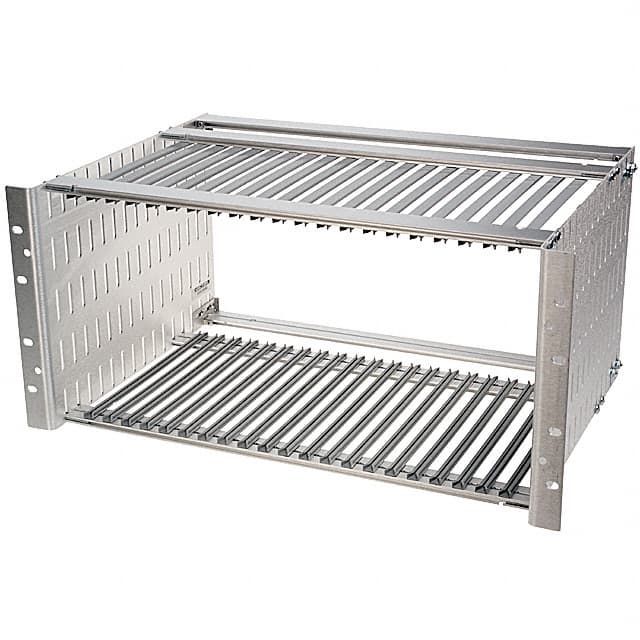

CCA17S/90 Vector Electronics & Technology, Inc. | 1 $226.2100 | Datasheet | Assembled Subracks with Card Guides | 12.000" L x 19.000" W (304.80mm x 482.60mm) | 5U = 8.750" (222.25mm) | 6.000" ~ 8.000" H x 9.600" L (152.40mm ~ 203.20mm x 243.84mm) | Card Guide | Aluminum | 5,912 Cart + RFQ |

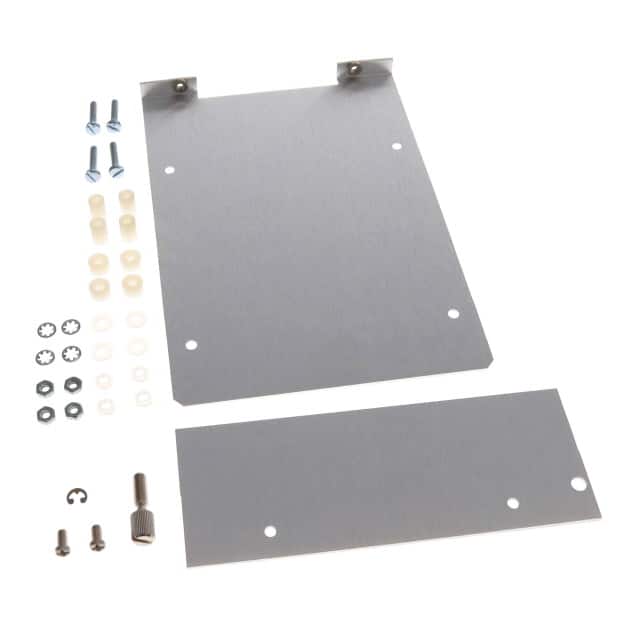

CM45A65-2 Vector Electronics & Technology, Inc. | 1 $34.5600 | Datasheet | Card Mount Module | 6.570" L x 2.000" W (166.88mm x 50.80mm) | 3U = 5.250" (133.35mm) | 4.500" H x 6.500" L (114.30mm x 165.10mm) | - | Aluminum | 7,343 Cart + RFQ |
CM45A65-4 Vector Electronics & Technology, Inc. | 1 $39.0800 | Datasheet | Card Mount Module | 6.570" L x 4.000" W (166.88mm x 101.60mm) | 3U = 5.250" (133.35mm) | 4.500" H x 6.500" L (114.30mm x 165.10mm) | - | Aluminum | 1,910 Cart + RFQ |

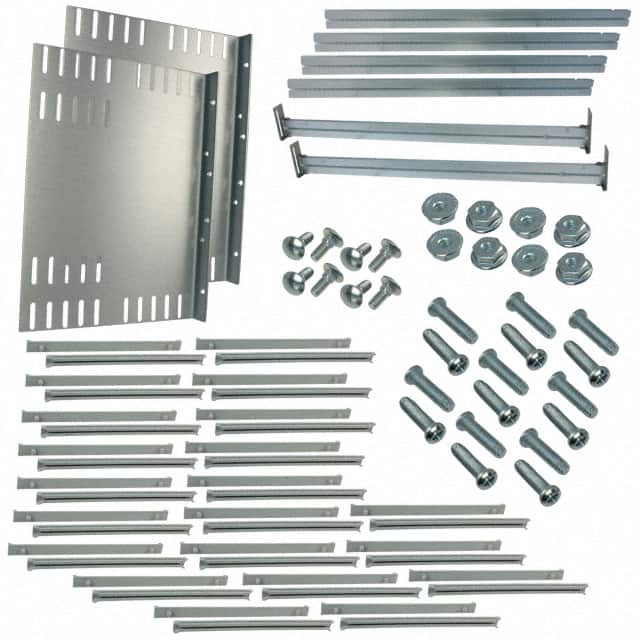

CCK12S/90 Vector Electronics & Technology, Inc. | 1 $172.5200 | Datasheet | Subrack Kit | 9.000" L x 19.000" W (228.60mm x 482.60mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 4.500" L (63.50mm ~ 114.30mm x 114.30mm) | Card Guide | Aluminum | 5,564 Cart + RFQ |

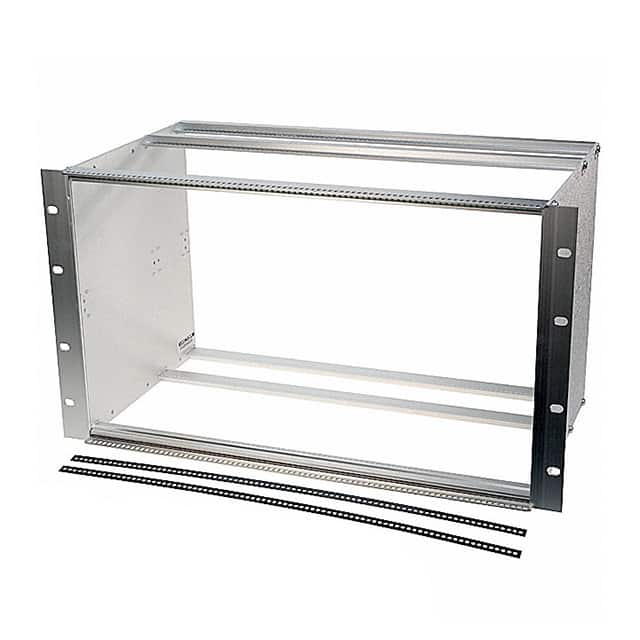

CCA28-84-00 Vector Electronics & Technology, Inc. | 1 $181.3300 | Datasheet | Assembled Subracks with Card Guides | 10.000" L x 19.000" W (254.00mm x 482.60mm) | 6U = 10.500" (266.70mm) | 9.187" H x 8.660" L (233.35mm x 219.96mm) | Guide Plate | Aluminum | 3,296 Cart + RFQ |
CCA13S-8/90 Vector Electronics & Technology, Inc. | 1 $369.4800 | Datasheet | Assembled Subracks with Card Guides | 7.000" L x 4.350" W (177.80mm x 110.49mm) | 3U = 5.250" (133.35mm) | - | Card Guide | - | 3,247 Cart + RFQ |
CCA13S-HT8/90 Vector Electronics & Technology, Inc. | 1 $387.4400 | Datasheet | Assembled Subracks with Card Guides | 8.120" L x 8.240" W (206.25mm x 209.30mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 6.500" L (63.50mm ~ 114.30mm x 165.10mm) | Card Guide | Aluminum | 6,965 Cart + RFQ |
CCA13S-16/90 Vector Electronics & Technology, Inc. | 1 $397.6900 | Datasheet | Assembled Subracks with Card Guides | 9.000" L x 19.000" W (228.60mm x 482.60mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 6.500" L (63.50mm ~ 114.30mm x 165.10mm) | Card Guide | Aluminum | 6,082 Cart + RFQ |

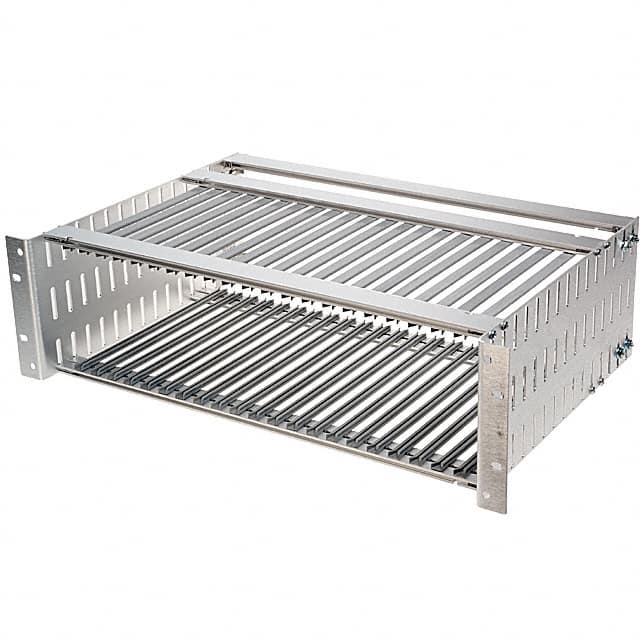

CCA14S/90 Vector Electronics & Technology, Inc. | 1 $218.4100 | Datasheet | Assembled Subracks with Card Guides | 12.000" L x 19.000" W (304.80mm x 482.60mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 9.600" L (63.50mm ~ 114.30mm x 243.84mm) | Card Guide | Aluminum | 8,515 Cart + RFQ |
CCM14S/90 Vector Electronics & Technology, Inc. | 1 $234.3700 | Datasheet | Assembled Card Mount Subracks | 12.000" L x 19.000" W (304.80mm x 482.60mm) | 3U = 5.250" (133.35mm) | 4.500" H x 9.600" L (114.30mm x 243.84mm) | No Card Guide | Aluminum | 5,329 Cart + RFQ |
1406-1006-01 Vector Electronics & Technology, Inc. | 1 $28.3300 | Datasheet | Subrack Kit | - | 6U = 10.500" (266.70mm) | - | - | Aluminum | 9,103 Cart + RFQ |
CCA13M-HT/90 Vector Electronics & Technology, Inc. | 1 $152.7100 | Datasheet | Assembled Subracks with Card Guides | 9.000" L x 8.250" W (228.60mm x 209.55mm) | 3U = 5.250" (133.35mm) | 2.500" ~ 4.500" H x 6.500" L (63.50mm ~ 114.30mm x 165.10mm) | Card Guide | Aluminum | 6,323 Cart + RFQ |
CCA26-84-00-00 Vector Electronics & Technology, Inc. | 1 $178.7100 | Datasheet | Assembled Subracks with Card Guides | 8.500" L x 19.000" W (215.90mm x 482.60mm) | 3U = 5.250" (133.35mm) | 3.937" H x 8.660" L (100.00mm x 219.96mm) | Guide Plate | Aluminum | 8,037 Cart + RFQ |
CCA46-24-01 Vector Electronics & Technology, Inc. | 1 $190.8900 | Datasheet | Assembled Subracks with Card Guides | - | 3U = 5.250" (133.35mm) | - | Card Guide | Aluminum | 2,216 Cart + RFQ |

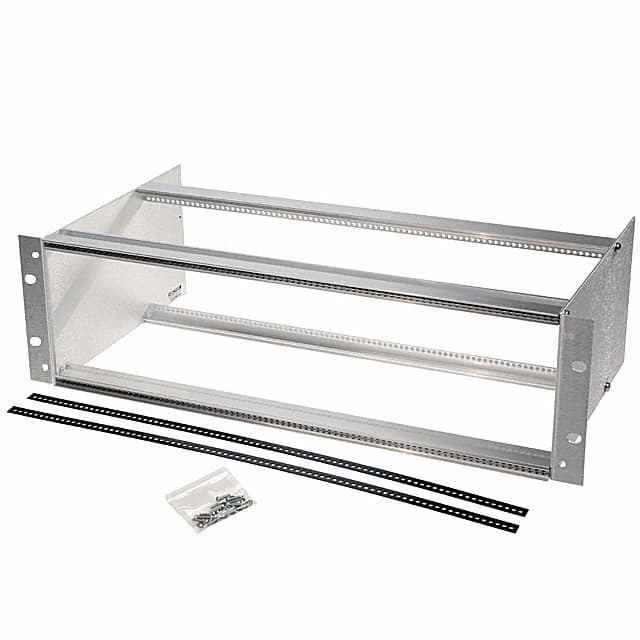

CCA160-3U Vector Electronics & Technology, Inc. | 1 $193.0600 | Datasheet | Subrack Frame | 9.270" L x 19.000" W (235.46mm x 482.60mm) | 3U = 5.250" (133.35mm) | 3.940" H x 6.299" L (100.08mm x 159.99mm) | No Card Guide | Aluminum | 3,969 Cart + RFQ |
CCK340-6U Vector Electronics & Technology, Inc. | 1 $224.7000 | Datasheet | Subrack Kit | 16.360" L x 19.000" W (415.54mm x 482.60mm) | 6U = 10.500" (266.70mm) | 9.187" H x 13.390" L (233.35mm x 340.11mm) | No Card Guide | Aluminum | 3,199 Cart + RFQ |
