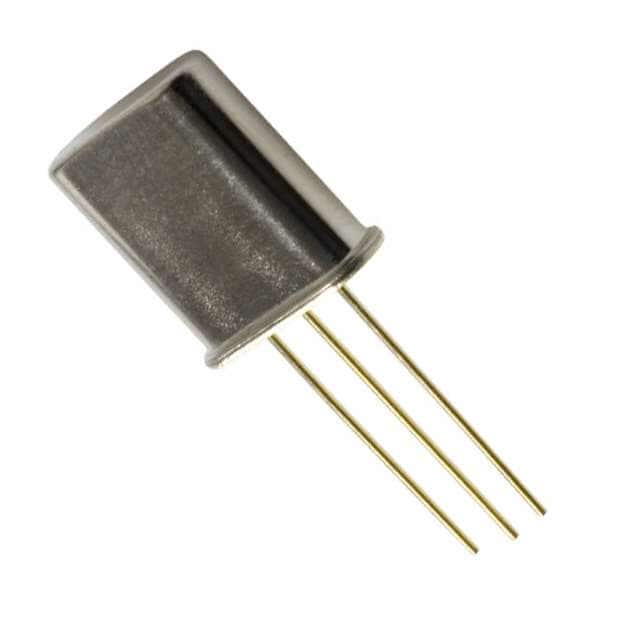

Monolithic Crystals
Monolithic crystal filter (MCF) products are used in radio and related applications as bandpass filters. Closely related to the quartz crystal resonators used widely for frequency generation, MCF filters employ the piezoelectric and mechanical resonance properties of the quartz material to produce a filter with very high selectivity in a compact package.
Product List
Total Components: 12
| Product | Pricing | Datasheet | Frequency - Center | Impedance | Insertion Loss | Bandwidth | Ripple | Number of Poles | Operating Temperature | Mounting Type | Package / Case | Size / Dimension | Height (Max) | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XDCAF21M700MAA00P0 Murata Electronics | 1 $5.1500 | Datasheet | 21.7 MHz | 1.05 kOhms | 2dB | 3.75 kHz | 1dB | 2 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 6,034 Cart + RFQ |
XDCAG38M850PGA00P0 Murata Electronics | 1 $5.9400 | Datasheet | 38.85 MHz | 610 Ohms | 5dB | 5 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 2,488 Cart + RFQ |
XDCAG46M350PGA00P0 Murata Electronics | 1 $7.1800 | Datasheet | 46.35 MHz | 670 Ohms | 5dB | 5 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 3,229 Cart + RFQ |
XDCAG49M950PGA00P0 Murata Electronics | 1 $7.3200 | Datasheet | 49.95 MHz | 400 Ohms | 5dB | 5 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 8,128 Cart + RFQ |
XDCAG45M000RGA00P0 Murata Electronics | 1 $7.3900 | Datasheet | 45 MHz | 800 Ohms | 3dB | 7.5 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 2,956 Cart + RFQ |
XDCAG51M650PGA00P0 Murata Electronics | 1 $7.7900 | Datasheet | 51.65 MHz | 560 Ohms | 5dB | 5 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 7,396 Cart + RFQ |
XDCAH25M000EHA01P0 Murata Electronics | 1 $8.0300 | Datasheet | 25 MHz | 470 Ohms | 4dB | 1 kHz | 1dB | 4 | -40°C ~ 85°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 9,113 Cart + RFQ |
XDCAG58M050MGA00P0 Murata Electronics | 1 $8.4100 | Datasheet | 58.05 MHz | 250 Ohms | 5dB | 4 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 4,375 Cart + RFQ |
XDCAH50M850PHA00P0 Murata Electronics | 1 $8.5400 | Datasheet | 50.85 MHz | 560 Ohms | 5dB | 5 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 2,537 Cart + RFQ |
XDCAF21M400RAA00P0 Murata Electronics | Datasheet | 21.4 MHz | 1.5 kOhms | 2dB | 7.5 kHz | 1dB | 2 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 3,163 Cart + RFQ | |
XDCAE50M000HHA01P0 Murata Electronics | Datasheet | 50 MHz | 300 Ohms | 4dB | 1.75 kHz | 1dB | 4 | -40°C ~ 85°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 7,017 Cart + RFQ | |
XDCAH73M350QHA03P0 Murata Electronics | Datasheet | 73.35 MHz | 450 Ohms | 4dB | 6 kHz | 1dB | 4 | -20°C ~ 70°C | Surface Mount | 6-SMD, No Lead | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.049" (1.25mm) | 6,598 Cart + RFQ |
