Ferrite Beads and Chips
Ferrite cores are devices that are designed to prevent high frequency noise or EMI (electromagnetic interference). These ferrite cores are made to be placed within an electric circuit. Key characteristics are the filter type (differential, signal, or power), number of lines, max current rating, impedance and a specified frequency, and mounting type (free hanging, surface mount, or through-hole).
Product List
Total Components: 6
| Product | Pricing | Datasheet | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Package / Case | Mounting Type | Height (Max) | Size / Dimension | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MMZ1005S601CT000 TDK Corporation | 1 $0.1000 | Datasheet | Signal Line | 1 | 600 Ohms @ 100 MHz | 300mA | 520mOhm | - | -55°C ~ 125°C | 0402 (1005 Metric) | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 8,872 Cart + RFQ |

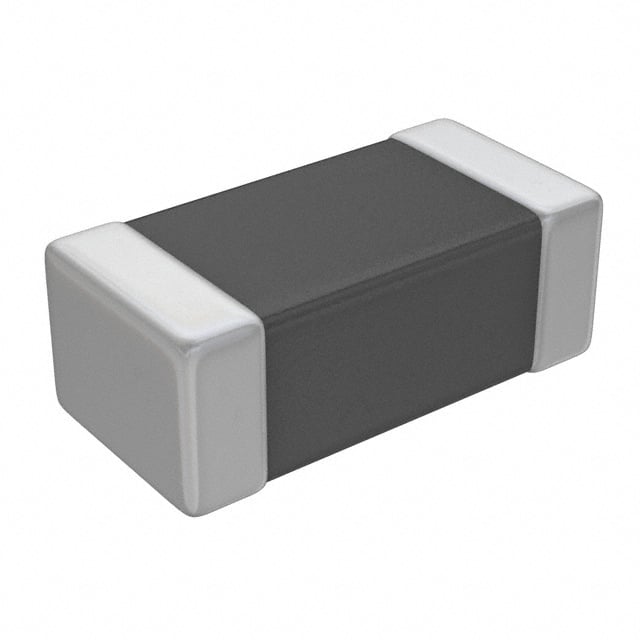

 MMZ1608B301CTAH0 TDK Corporation | 1 $0.1000 | Datasheet | Signal Line | 1 | 300 Ohms @ 100 MHz | 500mA | 250mOhm | - | -55°C ~ 125°C | 0603 (1608 Metric) | Surface Mount | 0.030" (0.75mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 7,994 Cart + RFQ |
 MPZ1005S600CT000 TDK Corporation | 1 $0.1000 | Datasheet | Power Line | 1 | 60 Ohms @ 100 MHz | 1.5A | 60mOhm | - | -55°C ~ 125°C | 0402 (1005 Metric) | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 7,234 Cart + RFQ |
MPZ1005S121CT000 TDK Corporation | 1 $0.0857 100 $0.0685 500 $0.0571 | Datasheet | Power Line | 1 | 120 Ohms @ 100 MHz | 1.2A | 90mOhm | - | -55°C ~ 125°C | 0402 (1005 Metric) | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 6,000 Cart + RFQ |

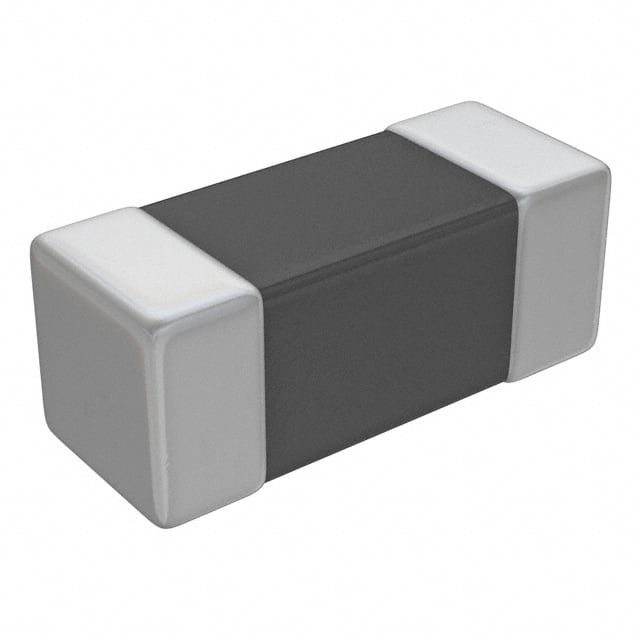

 MMZ2012Y202BTD25 TDK Corporation | 1 $0.1200 | Datasheet | Signal Line | 1 | 2 kOhms @ 100 MHz | 400mA | 500mOhm | AEC-Q200 | -55°C ~ 125°C | 0805 (2012 Metric) | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 2,710 Cart + RFQ |

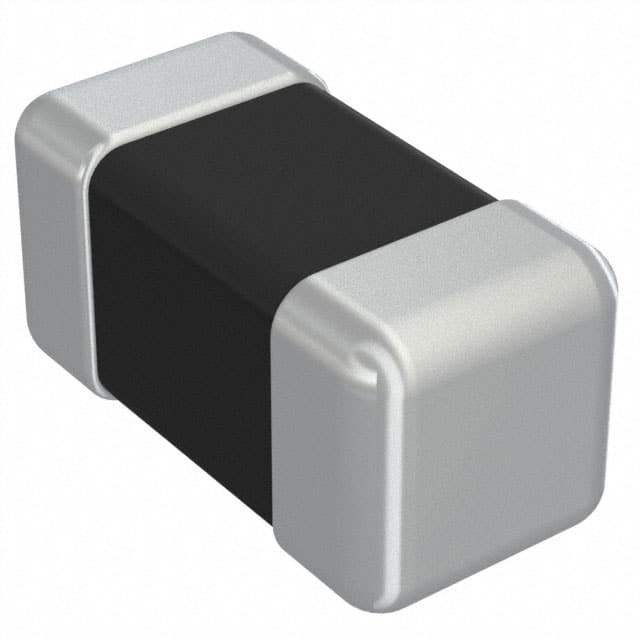

 MPZ0603S121HT000 TDK Corporation | 1 $0.1400 | Datasheet | Power Line | 1 | 120 Ohms @ 100 MHz | 1A | 130mOhm | - | -55°C ~ 125°C | 0201 (0603 Metric) | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 6,238 Cart + RFQ |
