Common Mode Chokes
A common mode choke is an electrical filter that blocks high frequency noise common to two or more data or power lines while allowing the desired DC or low-frequency signal to pass. Common mode (CM) noise current is typically radiated from sources such as unwanted radio signals, unshielded electronics, inverters and motors. Left unfiltered, this noise presents interference problems in electronics and electrical circuits.
Product List
Total Components: 8
| Product | Pricing | Datasheet | Filter Type | Number of Lines | Impedance @ Frequency | Inductance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

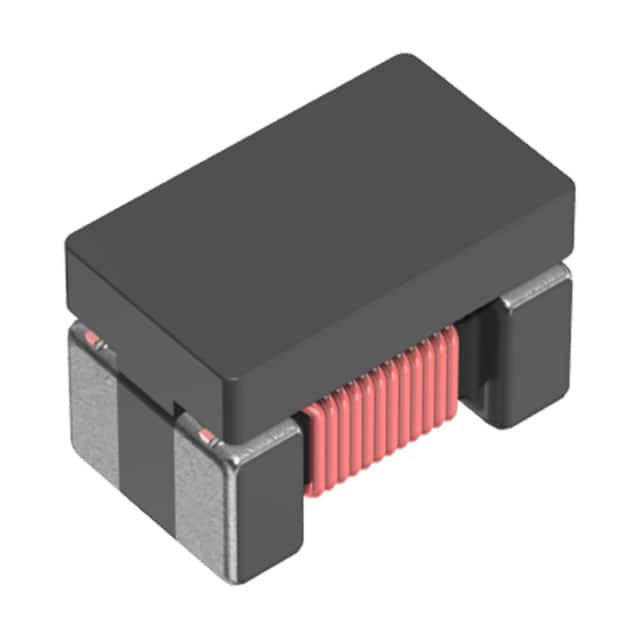

 ACM2012-900-2P-TL002 TDK Corporation | 1 $0.4700 | Datasheet | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 190mOhm | 50V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.051" (1.30mm) | Horizontal, 4 Gull Wing | 9,785 Cart + RFQ |
ACM2012-201-2P-T002 TDK Corporation | 1 $0.4700 | Datasheet | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.051" (1.30mm) | Horizontal, 4 PC Pad | 4,922 Cart + RFQ |
ACM2012-121-2P-T002 TDK Corporation | 1 $0.4700 | Datasheet | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 220mOhm | 50V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.051" (1.30mm) | Horizontal, 4 PC Pad | 5,003 Cart + RFQ |
 MCZ1210AH900L2TA0G TDK Corporation | 1 $0.0429 100 $0.0343 500 $0.0286 | Datasheet | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.024" (0.60mm) | 0504 (1210 Metric), 4 Lead | 1,600 Cart + RFQ |
 ACM2012H-900-2P-T05 TDK Corporation | 1 $0.5800 | Datasheet | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 300mOhm | 20V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.051" (1.30mm) | Horizontal, 4 PC Pad | 7,486 Cart + RFQ |
 ACM2012D-900-2P-T00 TDK Corporation | 1 $0.5800 | Datasheet | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 300mOhm | 20V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.051" (1.30mm) | Horizontal, 4 PC Pad | 2,111 Cart + RFQ |
 ACM2012H-381-2P-T05 TDK Corporation | 1 $0.5800 | Datasheet | Signal Line | 2 | 380 Ohms @ 100 MHz | - | 300mA | 500mOhm | 20V | - | -40°C ~ 105°C | - | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.051" (1.30mm) | Horizontal, 4 PC Pad | 5,100 Cart + RFQ |
MCZ1210CH900L2 TDK Corporation | 1 $0.6300 | Datasheet | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.024" (0.60mm) | 0504 (1210 Metric), 4 Lead | 2,534 Cart + RFQ |
