Cable Ferrites
Ferrite cores are devices that are designed to prevent high frequency noise or EMI (electromagnetic interference). These ferrite cores are made to be placed on cables or wires. Some key characteristics are the type (flat or round), the design (clamp, clip, hinged, solid, or tubular), the inner and outer dimensions, the length, the mounting type (cable tie, chassis mount, or free-hanging), and the impedance at a specific frequency.
Product List
Total Components: 3
Product | Pricing | Datasheet | Ratings | Mounting Type | Length | Type | Design | Impedance @ Frequency | Material | Inner Dimension | Outer Dimension | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|

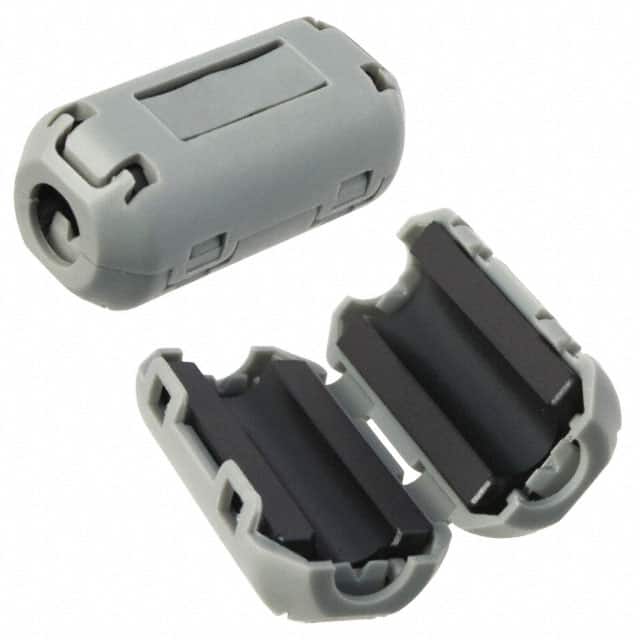

ZCAT1325-0530A TDK Corporation | 1 $1.3300 | Datasheet | - | Free Hanging | 0.984" (25.00mm) | Round | Hinged (Snap On) | 100Ohm @ 100MHz ~ 500MHz | 30 | 0.197" Dia (5.00mm) | 0.440" W x 0.504" H (11.20mm x 12.80mm) | 3,034 Cart + RFQ |

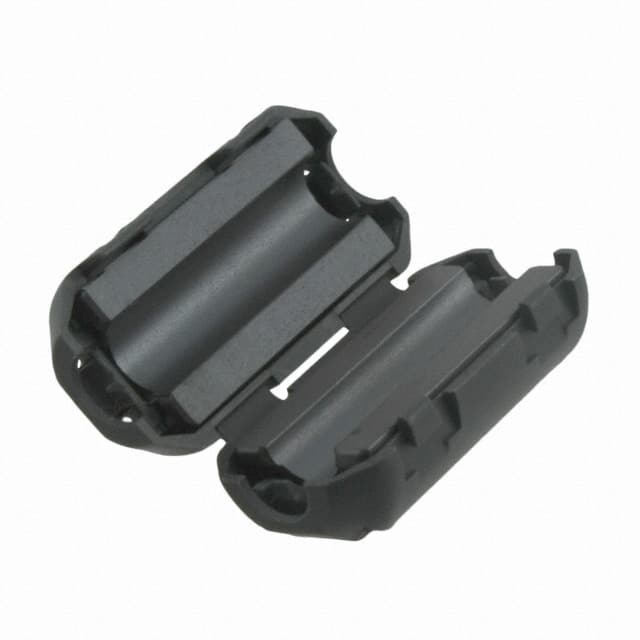

ZCAT1325-0530A-BK TDK Corporation | 1 $1.3300 | Datasheet | - | Free Hanging | 0.984" (25.00mm) | Round | Hinged (Snap On) | 100Ohm @ 100MHz ~ 500MHz | 30 | 0.197" Dia (5.00mm) | 0.440" W x 0.504" H (11.20mm x 12.80mm) | 8,777 Cart + RFQ |

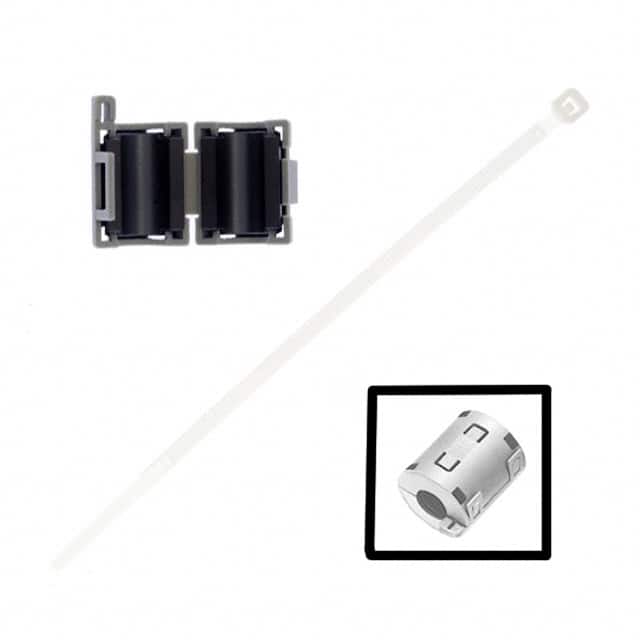

ZCAT1518-0730 TDK Corporation | 1 $1.3300 | Datasheet | - | Chassis Mount | 0.866" (22.00mm) | Round | Hinged (Snap On) | 50Ohm @ 100MHz ~ 500MHz | 30 | 0.276" Dia (7.00mm) | 0.591" Dia (15.00mm) | 6,782 Cart + RFQ |
