Thermal - Thermoelectric, Peltier Modules
Thermoelectric or Peltier Modules are devices that are designed for thermal transfer using the Peltier effect. As current passes through the junction between two ceramic substrates, heat is produced on one side of the junction and absorbed on the other side. A heatsink is recommended for the hot side of the module. The characteristics are Qmax @ Th, Delta Tmax @ Th, current max, voltage max, resistance, and operating temperature.
Product List
Total Components: 28
| Product | Pricing | Datasheet | Size / Dimension | Qmax @ Th | Delta Tmax @ Th | Height | Number of Stages | Current - Max | Voltage - Max | Resistance | Operating Temperature | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

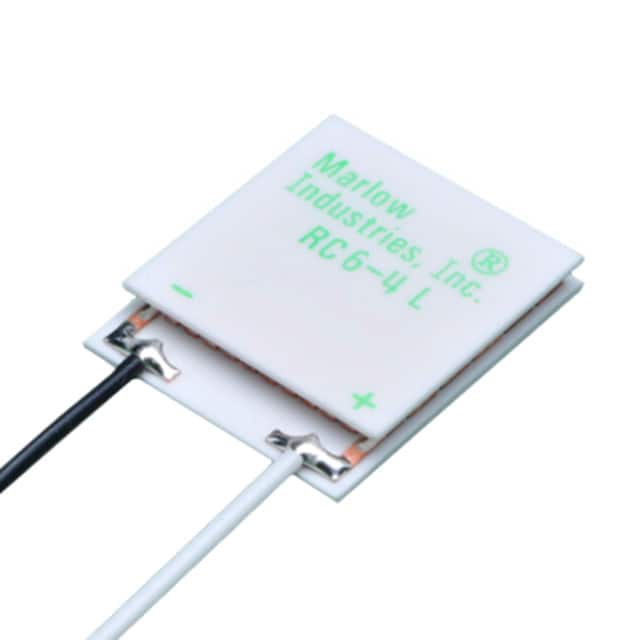

 RC6-4-01LS Marlow Industries, Inc. | 1 $22.3800 | Datasheet | Rectangular - 28.00mm L x 23.50mm W | 20.0W @ 27°C | 65°C @ 27°C | 3.33mm | 1 | 3.7 A | 8.2 V | 1.8 Ohms | 130°C | Lead Wires, Lapped, Sealed | 5,118 Cart + RFQ |

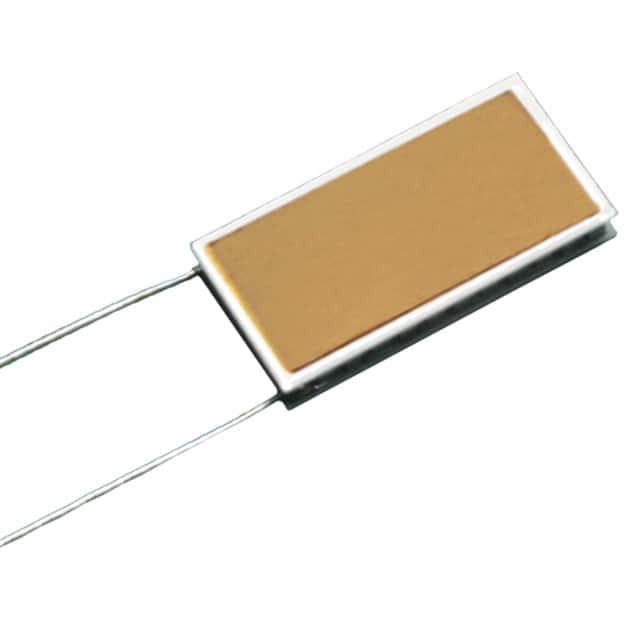

 CM35-1.9-01AC Marlow Industries, Inc. | 1 $22.9400 | Datasheet | Rectangular - 12.19mm L x 5.99mm W | 5.2W @ 27°C | 71°C @ 27°C | 1.65mm | 1 | 1.9 A | 4.2 V | 1.87 Ohms | 85°C | Lead Wires, Exterior Metallization (Both Sides) | 9,796 Cart + RFQ |

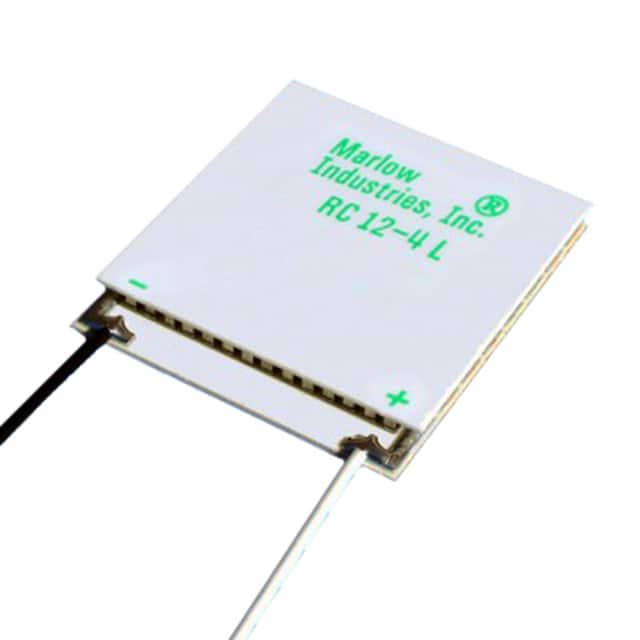

 RC12-4-01LS Marlow Industries, Inc. | 1 $23.4700 | Datasheet | Rectangular - 34.04mm L x 29.97mm W | 36.0W @ 27°C | 66°C @ 27°C | 3.33mm | 1 | 3.7 A | 14.7 V | 3.2 Ohms | 130°C | Lead Wires, Lapped, Sealed | 6,768 Cart + RFQ |

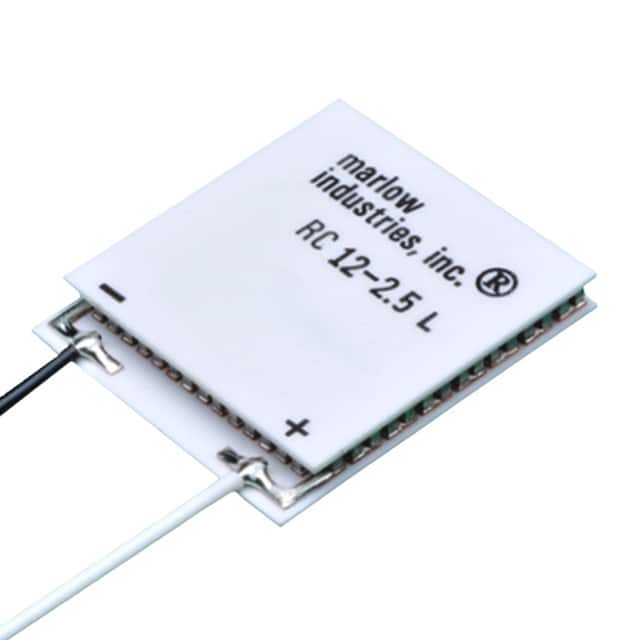

 RC12-2.5-01LS Marlow Industries, Inc. | 1 $26.7600 | Datasheet | Rectangular - 34.01mm L x 30.00mm W | 23.0W @ 27°C | 66°C @ 27°C | 3.93mm | 1 | 2.5 A | 14.7 V | 4.9 Ohms | 130°C | Lead Wires, Lapped, Sealed | 2,695 Cart + RFQ |

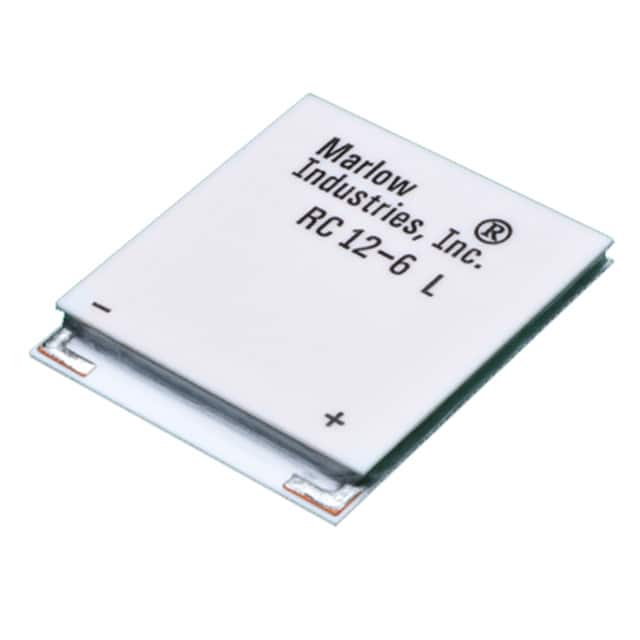

 RC12-6-01LS Marlow Industries, Inc. | 1 $29.2300 | Datasheet | Rectangular - 44.70mm L x 40.13mm W | 54.0W @ 27°C | 66°C @ 27°C | 3.91mm | 1 | 5.6 A | 14.7 V | 2.2 Ohms | 130°C | Lead Wires, Lapped, Sealed | 6,694 Cart + RFQ |

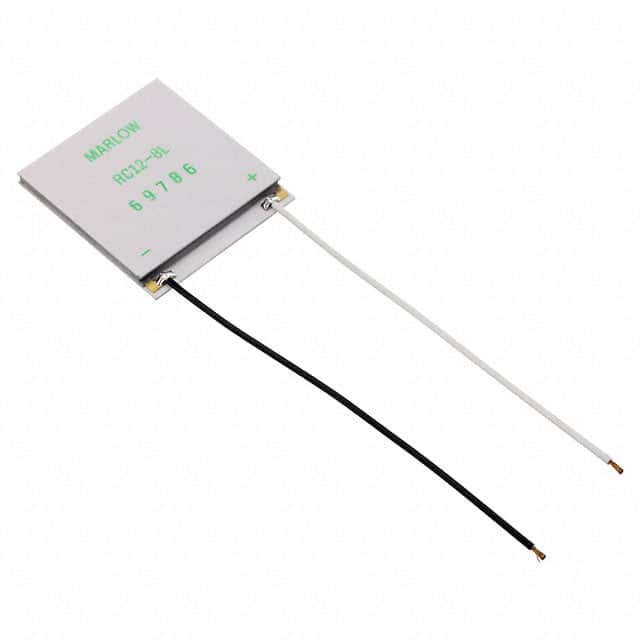

 RC12-8-01LS Marlow Industries, Inc. | 1 $33.0800 | Datasheet | Rectangular - 44.70mm L x 40.13mm W | 71.0W @ 27°C | 66°C @ 27°C | 3.53mm | 1 | 7.4 A | 14.7 V | 1.6 Ohms | 130°C | Lead Wires, Lapped, Sealed | 2,033 Cart + RFQ |

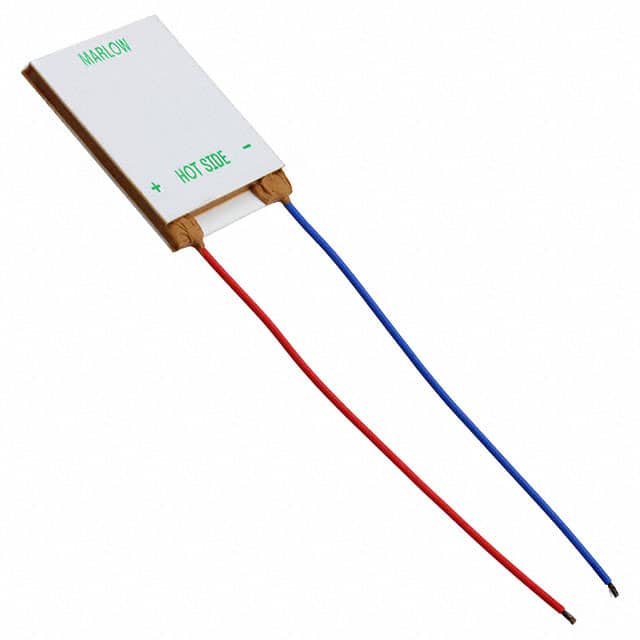

 TG12-8-01LS Marlow Industries, Inc. | 1 $41.8600 | Datasheet | Rectangular - 44.70mm L x 40.13mm W | 1.2W @ 50°C | - | 3.53mm | 1 | 1.5 A | 1.9 V | 2.9 Ohms | 200°C | Lead Wires, Lapped, Sealed | 4,743 Cart + RFQ |

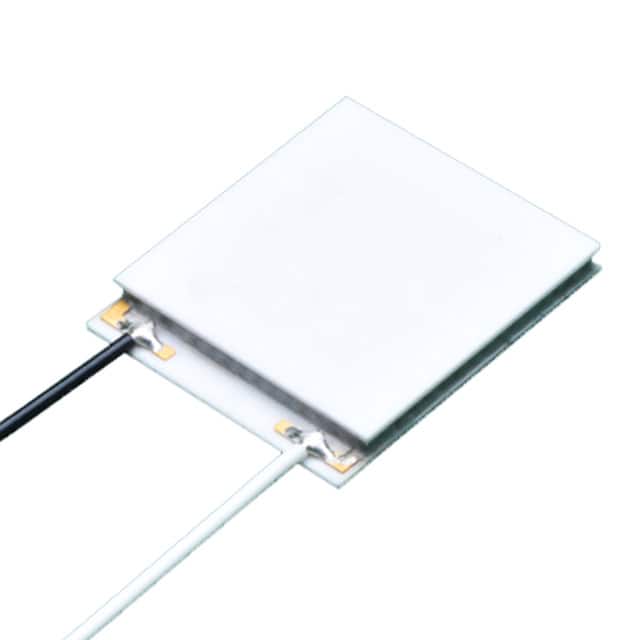

 XLT2419-08AC Marlow Industries, Inc. | 1 $44.7300 | Datasheet | Rectangular - 34.01mm L x 30.00mm W | 72.0W @ 27°C | 56.5°C @ 27°C | 2.34mm | 1 | 13.9 A | 8 V | 470 mOhms | 125°C | - | 4,684 Cart + RFQ |

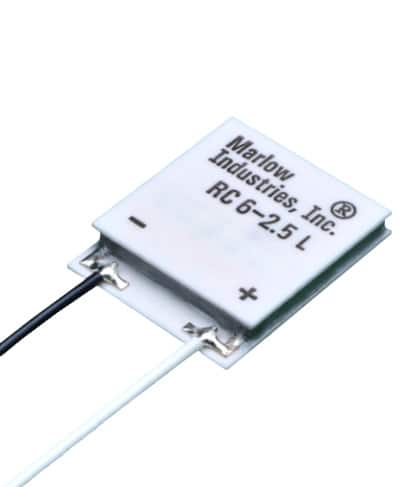

 RC6-2.5-01LS Marlow Industries, Inc. | 1 $47.0500 | Datasheet | Rectangular - 27.90mm L x 23.50mm W | 13.0W @ 27°C | 65°C @ 27°C | 3.94mm | 1 | 2.5 A | 8.2 V | 2.8 Ohms | 130°C | Lead Wires, Lapped, Sealed | 4,972 Cart + RFQ |

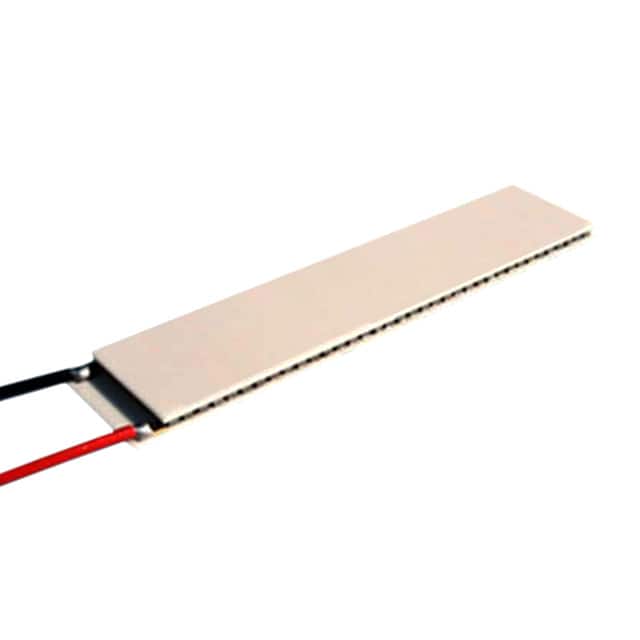

 XLT2427-03AC Marlow Industries, Inc. | 1 $97.4400 | Datasheet | Rectangular - 76.68mm L x 16.76mm W | 76.5W @ 27°C | 53°C @ 27°C | 2.67mm | 1 | 7.5 A | 15.8 V | 1.66 Ohms | 125°C | Lead Wires, Lapped | 4,242 Cart + RFQ |

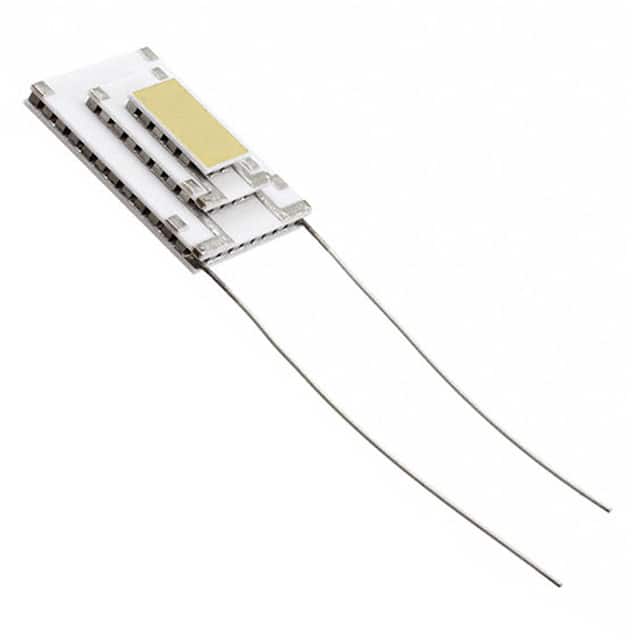

 SP2402-01AB Marlow Industries, Inc. | 1 $267.8000 | Datasheet | Rectangular - 28.27mm L x 21.72mm W | 8.7W @ 27°C | 109°C @ 27°C | 6.73mm | 3 | 5.3 A | 8.9 V | 1.54 Ohms | 85°C | Lead Wires, Exterior Metallization (One Side) | 2,061 Cart + RFQ |

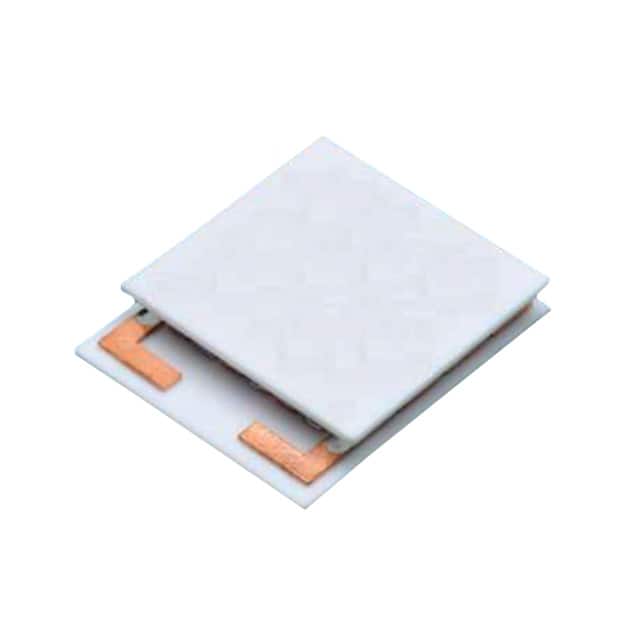

 XLT3-8-01LS Marlow Industries, Inc. | 1 $15.7800 | Datasheet | Rectangular - 24.43mm L x 20.00mm W | 16.9W @ 27°C | 64°C @ 27°C | 3.53mm | 1 | 7.4 A | 3.5 V | 400 mOhms | 125°C | Lead Wires, Lapped, Sealed | 6,120 Cart + RFQ |

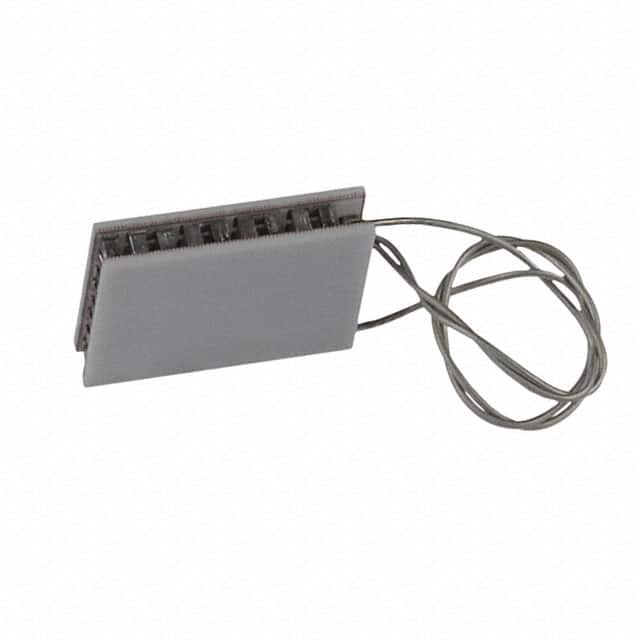

 CM29-1.9-06AC Marlow Industries, Inc. | 1 $15.9400 | Datasheet | Rectangular - 10.20mm L x 6.02mm W | 4.3W @ 27°C | 71°C @ 27°C | 1.62mm | 1 | 1.9 A | 3.5 V | 1.54 Ohms | 85°C | Lead Wires | 5,417 Cart + RFQ |

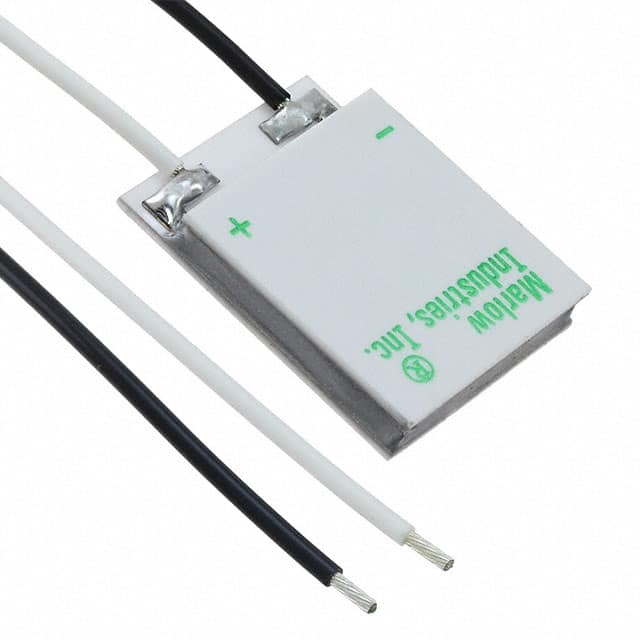

 RC3-6-01LS Marlow Industries, Inc. | 1 $20.0100 | Datasheet | Rectangular - 24.60mm L x 20.10mm W | 13.0W @ 27°C | 65°C @ 27°C | 3.91mm | 1 | 5.6 A | 3.6 V | 500 mOhms | 130°C | Lead Wires, Lapped, Sealed | 8,155 Cart + RFQ |

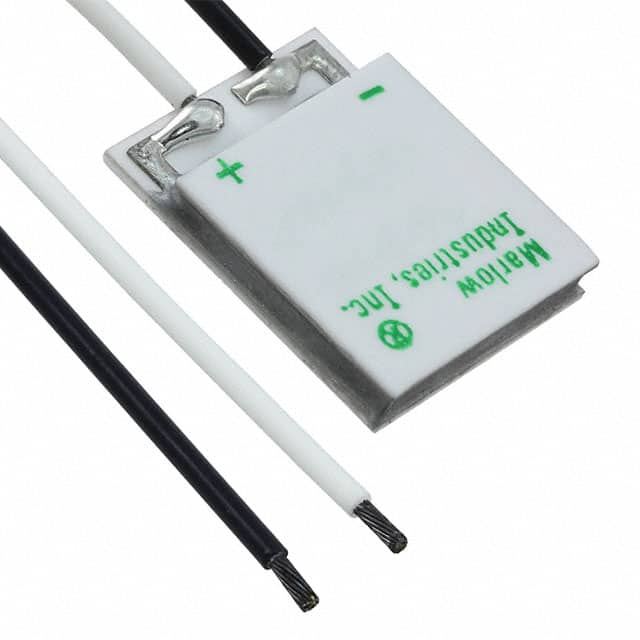

 RC3-4-01LS Marlow Industries, Inc. | 1 $20.3600 | Datasheet | Rectangular - 20.50mm L x 16.00mm W | 9.0W @ 27°C | 65°C @ 27°C | 3.33mm | 1 | 3.7 A | 3.6 V | 800 mOhms | 130°C | Lead Wires, Lapped, Sealed | 4,461 Cart + RFQ |

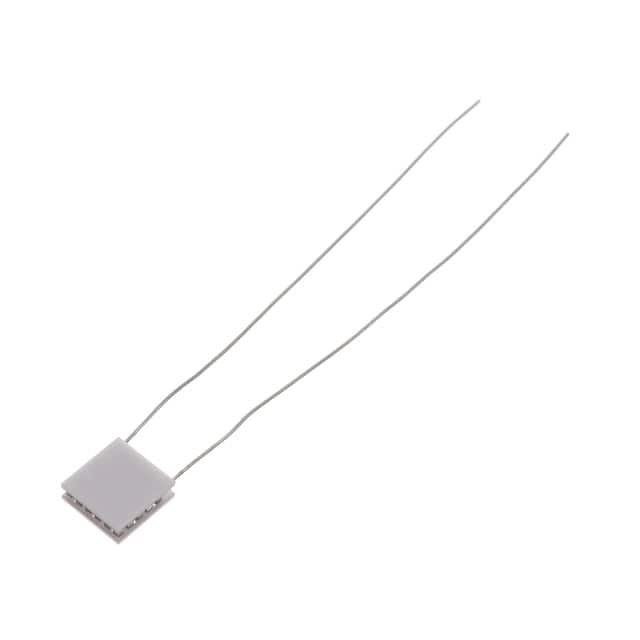

 NL1021T-03AC Marlow Industries, Inc. | 1 $20.9200 | Datasheet | Square - 6.60mm L x 6.60mm W | 2.2W @ 27°C | 64°C @ 27°C | 2.16mm | 1 | 1.8 A | 1.9 V | 920 mOhms | 85°C | Lead Wires | 5,153 Cart + RFQ |

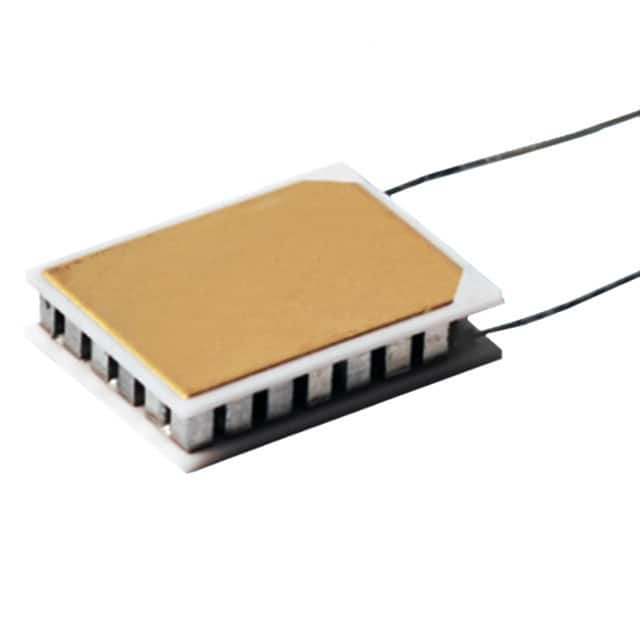

 CM23-1.9-01AC Marlow Industries, Inc. | 1 $21.1900 | Datasheet | Rectangular - 8.18mm L x 6.02mm W | 3.4W @ 27°C | 71°C @ 27°C | 1.65mm | 1 | 1.9 A | 2.8 V | 1.23 Ohms | 85°C | Lead Wires, Exterior Metallization (Both Sides) | 2,379 Cart + RFQ |
 NL1025T-01AC Marlow Industries, Inc. | 1 $21.8600 | Datasheet | Rectangular - 10.97mm L x 8.79mm W | 5.2W @ 27°C | 64°C @ 27°C | 2.16mm | 1 | 1.8 A | 4.4 V | 2.1 Ohms | 85°C | Lead Wires, Exterior Metallization (Both Sides) | 4,438 Cart + RFQ |

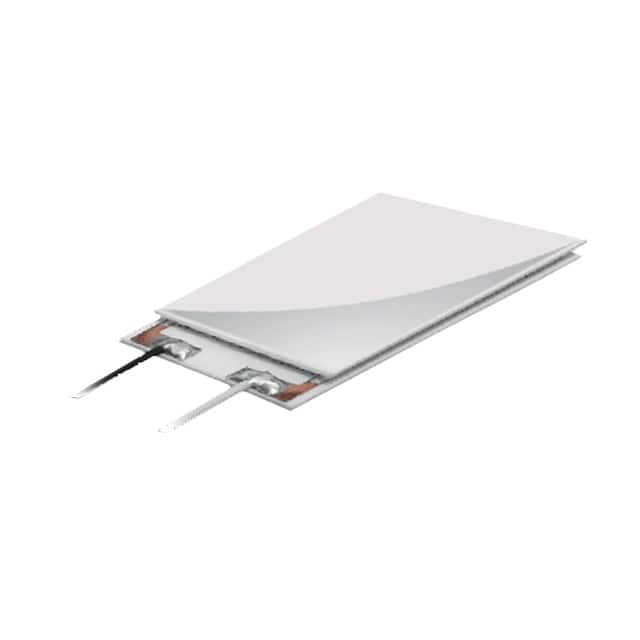

 RC6-6-01LS Marlow Industries, Inc. | 1 $26.2100 | Datasheet | Rectangular - 34.01mm L x 30.00mm W | 30.0W @ 27°C | 66°C @ 27°C | 3.91mm | 1 | 5.6 A | 8.2 V | 1.2 Ohms | 130°C | Lead Wires, Lapped, Sealed | 4,682 Cart + RFQ |

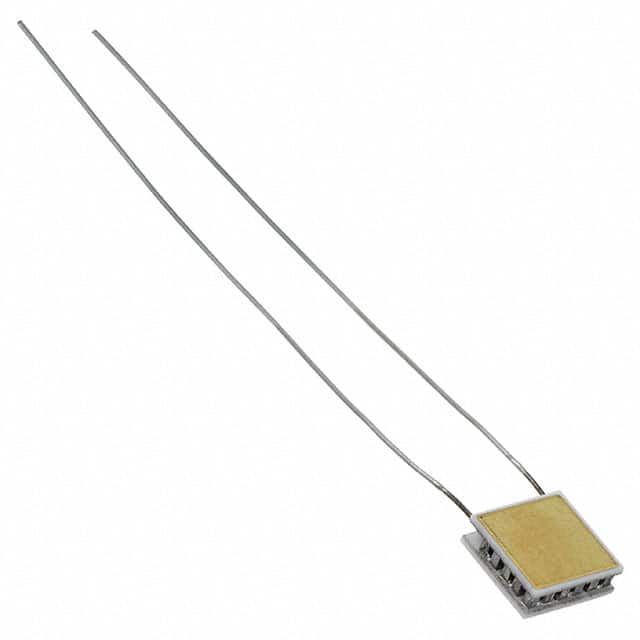

 NL1021T-01AC Marlow Industries, Inc. | 1 $27.2800 | Datasheet | Square - 6.60mm L x 6.60mm W | 2.2W @ 27°C | 64°C @ 27°C | 2.16mm | 1 | 1.8 A | 1.9 V | 920 mOhms | 85°C | Lead Wires, Exterior Metallization (Both Sides) | 8,612 Cart + RFQ |
