Thermal - Thermoelectric, Peltier Modules
Thermoelectric or Peltier Modules are devices that are designed for thermal transfer using the Peltier effect. As current passes through the junction between two ceramic substrates, heat is produced on one side of the junction and absorbed on the other side. A heatsink is recommended for the hot side of the module. The characteristics are Qmax @ Th, Delta Tmax @ Th, current max, voltage max, resistance, and operating temperature.
Product List
Total Components: 41
| Product | Pricing | Datasheet | Size / Dimension | Qmax @ Th | Delta Tmax @ Th | Height | Number of Stages | Current - Max | Voltage - Max | Resistance | Operating Temperature | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

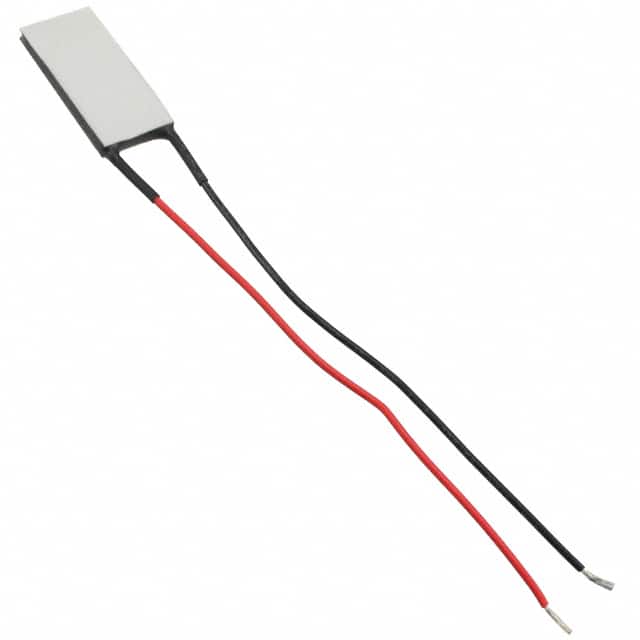

 56430-501 Laird Thermal Systems | 1 $24.1300 | Datasheet | Rectangular - 29.72mm L x 15.00mm W | 16.6W @ 25°C | 67°C @ 25°C | 3.20mm | 1 | 3.9 A | 7.6 V | 1.66 Ohms | 80°C | Lead Wires, Non-Sealed | 3,659 Cart + RFQ |

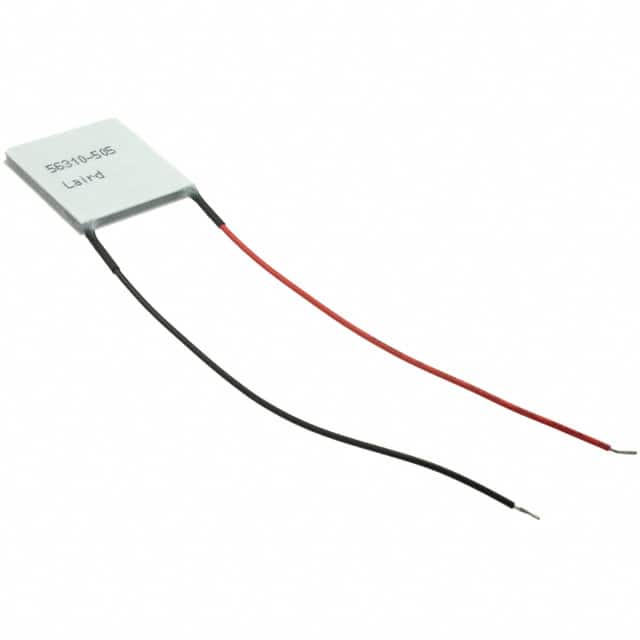

 56310-503 Laird Thermal Systems | 1 $24.8500 | Datasheet | Square - 29.72mm L x 29.72mm W | 25.7W @ 25°C | 68°C @ 25°C | 3.61mm | 1 | 3 A | 14.5 V | 4.35 Ohms | 80°C | Lead Wires, Non-Sealed | 5,991 Cart + RFQ |

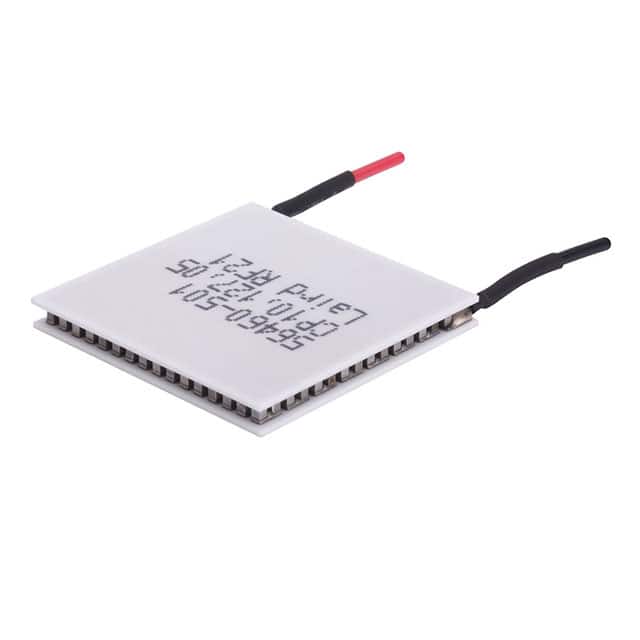

 56460-501 Laird Thermal Systems | 1 $25.4700 | Datasheet | Square - 29.72mm L x 29.72mm W | 34.3W @ 25°C | 67°C @ 25°C | 3.20mm | 1 | 3.9 A | 14.4 V | 3.36 Ohms | 80°C | Lead Wires, Non-Sealed | 8,980 Cart + RFQ |

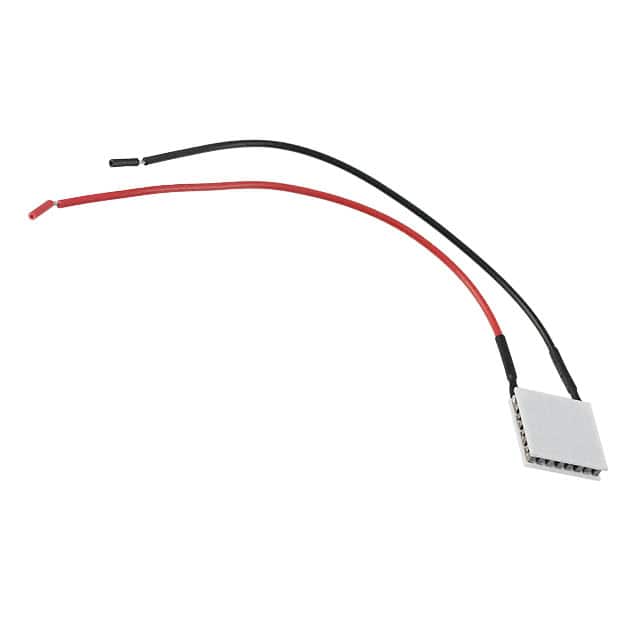

 430801-504 Laird Thermal Systems | 1 $26.5500 | Datasheet | Square - 15.00mm L x 15.00mm W | 8.2W @ 25°C | 67°C @ 25°C | 3.20mm | 1 | 3.9 A | 3.8 V | 820 mOhms | 80°C | Lead Wires, Non-Sealed | 7,927 Cart + RFQ |

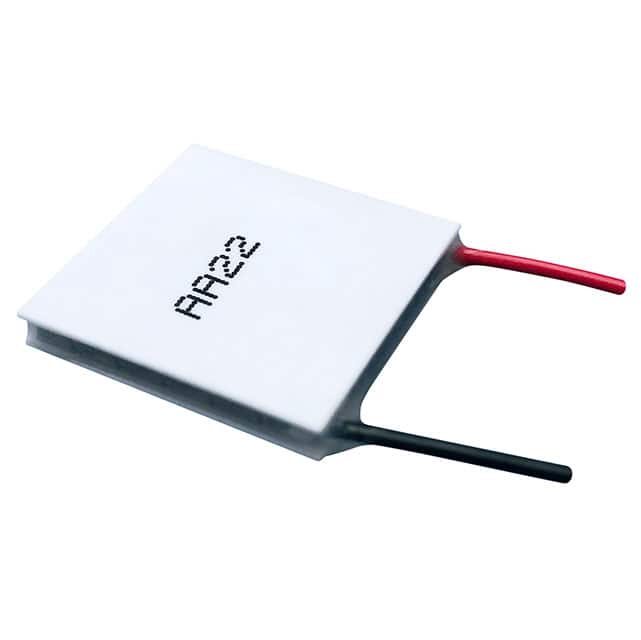

 387001742 Laird Thermal Systems | 1 $31.8200 | Datasheet | Square - 23.00mm L x 23.00mm W | - | - | 3.20mm | 1 | - | - | - | - | - | 6,388 Cart + RFQ |

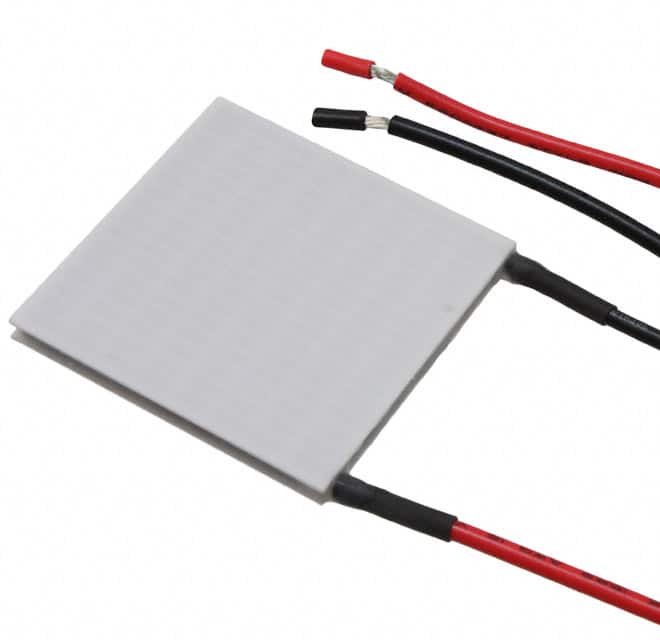

 66101-500 Laird Thermal Systems | 1 $32.2600 | Datasheet | Square - 39.88mm L x 39.88mm W | 72.0W @ 25°C | 67°C @ 25°C | 3.33mm | 1 | 8.5 A | 14.5 V | 1.55 Ohms | 80°C | Lead Wires, Sealed - Silicone RTV | 1,857 Cart + RFQ |

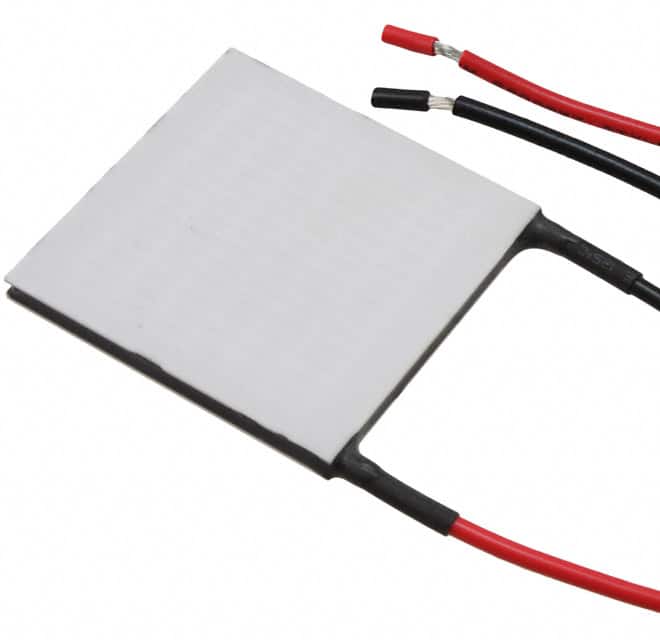

 430082-502 Laird Thermal Systems | 1 $32.7100 | Datasheet | Square - 39.88mm L x 39.88mm W | 72.0W @ 25°C | 67°C @ 25°C | 3.33mm | 1 | 8.5 A | 14.5 V | 1.55 Ohms | 80°C | Lead Wires, Sealed - Epoxy | 7,120 Cart + RFQ |
 387001835 Laird Thermal Systems | 1 $35.2000 | Datasheet | Square - 40.00mm L x 40.00mm W | 53.0W @ 25°C | 67°C @ 25°C | 3.81mm | 1 | 6 A | 16.9 V | 2.88 Ohms | 150°C | Lead Wires, Lapped, Sealed | 5,803 Cart + RFQ |

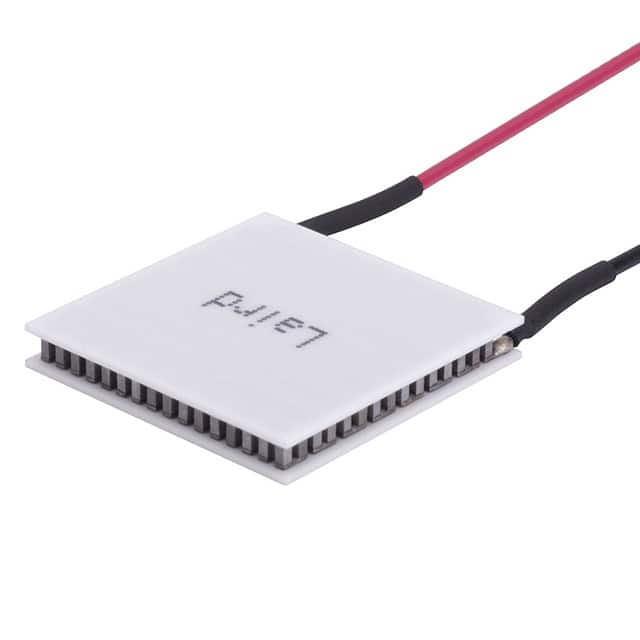

 66195-505 Laird Thermal Systems | 1 $38.7500 | Datasheet | Square - 24.64mm L x 24.64mm W | 18.1W @ 25°C | 67°C @ 25°C | 3.40mm | 1 | 2.1 A | 14.4 V | 6.31 Ohms | 80°C | Lead Wires, Non-Sealed | 3,915 Cart + RFQ |

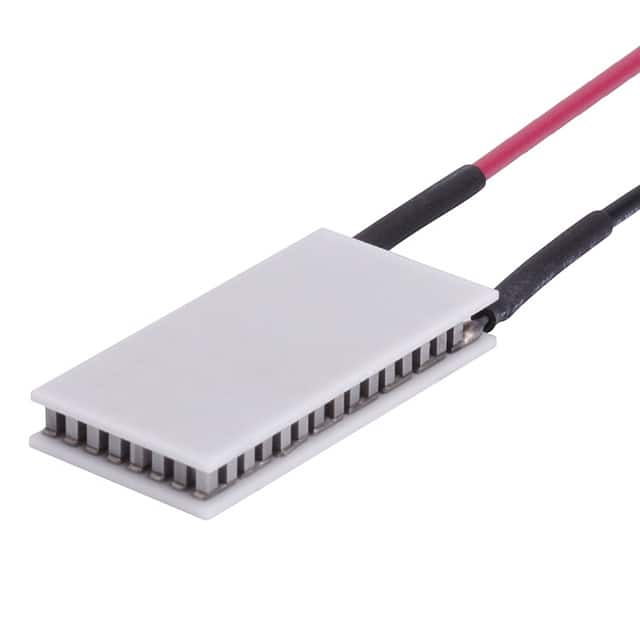

 430126-503 Laird Thermal Systems | 1 $39.1000 | Datasheet | Rectangular - 24.56mm L x 12.29mm W | 9.0W @ 25°C | 67°C @ 25°C | 3.40mm | 1 | 2.1 A | 7.6 V | 3.13 Ohms | 80°C | Lead Wires, Sealed - Silicone RTV | 2,104 Cart + RFQ |

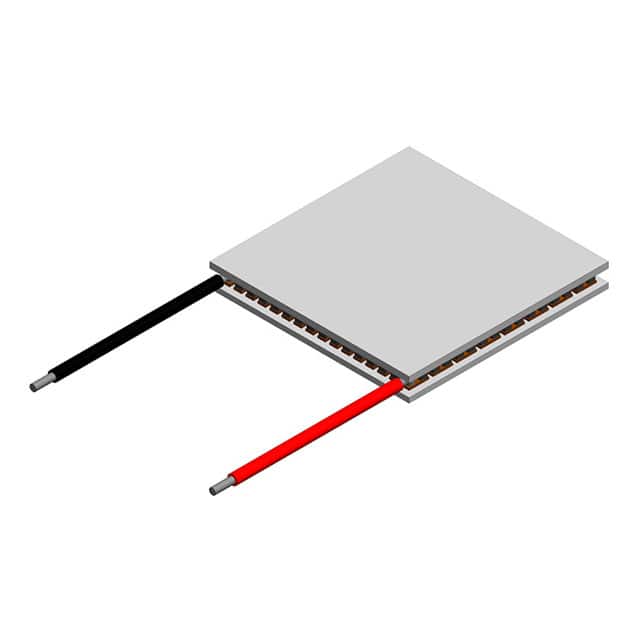

 108127086001 Laird Thermal Systems | 1 $41.7400 | Datasheet | Square - 40.00mm L x 40.00mm W | 72.0W @ 25°C | 67°C @ 25°C | 3.33mm | 1 | 8.5 A | 14.5 V | 1.55 Ohms | 120°C | Lead Wires, Sealed - Silicone RTV | 6,011 Cart + RFQ |
 430759-509 Laird Thermal Systems | 1 $46.2200 | Datasheet | Rectangular - 34.00mm L x 30.00mm W | 95.4W @ 25°C | 67°C @ 25°C | 2.41mm | 1 | 11.1 A | 14.5 V | 1.2 Ohms | 80°C | Lead Wires, Non-Sealed | 7,910 Cart + RFQ |

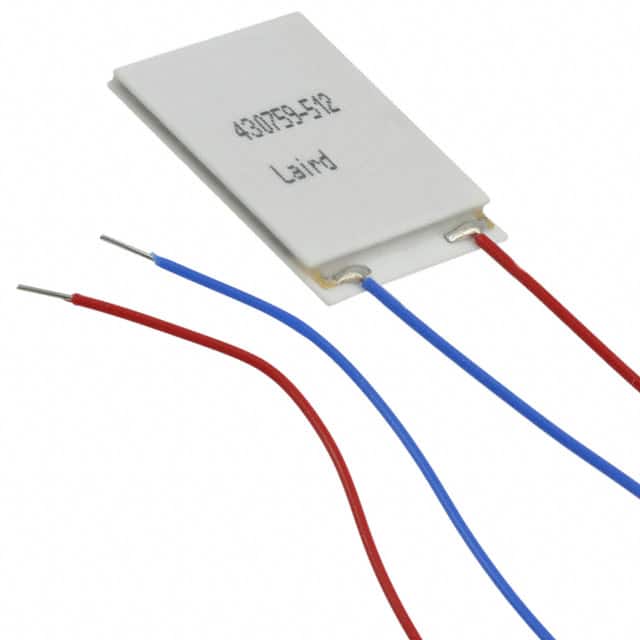

 430759-512 Laird Thermal Systems | 1 $48.8400 | Datasheet | Rectangular - 34.00mm L x 30.00mm W | 95.4W @ 25°C | 67°C @ 25°C | 2.41mm | 1 | 11.1 A | 14.5 V | 1.2 Ohms | 80°C | Lead Wires, Sealed - Silicone RTV | 9,129 Cart + RFQ |

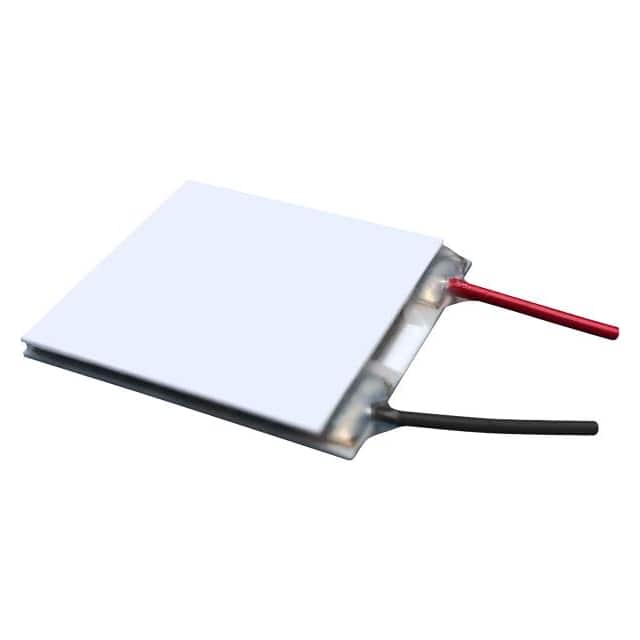

 387004934 Laird Thermal Systems | 1 $52.5100 | Datasheet | Rectangular - 26.90mm L x 24.60mm W | 77.8W @ 50°C | 83.2°C @ 50°C | 1.96mm | - | 7.9 A | 16.6 V | 1.95 Ohms | 150°C | Lead Wires, Sealed - Silicone RTV | 2,731 Cart + RFQ |

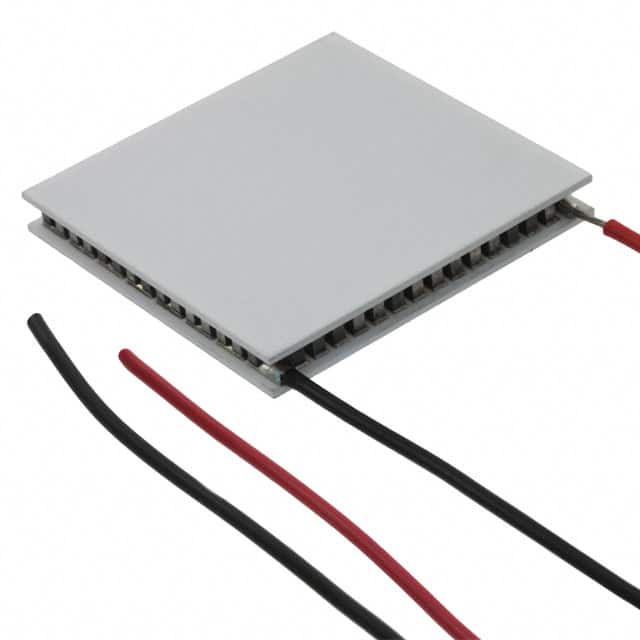

 7950004-601 Laird Thermal Systems | 1 $55.0400 | Datasheet | Square - 40.00mm L x 40.00mm W | 37.0W @ 25°C | 74°C @ 25°C | 4.80mm | 1 | 3.9 A | 15.4 V | 3.4 Ohms | 80°C | Lead Wires, Non-Sealed | 3,271 Cart + RFQ |

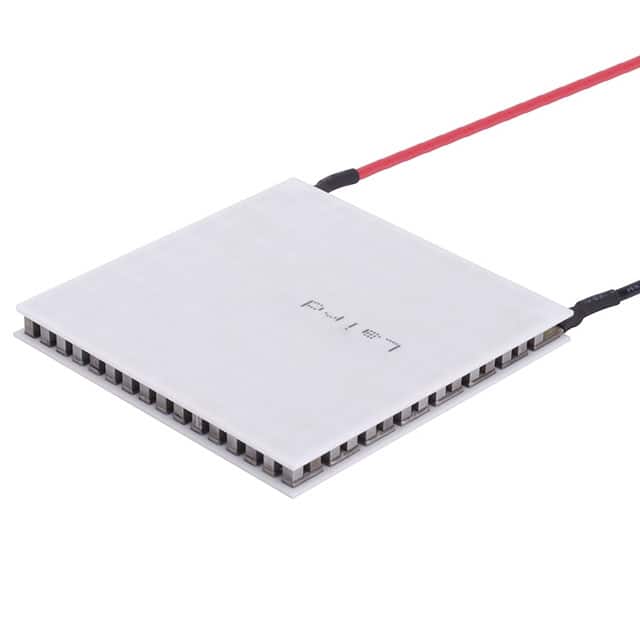

 64975-502 Laird Thermal Systems | 1 $71.8500 | Datasheet | Square - 62.00mm L x 62.00mm W | 79.8W @ 25°C | 67°C @ 25°C | 5.59mm | 1 | 9.3 A | 14.5 V | 1.44 Ohms | 80°C | Lead Wires, Sealed - Silicone RTV | 7,159 Cart + RFQ |

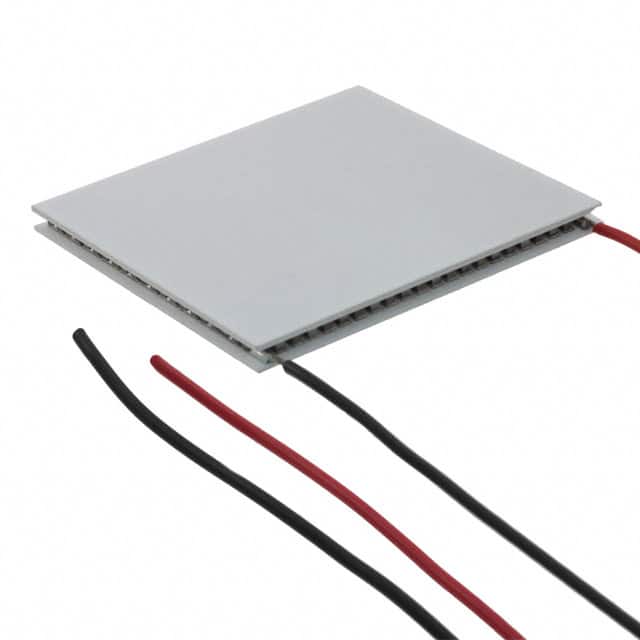

 430883-301 Laird Thermal Systems | 1 $72.6200 | Datasheet | Square - 55.00mm L x 55.00mm W | 113.0W @ 25°C | 74°C @ 25°C | 3.91mm | 1 | 6 A | 29.8 V | - | 80°C | Lead Wires, Non-Sealed | 6,983 Cart + RFQ |

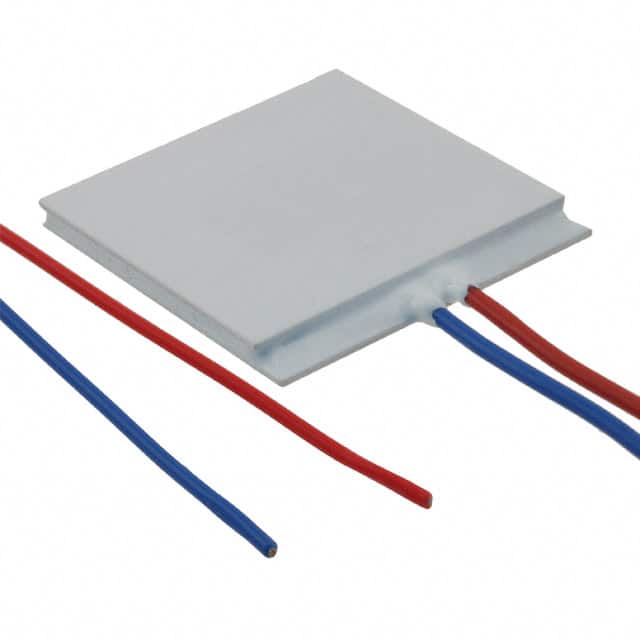

 430856-501 Laird Thermal Systems | 1 $86.2700 | Datasheet | Square - 40.00mm L x 40.00mm W | 236.6W @ 25°C | 68°C @ 25°C | 3.30mm | 1 | 15.4 A | 25 V | 1.37 Ohms | 80°C | Lead Wires, Sealed - Silicone RTV | 3,438 Cart + RFQ |

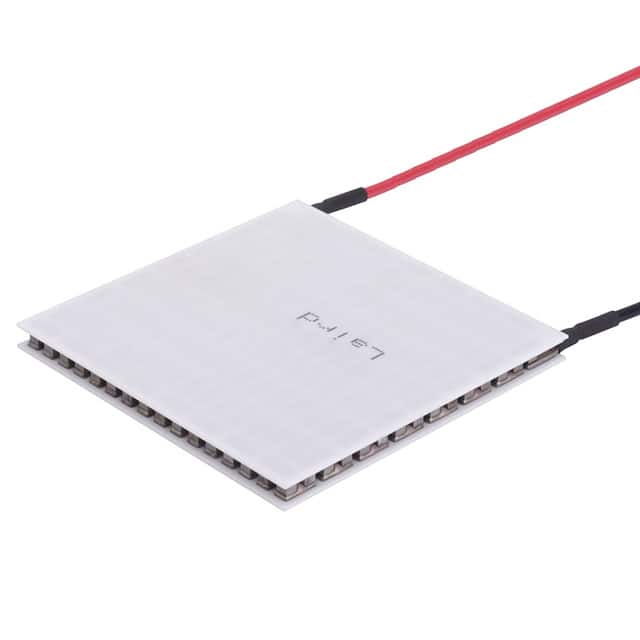

 66100-501 Laird Thermal Systems | 1 $67.3600 | Datasheet | Square - 62.00mm L x 62.00mm W | 122.3W @ 25°C | 67°C @ 25°C | 4.57mm | 1 | 14.3 A | 14.5 V | 940 mOhms | 80°C | Lead Wires, Non-Sealed | 9,895 Cart + RFQ |

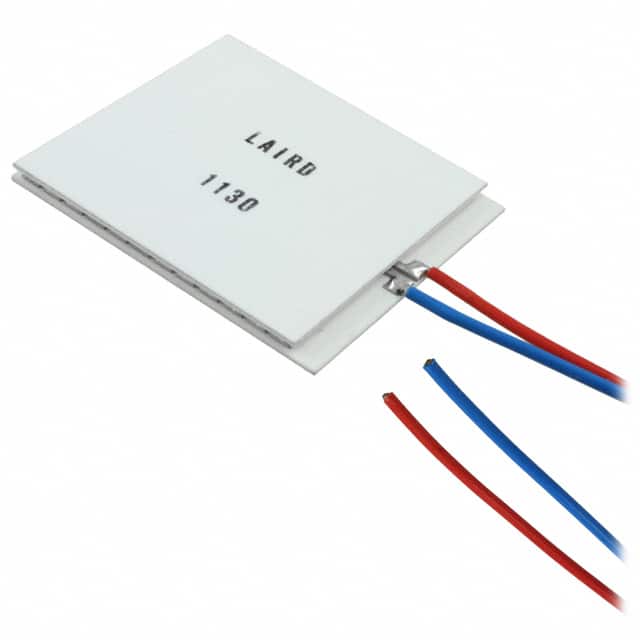

 430857-500 Laird Thermal Systems | 1 $126.2500 | Datasheet | Square - 52.00mm L x 52.00mm W | 340.6W @ 25°C | 68°C @ 25°C | 3.30mm | 1 | 15.4 A | 36 V | 1.97 Ohms | 80°C | Lead Wires, Non-Sealed | 8,749 Cart + RFQ |
