Thermal - Thermoelectric, Peltier Assemblies
A thermoelectric (TE) module, or Peltier assembly, is a semiconductor-based device that moves heat from one side of the device to the other when low voltage DC power is applied. One face of the module is cooled while the opposite face is heated. This phenomenon is reversed with a change in polarity of the DC voltage. A TE module can generate current when a temperature differential is applied. They are differentiated by heat transfer type, cooling power, current, voltage, and overall dimensions.
Product List
Total Components: 6
Product | Pricing | Datasheet | Heat Transfer Type | Power - Cooling | Current | Voltage | Fan Location | Power - Input | Operating Temperature | Weight | Dimensions - Overall | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|

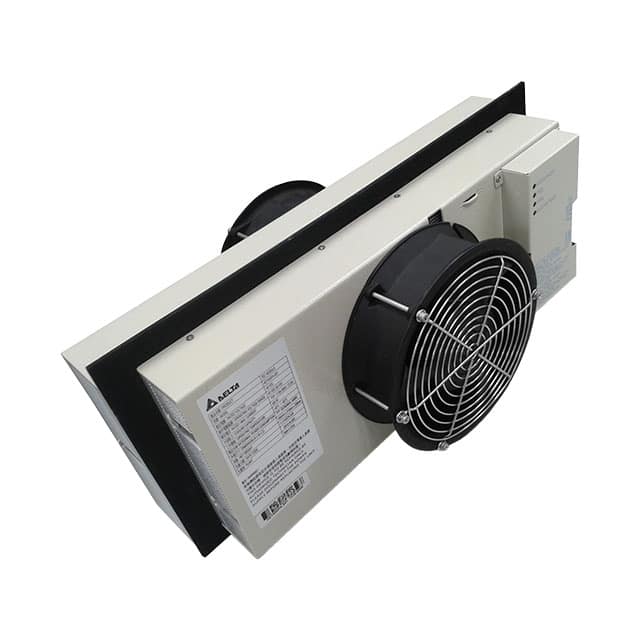

HET400PA Delta Electronics | 1 $1.0000 | Datasheet | Air to Air | 400 W | 13.5 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 24 lbs (10.9 kg) | 450mm L x 228mm W x 210mm H | 1,760 Cart + RFQ |

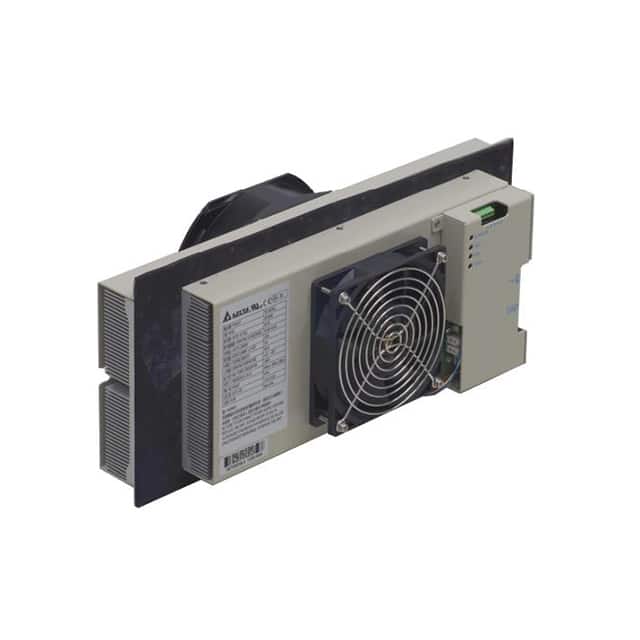

HET200VC Delta Electronics | 1 $955.0200 | Datasheet | Air to Air | 200 W | 12 A | 24 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 13 lbs (5.9 kg) | 400mm L x 169mm W x 181mm H | 9,626 Cart + RFQ |
HET200VB Delta Electronics | 1 $972.1200 | Datasheet | Air to Air | 200 W | 12.2 A | 24 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 20 lbs (9.1 kg) | 400mm L x 208mm W x 180mm H | 1,668 Cart + RFQ |

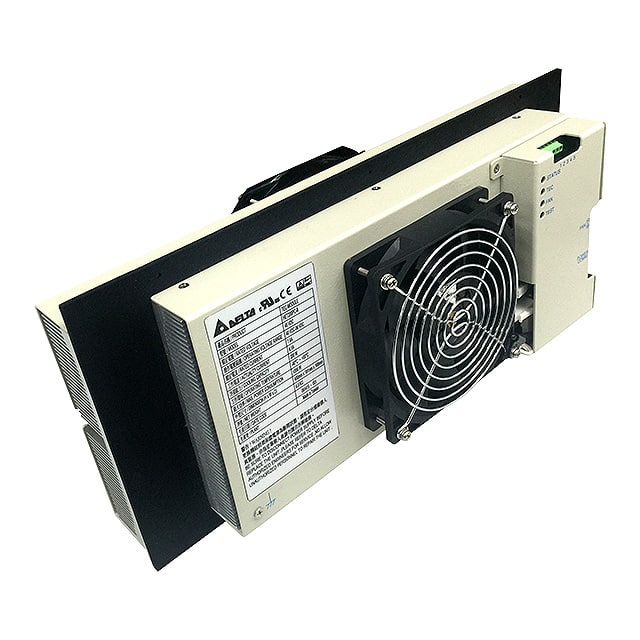

HET200PC-B Delta Electronics | 1 $783.8600 | Datasheet | Air to Air | 200 W | 5.8 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 12 lbs (5.4 kg) | 400mm L x 143mm W x 181mm H | 1,847 Cart + RFQ |

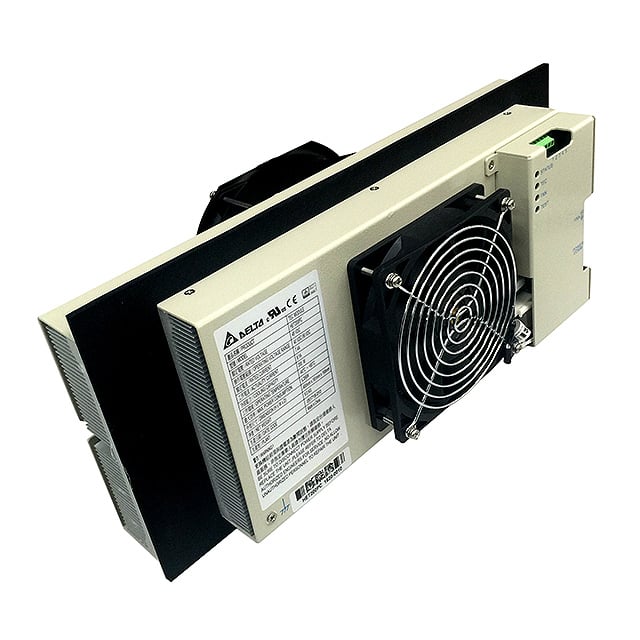

HET200PC Delta Electronics | 1 $945.5600 | Datasheet | Air to Air | 200 W | 6.1 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 13 lbs (5.9 kg) | 400mm L x 169mm W x 181mm H | 3,777 Cart + RFQ |

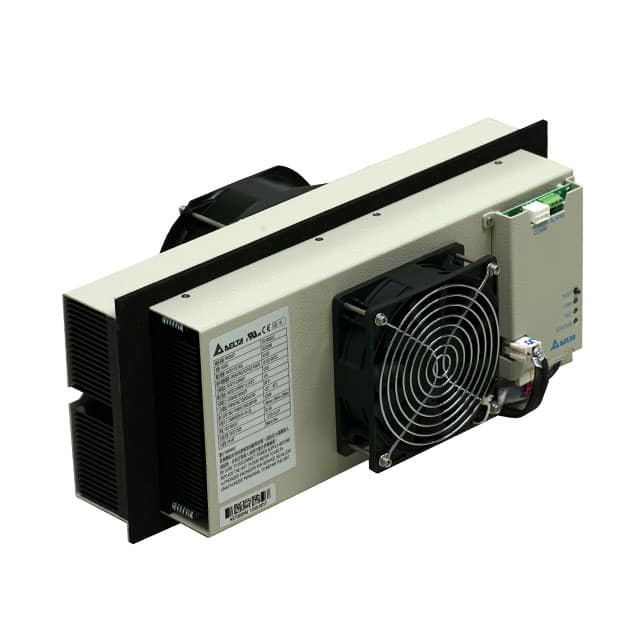

HET200PB Delta Electronics | 1 $972.1200 | Datasheet | Air to Air | 200 W | 6.7 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 20 lbs (9.1 kg) | 400mm L x 208mm W x 180mm H | 1,938 Cart + RFQ |
