Thermal - Thermoelectric, Peltier Assemblies
A thermoelectric (TE) module, or Peltier assembly, is a semiconductor-based device that moves heat from one side of the device to the other when low voltage DC power is applied. One face of the module is cooled while the opposite face is heated. This phenomenon is reversed with a change in polarity of the DC voltage. A TE module can generate current when a temperature differential is applied. They are differentiated by heat transfer type, cooling power, current, voltage, and overall dimensions.
Product List
Total Components: 77
| Product | Pricing | Datasheet | Heat Transfer Type | Power - Cooling | Current | Voltage | Fan Location | Power - Input | Operating Temperature | Weight | Dimensions - Overall | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DA-011-05-02-00-00 Laird Thermal Systems | 1 $166.7300 | Datasheet | Direct to Air | 11 W | 2.2 A | 5 V | Warm Side | 11 W | -10°C ~ 55°C | 0.441 lb (200.03 g) | 60mm L x 44mm W x 56mm H | 7,523 Cart + RFQ |
 DA-024-12-02-00-00 Laird Thermal Systems | 1 $236.4800 | Datasheet | Direct to Air | 24 W | 2.4 A | 12 V | Warm Side | 29 W | -10°C ~ 48°C | 0.661 lb (299.82 g) | 80mm L x 60mm W x 69mm H | 3,336 Cart + RFQ |
 DA-025-24-02-00-00 Laird Thermal Systems | 1 $239.1300 | Datasheet | Direct to Air | 25 W | 1.6 A | 24 V | Warm Side | 39 W | -10°C ~ 49°C | 1.8 lbs (816.5 g) | 99mm L x 65mm W x 82mm H | 4,939 Cart + RFQ |
 DA-044-24-02-00-00 Laird Thermal Systems | 1 $257.9800 | Datasheet | Direct to Air | 44 W | 2.2 A | 24 V | Warm Side | 53 W | -10°C ~ 44°C | 1.3 lbs (589.7 g) | 120mm L x 100mm W x 73.8mm H | 4,687 Cart + RFQ |
 DA-045-24-02-00-00 Laird Thermal Systems | 1 $331.7700 | Datasheet | Direct to Air | 45 W | 2.5 A | 24 V | Warm Side | 60 W | -10°C ~ 50°C | 2.6 lbs (1.2 kg) | 160mm L x 122mm W x 86mm H | 7,620 Cart + RFQ |
 LA-160-24-02-00-00 Laird Thermal Systems | 1 $761.9400 | Datasheet | Liquid to Air | 160 W | 7.4 A | 24 V | Warm Side | 178 W | -10°C ~ 46°C | 7.7 lbs (3.5 kg) | 300mm L x 152mm W x 105mm H | 5,038 Cart + RFQ |
 AA-150-24-22-00-00 Laird Thermal Systems | 1 $784.4100 | Datasheet | Air to Air | 143 W | 7.9 A | 24 V | Cold Side / Warm Side | 190 W | -10°C ~ 48°C | 11.0 lbs (5.0 kg) | 300mm L x 153mm W x 166.4mm H | 1,331 Cart + RFQ |
 DA-014-12-02-00-00 Laird Thermal Systems | 1 $202.8300 | Datasheet | Direct to Air | 12 W | 1.8 A | 12 V | Warm Side | 22 W | -10°C ~ 44°C | 0.441 lb (200.03 g) | 60mm L x 40mm W x 53mm H | 1,722 Cart + RFQ |
DA-044-12-02-00-00 Laird Thermal Systems | 1 $245.3300 | Datasheet | Direct to Air | 42 W | 3.8 A | 12 V | Warm Side | 46 W | -10°C ~ 46°C | 1.3 lbs (589.7 g) | 120mm L x 100mm W x 72mm H | 8,983 Cart + RFQ |
 AA-019-12-22-00-00 Laird Thermal Systems | 1 $254.5200 | Datasheet | Air to Air | 20 W | 2.3 A | 12 V | Cold Side / Warm Side | 28 W | -10°C ~ 52°C | 0.661 lb (299.82 g) | 80mm L x 62.2mm W x 104.5mm H | 2,746 Cart + RFQ |
 DA-034-12-02-00-00 Laird Thermal Systems | 1 $269.0300 | Datasheet | Direct to Air | 34 W | 2.6 A | 12 V | Warm Side | 31 W | -10°C ~ 46°C | 1.1 lbs (499.0 g) | 100mm L x 80mm W x 72mm H | 3,784 Cart + RFQ |

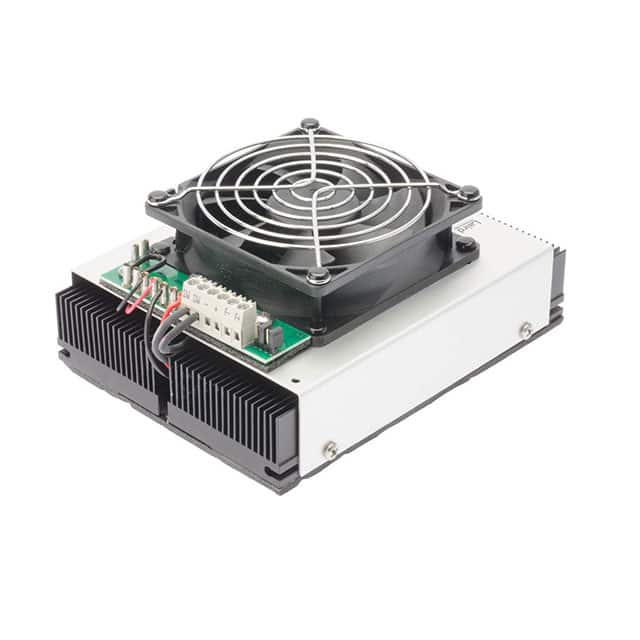

 DA-045-12-02-00-00 Laird Thermal Systems | 1 $288.3400 | Datasheet | Direct to Air | 48 W | 6.1 A | 12 V | Warm Side | 73 W | -10°C ~ 46°C | 2.6 lbs (1.2 kg) | 160mm L x 122mm W x 86mm H | 9,683 Cart + RFQ |

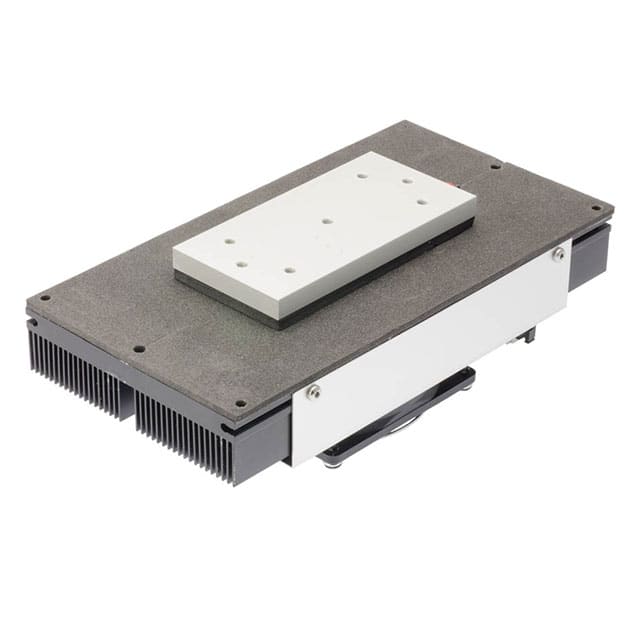

 DA-075-24-02-00-00 Laird Thermal Systems | 1 $390.9100 | Datasheet | Direct to Air | 71 W | 3.7 A | 24 V | Warm Side | 89 W | -10°C ~ 49°C | 3.8 lbs (1.7 kg) | 230mm L x 122mm W x 86mm H | 9,062 Cart + RFQ |

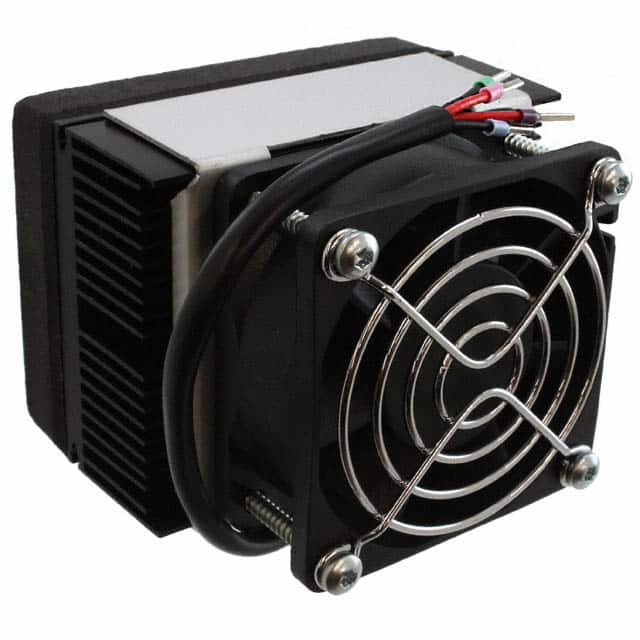

 DA-024-24-02-00-00 Laird Thermal Systems | 1 $240.8600 | Datasheet | Direct to Air | 24 W | 2 A | 24 V | Warm Side | 48 W | -10°C ~ 48°C | 0.661 lb (299.82 g) | 80mm L x 60mm W x 76.3mm H | 6,260 Cart + RFQ |

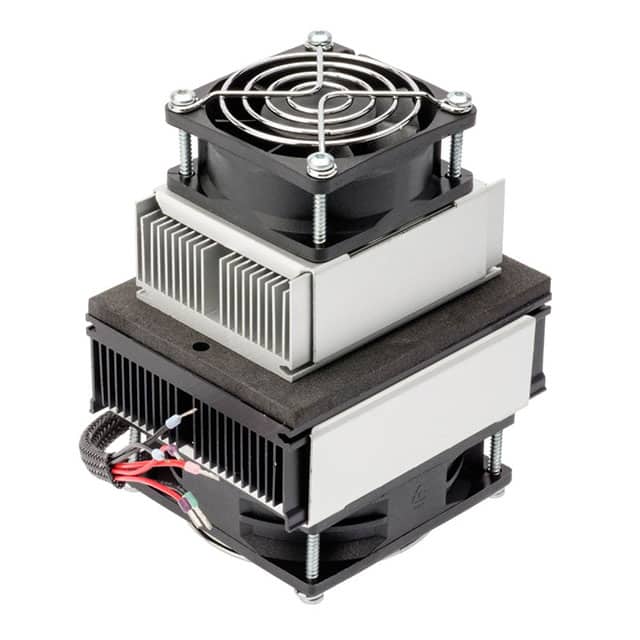

 AA-034-12-22-00-00 Laird Thermal Systems | 1 $275.1000 | Datasheet | Air to Air | 33 W | 3.5 A | 12 V | Cold Side / Warm Side | 42 W | -10°C ~ 49°C | 2.0 lbs (907.2 g) | 120mm L x 102.2mm W x 124.3mm H | 3,116 Cart + RFQ |

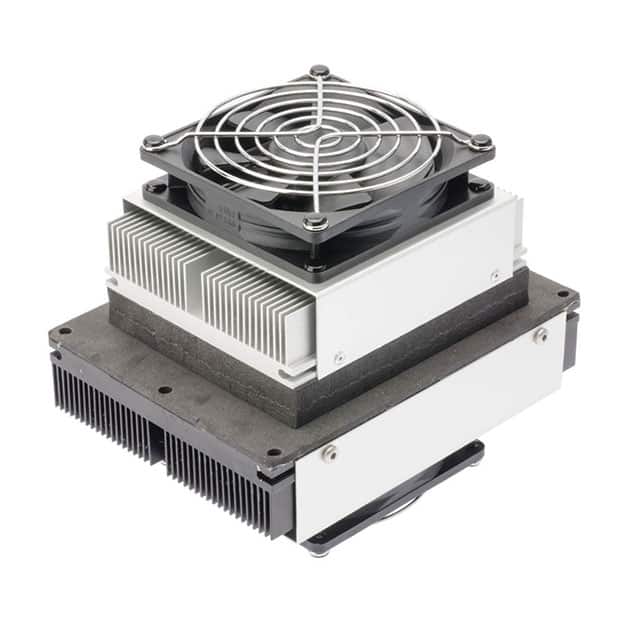

 AA-040-24-22-00-00 Laird Thermal Systems | 1 $370.7900 | Datasheet | Air to Air | 39 W | 2.6 A | 24 V | Cold Side / Warm Side | 62 W | -10°C ~ 52°C | 4.0 lbs (1.8 kg) | 160mm L x 122mm W x 146.3mm H | 4,803 Cart + RFQ |

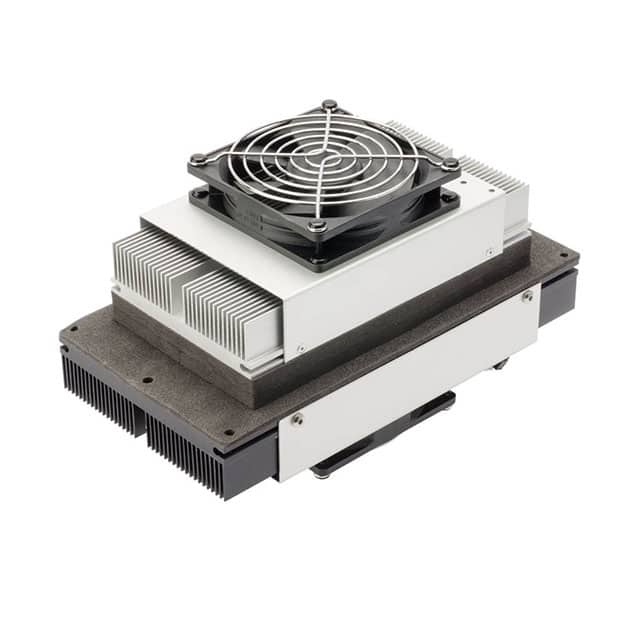

 AA-060-12-22-00-00 Laird Thermal Systems | 1 $450.3000 | Datasheet | Air to Air | 58 W | 6.2 A | 12 V | Cold Side / Warm Side | 74 W | -10°C ~ 51°C | 5.5 lbs (2.5 kg) | 230mm L x 122mm W x 146.2mm H | 7,912 Cart + RFQ |

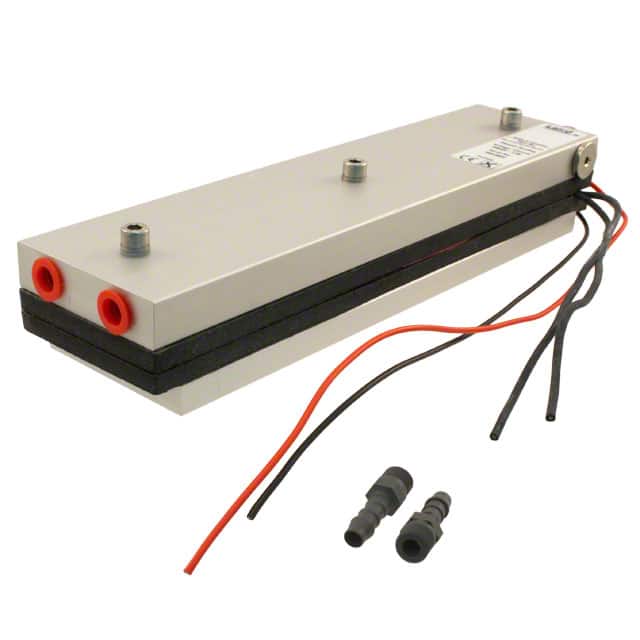

 DL-210-24-00-00-00 Laird Thermal Systems | 1 $534.0900 | Datasheet | Direct to Liquid | 207 W | 8.1 A | 24 V | - | 194 W | -10°C ~ 62°C | 2.9 lbs (1.3 kg) | 240mm L x 60mm W x 39mm H | 6,568 Cart + RFQ |

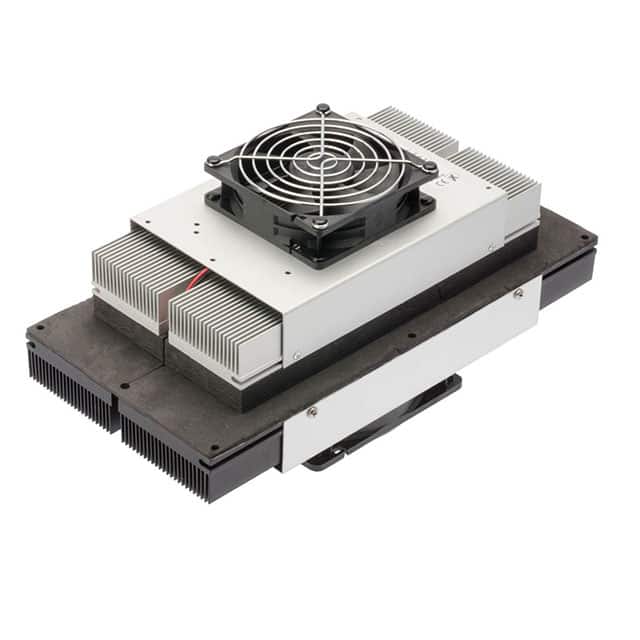

 AA-100-24-22-00-00 Laird Thermal Systems | 1 $612.4600 | Datasheet | Air to Air | 102 W | 5.6 A | 24 V | Cold Side / Warm Side | 134 W | -10°C ~ 50°C | 9.0 lbs (4.1 kg) | 300mm L x 152mm W x 160.9mm H | 8,103 Cart + RFQ |

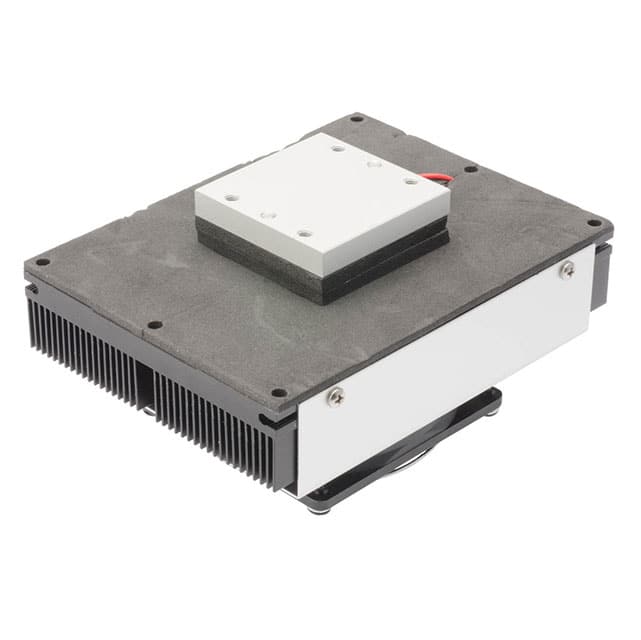

 DA-160-24-02-00-00 Laird Thermal Systems | 1 $721.3800 | Datasheet | Direct to Air | 160 W | 7.4 A | 24 V | Warm Side | 178 W | -10°C ~ 46°C | 7.7 lbs (3.5 kg) | 300mm L x 152mm W x 100mm H | 1,814 Cart + RFQ |
