Thermal - Pads, Sheets
Materials designed to provide thermal transfer between components and the heat sink to which they are attached. They are made from various materials and thicknesses which determines their thermal conductivity and/or resistivity. They can come with an adhesive on one or both sides to aid in maintaining contact with the surface to which they are applied.
Product List
Total Components: 6
| Product | Pricing | Datasheet | Usage | Type | Shape | Outline | Thickness | Material | Adhesive | Backing, Carrier | Color | Thermal Resistivity | Thermal Conductivity | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

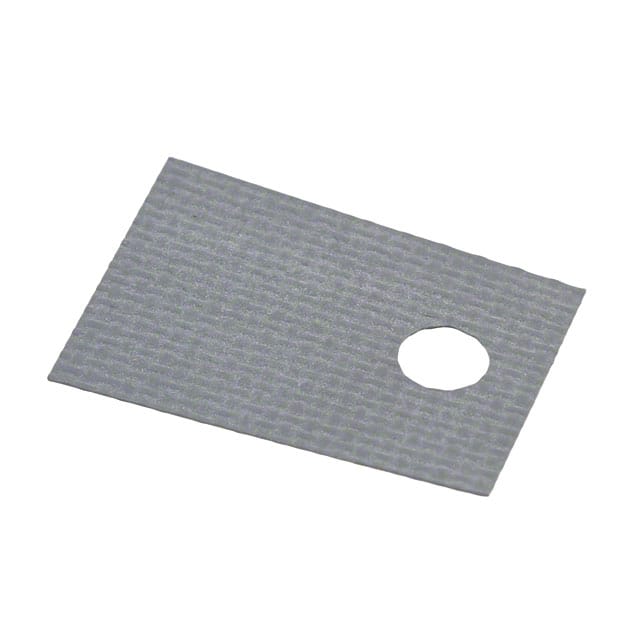

 173-7-220P Wakefield Thermal | 1 $0.5600 | Datasheet | TO-220 | Pad, Sheet | Rectangular | 17.81mm x 12.70mm | 0.0070" (0.178mm) | - | - | Polyimide | Gray | 0.33°C/W | 1.2W/m-K | 8,518 Cart + RFQ |

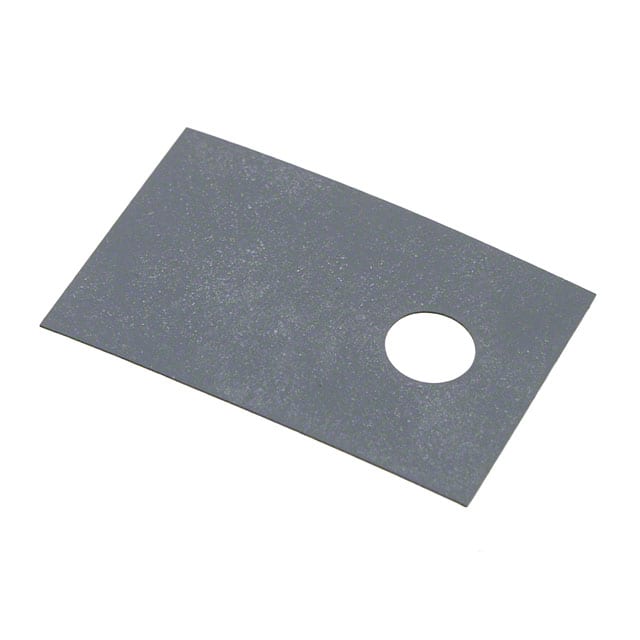

 175-6-240P Wakefield Thermal | 1 $0.7100 | Datasheet | TO-220 | Pad, Sheet | Rectangular | 19.10mm x 12.70mm | 0.0060" (0.152mm) | - | - | Polyimide | Gray | 0.40°C/W | 0.5W/m-K | 5,046 Cart + RFQ |

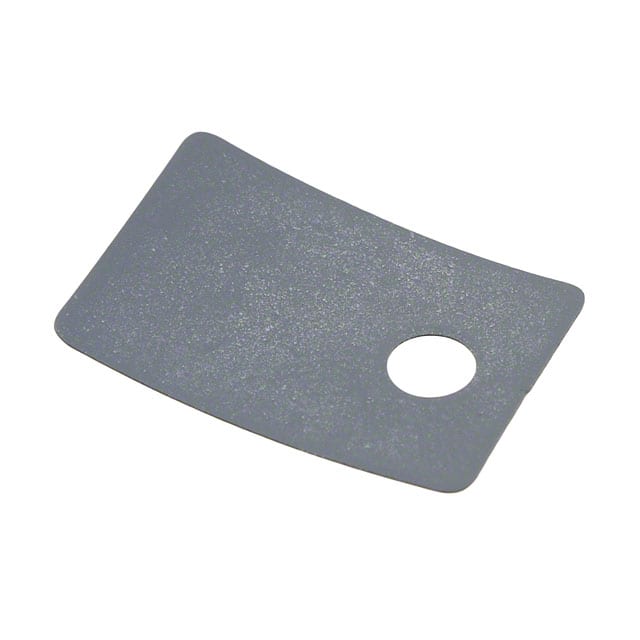

 175-6-220P Wakefield Thermal | 1 $0.8000 | Datasheet | TO-220 | Pad, Sheet | Rectangular | 18.00mm x 12.70mm | 0.0060" (0.152mm) | - | - | Polyimide | Gray | 0.40°C/W | 0.5W/m-K | 2,135 Cart + RFQ |

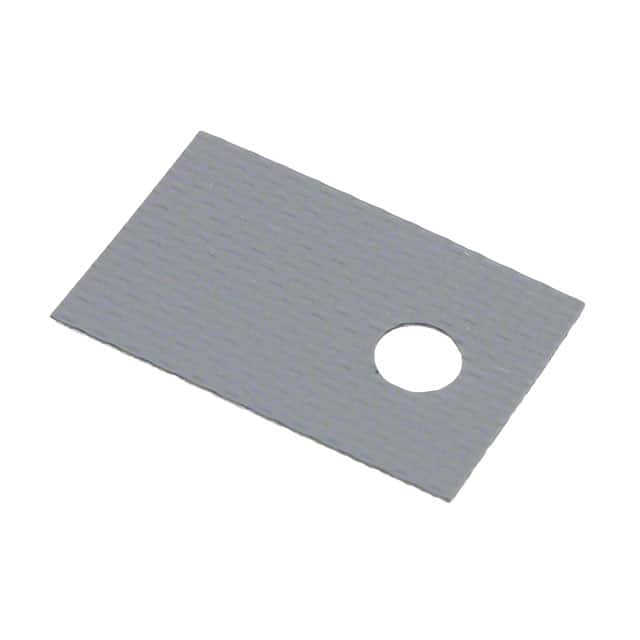

 173-7-240A Wakefield Thermal | 1 $0.9100 | Datasheet | TO-220 | Pad, Sheet | Rectangular | 19.10mm x 12.70mm | 0.0070" (0.178mm) | - | Adhesive - One Side | Polyimide | Gray | 0.33°C/W | 1.2W/m-K | 8,247 Cart + RFQ |

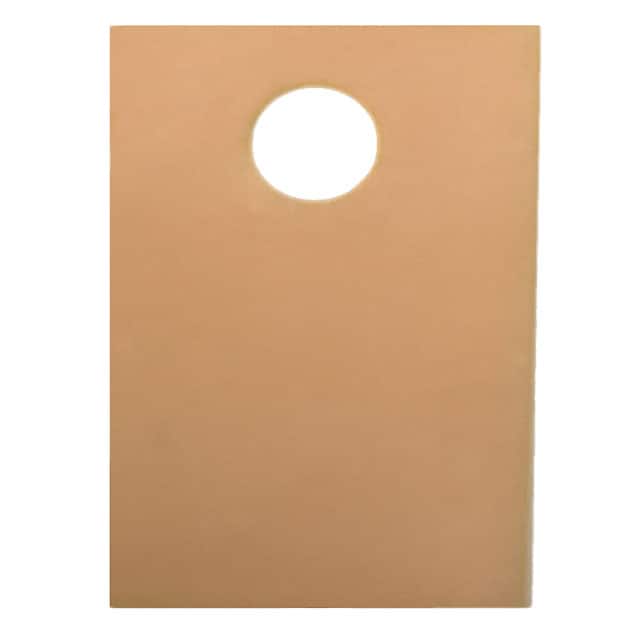

 CD-02-05-247 Wakefield Thermal | 1 $1.4000 | Datasheet | TO-247 | Pad, Sheet | Rectangular | 24.13mm x 19.05mm | 0.0030" (0.076mm) | Phase Change Compound | - | Polyimide | Orange | - | - | 4,509 Cart + RFQ |

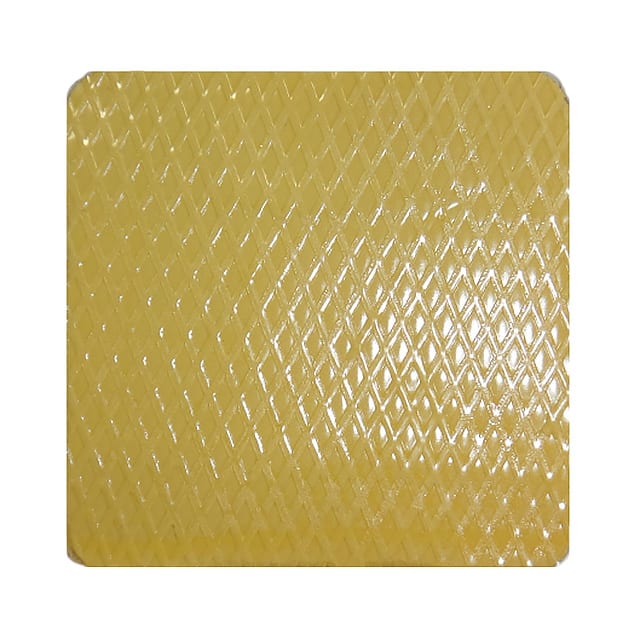

 PL-1-5-1016-H Wakefield Thermal | 1 $28.7300 | Datasheet | - | Gap Filler Pad, Sheet | Square | 101.60mm x 101.60mm | 0.0390" (0.991mm) | Silicone Elastomer | Tacky - One Side | - | Gold | - | 5.0W/m-K | 8,240 Cart + RFQ |
