Thermal - Heat Pipes, Vapor Chambers
Thermal Heat Pipes or Vapor Chambers are devices that transfers heat between two interfaces with the liquid heating to a vapor on the hot interface and traveling to the cold interface and turning back to a liquid. The shapes are flat, rectangular, round, and square with power cooling, thermal resistance, and wick type being their identity.
Product List
Total Components: 27
| Product | Pricing | Datasheet | Type | Attachment Method | Shape | Power - Cooling | Thermal Resistance | Wick Type | Length | Width | Height | Diameter | Operating Temperature | Features | Material | Platform | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

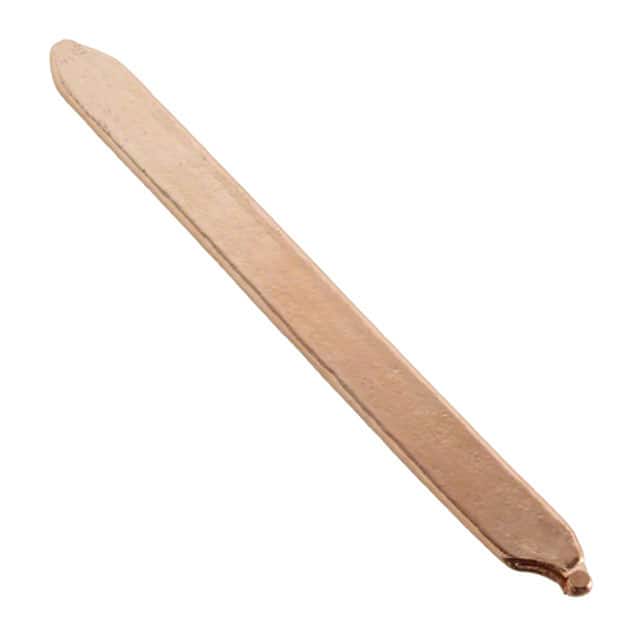

 120231 Wakefield Thermal | 1 $15.6500 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | 25.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | 0.339" (8.60mm) | 0.059" (1.50mm) | - | - | - | Copper | - | 6,994 Cart + RFQ |

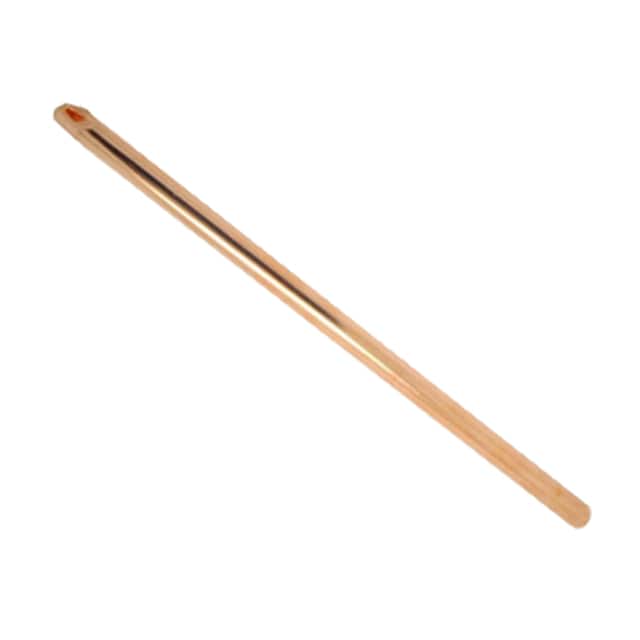

 110581_REV1 Wakefield Thermal | 1 $16.0900 | Datasheet | Heat Pipe | - | Round | 40.0W @ 250mm | - | Sintered | 9.843" (250.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - | 6,145 Cart + RFQ |

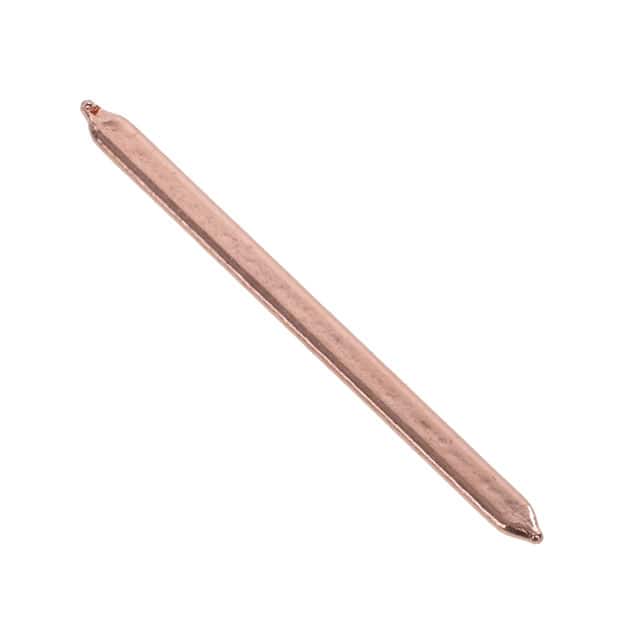

 126257 Wakefield Thermal | 1 $17.3800 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 23.622" (600.00mm) | 0.528" (13.42mm) | 0.157" (4.00mm) | - | - | - | Copper | - | 8,747 Cart + RFQ |

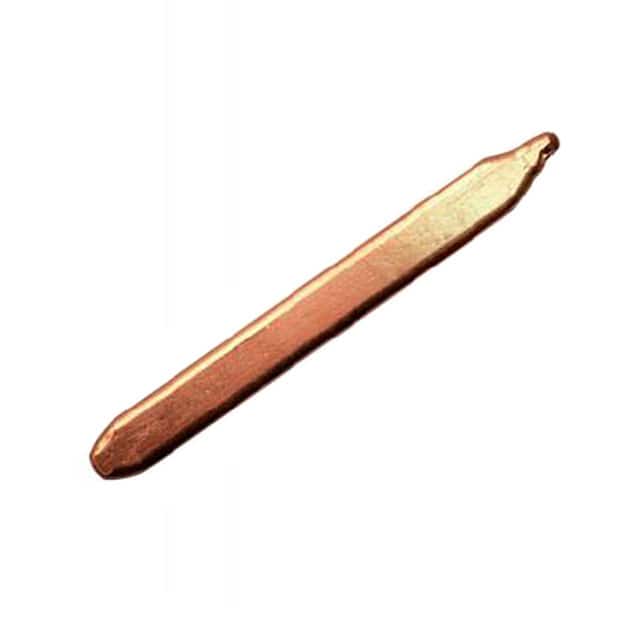

 121727 Wakefield Thermal | 1 $17.1100 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | 50.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | 0.410" (10.41mm) | 0.177" (4.50mm) | - | - | - | Copper | - | 2,060 Cart + RFQ |

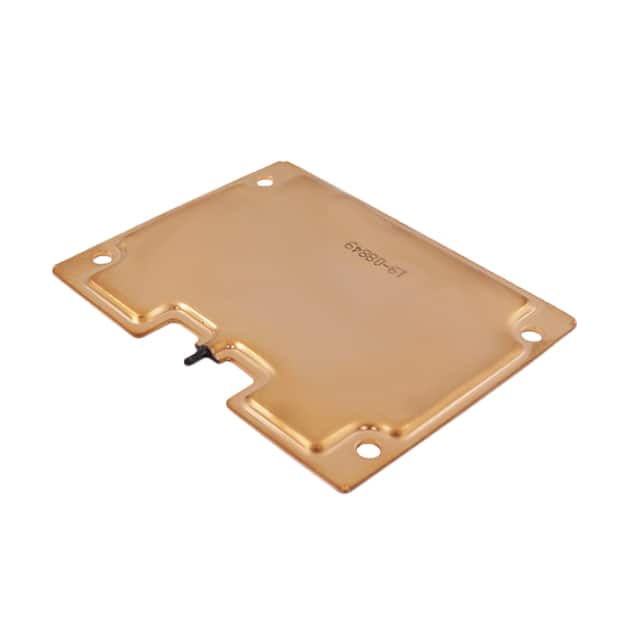

 VC-106-70-3 Wakefield Thermal | 1 $54.0900 | Datasheet | Vapor Chamber | Bolt On | Rectangular | 150W | 0.150°C/W | - | 4.173" (106.00mm) | 2.756" (70.00mm) | 0.118" (3.00mm) | - | 40°C ~ 140°C | - | - | Intel 2011 Narrow | 9,887 Cart + RFQ |

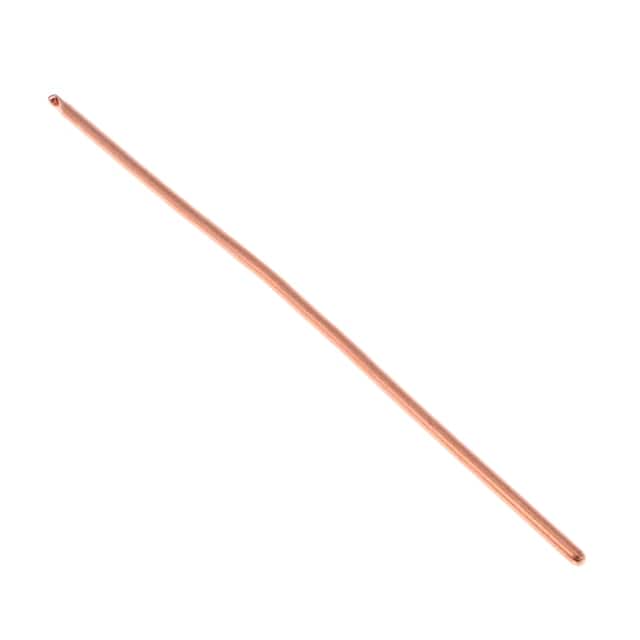

 124641 Wakefield Thermal | 1 $5.3500 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 5.0W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - | 7,314 Cart + RFQ |

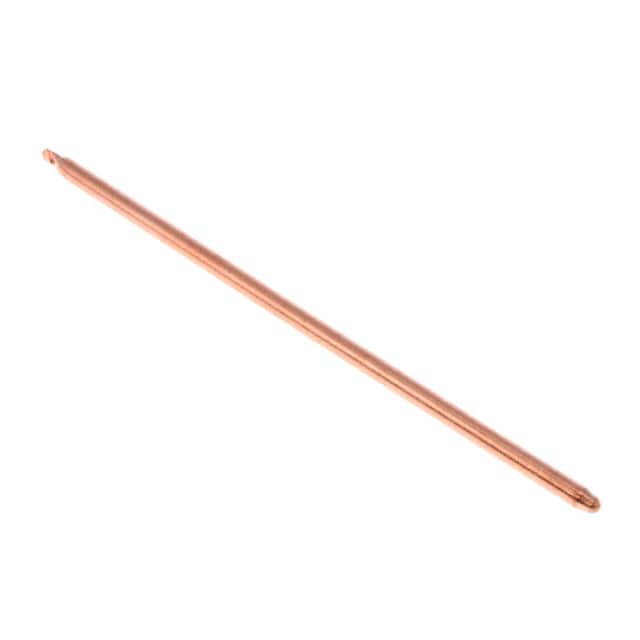

 124642 Wakefield Thermal | 1 $5.7700 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 8.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - | 9,184 Cart + RFQ |
124643 Wakefield Thermal | 1 $6.3200 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 10.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.118" (3.00mm) OD | - | - | Copper | - | 4,982 Cart + RFQ |
124669 Wakefield Thermal | 1 $10.1600 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 120.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - | 1,123 Cart + RFQ |
126005 Wakefield Thermal | 1 $10.6100 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 7.874" (200.00mm) | 0.191" (4.86mm) | 0.098" (2.50mm) | - | - | - | Copper | - | 2,345 Cart + RFQ |

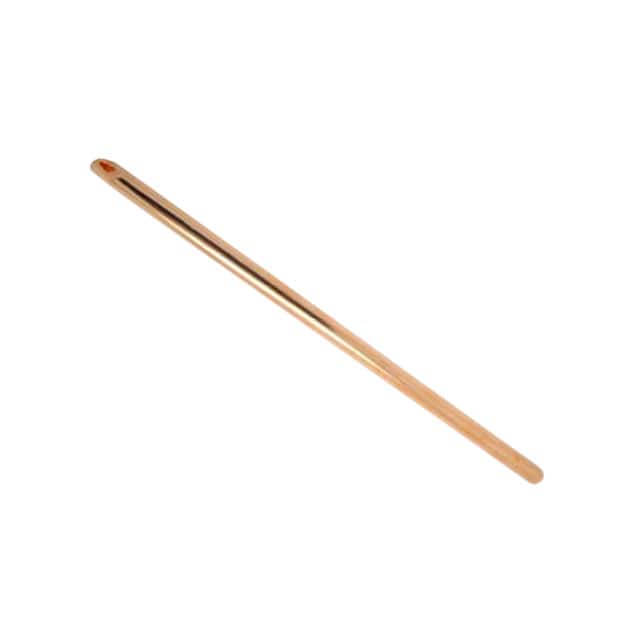

 121686_REV1 Wakefield Thermal | 1 $11.4900 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 7.0W @ 70mm | - | Sintered | 2.756" (70.00mm) | - | - | 0.157" (4.00mm) OD | - | - | Copper | - | 7,665 Cart + RFQ |
121688_REV1 Wakefield Thermal | 1 $11.7800 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 10.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.157" (4.00mm) OD | - | - | Copper | - | 7,530 Cart + RFQ |
126240 Wakefield Thermal | 1 $12.1500 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 9.843" (250.00mm) | 0.405" (10.29mm) | 0.157" (4.00mm) | - | - | - | Copper | - | 8,738 Cart + RFQ |

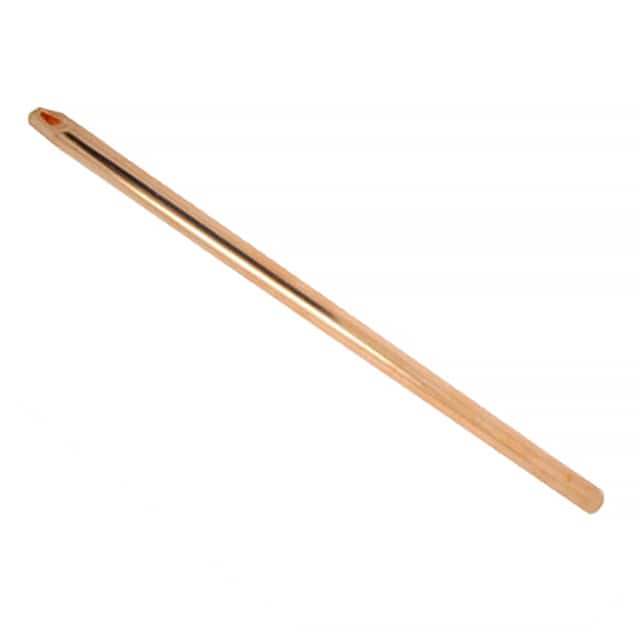

 110578_REV1 Wakefield Thermal | 1 $14.5300 | Datasheet | Heat Pipe | - | Round | 35.0W @ 100mm | - | Sintered | 3.937" (100.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - | 8,080 Cart + RFQ |

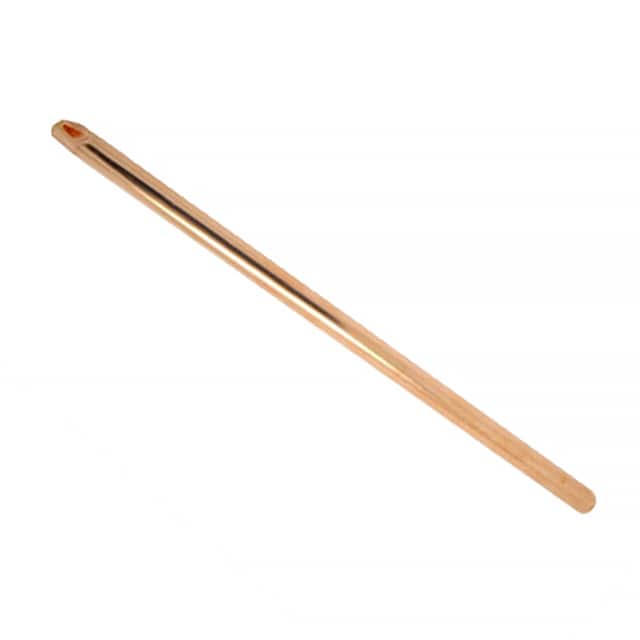

 110579_REV1 Wakefield Thermal | 1 $14.9100 | Datasheet | Heat Pipe | - | Round | 60.0W @ 150mm | - | Sintered | 5.906" (150.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - | 8,577 Cart + RFQ |

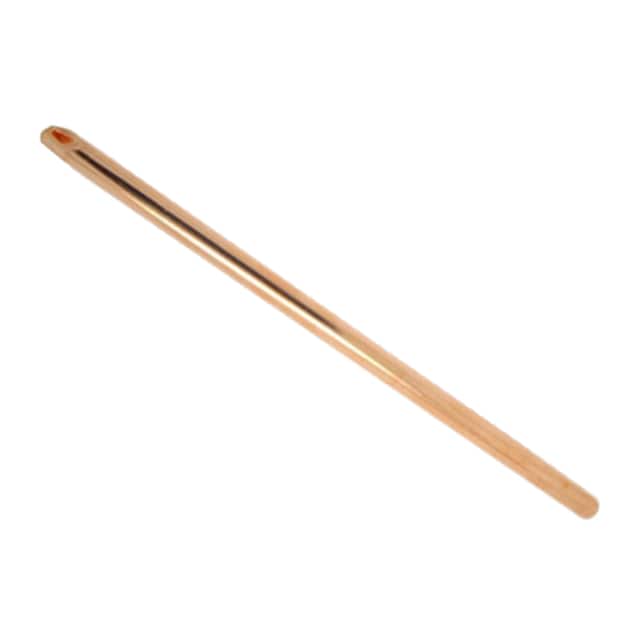

 110580_REV1 Wakefield Thermal | 1 $15.3300 | Datasheet | Heat Pipe | - | Round | 50.0W @ 200mm | - | Sintered | 7.874" (200.00mm) | - | - | 0.236" (6.00mm) OD | - | - | Copper | - | 8,647 Cart + RFQ |
124668 Wakefield Thermal | 1 $16.5100 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 25.0W @ 600mm | - | Sintered | 23.622" (600.00mm) | - | - | 0.394" (10.00mm) OD | - | - | Copper | - | 7,505 Cart + RFQ |
124679 Wakefield Thermal | 1 $18.1300 | Datasheet | Heat Pipe | Epoxy or Solder | Round | 50.0W @ 500mm | - | Sintered | 19.685" (500.00mm) | - | - | 0.472" (12.00mm) OD | - | - | Copper | - | 1,584 Cart + RFQ |
121729 Wakefield Thermal | 1 $20.0400 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | 40.0W @ 300mm | - | Sintered | 11.811" (300.00mm) | 0.410" (10.41mm) | 0.177" (4.50mm) | - | - | - | Copper | - | 2,407 Cart + RFQ |
126065 Wakefield Thermal | 1 $10.6100 | Datasheet | Heat Pipe | Epoxy or Solder | Flat | - | - | Sintered | 7.874" (200.00mm) | 0.180" (4.57mm) | 0.118" (3.00mm) | - | - | - | Copper | - | 5,028 Cart + RFQ |
