Card Guides
Card Guides are designed to align a board when it is inserted into a card rack. They are made of aluminum, beryllium copper, metal, nylon, plastic, polybutylene, polycarbonate, polyphenylene, polystyrene, stainless steel, and zinc. They come in lengths of 0.312” to 48.000” and come in chassis, snap-in, or screw mount versions.
Product List
Total Components: 23
| Product | Pricing | Datasheet | Accessory Type | For Use With/Related Products | Stock & Quantity |
|---|---|---|---|---|---|

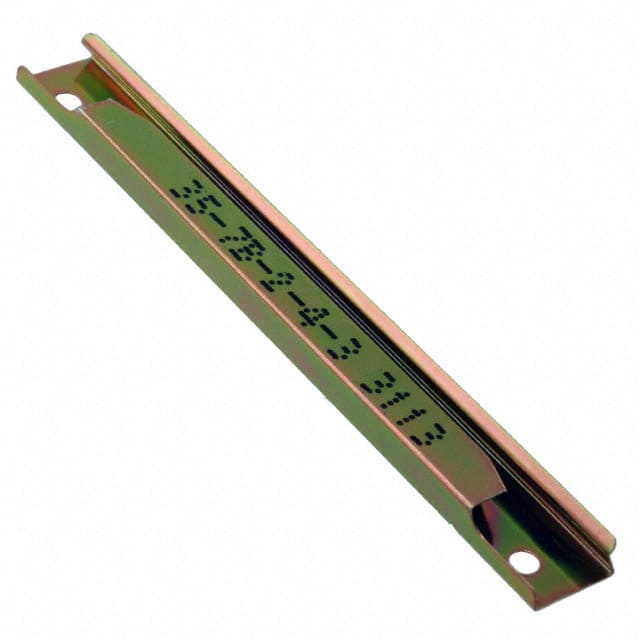

 35-7B-2-4-3 Calmark / nVent | 1 $11.4200 | Datasheet | Beryllium Copper, Screw Mount, 2.000" (50.80mm) | 1/16" (1.6mm) Thick PC Boards | 7,489 Cart + RFQ |

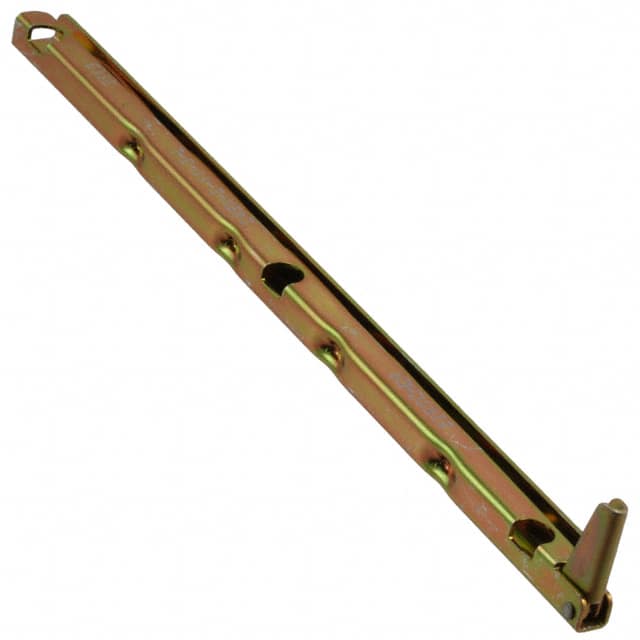

 24BX-2-11-3-L Calmark / nVent | 1 $46.0300 | Datasheet | Beryllium Copper, Chassis Mount, 5.500" (139.70mm) | 1/16" (1.6mm) Thick PC Boards | 8,305 Cart + RFQ |

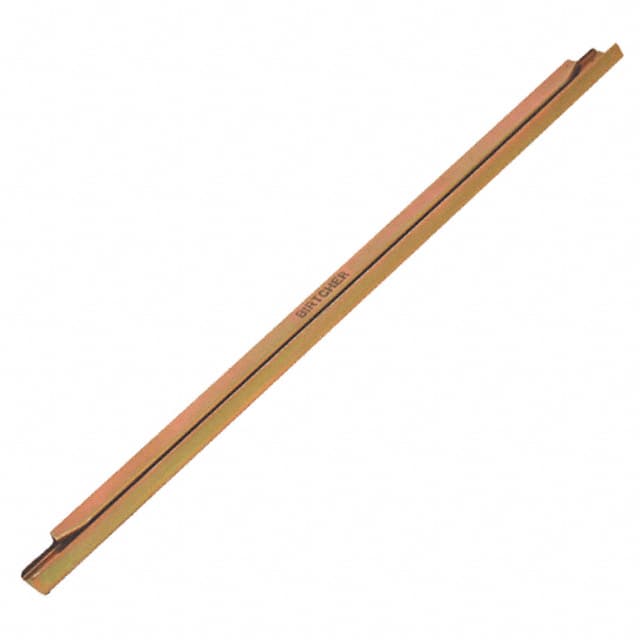

 35-1B-2-8-3 Calmark / nVent | 1 $13.6400 | Datasheet | Beryllium Copper, Screw Mount, 4.000" (101.60mm) | 1/16" (1.6mm) Thick PC Boards | 4,879 Cart + RFQ |
35-1B-2-6-3 Calmark / nVent | 1 $8.9436 | Datasheet | Beryllium Copper, Screw Mount, 3.000" (76.20mm) | 1/16" (1.6mm) Thick PC Boards | 8,691 Cart + RFQ |

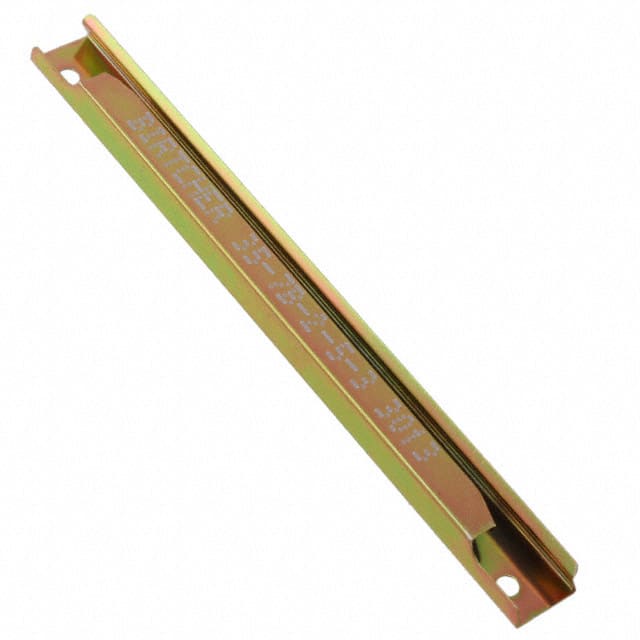

 35-7B-2-5-3 Calmark / nVent | 1 $9.3880 | Datasheet | Beryllium Copper, Screw Mount, 2.500" (63.50mm) | 1/16" (1.6mm) Thick PC Boards | 2,391 Cart + RFQ |

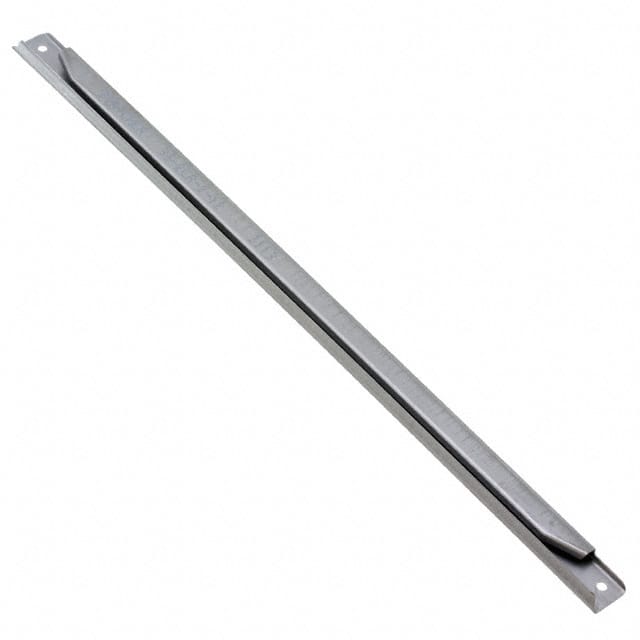

 35-2CR-2-12 Calmark / nVent | 1 $9.7629 | Datasheet | Stainless Steel, Screw Mount, 2.500" (63.50mm) | 1/16" (1.6mm) Thick PC Boards | 6,938 Cart + RFQ |
35-1B-2-10-3 Calmark / nVent | 1 $11.9016 | Datasheet | Beryllium Copper, Screw Mount, 5.000" (127.00mm) | 1/16" (1.6mm) Thick PC Boards | 9,857 Cart + RFQ |
35-1B-2-12-3 Calmark / nVent | 1 $13.3876 | Datasheet | Beryllium Copper, Screw Mount, 6.000" (152.40mm) | 1/16" (1.6mm) Thick PC Boards | 2,494 Cart + RFQ |

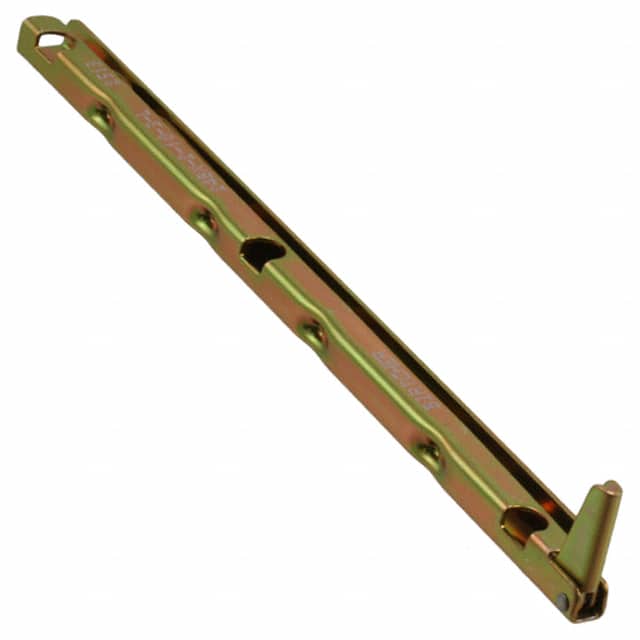

 24BX-2-10-3-L Calmark / nVent | 1 $33.3785 | Datasheet | Beryllium Copper, Chassis Mount, 5.000" (127.00mm) | 1/16" (1.6mm) Thick PC Boards | 8,995 Cart + RFQ |

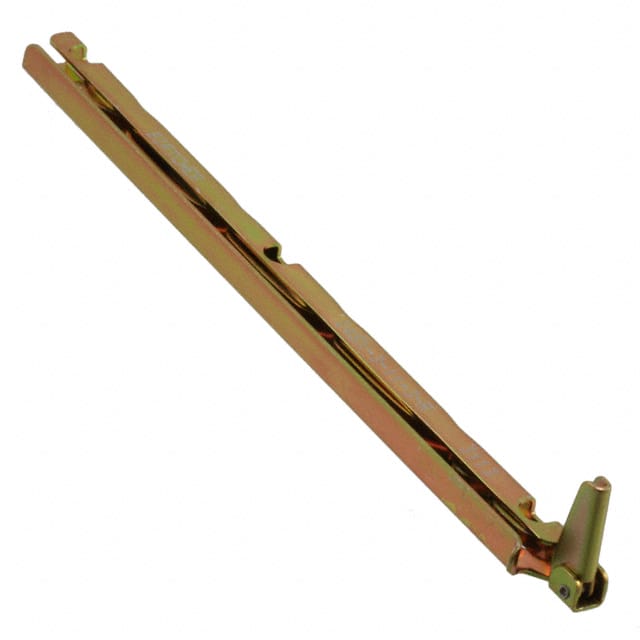

 24BX-2-10-3-R Calmark / nVent | 1 $33.3785 | Datasheet | Beryllium Copper, Chassis Mount, 5.000" (127.00mm) | 1/16" (1.6mm) Thick PC Boards | 5,266 Cart + RFQ |

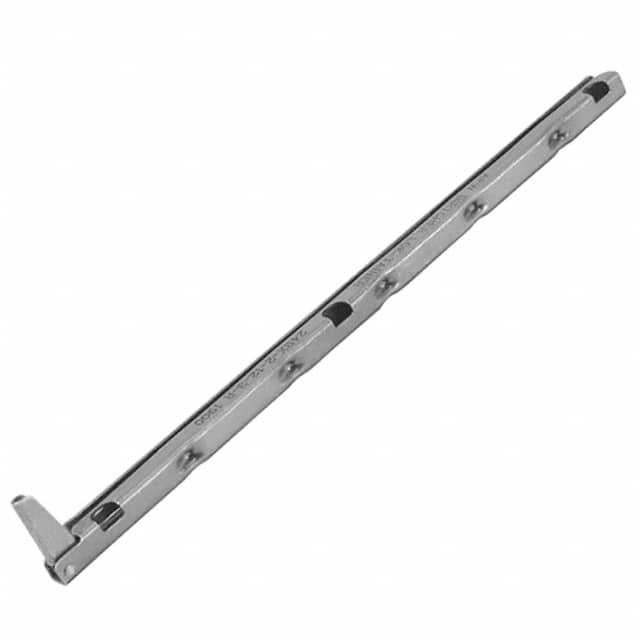

 24SX-3-11-3-L Calmark / nVent | 1 $33.8915 | Datasheet | Steel, Chassis Mount, 5.000" (127.00mm) | 3/32" (2.4mm) Thick PC Boards | 7,344 Cart + RFQ |
24SX-3-11-3-R Calmark / nVent | 1 $33.8915 | Datasheet | Steel, Chassis Mount, 5.000" (127.00mm) | 3/32" (2.4mm) Thick PC Boards | 1,924 Cart + RFQ |

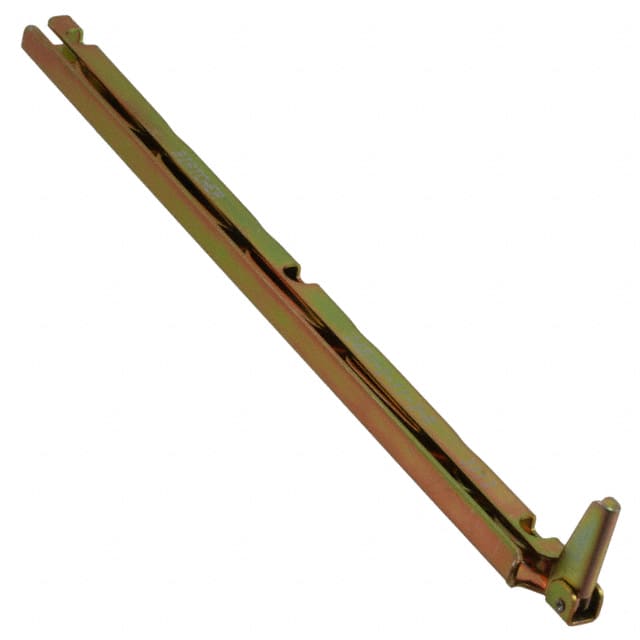

 24BX-2-11-3-R Calmark / nVent | 1 $35.3288 | Datasheet | Beryllium Copper, Chassis Mount, 5.500" (139.70mm) | 1/16" (1.6mm) Thick PC Boards | 3,088 Cart + RFQ |
24SX-3-12-3-L Calmark / nVent | 1 $36.3363 | Datasheet | Steel, Chassis Mount, 5.500" (139.70mm) | 3/32" (2.4mm) Thick PC Boards | 1,930 Cart + RFQ |
24SX-3-12-3-R Calmark / nVent | 1 $36.3363 | Datasheet | Steel, Chassis Mount, 5.500" (139.70mm) | 3/32" (2.4mm) Thick PC Boards | 8,384 Cart + RFQ |

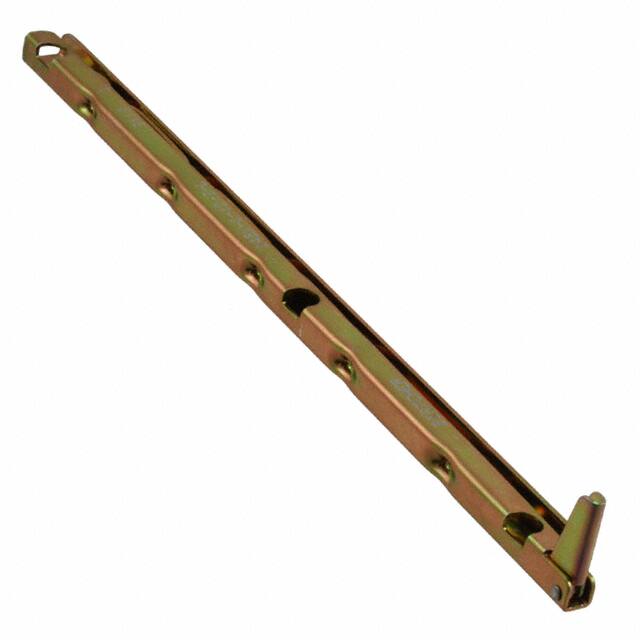

 24BX-2-12-3-L Calmark / nVent | 1 $37.7602 | Datasheet | Beryllium Copper, Chassis Mount, 6.000" (152.40mm) | 1/16" (1.6mm) Thick PC Boards | 2,240 Cart + RFQ |
 24BX-2-12-3-R Calmark / nVent | 1 $37.7602 | Datasheet | Beryllium Copper, Chassis Mount, 6.000" (152.40mm) | 1/16" (1.6mm) Thick PC Boards | 3,740 Cart + RFQ |

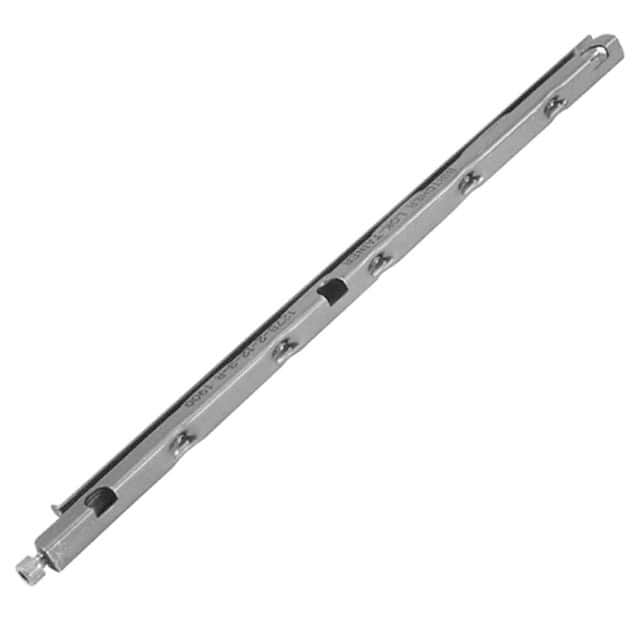

 127B-2-10-3-L Calmark / nVent | 1 $38.2438 | Datasheet | Beryllium Copper, Chassis Mount, 5.000" (127.00mm) | 0.025 ~ 0.070" (0.64 ~ 1.78mm) PC Boards | 1,981 Cart + RFQ |
127B-2-10-3-R Calmark / nVent | 1 $38.2438 | Datasheet | Beryllium Copper, Chassis Mount, 5.000" (127.00mm) | 0.025 ~ 0.070" (0.64 ~ 1.78mm) PC Boards | 6,684 Cart + RFQ |
24SX-3-16-6-L Calmark / nVent | 1 $44.6110 | Datasheet | Steel, Chassis Mount, 6.000" (152.40mm) | 3/32" (2.4mm) Thick PC Boards | 8,176 Cart + RFQ |
