DC Brushless Fans (BLDC)
Products in the DC fan family are electromechanical products used to induce air movement and operate from a DC power source, typically of 48 volts or less. Though virtually all such products in current production are based on brushless motor technology, some variation in their other features does occur, including provisions for speed control and feedback mechanisms.
Product List
Total Components: 24
| Product | Pricing | Datasheet | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HA40101V4-1000U-A99 Sunon | 1 $4.3600 | Datasheet | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 15.7dB(A) | 380 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) | 9,018 Cart + RFQ |
 HA60251V4-1000U-A99 Sunon | 1 $4.8100 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.8 CFM (0.386m³/min) | 0.060 in H2O (14.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 10.7dB(A) | 240 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) | 9,762 Cart + RFQ |
 MF92251V1-1000U-A99 Sunon | 1 $5.1700 | Datasheet | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.0dB(A) | 1.68 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.203 lb (92.08 g) | 2,757 Cart + RFQ |
 MF40101VX-1000U-G99 Sunon | 1 $5.2800 | Datasheet | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.4dB(A) | 1.05 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.035 lb (15.88 g) | 1,500 Cart + RFQ |
 HA30101V3-1000U-A99 Sunon | 1 $6.0500 | Datasheet | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 15.1dB(A) | 300 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.018 lb (8.16 g) | 7,229 Cart + RFQ |
 MB45101V2-000U-A99 Sunon | 1 $6.1500 | Datasheet | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.2 CFM (0.258m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 1.26 W | 5000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.041 lb (18.6 g) | 3,647 Cart + RFQ |
 ME45101V1-000U-A99 Sunon | 1 $6.1500 | Datasheet | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.8 CFM (0.330m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.5dB(A) | 1.32 W | 6500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.035 lb (15.88 g) | 4,546 Cart + RFQ |
 MF40201VX-1000U-A99 Sunon | 1 $6.1800 | Datasheet | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.5dB(A) | 960 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) | 1,791 Cart + RFQ |
MF40201V2-1000U-A99 Sunon | 1 $6.1800 | Datasheet | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 540 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) | 3,316 Cart + RFQ |
MF40200V3-1000U-A99 Sunon | 1 $6.1800 | Datasheet | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.5dB(A) | 380 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) | 1,207 Cart + RFQ |

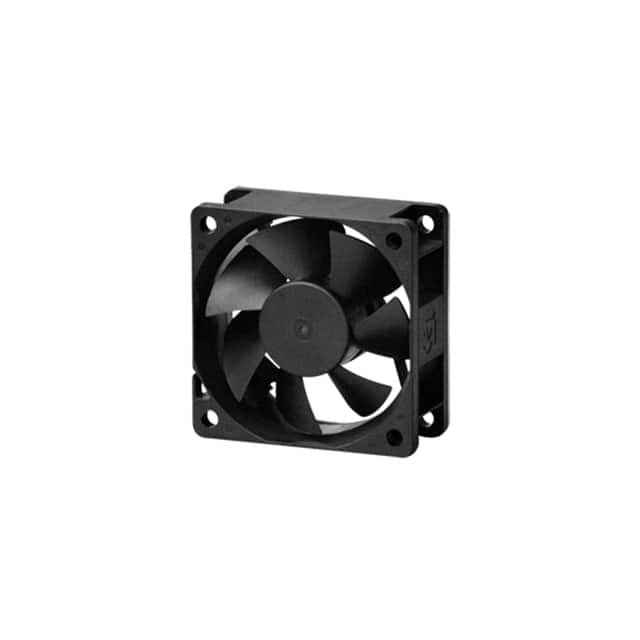

 MF60251V1-1000U-A99 Sunon | 1 $6.7300 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 900 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) | 4,089 Cart + RFQ |

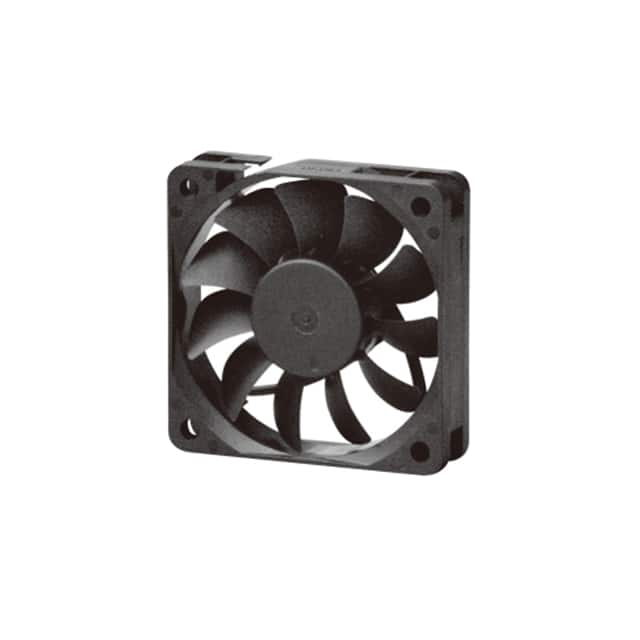

 HA60151V4-1000U-A99 Sunon | 1 $6.1100 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.7 CFM (0.356m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 14.5dB(A) | 270 mW | 2200 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.077 lb (34.93 g) | 6,824 Cart + RFQ |

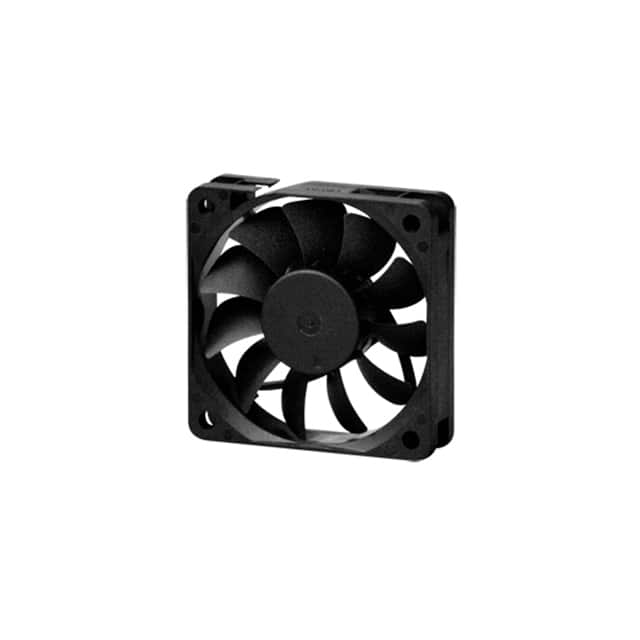

 MF60152V1-1000U-A99 Sunon | 1 $6.7300 | Datasheet | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.2dB(A) | 1.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.079 lb (35.83 g) | 2,852 Cart + RFQ |

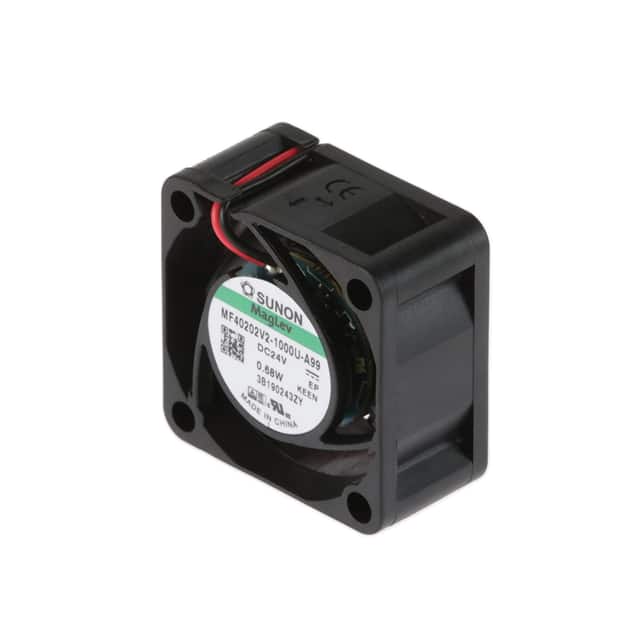

 MF40202V2-1000U-A99 Sunon | 1 $6.7300 | Datasheet | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 600 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) | 1,791 Cart + RFQ |
MF40200V1-1000U-A99 Sunon | 1 $6.1800 | Datasheet | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.5dB(A) | 750 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) | 8,399 Cart + RFQ |

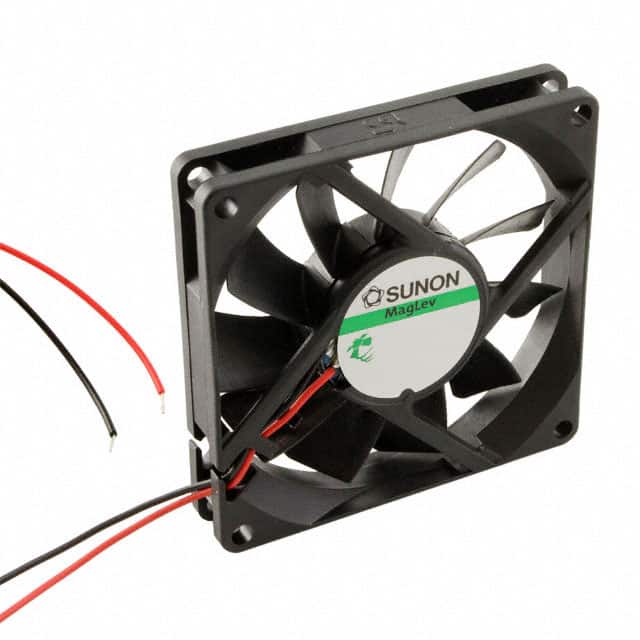

 ME80151V1-000U-A99 Sunon | 1 $6.9000 | Datasheet | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.7dB(A) | 1.96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.15 lb (68.04 g) | 8,624 Cart + RFQ |

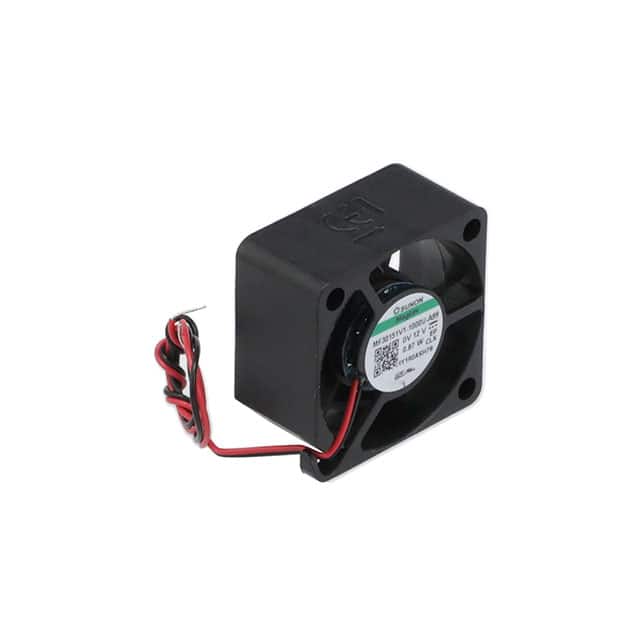

 MF30151V1-1000U-A99 Sunon | 1 $7.4800 | Datasheet | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 780 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.022 lb (9.98 g) | 5,273 Cart + RFQ |

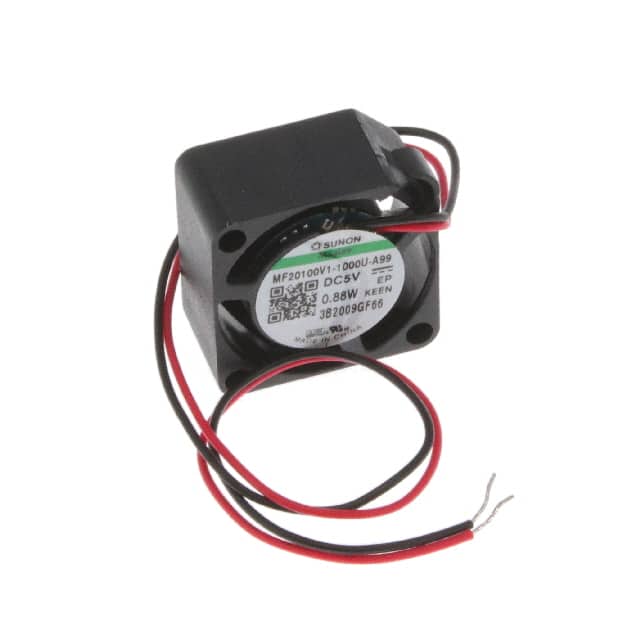

 MF20100V1-1000U-A99 Sunon | 1 $8.7400 | Datasheet | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.0dB(A) | 530 mW | 16500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.011 lb (4.99 g) | 4,611 Cart + RFQ |

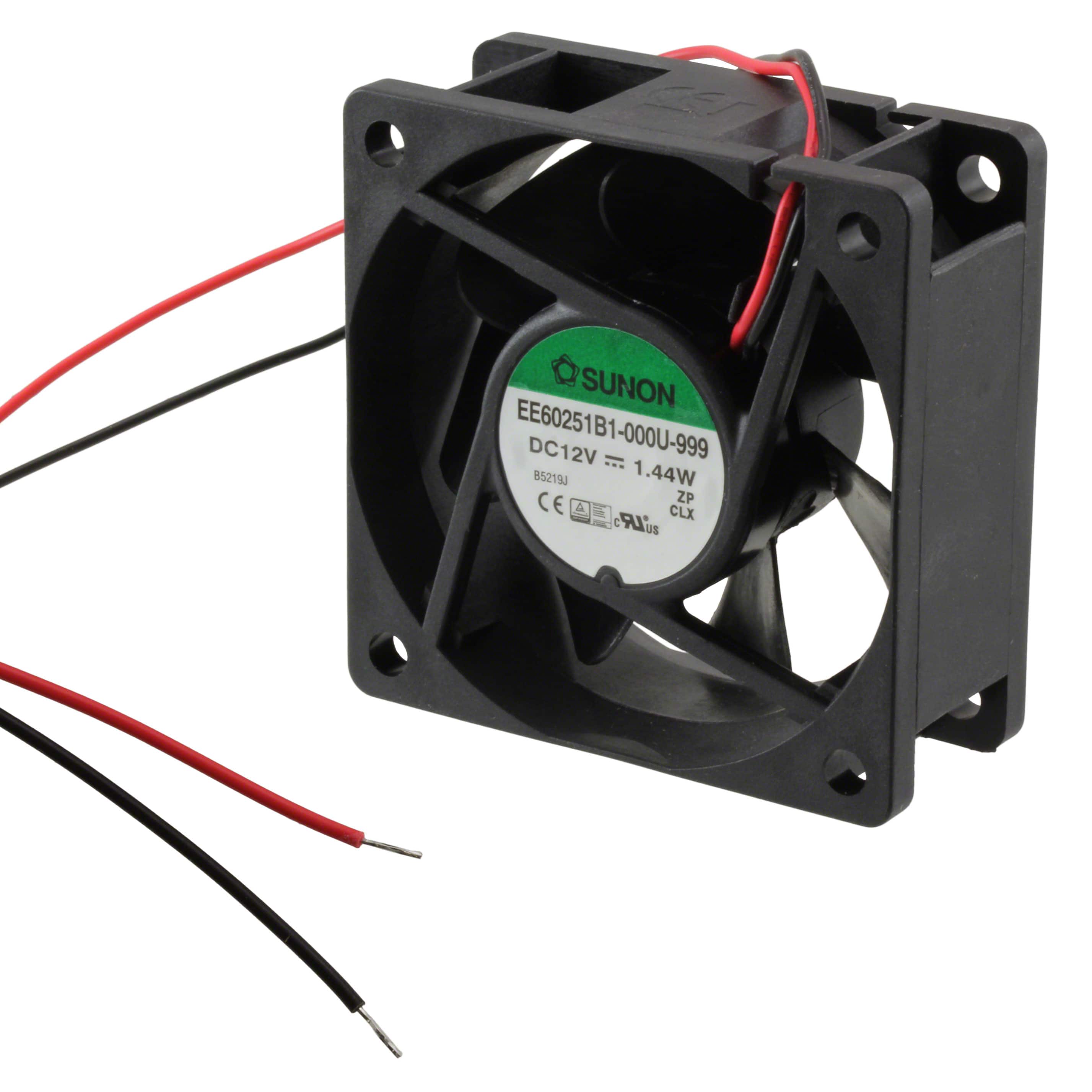

 EE60251B1-000U-999 Sunon | 1 $8.7800 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 1.44 W | 4500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.111 lb (50.35 g) | 8,171 Cart + RFQ |

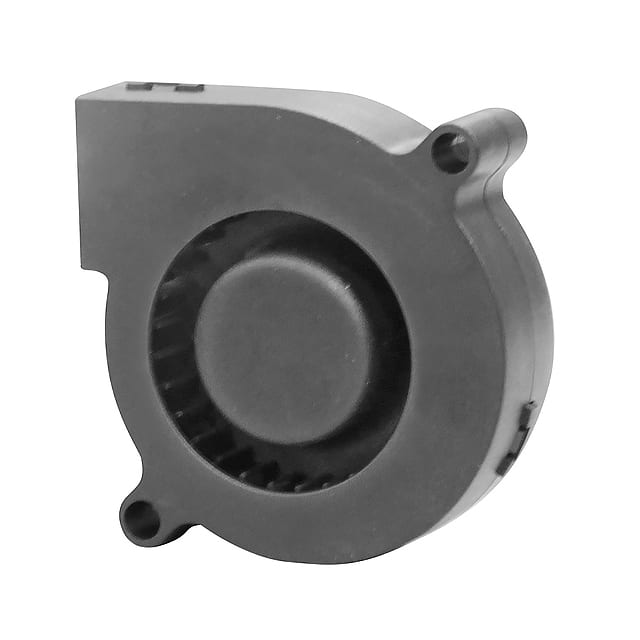

 MF50151V2-B00U-A99 Sunon | 1 $9.7200 | Datasheet | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.400 in H2O (99.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 33.1dB(A) | 680 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.067 lb (30.39 g) | 4,449 Cart + RFQ |
