DC Brushless Fans (BLDC)
Products in the DC fan family are electromechanical products used to induce air movement and operate from a DC power source, typically of 48 volts or less. Though virtually all such products in current production are based on brushless motor technology, some variation in their other features does occur, including provisions for speed control and feedback mechanisms.
Product List
Total Components: 23
| Product | Pricing | Datasheet | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

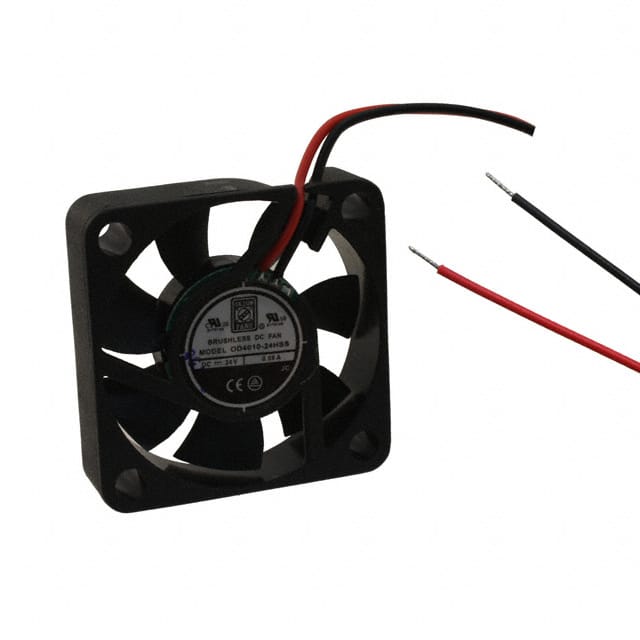

 OD4010-24HSS Orion Fans | 1 $7.4400 | Datasheet | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 33.2dB | 1.45 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) | 3,743 Cart + RFQ |

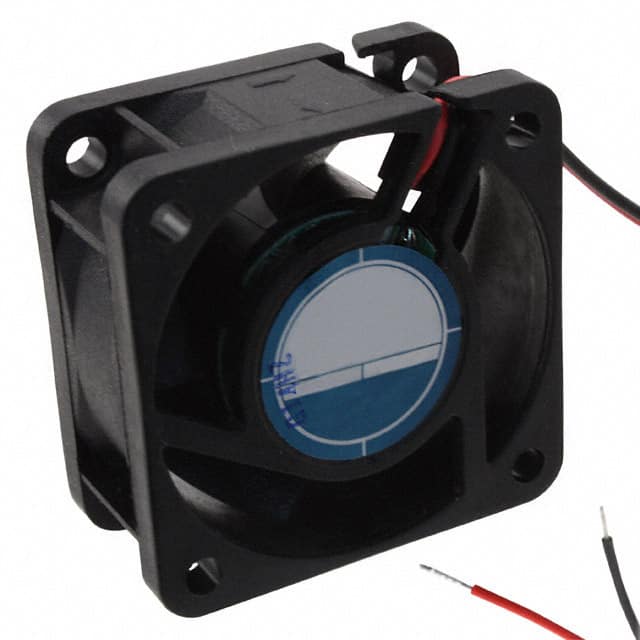

 OD4020-24HSS Orion Fans | 1 $7.7600 | Datasheet | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 32.1dB(A) | 1.72 W | 8190 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - | 2,500 Cart + RFQ |

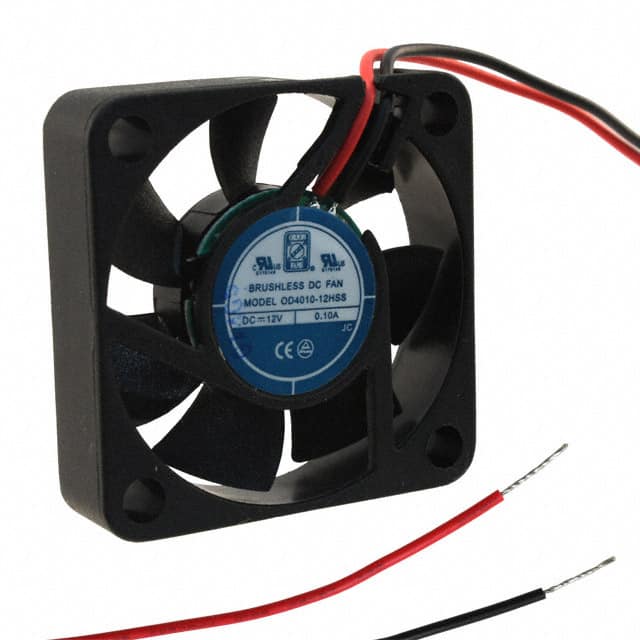

 OD4010-12HSS Orion Fans | 1 $7.3500 | Datasheet | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 33.2dB | 720 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) | 6,002 Cart + RFQ |

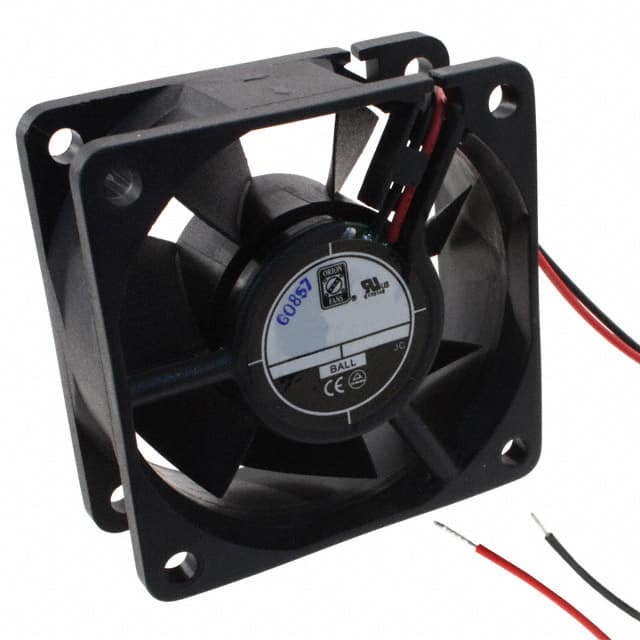

 OD6025-24HSS Orion Fans | 1 $8.2200 | Datasheet | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 2.8 W | 4390 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | 0.141 lb (63.96 g) | 1,741 Cart + RFQ |
OD6025-12HSS Orion Fans | 1 $8.2200 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.8 W | 3975 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.141 lb (63.96 g) | 7,699 Cart + RFQ |
OD6025-24HHB Orion Fans | 1 $11.3300 | Datasheet | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 32.0 CFM (0.896m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 2.8 W | 4390 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) | 9,208 Cart + RFQ |

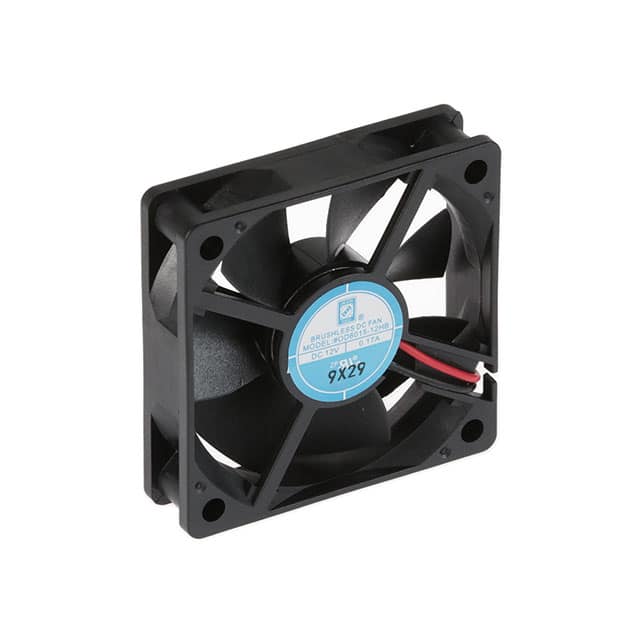

 OD6015-12HB Orion Fans | 1 $11.6600 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.08 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.079 lb (35.83 g) | 6,182 Cart + RFQ |

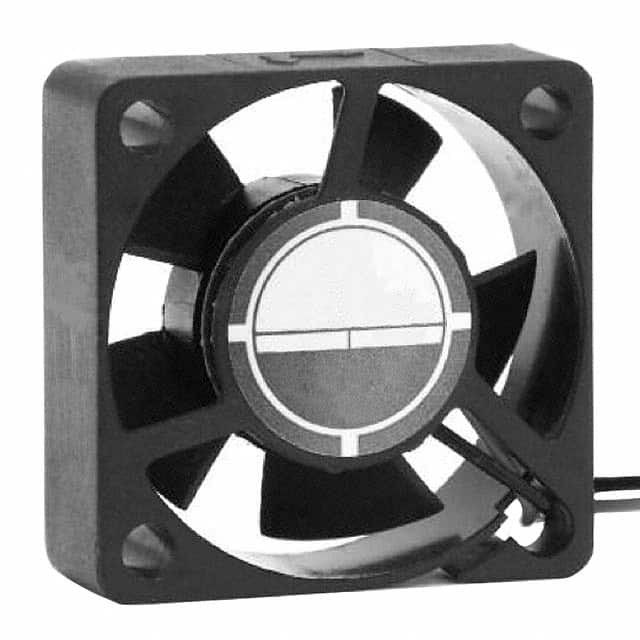

 OD3010-05MB Orion Fans | 1 $11.9900 | Datasheet | 5VDC | Square - 30mm L x 30mm H | 10.20mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | CE, cURus | - | 5,664 Cart + RFQ |

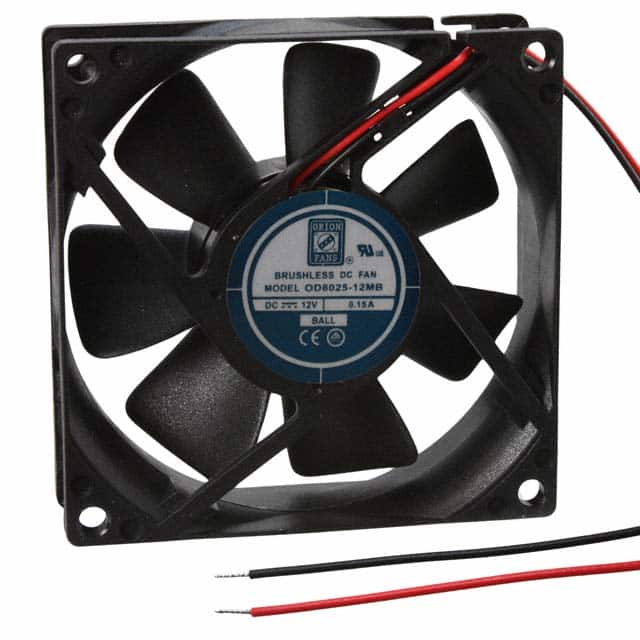

 OD8025-12MB Orion Fans | 1 $12.3600 | Datasheet | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB | 0.96 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) | 2,888 Cart + RFQ |

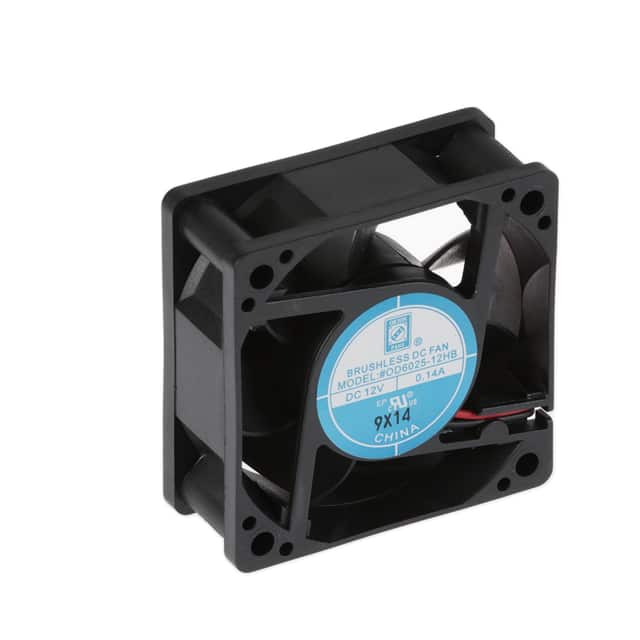

 OD6025-12HB Orion Fans | 1 $12.3600 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.8 W | 3975 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) | 3,207 Cart + RFQ |

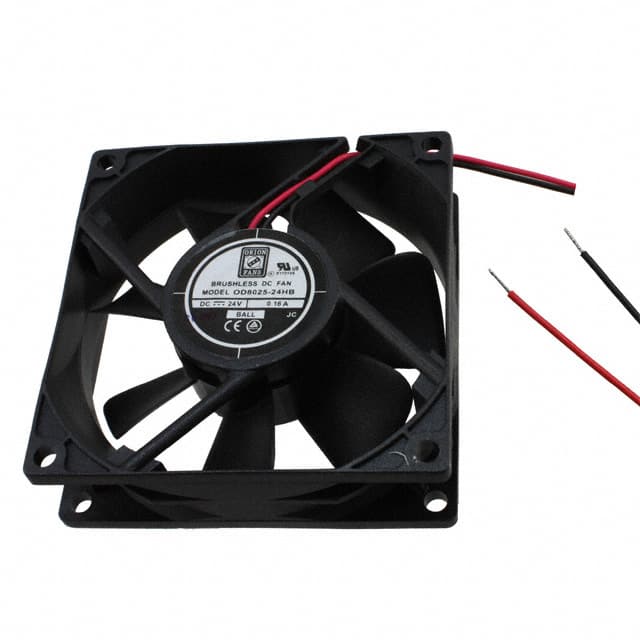

 OD8025-24HB Orion Fans | 1 $12.3600 | Datasheet | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 1.44 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) | 6,373 Cart + RFQ |
OD6025-05HB Orion Fans | 1 $12.3600 | Datasheet | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.141 lb (63.96 g) | 3,246 Cart + RFQ |

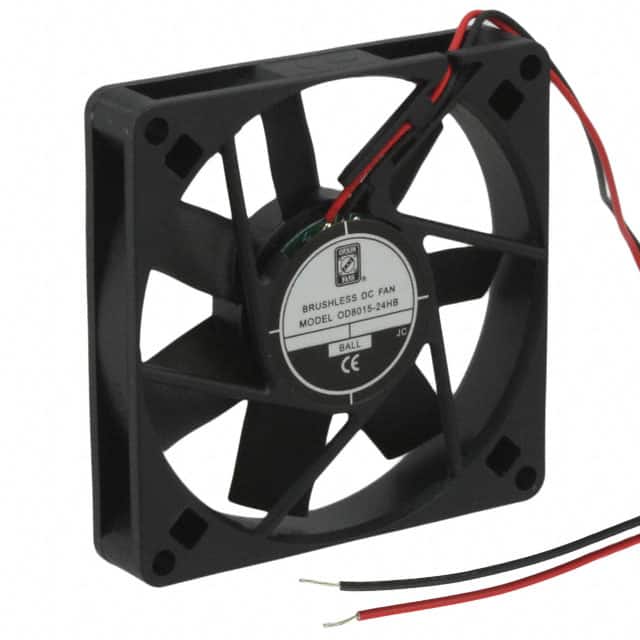

 OD8015-24HB Orion Fans | 1 $12.3600 | Datasheet | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 33.0dB | - | 3200 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - | 5,110 Cart + RFQ |

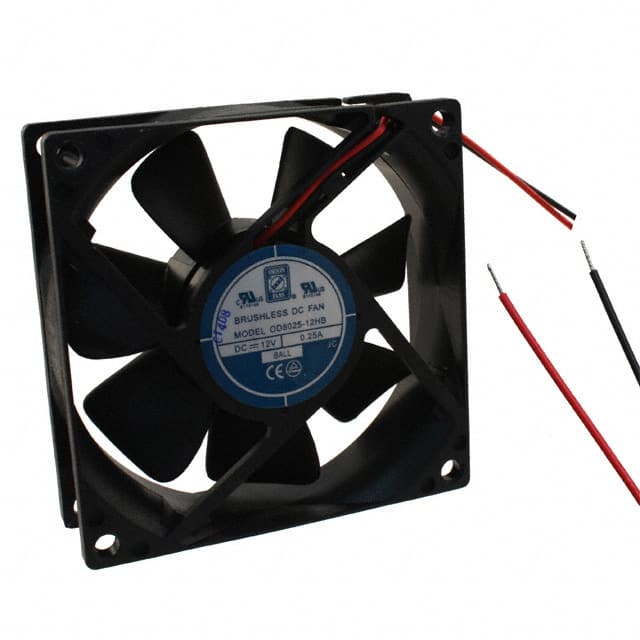

 OD8025-12HB Orion Fans | 1 $12.3600 | Datasheet | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 1.8 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) | 5,813 Cart + RFQ |

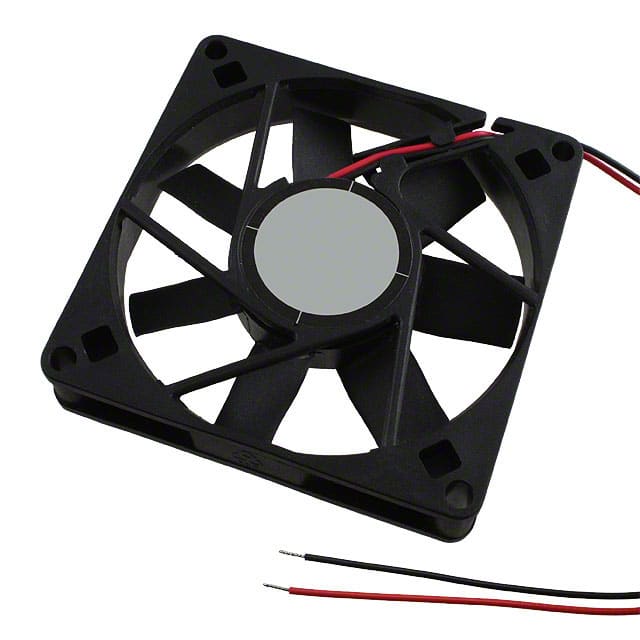

 OD8015-24MB Orion Fans | 1 $12.3600 | Datasheet | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 23.0 CFM (0.644m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 26.0dB | - | 2500 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - | 3,737 Cart + RFQ |

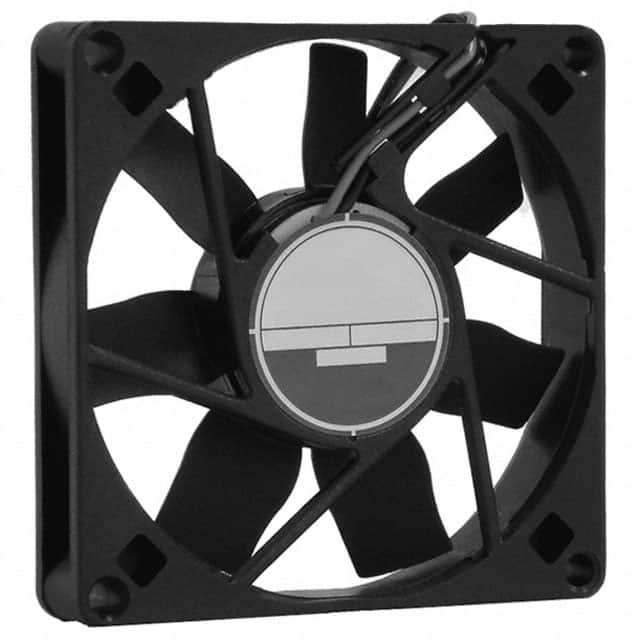

 OD8015-12HB Orion Fans | 1 $12.3600 | Datasheet | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 33.0dB | - | 3200 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - | 9,246 Cart + RFQ |

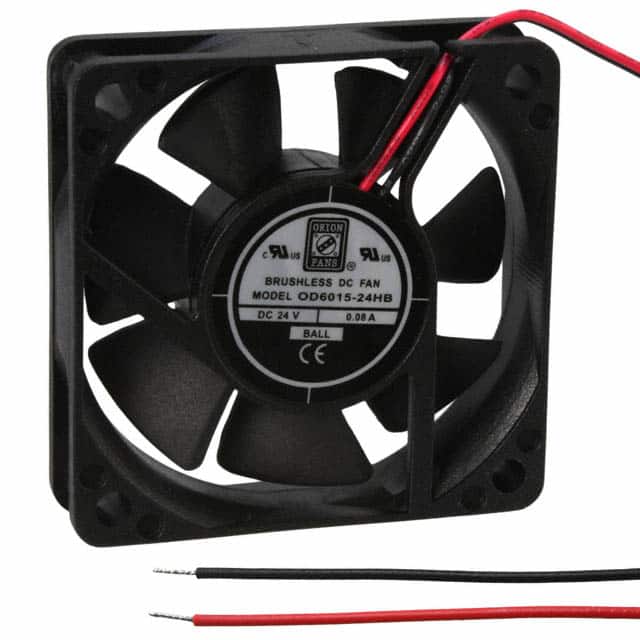

 OD6015-24HB Orion Fans | 1 $12.3600 | Datasheet | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.2 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.079 lb (35.83 g) | 7,019 Cart + RFQ |

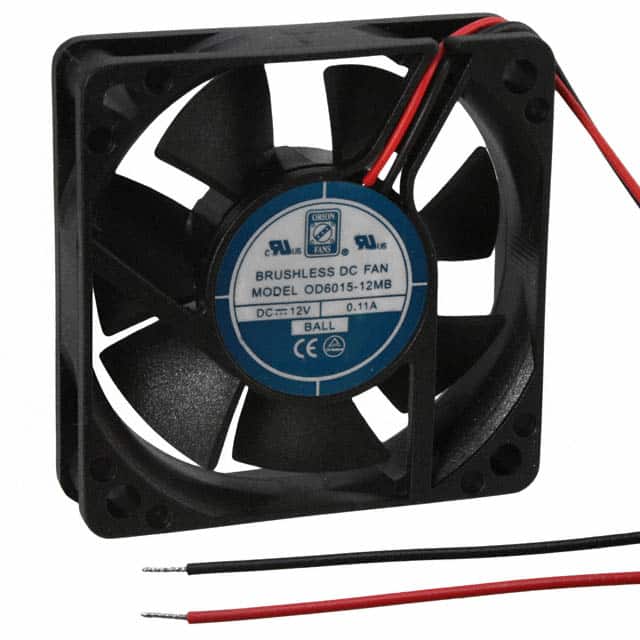

 OD6015-12MB Orion Fans | 1 $12.3600 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB | - | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.079 lb (35.83 g) | 6,356 Cart + RFQ |

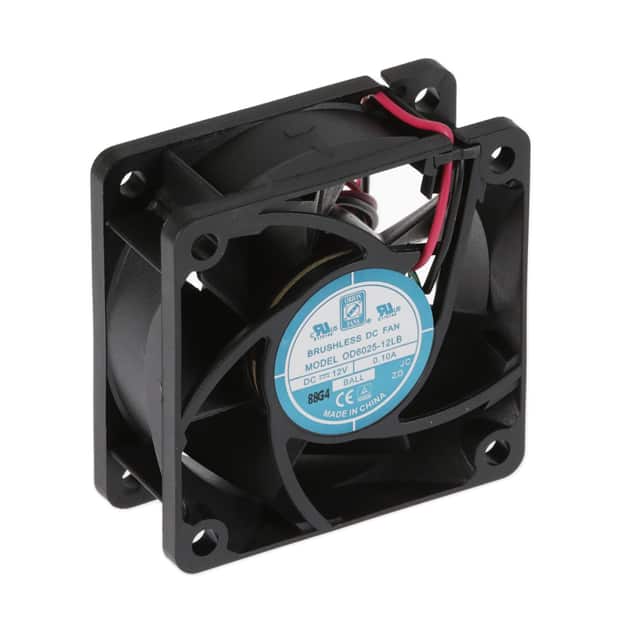

 OD6025-12LB Orion Fans | 1 $12.3600 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.080 in H2O (20.0 Pa) | Ball | Tubeaxial | Auto Restart | 19.0dB(A) | 1 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.141 lb (63.96 g) | 9,725 Cart + RFQ |

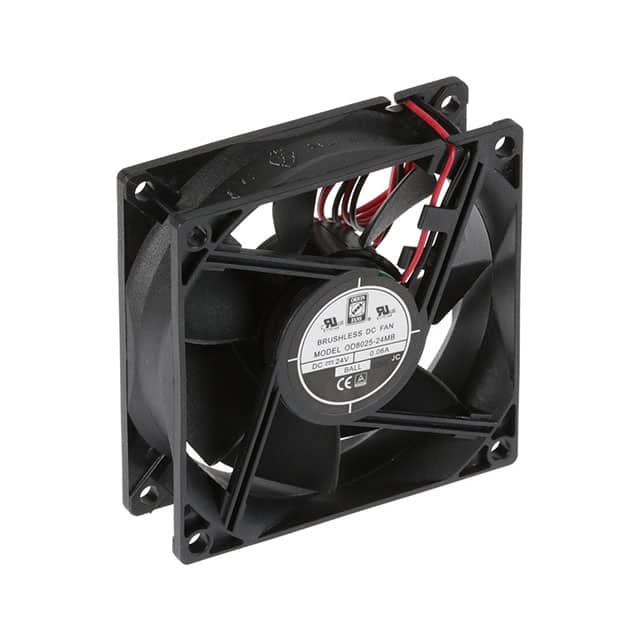

 OD8025-24MB Orion Fans | 1 $12.3600 | Datasheet | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB | 0.96 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) | 1,558 Cart + RFQ |
