DC Brushless Fans (BLDC)
Products in the DC fan family are electromechanical products used to induce air movement and operate from a DC power source, typically of 48 volts or less. Though virtually all such products in current production are based on brushless motor technology, some variation in their other features does occur, including provisions for speed control and feedback mechanisms.
Product List
Total Components: 12
| Product | Pricing | Datasheet | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 04015SS-24N-AT-00 MinebeaMitsumi | 1 $7.1200 | Datasheet | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 1.2 W | 8300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.051 lb (23.13 g) | 7,923 Cart + RFQ |
 03010SS-12N-AT-00 MinebeaMitsumi | 1 $7.7400 | Datasheet | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 960 mW | 10500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.019 lb (8.62 g) | 2,946 Cart + RFQ |
 02510SS-12P-AT-00 MinebeaMitsumi | 1 $8.9600 | Datasheet | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.6 CFM (0.073m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 840 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) | 2,899 Cart + RFQ |
 2410SB-04W-B49-B50 MinebeaMitsumi | 1 $9.5400 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.5dB(A) | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) | 9,109 Cart + RFQ |
 2406KL-04W-B50-L00 MinebeaMitsumi | 1 $11.6800 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.92 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) | 5,948 Cart + RFQ |
2406KL-04W-B10-L00 MinebeaMitsumi | 1 $11.6800 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 6.7 CFM (0.188m³/min) | 0.034 in H2O (8.5 Pa) | Ball | Tubeaxial | - | 19.0dB | 480 mW | 1800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) | 1,195 Cart + RFQ |
2406KL-04W-B30-L00 MinebeaMitsumi | 1 $11.6800 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.08 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) | 5,130 Cart + RFQ |
 2410ML-05W-B30-B00 MinebeaMitsumi | 1 $11.8100 | Datasheet | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.0 CFM (0.532m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Auto Restart | 31.0dB | 1.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) | 7,938 Cart + RFQ |
2410ML-04W-B60-B00 MinebeaMitsumi | 1 $11.8100 | Datasheet | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Auto Restart | 36.0dB | 3.6 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) | 2,496 Cart + RFQ |

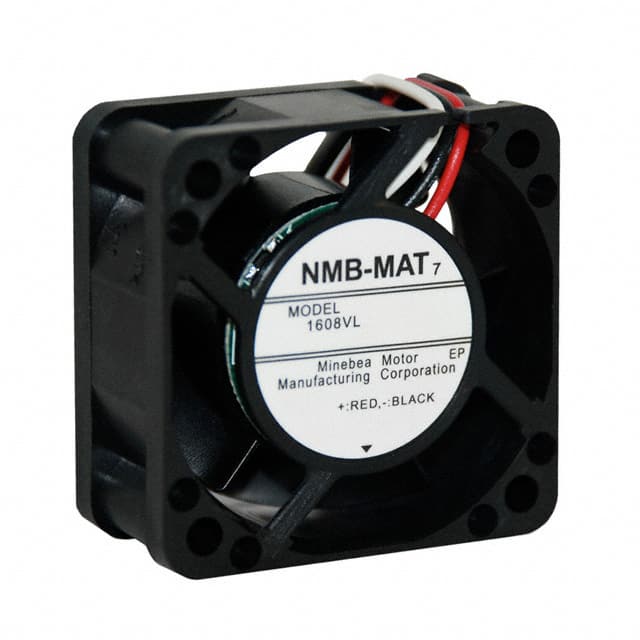

 1608VL-04W-B50-B00 MinebeaMitsumi | 1 $12.4200 | Datasheet | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart | 31.4dB(A) | 1.32 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) | 6,634 Cart + RFQ |

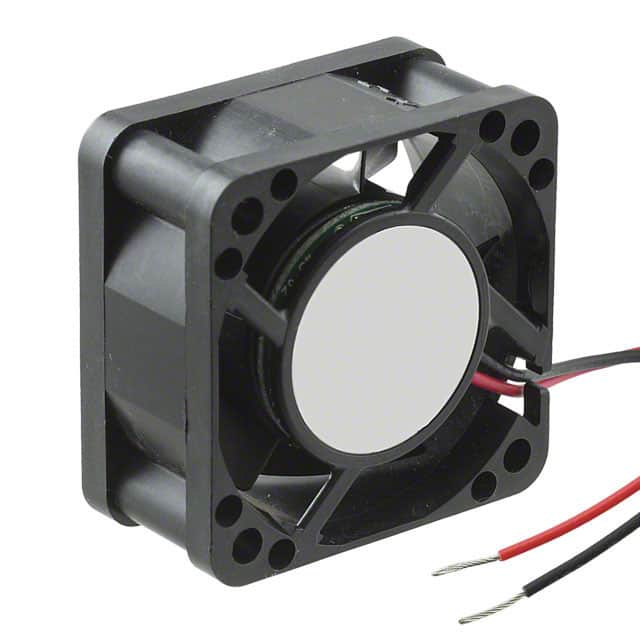

 1608VL-05W-B40-B00 MinebeaMitsumi | 1 $12.4200 | Datasheet | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.2 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) | 9,288 Cart + RFQ |
 BM4515-04W-B50-L00 MinebeaMitsumi | 1 $12.6000 | Datasheet | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.803 in H2O (200.0 Pa) | Ball | Blower | - | 43.0dB | 2.28 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) | 4,119 Cart + RFQ |
