AC Fans
AC Fans are cooling devices that are designed to produce a flow of air out of one side or end of the unit. The devices in this family are designed to be used with an alternating current. The characteristics are size/dimension, voltage rated, width, air flow, bearing type, and fan type. The size is rectangular from 103.4mm L x 90mm H to 1100mm L x 175mm H, round ranging from 108mm diameter to 925mm diameter, and square from 60mm L x 60mm H to 1070mm L to 1070mm H.
Product List
Total Components: 8
| Product | Pricing | Datasheet | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 19028420A Comair Rotron | 1 $56.4900 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.03 lbs (467.2 g) | 2,934 Cart + RFQ |
 19028422A Comair Rotron | 1 $60.5700 | Datasheet | 110VAC | Square - 120mm L x 120mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 20.00W | 2850 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | 32 ~ 158°F (0 ~ 70°C) | CE, cUL, UL | 1 lb (453.59 g) | 3,241 Cart + RFQ |
 19031842A Comair Rotron | 1 $100.9000 | Datasheet | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 41.40W | 3400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.3 lbs (1 kg) | 5,391 Cart + RFQ |
 19020191A Comair Rotron | 1 $103.7900 | Datasheet | 230VAC | Round - 254mm Dia | 89.00mm | 525.0 CFM (14.70m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | - | 49.2dB(A) | 60.0W | 1650 RPM | 2 Terminals | - | - | CE, cUL, UL | 4.4 lbs (2 kg) | 4,140 Cart + RFQ |
 19020188A Comair Rotron | 1 $103.7900 | Datasheet | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | - | 49.2dB(A) | 61.0W | 1650 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, cUL, UL | 4.4 lbs (2 kg) | 7,536 Cart + RFQ |
 19020174A Comair Rotron | 1 $110.0400 | Datasheet | 115VAC | Square - 176mm L x 176mm H | 112.0mm | 330.0 CFM (9.24m³/min) | 0.871 in H2O (216.9 Pa) | Ball | Tubeaxial | - | 65.4dB(A) | 59.0W | 3350 RPM | 2 Terminals | - | - | CE, cUL, UL | 5 lbs (2.3 kg) | 9,685 Cart + RFQ |

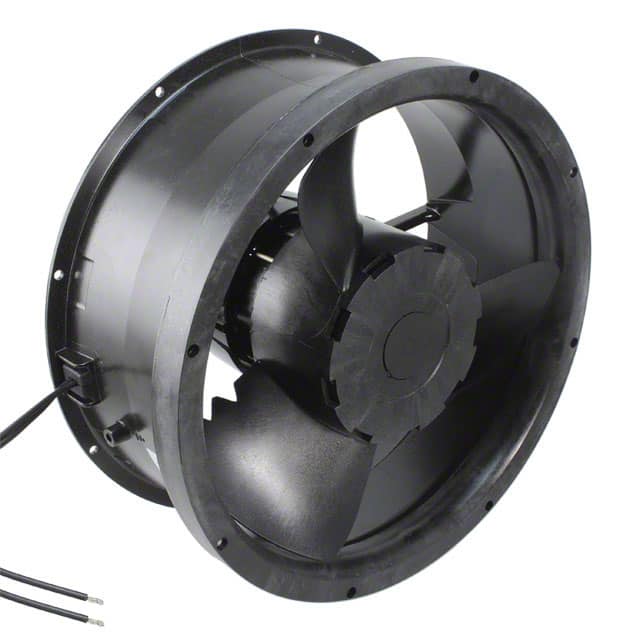

 19039202A Comair Rotron | 1 $120.4700 | Datasheet | 115VAC | Round - 254mm Dia | 107.0mm | 868.0 CFM (24.30m³/min) | 0.487 in H2O (121.3 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 115W | 2400 RPM | 2 Terminals | - | - | CE, cUL, UL | - | 7,671 Cart + RFQ |
19020172A Comair Rotron | 1 $146.1400 | Datasheet | 230VAC | Square - 176mm L x 176mm H | 112.0mm | 330.0 CFM (9.24m³/min) | 0.871 in H2O (216.9 Pa) | Ball | Tubeaxial | - | 65.4dB(A) | 59.0W | 3350 RPM | 2 Terminals | - | - | CE, cUL, UL | 5 lbs (2.3 kg) | 5,972 Cart + RFQ |
