AC Fans
AC Fans are cooling devices that are designed to produce a flow of air out of one side or end of the unit. The devices in this family are designed to be used with an alternating current. The characteristics are size/dimension, voltage rated, width, air flow, bearing type, and fan type. The size is rectangular from 103.4mm L x 90mm H to 1100mm L x 175mm H, round ranging from 108mm diameter to 925mm diameter, and square from 60mm L x 60mm H to 1070mm L to 1070mm H.
Product List
Total Components: 10
| Product | Pricing | Datasheet | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SP101A-1123HST.GN Sunon | 1 $15.8700 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Tubeaxial | - | 48.0dB(A) | 18.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) | 5,847 Cart + RFQ |
 SP100A-1123XST.GN Sunon | 1 $16.1900 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 20.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) | 8,252 Cart + RFQ |
 DP200A-2123XBL.GN Sunon | 1 $16.5800 | Datasheet | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 21.00W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) | 4,722 Cart + RFQ |
SP100A-1123XBT.GN Sunon | 1 $18.7800 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 20.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) | 1,637 Cart + RFQ |
DP200A-2123XBT.GN Sunon | 1 $18.7800 | Datasheet | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 21.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) | 6,399 Cart + RFQ |

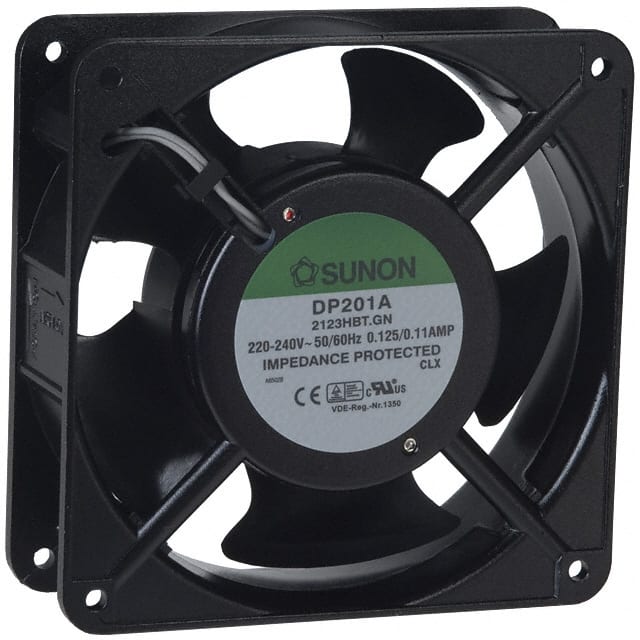

 DP201A-2123HBT.GN Sunon | 1 $18.7800 | Datasheet | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 19.00W | 3050 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) | 7,741 Cart + RFQ |

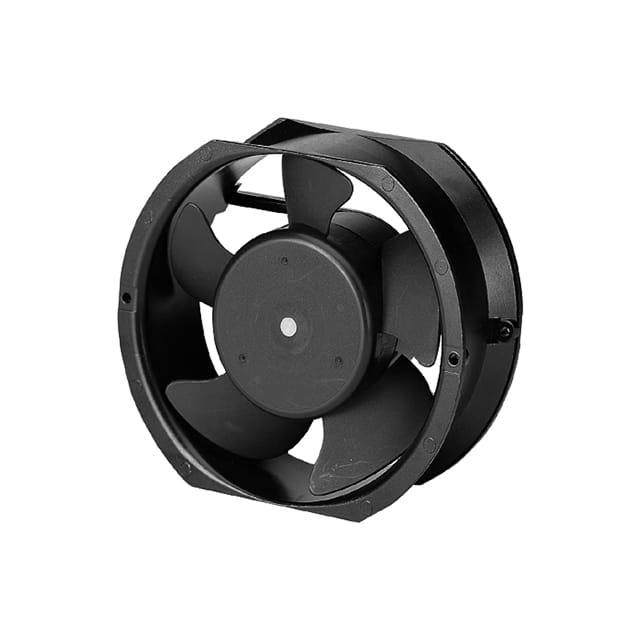

 A2175-HBL.TC.GN Sunon | 1 $54.3500 | Datasheet | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 26.00W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 2.1 lbs (952.5 g) | 7,338 Cart + RFQ |
 SF11580A-1083HSL.GN Sunon | 1 $15.8400 | Datasheet | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 35.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.75 lb (340.19 g) | 8,321 Cart + RFQ |
 SP103A-1123LBT.GN Sunon | 1 $18.2600 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 11.00W | 2300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) | 5,069 Cart + RFQ |
SP101A-1123HBT.GN Sunon | 1 $18.7800 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 18.00W | 3050 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) | 1,433 Cart + RFQ |
