AC Fans
AC Fans are cooling devices that are designed to produce a flow of air out of one side or end of the unit. The devices in this family are designed to be used with an alternating current. The characteristics are size/dimension, voltage rated, width, air flow, bearing type, and fan type. The size is rectangular from 103.4mm L x 90mm H to 1100mm L x 175mm H, round ranging from 108mm diameter to 925mm diameter, and square from 60mm L x 60mm H to 1070mm L to 1070mm H.
Product List
Total Components: 8
| Product | Pricing | Datasheet | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 UF12A12-STHR Mechatronics | 1 $15.5200 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 46.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) | 9,819 Cart + RFQ |
 UF12B12-BTHR Mechatronics | 1 $21.0700 | Datasheet | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 11.00W | 2900 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.725 lb (328.85 g) | 4,030 Cart + RFQ |
 LPH92B99-BTHR Mechatronics | 1 $24.0700 | Datasheet | 100 ~ 240VAC | Square - 92mm L x 92mm H | 25.50mm | 56.0 CFM (1.57m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 44.0dB(A) | 6.30W | 3500 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.234 lb (106.14 g) | 8,731 Cart + RFQ |
 LPH80B99-BTHR Mechatronics | 1 $24.0700 | Datasheet | 100 ~ 240VAC | Square - 80mm L x 80mm H | 25.50mm | 39.0 CFM (1.09m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 31.0dB(A) | 4.50W | 3500 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.209 lb (94.89 g) | 8,483 Cart + RFQ |

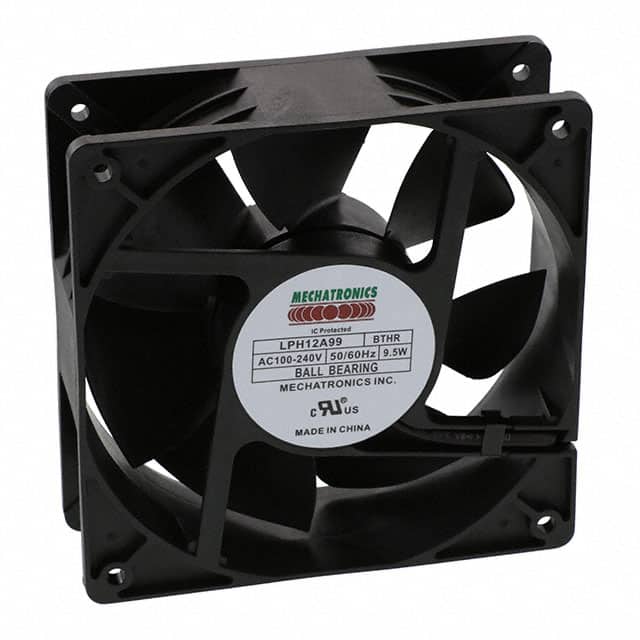

 LPH12A99-BTHR Mechatronics | 1 $25.5200 | Datasheet | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 49.0dB(A) | 9.50W | 3500 RPM | 2 Terminals | - | - | - | 0.631 lb (286.20 g) | 6,221 Cart + RFQ |

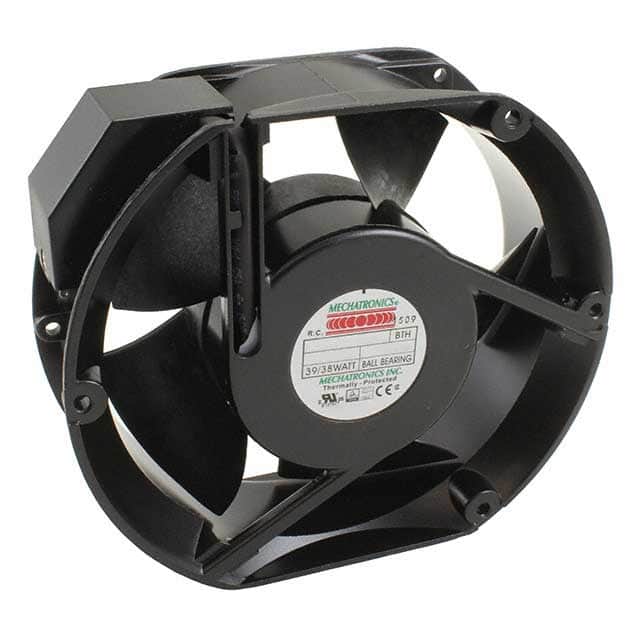

 UF15KC12-BTHR Mechatronics | 1 $48.7700 | Datasheet | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) | 2,824 Cart + RFQ |

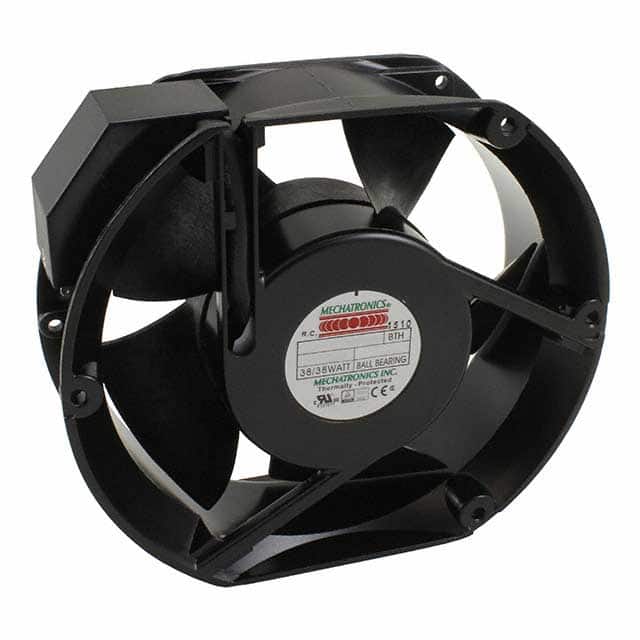

 UF15KC23-BTHR Mechatronics | 1 $48.7700 | Datasheet | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) | 3,274 Cart + RFQ |

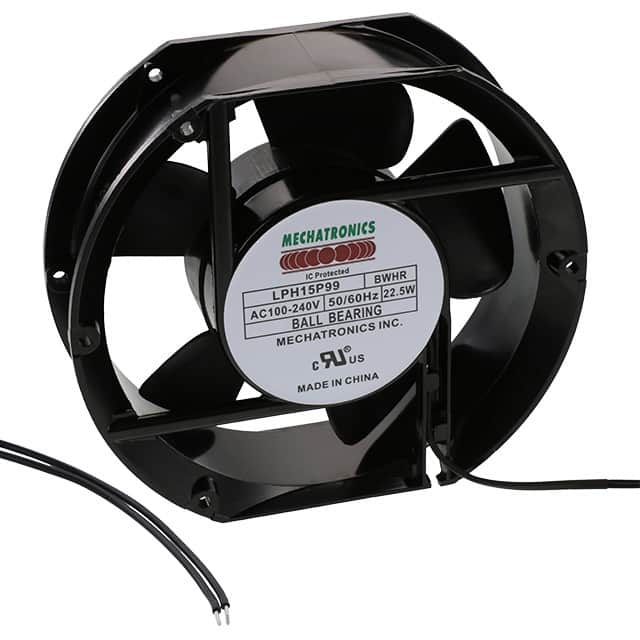

 LPH15P99-BWHR Mechatronics | 1 $54.3100 | Datasheet | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 51.50mm | 228.0 CFM (6.38m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 55.0dB(A) | 22.50W | 3200 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.6 lbs (725.7 g) | 4,166 Cart + RFQ |
