Transistors - Programmable Unijunction
Programmable unijunction transistors (PUTs) are a relative of Silicon Controlled Rectifier (SCR) devices, having a characteristic behavior somewhat like a unidirectional DIAC with a user-configurable threshold voltage. While useful for creating low frequency oscillator and timing functions, SCR triggering applications, and others, alternative techniques for addressing such needs have gained greater favor.
Product List
Total Components: 15
Product | Pricing | Datasheet | Voltage | Power Dissipation (Max) | Voltage - Output | Voltage - Offset (Vt) | Current - Gate to Anode Leakage (Igao) | Current - Valley (Iv) | Current - Peak | Package / Case | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|
CMPP6028 TR PBFREE Central Semiconductor | 1 $2.8200 | Datasheet | 40V | 167 mW | 6V | 600 mV | 10 nA | 25 µA | 150 nA | TO-236-3, SC-59, SOT-23-3 | 4,336 Cart + RFQ |
CMPP6027 TR PBFREE Central Semiconductor | 1 $1.2225 | Datasheet | - | - | - | - | - | - | - | - | 9,344 Cart + RFQ |
2N6027 PBFREE Central Semiconductor | 1 $0.2400 | Datasheet | 40V | 300 mW | 6V | 1.6 V | 10 nA | 50 µA | 2 µA | TO-226-3, TO-92-3 (TO-226AA) | 100,000 Cart + RFQ |
2N6028 PBFREE Central Semiconductor | 1 $1.2383 | Datasheet | 40V | 300 mW | 6V | 600 mV | 10 nA | 25 µA | 150 nA | TO-226-3, TO-92-3 (TO-226AA) | 9,218 Cart + RFQ |
CMPP6027R BK Central Semiconductor | Datasheet | 40V | 167 mW | 6V | 1.6 V | 10 nA | 50 µA | 2 µA | TO-236-3, SC-59, SOT-23-3 | 5,306 Cart + RFQ | |
CMPP6028R BK Central Semiconductor | Datasheet | 40V | 167 mW | 6V | 600 mV | 10 nA | 25 µA | 150 nA | TO-236-3, SC-59, SOT-23-3 | 5,083 Cart + RFQ | |
CMPP6027R TR Central Semiconductor | Datasheet | 40V | 167 mW | 6V | 1.6 V | 10 nA | 50 µA | 2 µA | TO-236-3, SC-59, SOT-23-3 | 8,496 Cart + RFQ | |
CMPP6028R TR Central Semiconductor | Datasheet | 40V | 167 mW | 6V | 600 mV | 10 nA | 25 µA | 150 nA | TO-236-3, SC-59, SOT-23-3 | 8,232 Cart + RFQ | |

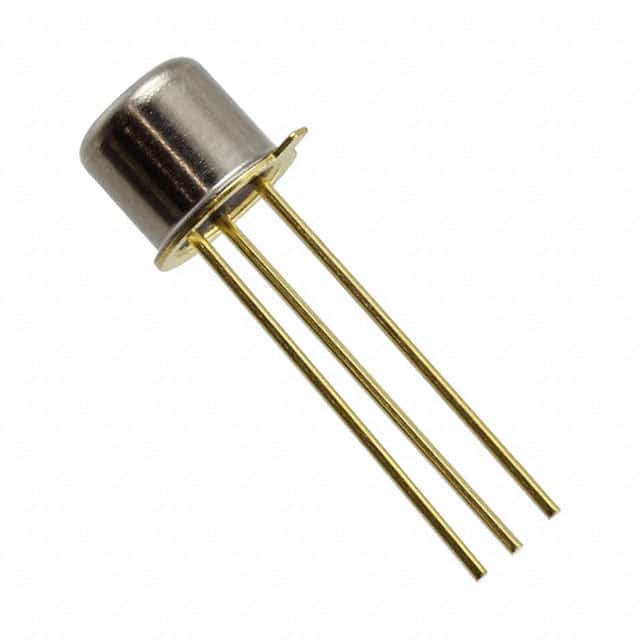

2N2647 Central Semiconductor | Datasheet | - | 300 mW | 6V | - | - | 18 mA | 2 µA | TO-206AA, TO-18-3 Metal Can | 5,673 Cart + RFQ | |
2N4851 Central Semiconductor | Datasheet | - | 300 mW | 3V | - | - | 2 mA | 2 µA | TO-206AA, TO-18-3 Metal Can | 2,668 Cart + RFQ | |
2N4852 Central Semiconductor | Datasheet | - | 300 mW | 5V | - | - | 4 mA | 2 µA | TO-206AA, TO-18-3 Metal Can | 4,324 Cart + RFQ | |
2N4853 Central Semiconductor | Datasheet | - | 300 mW | 6V | - | - | 6 mA | 400 nA | TO-206AA, TO-18-3 Metal Can | 3,614 Cart + RFQ | |
2N4948 Central Semiconductor | Datasheet | - | - | 6V | - | - | 2 mA | 2 µA | TO-206AA, TO-18-3 Metal Can | 4,098 Cart + RFQ | |
2N4949 Central Semiconductor | Datasheet | - | - | 3V | - | - | 2 mA | 1 µA | TO-206AA, TO-18-3 Metal Can | 8,648 Cart + RFQ | |
2N5431 Central Semiconductor | Datasheet | - | - | 1V | - | - | 2 mA | 400 nA | TO-206AA, TO-18-3 Metal Can | 2,946 Cart + RFQ |
