Transistors - JFETs
Junction gate field-effect transistors (JFET) are devices used as electronically-controlled switches, amplifiers, or voltage-controlled resistors. A potential difference of the proper polarity applied between the gate and source terminals increases resistance to current flow, which means less current would flow in the channel between the source and drain terminals. JFETs do not need a biasing current due to a charge flowing through a semiconducting channel between source and drain terminals.
Product List
Total Components: 349
| Product | Pricing | Datasheet | FET Type | Voltage - Breakdown (V(BR)GSS) | Drain to Source Voltage (Vdss) | Current - Drain (Idss) @ Vds (Vgs=0) | Current Drain (Id) - Max | Voltage - Cutoff (VGS off) @ Id | Input Capacitance (Ciss) (Max) @ Vds | Resistance - RDS(On) | Power - Max | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MMBFJ175LT1G onsemi | 1 $0.4000 | Datasheet | P-Channel | 30 V | - | 7 mA @ 15 V | - | 3 V @ 10 nA | 11pF @ 10V (VGS) | 125 Ohms | 225 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 (TO-236) | 5,234 Cart + RFQ |
 MMBFJ177LT1G onsemi | 1 $0.7680 | Datasheet | P-Channel | 30 V | - | 1.5 mA @ 15 V | - | 800 mV @ 10 nA | 11pF @ 10V (VGS) | 300 Ohms | 225 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 (TO-236) | 100,000 Cart + RFQ |
MMBF4391LT1G onsemi | 1 $0.4000 | Datasheet | N-Channel | 30 V | 30 V | 50 mA @ 15 V | - | 4 V @ 10 nA | 14pF @ 15V | 30 Ohms | 225 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 (TO-236) | 6,200 Cart + RFQ |
 J112-D26Z onsemi | 1 $0.4500 | Datasheet | N-Channel | 35 V | - | 5 mA @ 15 V | - | 1 V @ 1 µA | - | 50 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-92-3 | 9,123 Cart + RFQ |
 BSR57 onsemi | 1 $0.4200 | Datasheet | N-Channel | 40 V | - | 20 mA @ 15 V | - | 2 V @ 0.5 nA | - | 40 Ohms | 250 mW | 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 8,017 Cart + RFQ |
SMMBFJ177LT1G onsemi | 1 $0.4600 | Datasheet | P-Channel | 30 V | - | 1.5 mA @ 15 V | - | 800 mV @ 10 nA | 11pF @ 10V (VGS) | 300 Ohms | 225 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 (TO-236) | 2,714 Cart + RFQ |
J111-D26Z onsemi | 1 $0.5400 | Datasheet | N-Channel | 35 V | - | 20 mA @ 15 V | - | 3 V @ 1 µA | - | 30 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-92-3 | 5,457 Cart + RFQ |
J113-D74Z onsemi | 1 $0.4400 | Datasheet | N-Channel | 35 V | - | 2 mA @ 15 V | - | 500 mV @ 1 µA | - | 100 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-92-3 | 6,113 Cart + RFQ |
J112-D74Z onsemi | 1 $0.4800 | Datasheet | N-Channel | 35 V | - | 5 mA @ 15 V | - | 1 V @ 1 µA | - | 50 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-92-3 | 1,625 Cart + RFQ |
MMBFU310LT1G onsemi | 1 $0.5100 | Datasheet | N-Channel | 25 V | 25 V | 24 mA @ 10 V | - | 2.5 V @ 1 nA | 5pF @ 10V (VGS) | - | 225 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 (TO-236) | 1,749 Cart + RFQ |
J175-D26Z onsemi | 1 $0.5700 | Datasheet | P-Channel | 30 V | - | 7 mA @ 15 V | - | 3 V @ 10 nA | - | 125 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-92-3 | 2,868 Cart + RFQ |
SMMBF4393LT1G onsemi | 1 $0.5700 | Datasheet | N-Channel | 30 V | 30 V | 30 mA @ 15 V | - | 3 V @ 10 nA | 14pF @ 15V (VGS) | 100 Ohms | 225 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 (TO-236) | 8,093 Cart + RFQ |
2SK932-24-TB-E onsemi | 1 $0.6200 | Datasheet | N-Channel | - | 15 V | 14.5 mA @ 5 V | 50 mA | 200 mV @ 100 µA | - | - | 200 mW | 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SMCP | 3,027 Cart + RFQ |

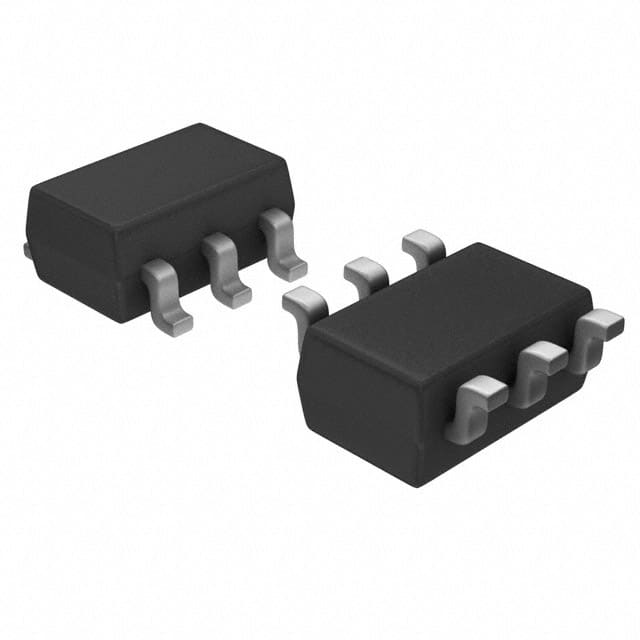

 CPH6904-TL-E onsemi | 1 $0.7200 | Datasheet | 2 N-Channel (Dual) | - | - | 20 mA @ 5 V | 50 mA | 600 mV @ 100 µA | 6pF @ 5V | - | 700 mW | 150°C (TJ) | Surface Mount | SC-74, SOT-457 | 6-CPH | 4,742 Cart + RFQ |
CPH3910-TL-E onsemi | 1 $0.7100 | Datasheet | N-Channel | 25 V | 25 V | 20 mA @ 5 V | 50 mA | 1.8 V @ 100 µA | 6pF @ 5V | - | 400 mW | 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | 3-CPH | 5,670 Cart + RFQ |
 J111 onsemi | 1 $0.4300 | Datasheet | N-Channel | 35 V | - | 20 mA @ 15 V | - | 3 V @ 1 µA | - | 30 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) | TO-92-3 | 2,630 Cart + RFQ |
J113 onsemi | 1 $0.4400 | Datasheet | N-Channel | 35 V | - | 2 mA @ 15 V | - | 500 mV @ 1 µA | - | 100 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) | TO-92-3 | 8,764 Cart + RFQ |
J112 onsemi | 1 $0.4800 | Datasheet | N-Channel | 35 V | - | 5 mA @ 15 V | - | 1 V @ 1 µA | - | 50 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) | TO-92-3 | 7,932 Cart + RFQ |
J109 onsemi | 1 $0.5500 | Datasheet | N-Channel | 25 V | - | 40 mA @ 15 V | - | 2 V @ 10 nA | - | 12 Ohms | 625 mW | -55°C ~ 150°C (TJ) | Through Hole | TO-226-3, TO-92-3 (TO-226AA) | TO-92-3 | 3,368 Cart + RFQ |
 TF222B-B4-TL-E-ON onsemi | 1 $0.0200 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,470 Cart + RFQ |
