Transistors - JFETs
Junction gate field-effect transistors (JFET) are devices used as electronically-controlled switches, amplifiers, or voltage-controlled resistors. A potential difference of the proper polarity applied between the gate and source terminals increases resistance to current flow, which means less current would flow in the channel between the source and drain terminals. JFETs do not need a biasing current due to a charge flowing through a semiconducting channel between source and drain terminals.
Product List
Total Components: 172
| Product | Pricing | Datasheet | FET Type | Voltage - Breakdown (V(BR)GSS) | Drain to Source Voltage (Vdss) | Current - Drain (Idss) @ Vds (Vgs=0) | Current Drain (Id) - Max | Voltage - Cutoff (VGS off) @ Id | Input Capacitance (Ciss) (Max) @ Vds | Resistance - RDS(On) | Power - Max | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LS844 SOT-23 6L Linear Integrated Systems, Inc. | 1 $2.8100 | Datasheet | 2 N-Channel | 60 V | 60 V | 1.5 mA @ 15 V | 50 mA | 1 V @ 1 nA | 8pF @ 15V | - | 400 mW | -55°C ~ 150°C (TJ) | Surface Mount | SOT-23-6 | SOT-23-6 | 2,413 Cart + RFQ |
 LS26VNS DFN 8L Linear Integrated Systems, Inc. | 1 $3.0300 | Datasheet | N-Channel | 40 V | 40 V | - | 10 mA | 6 V @ 1 µA | 13pF @ 20V | 38 Ohms | 350 mW | -55°C ~ 135°C (TJ) | Surface Mount | 8-VFDFN Exposed Pad | 8-DFN (2x2) | 4,982 Cart + RFQ |

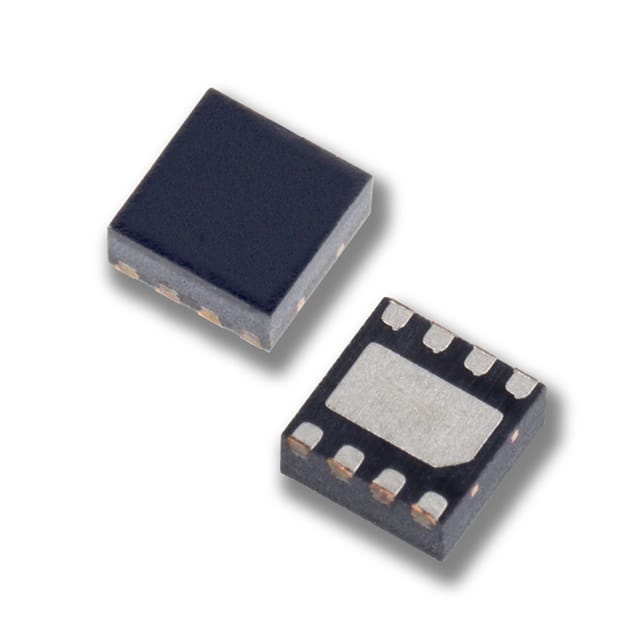

 LS26VPS DFN 8L Linear Integrated Systems, Inc. | 1 $3.0300 | Datasheet | P-Channel | 40 V | 40 V | - | 10 mA | 7.5 V @ 1 µA | 13pF @ 20V | 50 Ohms | 350 mW | -55°C ~ 135°C (TJ) | Surface Mount | 8-VFDFN Exposed Pad | 8-DFN (2x2) | 7,672 Cart + RFQ |
 SST4391 SOT-23 3L Linear Integrated Systems, Inc. | 1 $2.9200 | Datasheet | N-Channel | 40 V | - | - | - | - | 13pF @ 20V | 30 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 4,413 Cart + RFQ |
 SST4392 SOT-23 3L Linear Integrated Systems, Inc. | 1 $3.1200 | Datasheet | N-Channel | 40 V | - | - | - | - | 13pF @ 20V | 60 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 7,052 Cart + RFQ |
 4392DFN 8L Linear Integrated Systems, Inc. | 1 $3.2400 | Datasheet | N-Channel | 40 V | 40 V | 25 mA @ 20 V | 50 mA | 2 V @ 10 nA | 13pF @ 20V | 60 Ohms | 300 mW | -55°C ~ 150°C (TJ) | Surface Mount | 8-VFDFN Exposed Pad | 8-DFN (2x2) | 3,019 Cart + RFQ |
 SST4416 SOT-23 3L Linear Integrated Systems, Inc. | 1 $3.2900 | Datasheet | N-Channel | 30 V | - | - | - | - | 0.8pF @ 15V | - | 300 mW | -55°C ~ 135°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 1,938 Cart + RFQ |
 SST4393 SOT-23 3L Linear Integrated Systems, Inc. | 1 $3.3700 | Datasheet | N-Channel | 40 V | - | - | - | - | 13pF @ 20V | 100 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 8,636 Cart + RFQ |
 SST112 SOT-23 3L Linear Integrated Systems, Inc. | 1 $3.2000 | Datasheet | N-Channel | 35 V | - | - | - | - | 12pF @ 10V | 50 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 9,367 Cart + RFQ |
 SST308 SOT-23 3L Linear Integrated Systems, Inc. | 1 $3.9300 | Datasheet | N-Channel | 25 V | - | - | - | - | 4pF @ 10V | 35 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 1,927 Cart + RFQ |

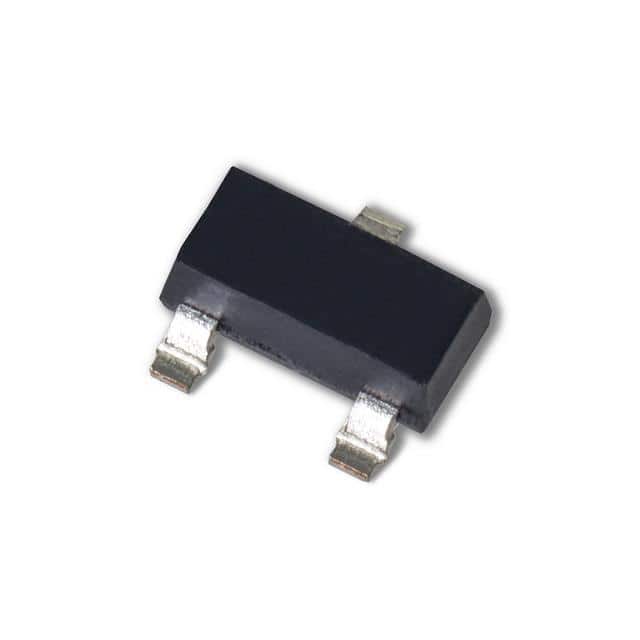

 LSBF510 SOT-23 3L ROHS Linear Integrated Systems, Inc. | 1 $4.2600 | Datasheet | N-Channel | 30 V | 30 V | 200 µA @ 15 V | 10 mA | 300 mV @ 10 nA | 4.5pF @ 15V | - | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 7,533 Cart + RFQ |

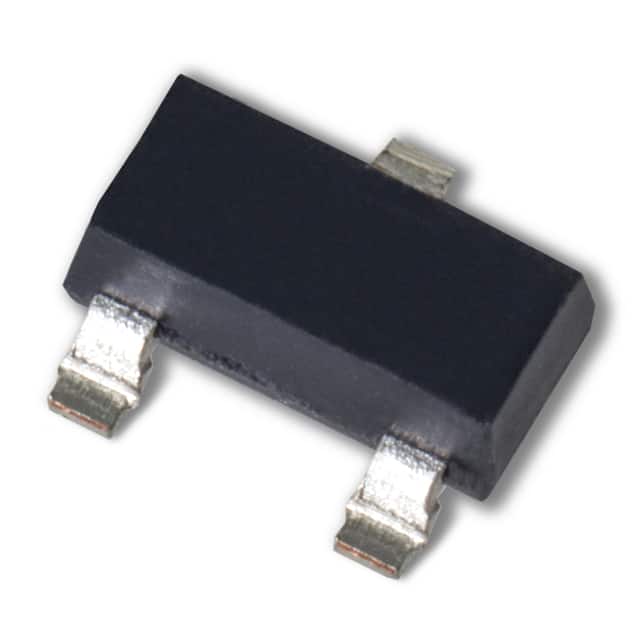

 SST310 SOT-23 3L Linear Integrated Systems, Inc. | 1 $4.1000 | Datasheet | N-Channel | 25 V | - | - | - | - | 4pF @ 10V | 35 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 3,885 Cart + RFQ |
 SST4117 SOT-23 3L Linear Integrated Systems, Inc. | 1 $4.1000 | Datasheet | N-Channel | 40 V | - | - | - | - | 3pF @ 10V | - | 300 mW | - | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 4,829 Cart + RFQ |
SST4119 SOT-23 3L ROHS Linear Integrated Systems, Inc. | 1 $3.8500 | Datasheet | N-Channel | 40 V | - | - | - | - | 3pF @ 10V | - | 300 mW | - | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 9,964 Cart + RFQ |
SST309 SOT-23 3L ROHS Linear Integrated Systems, Inc. | 1 $4.3800 | Datasheet | N-Channel | 25 V | - | - | - | - | 4pF @ 10V | 35 Ohms | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 7,252 Cart + RFQ |
SST4118 SOT-23 3L ROHS Linear Integrated Systems, Inc. | 1 $3.9300 | Datasheet | N-Channel | 40 V | - | - | - | - | 3pF @ 10V | - | 300 mW | - | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 5,367 Cart + RFQ |
SST201 SOT-23 3L ROHS Linear Integrated Systems, Inc. | 1 $4.1000 | Datasheet | N-Channel | 40 V | - | 200 µA @ 15 V | - | 300 mV @ 10 nA | 4.5pF @ 15V | - | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 4,080 Cart + RFQ |
SST202 SOT-23 3L ROHS Linear Integrated Systems, Inc. | 1 $4.2100 | Datasheet | N-Channel | 40 V | - | 900 µA @ 15 V | - | 800 mV @ 10 nA | 4.5pF @ 15V | - | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 3,301 Cart + RFQ |
4393DFN 8L Linear Integrated Systems, Inc. | 1 $2.3100 | Datasheet | N-Channel | 40 V | 400 mV | 5 mA @ 20 V | - | 500 mV @ 10 nA | 13pF @ 20V | 100 Ohms | 300 mW | -55°C ~ 150°C (TJ) | Surface Mount | 8-VFDFN Exposed Pad | 8-DFN (2x2) | 3,264 Cart + RFQ |
SST204 SOT-23 3L Linear Integrated Systems, Inc. | 1 $2.8100 | Datasheet | N-Channel | 25 V | - | 200 µA @ 15 V | - | 200 mV @ 10 nA | 4.5pF @ 15V | - | 350 mW | -55°C ~ 150°C (TJ) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 5,416 Cart + RFQ |
