Transistors - IGBTs - Single
Single IGBTs (Insulated Gate Bipolar Transistors) are multilayered semiconductor devices with three terminals that can handle high currents and have fast switching features. They are characterized by type, collector-emitter breakdown voltage, collector current, pulsed collector current, VCE(ON), switching energy, and gate charge.
Product List
Total Components: 1,037
| Product | Pricing | Datasheet | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IXYK140N90C3 Hamlin / Littelfuse | 1 $20.7400 | Datasheet | - | 900 V | 310 A | 840 A | 2.7V @ 15V, 140A | 1630 W | 4.3mJ (on), 4mJ (off) | Standard | 330 nC | 40ns/145ns | 450V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | TO-264-3, TO-264AA | TO-264 (IXYK) | 3,422 Cart + RFQ |
 IXGH32N170 Hamlin / Littelfuse | 1 $22.7600 | Datasheet | NPT | 1700 V | 75 A | 200 A | 3.3V @ 15V, 32A | 350 W | 11mJ (off) | Standard | 155 nC | 45ns/270ns | 1020V, 32A, 2.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247AD | 3,344 Cart + RFQ |
IXBH42N170 Hamlin / Littelfuse | 1 $27.9100 | Datasheet | - | 1700 V | 80 A | 300 A | 2.8V @ 15V, 42A | 360 W | - | Standard | 188 nC | - | - | 1.32 µs | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247AD | 7,239 Cart + RFQ |
 IXXX300N60B3 Hamlin / Littelfuse | 1 $33.4100 | Datasheet | PT | 600 V | 550 A | 1140 A | 1.6V @ 15V, 100A | 2300 W | 3.45mJ (on), 2.86mJ (off) | Standard | 460 nC | 50ns/190ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 Variant | PLUS247™-3 | 9,834 Cart + RFQ |
IXYX30N170CV1 Hamlin / Littelfuse | 1 $24.8700 | Datasheet | - | 1700 V | 108 A | 255 A | 3.7V @ 15V, 30A | 937 W | 5.9mJ (on), 3.3mJ (off) | Standard | 140 nC | 28ns/150ns | 850V, 30A, 2.7Ohm, 15V | 160 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 Variant | PLUS247™-3 | 8,454 Cart + RFQ |
 IXYT25N250CHV Hamlin / Littelfuse | 1 $35.0400 | Datasheet | - | 2500 V | 95 A | 235 A | 4V @ 15V, 25A | 937 W | 8.3mJ (on), 7.3mJ (off) | Standard | 147 nC | 15ns/230ns | 1250V, 25A, 5Ohm, 15V | 34 ns | -55°C ~ 175°C (TJ) | Surface Mount | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268 | 2,767 Cart + RFQ |
IXBX25N250 Hamlin / Littelfuse | 1 $42.1700 | Datasheet | - | 2500 V | 55 A | 180 A | 3.3V @ 15V, 25A | 300 W | - | Standard | 103 nC | - | - | 1.6 µs | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 Variant | PLUS247™-3 | 5,474 Cart + RFQ |
 IXBK75N170 Hamlin / Littelfuse | 1 $62.3900 | Datasheet | - | 1700 V | 200 A | 580 A | 3.1V @ 15V, 75A | 1040 W | - | Standard | 350 nC | - | - | 1.5 µs | -55°C ~ 150°C (TJ) | Through Hole | TO-264-3, TO-264AA | TO-264AA | 9,068 Cart + RFQ |

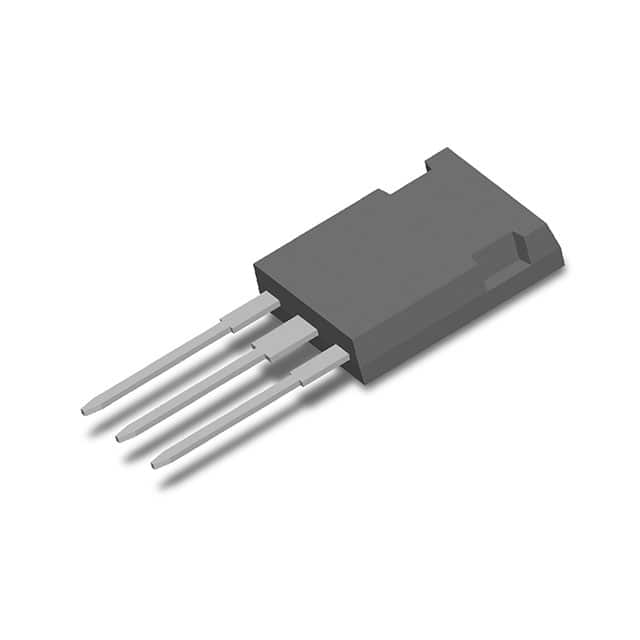

 IXYX140N120A4 Hamlin / Littelfuse | 1 $40.4400 | Datasheet | PT | 1200 V | 480 A | 1200 A | 1.7V @ 15V, 140A | 1500 W | 4.9mJ (on), 12mJ (off) | Standard | 420 nC | 52ns/590ns | 600V, 70A, 1.5Ohm, 15V | 47 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 Variant | PLUS247™-3 | 9,919 Cart + RFQ |
IXBH2N250 Hamlin / Littelfuse | 1 $65.8800 | Datasheet | - | 2500 V | 5 A | 13 A | 3.5V @ 15V, 2A | 32 W | - | Standard | 10.6 nC | - | - | 920 ns | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247AD | 3,390 Cart + RFQ |

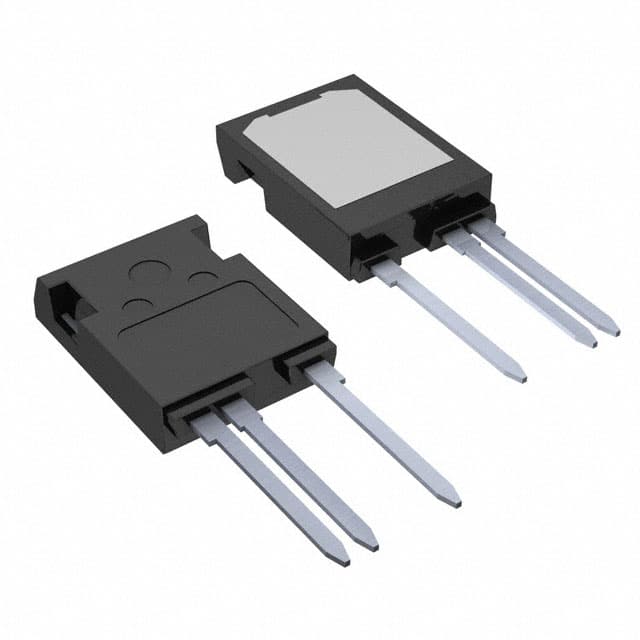

 IXYX40N450HV Hamlin / Littelfuse | 1 $66.8100 | Datasheet | - | 4500 V | 95 A | 350 A | 3.9V @ 15V, 40A | 660 W | - | Standard | 170 nC | 36ns/110ns | 960V, 40A, 2Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 Variant | TO-247PLUS-HV | 4,194 Cart + RFQ |
IXBX50N360HV Hamlin / Littelfuse | 1 $69.3700 | Datasheet | - | 3600 V | 125 A | 420 A | 2.9V @ 15V, 50A | 660 W | - | Standard | 210 nC | 46ns/205ns | 960V, 50A, 5Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 Variant | TO-247PLUS-HV | 9,803 Cart + RFQ |
IXGK75N250 Hamlin / Littelfuse | 1 $111.9700 | Datasheet | NPT | 2500 V | 170 A | 530 A | 3.6V @ 15V, 150A | 780 W | - | Standard | 410 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | TO-264-3, TO-264AA | TO-264 (IXGK) | 8,430 Cart + RFQ |

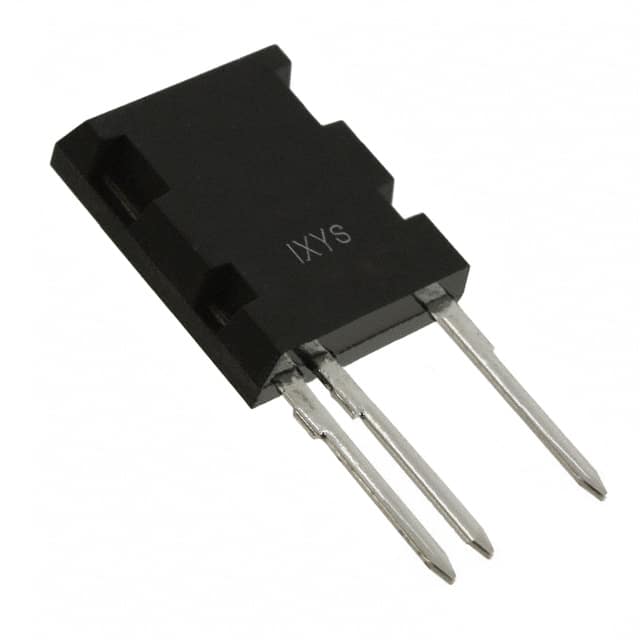

 IXYL60N450 Hamlin / Littelfuse | 1 $121.5300 | Datasheet | - | 4500 V | 90 A | 680 A | 3.3V @ 15V, 60A | 417 W | - | Standard | 366 nC | 55ns/450ns | 960V, 60A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | ISOPLUSi5-Pak™ | ISOPLUSi5-Pak™ | 2,744 Cart + RFQ |
 IXBH20N360HV Hamlin / Littelfuse | 1 $123.2000 | Datasheet | - | 3600 V | 70 A | 220 A | 3.4V @ 15V, 20A | 430 W | 15.5mJ (on), 4.3mJ (off) | Standard | 110 nC | 18ns/238ns | 1500V, 20A, 10Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 Variant | TO-247HV | 5,431 Cart + RFQ |
IXEL40N400 Hamlin / Littelfuse | 1 $117.4700 | Datasheet | - | 4000 V | 90 A | 400 A | 3.2V @ 15V, 40A | 380 W | 55mJ (on), 165mJ (off) | Standard | 275 nC | 160ns/630ns | 2800V, 40A, 33Ohm, 15V | - | -40°C ~ 150°C (TJ) | Through Hole | ISOPLUSi5-Pak™ | ISOPLUSi5-Pak™ | 8,923 Cart + RFQ |
 IXGA48N60A3-TRL Hamlin / Littelfuse | 1 $5.8000 | Datasheet | PT | 600 V | 120 A | 300 A | 1.35V @ 15V, 32A | 300 W | 950µJ (on), 2.9mJ (off) | Standard | 110 nC | 25ns/334ns | 480V, 32A, 5Ohm, 15V | 30 ns | -55°C ~ 150°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263 (D2Pak) | 7,542 Cart + RFQ |
IXXH110N65C4 Hamlin / Littelfuse | 1 $10.4100 | Datasheet | PT | 650 V | 234 A | 600 A | 2.35V @ 15V, 110A | 880 W | 2.3mJ (on), 600µJ (off) | Standard | 180 nC | 35ns/143ns | 400V, 55A, 2Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247 (IXXH) | 1,596 Cart + RFQ |
IXYA20N120B4HV Hamlin / Littelfuse | 1 $10.6100 | Datasheet | PT | 1200 V | 76 A | 130 A | 2.1V @ 15V, 20A | 375 W | 3.9mJ (on), 1.6mJ (off) | Standard | 44 nC | 15ns/200ns | 960mV, 20A, 10Ohm, 15V | 47 ns | -55°C ~ 175°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263HV | 5,291 Cart + RFQ |
 IXYH10N170C Hamlin / Littelfuse | 1 $10.9800 | Datasheet | - | 1700 V | 36 A | 84 A | 3.8V @ 15V, 10A | 280 W | 1.4mJ (on), 700µJ (off) | Standard | 46 nC | 14ns/130ns | 850V, 10A, 10Ohm, 15V | 17 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247 (IXYH) | 2,668 Cart + RFQ |
