Transistors - IGBTs - Single
Single IGBTs (Insulated Gate Bipolar Transistors) are multilayered semiconductor devices with three terminals that can handle high currents and have fast switching features. They are characterized by type, collector-emitter breakdown voltage, collector current, pulsed collector current, VCE(ON), switching energy, and gate charge.
Product List
Total Components: 650
| Product | Pricing | Datasheet | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HGTG10N120BND onsemi | 1 $4.1400 | Datasheet | NPT | 1200 V | 35 A | 80 A | 2.7V @ 15V, 10A | 298 W | 850µJ (on), 800µJ (off) | Standard | 100 nC | 23ns/165ns | 960V, 10A, 10Ohm, 15V | 70 ns | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 8,720 Cart + RFQ |
 FGH60N60SMD onsemi | 1 $9.2656 | Datasheet | Field Stop | 600 V | 120 A | 180 A | 2.5V @ 15V, 60A | 600 W | 1.26mJ (on), 450µJ (off) | Standard | 189 nC | 18ns/104ns | 400V, 60A, 3Ohm, 15V | 39 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 100,000 Cart + RFQ |
FGH80N60FD2TU onsemi | 1 $5.2800 | Datasheet | Field Stop | 600 V | 80 A | 160 A | 2.4V @ 15V, 40A | 290 W | 1mJ (on), 520µJ (off) | Standard | 120 nC | 21ns/126ns | 400V, 40A, 10Ohm, 15V | 61 ns | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 6,834 Cart + RFQ |
ISL9V5036S3ST onsemi | 1 $4.1500 | Datasheet | - | 390 V | 46 A | - | 1.6V @ 4V, 10A | 250 W | - | Logic | 32 nC | -/10.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | D²PAK (TO-263) | 9,320 Cart + RFQ |

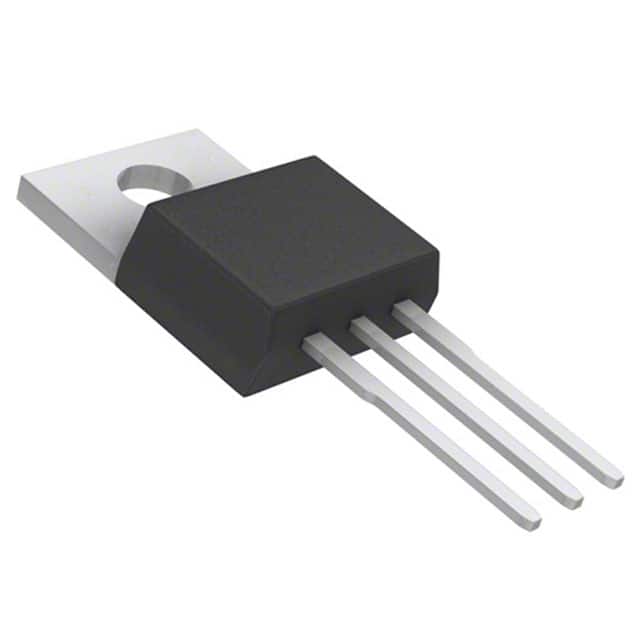

 ISL9V3040P3 onsemi | 1 $2.9800 | Datasheet | - | 430 V | 21 A | - | 1.6V @ 4V, 6A | 150 W | - | Logic | 17 nC | -/4.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | Through Hole | TO-220-3 | TO-220-3 | 2,208 Cart + RFQ |
ISL9V5036P3-F085 onsemi | 1 $3.7800 | Datasheet | - | 390 V | 46 A | - | 1.6V @ 4V, 10A | 250 W | - | Logic | 32 nC | -/10.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | Through Hole | TO-220-3 | TO-220-3 | 2,709 Cart + RFQ |
ISL9V5045S3ST-F085 onsemi | 1 $5.1600 | Datasheet | - | 480 V | 51 A | - | 1.6V @ 4V, 10A | 300 W | - | Logic | 32 nC | -/10.8µs | 300V, 1kOhm, 5V | - | -40°C ~ 175°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | D²PAK (TO-263) | 1,170 Cart + RFQ |
FGP3040G2-F085 onsemi | 1 $4.1300 | Datasheet | - | 400 V | 41 A | - | 1.25V @ 4V, 6A | 150 W | - | Logic | 21 nC | 900ns/4.8µs | - | - | -55°C ~ 175°C (TJ) | Through Hole | TO-220-3 | TO-220-3 | 5,722 Cart + RFQ |
HGTG11N120CND onsemi | 1 $4.7900 | Datasheet | NPT | 1200 V | 43 A | 80 A | 2.4V @ 15V, 11A | 298 W | 950µJ (on), 1.3mJ (off) | Standard | 100 nC | 23ns/180ns | 960V, 11A, 10Ohm, 15V | 70 ns | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 3,353 Cart + RFQ |
FGH40N60SFDTU onsemi | 1 $4.9500 | Datasheet | Field Stop | 600 V | 80 A | 120 A | 2.9V @ 15V, 40A | 290 W | 1.13mJ (on), 310µJ (off) | Standard | 120 nC | 25ns/115ns | 400V, 40A, 10Ohm, 15V | 45 ns | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 6,452 Cart + RFQ |
FGH40N60SMD onsemi | 1 $10.5000 100 $8.4000 500 $7.0000 | Datasheet | Field Stop | 600 V | 80 A | 120 A | 2.5V @ 15V, 40A | 349 W | 870µJ (on), 260µJ (off) | Standard | 119 nC | 12ns/92ns | 400V, 40A, 6Ohm, 15V | 36 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 16,000 Cart + RFQ |
FGH60N60SFDTU onsemi | 1 $6.5600 | Datasheet | Field Stop | 600 V | 120 A | 180 A | 2.9V @ 15V, 60A | 378 W | 1.79mJ (on), 670µJ (off) | Standard | 198 nC | 22ns/134ns | 400V, 60A, 5Ohm, 15V | 47 ns | -55°C ~ 150°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 3,312 Cart + RFQ |
 FGA40N65SMD onsemi | 1 $4.8500 | Datasheet | Field Stop | 650 V | 80 A | 120 A | 2.5V @ 15V, 40A | 349 W | 820µJ (on), 260µJ (off) | Standard | 119 nC | 12ns/92ns | 400V, 40A, 6Ohm, 15V | 42 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-3P-3, SC-65-3 | TO-3PN | 1,081 Cart + RFQ |
FGB3040G2-F085 onsemi | 1 $2.9200 | Datasheet | - | 400 V | 41 A | - | 1.25V @ 4V, 6A | 150 W | - | Logic | 21 nC | 900ns/4.8µs | - | - | -55°C ~ 175°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | D²PAK (TO-263) | 4,076 Cart + RFQ |
FGB20N60SF onsemi | 1 $3.1400 | Datasheet | Field Stop | 600 V | 40 A | 60 A | 2.8V @ 15V, 20A | 208 W | 370µJ (on), 160µJ (off) | Standard | 65 nC | 13ns/90ns | 400V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | D²PAK (TO-263) | 8,686 Cart + RFQ |
FGB3056-F085 onsemi | 1 $3.4400 | Datasheet | - | 600 V | 29 A | - | 1.55V @ 5V, 8A | 200 W | - | Logic | 20 nC | 1.3µs/8.2µs | - | 2.4 µs | -40°C ~ 175°C (TJ) | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | D²PAK-3 (TO-263-3) | 6,965 Cart + RFQ |
NGTG35N65FL2WG onsemi | 1 $3.7100 | Datasheet | Field Stop | 650 V | 70 A | 120 A | 2V @ 15V, 35A | 300 W | 840µJ (on), 280µJ (off) | Standard | 125 nC | 72ns/132ns | 400V, 35A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 6,430 Cart + RFQ |
NGTB35N60FL2WG onsemi | 1 $4.1900 | Datasheet | Trench Field Stop | 600 V | 70 A | 120 A | 2V @ 15V, 35A | 300 W | 840µJ (on), 280µJ (off) | Standard | 125 nC | 72ns/132ns | 400V, 35A, 10Ohm, 15V | 68 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 3,146 Cart + RFQ |
NGTB40N65IHL2WG onsemi | 1 $4.5800 | Datasheet | Trench Field Stop | 650 V | 80 A | 160 A | 2.2V @ 15V, 40A | 300 W | 360µJ (off) | Standard | 135 nC | -/140ns | 400V, 40A, 10Ohm, 15V | 465 ns | -55°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247-3 | 1,693 Cart + RFQ |
NGTB20N120IHRWG onsemi | 1 $5.8200 | Datasheet | Trench Field Stop | 1200 V | 40 A | 120 A | 2.45V @ 15V, 20A | 384 W | 450µJ (off) | Standard | 225 nC | -/235ns | 600V, 20A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | TO-247-3 | TO-247 | 5,671 Cart + RFQ |
