Transistors - IGBTs - Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
Product List
Total Components: 384
| Product | Pricing | Datasheet | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IXXN110N65B4H1 Hamlin / Littelfuse | 1 $30.9900 | Datasheet | PT | Single | 650 V | 215 A | 750 W | 2.1V @ 15V, 110A | 50 µA | 3.65 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227B | 4,147 Cart + RFQ |
 IXDN75N120 Hamlin / Littelfuse | 1 $35.8900 | Datasheet | NPT | Single | 1200 V | 150 A | 660 W | 2.7V @ 15V, 75A | 4 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227B | 2,375 Cart + RFQ |
 IXGN200N60B3 Hamlin / Littelfuse | 1 $42.6300 | Datasheet | PT | Single | 600 V | 300 A | 830 W | 1.5V @ 15V, 100A | 50 µA | 26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227B | 2,061 Cart + RFQ |
IXYN100N65C3H1 Hamlin / Littelfuse | 1 $32.6800 | Datasheet | PT | Single | 650 V | 166 A | 600 W | 2.3V @ 15V, 70A | 50 µA | 4.98 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis, Stud Mount | SOT-227-4, miniBLOC | SOT-227B | 7,944 Cart + RFQ |

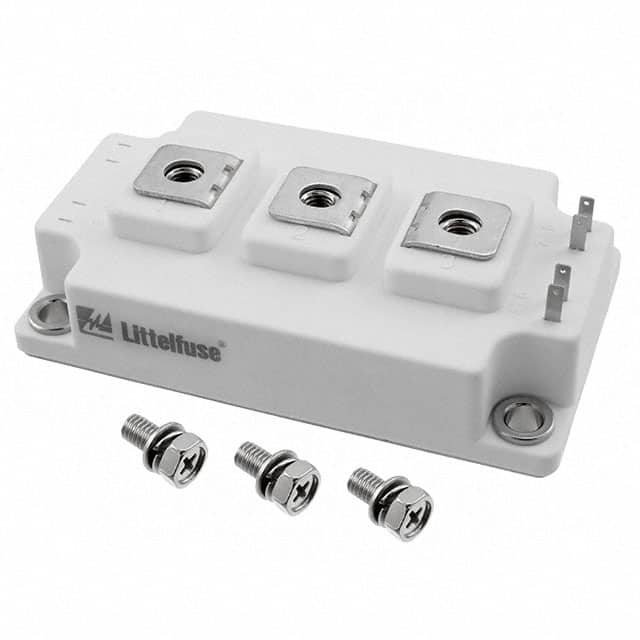

 MG12300D-BN2MM Hamlin / Littelfuse | 1 $198.6900 | Datasheet | - | Half Bridge | 1200 V | 480 A | 1450 W | 1.7V @ 15V, 300A | 1 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D-3 Module | D3 | 5,971 Cart + RFQ |
MIXG240RF1200PTED Hamlin / Littelfuse | 1 $62.8661 | Datasheet | PT | Single Chopper | 1200 V | 335 A | 1250 W | 2V @ 15V, 200A | 200 µA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E2 | E2 | 2,991 Cart + RFQ |
MII75-12A3 Hamlin / Littelfuse | 1 $63.6200 | Datasheet | NPT | Half Bridge | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 | Y4-M5 | 6,076 Cart + RFQ |
MID145-12A3 Hamlin / Littelfuse | 1 $66.1800 | Datasheet | NPT | Single | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 | Y4-M5 | 9,699 Cart + RFQ |
MIXA10WB1200TED Hamlin / Littelfuse | 1 $68.1200 | Datasheet | PT | Three Phase Inverter with Brake | 1200 V | 17 A | 60 W | 2.1V @ 15V, 9A | 700 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 | E2 | 8,357 Cart + RFQ |
MIXA30W1200TED Hamlin / Littelfuse | 1 $69.3383 | Datasheet | PT | Three Phase Inverter with Brake | 1200 V | 43 A | 150 W | 2.1V @ 15V, 25A | 2.1 mA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 | E2 | 9,500 Cart + RFQ |
MIXA30WB1200TED Hamlin / Littelfuse | 1 $78.7650 | Datasheet | PT | Three Phase Inverter with Brake | 1200 V | 43 A | 150 W | 2.1V @ 15V, 25A | 1.5 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 | E2 | 7,216 Cart + RFQ |
MIXG240RF1200P-PC Hamlin / Littelfuse | 1 $81.6979 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,816 Cart + RFQ |
MIXA41W1200ED Hamlin / Littelfuse | 1 $83.3650 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 8,424 Cart + RFQ |
MII145-12A3 Hamlin / Littelfuse | 1 $85.7883 | Datasheet | NPT | Half Bridge | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 | Y4-M5 | 9,026 Cart + RFQ |
MIXA60W1200TED Hamlin / Littelfuse | 1 $88.4783 | Datasheet | PT | Three Phase Inverter with Brake | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 | E2 | 9,498 Cart + RFQ |
MWI80-12T6K Hamlin / Littelfuse | 1 $90.0070 | Datasheet | Trench | Three Phase Inverter | 1200 V | 80 A | 270 W | 2.4V @ 15V, 50A | 1 mA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 | E1 | 6,381 Cart + RFQ |
MWI35-12A7 Hamlin / Littelfuse | 1 $92.6283 | Datasheet | NPT | Three Phase Inverter | 1200 V | 62 A | 280 W | 2.8V @ 15V, 35A | 2 mA | 2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 | E2 | 4,677 Cart + RFQ |
MWI25-12A7 Hamlin / Littelfuse | 1 $93.5983 | Datasheet | NPT | Three Phase Inverter | 1200 V | 50 A | 225 W | 2.7V @ 15V, 25A | 2 mA | 1.65 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 | E2 | 6,216 Cart + RFQ |
IXBN75N170 Hamlin / Littelfuse | 1 $94.5350 | Datasheet | - | Single | 1700 V | 145 A | 625 W | 3.1V @ 15V, 75A | 25 µA | 6.93 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227B | 4,017 Cart + RFQ |
MWI25-12A7T Hamlin / Littelfuse | 1 $98.2883 | Datasheet | NPT | Three Phase Inverter | 1200 V | 50 A | 225 W | 2.7V @ 15V, 25A | 2 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 | E2 | 6,415 Cart + RFQ |
