Transistors - IGBTs - Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
Product List
Total Components: 24
| Product | Pricing | Datasheet | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

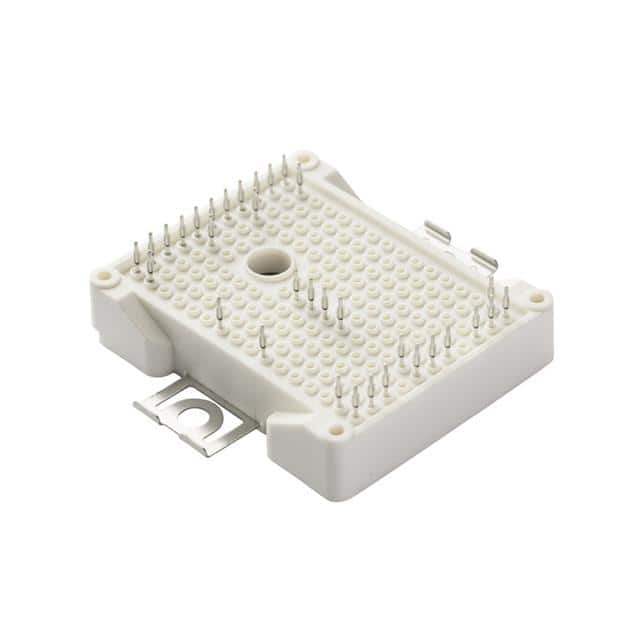

 A2F12M12W2-F1 STMicroelectronics | 1 $262.5000 | Datasheet | - | Full Bridge | - | - | - | - | - | 7 nF @ 800 V | Standard | Yes | 175°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 4,506 Cart + RFQ |
A2U12M12W2-F2 STMicroelectronics | 1 $262.5000 | Datasheet | - | Three Level Inverter | - | - | - | - | - | 7 nF @ 800 V | Standard | Yes | 175°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 5,054 Cart + RFQ |
A2C25S12M3 STMicroelectronics | 1 $67.1200 | Datasheet | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 7,402 Cart + RFQ |
A2C25S12M3-F STMicroelectronics | 1 $68.6100 | Datasheet | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 7,406 Cart + RFQ |
A2C50S65M2-F STMicroelectronics | 1 $70.9361 | Datasheet | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 9,707 Cart + RFQ |
A2C35S12M3-F STMicroelectronics | 1 $75.1700 | Datasheet | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 9,336 Cart + RFQ |
STGE50NC60VD STMicroelectronics | Datasheet | - | Single | 600 V | 90 A | 260 W | 2.5V @ 15V, 40A | 150 µA | 4.55 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | ISOTOP | 1,566 Cart + RFQ | |
STG3P2M10N60B STMicroelectronics | Datasheet | - | Three Phase Inverter | 600 V | 19 A | 56 W | 2.5V @ 15V, 7A | 10 µA | 720 pF @ 25 V | Single Phase Bridge Rectifier | No | -40°C ~ 150°C (TJ) | Chassis Mount | SEMITOP®2 | SEMITOP®2 | 6,558 Cart + RFQ | |
STGE50NB60HD STMicroelectronics | Datasheet | - | Single | 600 V | 100 A | 300 W | 2.8V @ 15V, 50A | 250 µA | 4.5 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | ISOTOP | 9,000 Cart + RFQ | |
STGE50NC60WD STMicroelectronics | Datasheet | - | Single | 600 V | 100 A | 260 W | 2.6V @ 15V, 40A | 500 µA | 4.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | ISOTOP | 1,750 Cart + RFQ | |
STGE200N60K STMicroelectronics | Datasheet | - | - | 600 V | 150 A | - | - | - | - | - | No | - | Chassis Mount | ISOTOP | ISOTOP® | 1,174 Cart + RFQ | |
A1P35S12M3-F STMicroelectronics | 1 $53.3600 | Datasheet | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 1 | 7,698 Cart + RFQ |
STGE200NB60S STMicroelectronics | 1 $34.6700 | Datasheet | - | Single | 600 V | 200 A | 600 W | 1.6V @ 15V, 100A | 500 µA | 1.56 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | ISOTOP | 8,588 Cart + RFQ |
A1C15S12M3 STMicroelectronics | 1 $52.8000 | Datasheet | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 15 A | 142.8 W | 2.45V @ 15V, 15A | 100 µA | 985 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 1 | 7,309 Cart + RFQ |
A2P75S12M3-F STMicroelectronics | 1 $88.3000 | Datasheet | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 454.5 W | 2.3V @ 15V, 75A | 100 µA | 4.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 2,649 Cart + RFQ |
A1P25S12M3-F STMicroelectronics | 1 $50.2800 | Datasheet | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 1 | 2,444 Cart + RFQ |
A1P50S65M2 STMicroelectronics | 1 $50.2800 | Datasheet | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 1 | 3,736 Cart + RFQ |
A1P35S12M3 STMicroelectronics | 1 $56.2500 | Datasheet | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 1 | 3,530 Cart + RFQ |
A2C50S65M2 STMicroelectronics | 1 $69.8800 | Datasheet | Trench Field Stop | Three Phase Inverter with Brake | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 8,462 Cart + RFQ |
A2C35S12M3 STMicroelectronics | 1 $74.1100 | Datasheet | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ACEPACK™ 2 | 3,894 Cart + RFQ |
