Transistors - IGBTs - Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
Product List
Total Components: 161
| Product | Pricing | Datasheet | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

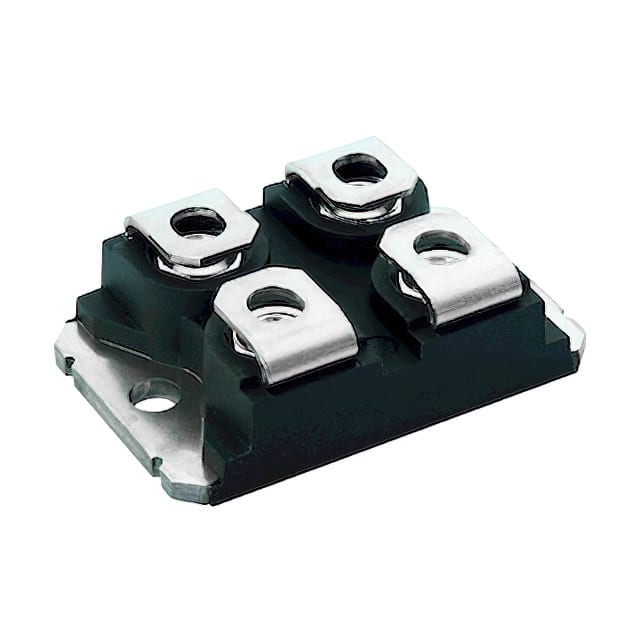

 VS-GT180DA120U Phoenix Passive Components / Vishay | 1 $47.5900 | Datasheet | Trench Field Stop | Single | 1200 V | 281 A | 1087 W | 2.05V @ 15V, 100A | 100 µA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227 | 7,437 Cart + RFQ |
VS-GT100DA120UF Phoenix Passive Components / Vishay | 1 $42.7100 | Datasheet | Trench | Single | 1200 V | 187 A | 890 W | 2.55V @ 15V, 100A | 100 µA | 6.15 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227 | 1,758 Cart + RFQ |
VS-GT80DA120U Phoenix Passive Components / Vishay | 1 $38.9900 | Datasheet | Trench | Single | 1200 V | 139 A | 658 W | 2.55V @ 15V, 80A | 100 µA | 4.4 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227 | 9,798 Cart + RFQ |
 VS-GT90SA120U Phoenix Passive Components / Vishay | 1 $36.8300 | Datasheet | Trench Field Stop | Single | 1200 V | 169 A | 781 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227 | 8,866 Cart + RFQ |
VS-GT100TP60N Phoenix Passive Components / Vishay | 1 $79.3321 | Datasheet | Trench | Half Bridge | 600 V | 160 A | 417 W | 2.1V @ 15V, 100A | 5 mA | 7.71 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | INT-A-PAK | 6,827 Cart + RFQ |
VS-ETF075Y60U Phoenix Passive Components / Vishay | 1 $102.1755 | Datasheet | Trench | Three Level Inverter | 600 V | 100 A | 294 W | 1.93V @ 15V, 75A | 100 µA | 4.44 nF @ 30 V | Standard | Yes | 175°C (TJ) | Chassis Mount | EMIPAK-2B | EMIPAK-2B | 1,867 Cart + RFQ |
VS-ETY020P120F Phoenix Passive Components / Vishay | 1 $179.8500 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 7,200 Cart + RFQ |
VS-GT300YH120N Phoenix Passive Components / Vishay | 1 $208.0242 | Datasheet | Trench | Half Bridge | 1200 V | 341 A | 1042 W | 2.17V @ 15V, 300A (Typ) | 300 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK (3 + 8) | Double INT-A-PAK | 8,522 Cart + RFQ |
VS-GT300FD060N Phoenix Passive Components / Vishay | 1 $670.5450 | Datasheet | Trench Field Stop | Three Level Inverter | 600 V | 379 A | 1250 W | 2.5V @ 15V, 300A | 250 µA | 23.3 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | Dual INT-A-PAK (4 + 8) | Dual INT-A-PAK | 1,450 Cart + RFQ |
CPV362M4F Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 8.8 A | 23 W | 1.66V @ 15V, 8.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 2,311 Cart + RFQ | |
CPV362M4K Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 5.7 A | 23 W | 1.93V @ 15V, 3A | 250 µA | 450 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 7,552 Cart + RFQ | |
CPV362M4U Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 7.2 A | 23 W | 1.95V @ 15V, 7.2A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 2,825 Cart + RFQ | |
CPV363M4F Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 16 A | 36 W | 1.63V @ 15V, 16A | 250 µA | 1.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 8,469 Cart + RFQ | |
CPV363M4K Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 11 A | 36 W | 2V @ 15V, 11A | 250 µA | 740 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 5,873 Cart + RFQ | |
CPV363M4U Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 13 A | 36 W | 2V @ 15V, 13A | 250 µA | 1.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 2,957 Cart + RFQ | |
CPV364M4F Phoenix Passive Components / Vishay | 1 $29.7780 100 $23.8224 500 $19.8520 | Datasheet | - | Three Phase Inverter | 600 V | 27 A | 63 W | 1.6V @ 15V, 27A | 250 µA | 2.2 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 6 Cart + RFQ |
VS-CPV364M4KPBF Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 24 A | 63 W | 1.8V @ 15V, 24A | 250 µA | 1.6 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 6,963 Cart + RFQ | |
CPV364M4U Phoenix Passive Components / Vishay | Datasheet | - | Three Phase Inverter | 600 V | 20 A | 63 W | 1.84V @ 15V, 20A | 250 µA | 2.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 19-SIP (13 Leads), IMS-2 | IMS-2 | 9,316 Cart + RFQ | |
GA400TD25S Phoenix Passive Components / Vishay | Datasheet | - | Half Bridge | 250 V | 400 A | 1350 W | 1.6V @ 15V, 400A | 500 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK (3 + 8) | Dual INT-A-PAK | 6,693 Cart + RFQ | |
GA200SA60U Phoenix Passive Components / Vishay | Datasheet | - | Single | 600 V | 200 A | 500 W | 1.9V @ 15V, 100A | 1 mA | 16.5 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227-4, miniBLOC | SOT-227B | 1,504 Cart + RFQ |
