Transistors - IGBTs - Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
Product List
Total Components: 99
| Product | Pricing | Datasheet | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

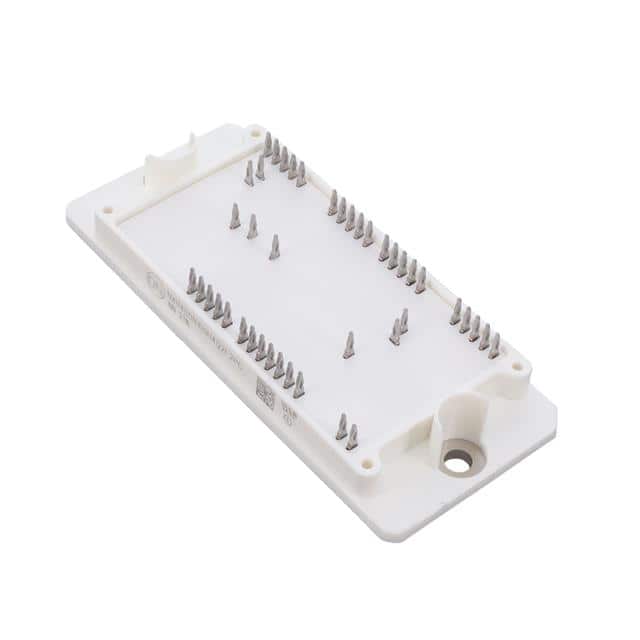

 NXH400N100H4Q2F2PG onsemi | 1 $218.6700 | Datasheet | Trench Field Stop | Three Level Inverter | 1000 V | 409 A | 959 W | 2.3V @ 15V, 400A | 500 µA | 26.093 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 42-PIM/Q2PACK (93x47) | 2,492 Cart + RFQ |
NXH25C120L2C2SG onsemi | 1 $60.6300 | Datasheet | - | Three Phase Inverter with Brake | 1200 V | 25 A | 20 mW | 2.4V @ 15V, 25A | 250 µA | 6.2 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-PowerDIP Module (1.199", 47.20mm) | 26-DIP | 6,665 Cart + RFQ |
NXH35C120L2C2S1G onsemi | 1 $60.6317 | Datasheet | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.33 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-PowerDIP Module (1.199", 47.20mm) | 26-DIP | 7,250 Cart + RFQ |
NXH50M65L4Q1SG onsemi | 1 $62.9405 | Datasheet | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | Module | 56-PIM (93x47) | 6,955 Cart + RFQ |
NXH75M65L4Q1SG onsemi | 1 $64.5462 | Datasheet | Trench Field Stop | Half Bridge | 650 V | 59 A | 86 W | 2.22V @ 15V, 75A | 300 µA | 5.665 nF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 56-PIM (93x47) | 7,476 Cart + RFQ |
NXH50M65L4Q1PTG onsemi | 1 $65.2705 | Datasheet | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | Module | 53-PIM/Q2PACK (93x47) | 2,715 Cart + RFQ |
NXH75M65L4Q1PTG onsemi | 1 $66.9505 | Datasheet | Trench Field Stop | Half Bridge | 650 V | 59 A | 86 W | 2.22V @ 15V, 75A | 300 µA | 5.665 nF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 53-PIM/Q2PACK (93x47) | 9,218 Cart + RFQ |
NXH100B120H3Q0STG onsemi | 1 $70.9775 | Datasheet | Trench Field Stop | 2 Independent | 1200 V | 50 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module | 22-PIM/Q0BOOST (55x32.5) | 6,785 Cart + RFQ |
NXH027B120MNF2PTG onsemi | 1 $81.4750 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,419 Cart + RFQ |
NXH35C120L2C2ESG onsemi | 1 $83.2917 | Datasheet | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.333 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-PowerDIP Module (1.199", 47.20mm) | 26-DIP | 5,888 Cart + RFQ |
NXH25T120L2Q1PG onsemi | 1 $85.3467 | Datasheet | - | Three Phase Inverter | 1200 V | 25 A | 81 W | 2.5V @ 15V, 25A | 300 µA | 8.502 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | 44-PIM (71x37.4) | 9,085 Cart + RFQ |
NXH25T120L2Q1PTG onsemi | 1 $85.3467 | Datasheet | - | Three Phase Inverter | 1200 V | 25 A | 81 W | 2.5V @ 15V, 25A | 300 µA | 8.502 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module | 44-PIM (71x37.4) | 2,248 Cart + RFQ |
NXH50C120L2C2ES1G onsemi | 1 $89.0283 | Datasheet | - | Three Phase Inverter with Brake | 1200 V | 50 A | 20 mW | 2.4V @ 15V, 50A | 250 µA | 11.89 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-PowerDIP Module (1.199", 47.20mm) | 26-DIP | 4,044 Cart + RFQ |
NXH300B100H4Q2F2S1G onsemi | 1 $142.9206 | Datasheet | Trench Field Stop | Dual, Common Source | 1118 V | 73 A | 194 W | 2.25V @ 15V, 100A | 800 µA | 6.323 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 53-PIM/Q2PACK (93x47) | 2,974 Cart + RFQ |
NXH200T120H3Q2F2SG onsemi | 1 $149.9603 | Datasheet | Trench Field Stop | Half Bridge | 1200 V | 330 A | 679 W | 2.3V @ 15V, 200A | 500 µA | 35.615 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 56-PIM/Q2PACK (93x47) | 7,282 Cart + RFQ |
NXH200T120H3Q2F2STG onsemi | 1 $151.4025 | Datasheet | Trench Field Stop | Half Bridge | 1200 V | 330 A | 679 W | 2.3V @ 15V, 200A | 500 µA | 35.615 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 56-PIM/Q2PACK (93x47) | 9,027 Cart + RFQ |
NXH200T120H3Q2F2STNG onsemi | 1 $154.8450 | Datasheet | Trench Field Stop | Half Bridge | 650 V | 330 A | 679 W | 2.3V @ 15V, 200A | 500 µA | 35.615 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 56-PIM/Q2PACK (93x47) | 2,122 Cart + RFQ |
NXH600A100H4F5SNG onsemi | 1 $230.3263 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,179 Cart + RFQ |
NXH40T120L3Q1SG onsemi | 1 $283.4976 | Datasheet | - | Three Phase | - | - | - | 2.2V @ 15V, 40A | 400 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 75°C (TJ) | Chassis Mount | Module | - | 2,522 Cart + RFQ |
NXH40T120L3Q1PTG onsemi | 1 $283.4976 | Datasheet | - | Three Phase Inverter | 1200 V | 42 A | 146 W | 2.2V @ 15V, 40A | 400 µA | 7.753 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module | 44-PIM (71x37.4) | 7,452 Cart + RFQ |
