Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 696
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MCC95-16IO1B Hamlin / Littelfuse | 1 $42.2700 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 7,013 Cart + RFQ |
MCC26-16IO1B Hamlin / Littelfuse | 1 $30.3700 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 4,771 Cart + RFQ |
MCC56-16IO1B Hamlin / Littelfuse | 1 $34.6800 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 4,970 Cart + RFQ |
MCC56-12IO1B Hamlin / Littelfuse | 1 $31.6600 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 9,537 Cart + RFQ |
MCC95-12IO1B Hamlin / Littelfuse | 1 $38.6100 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 2,670 Cart + RFQ |

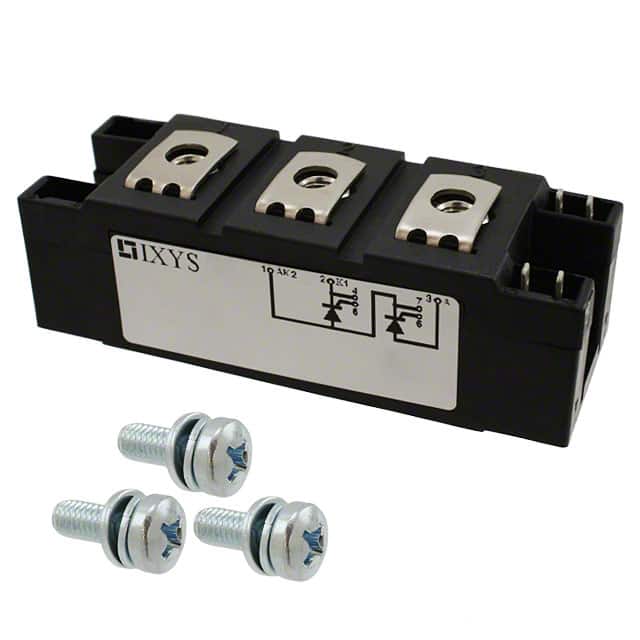

 MCC200-18IO1 Hamlin / Littelfuse | 1 $92.8800 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | Y4-M6 | 3,847 Cart + RFQ |
MCC21-14IO8B Hamlin / Littelfuse | 1 $25.9700 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 21 A | 33 A | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 5,787 Cart + RFQ |
MCC21-16IO8B Hamlin / Littelfuse | 1 $27.1500 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 21 A | 33 A | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 6,725 Cart + RFQ |
MCC26-12IO1B Hamlin / Littelfuse | 1 $27.7200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 6,262 Cart + RFQ |
MCD56-12IO1B Hamlin / Littelfuse | 1 $29.7000 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 1,138 Cart + RFQ |
MCMA85P1200TA Hamlin / Littelfuse | 1 $33.6200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 85 A | 135 A | 1.5 V | 95 mA | 1500A, 1620A | 200 mA | -40°C ~ 140°C (TJ) | Chassis Mount | TO-240AA | 3,904 Cart + RFQ |
MCD95-08IO8B Hamlin / Littelfuse | 1 $34.7800 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 6,106 Cart + RFQ |
MCD95-12IO1B Hamlin / Littelfuse | 1 $38.0000 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 116 A | 180 A | 2.5 V | 150 mA | 2250A, 2400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 8,820 Cart + RFQ |
MCMA110P1600TA Hamlin / Littelfuse | 1 $39.4000 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | 170 A | 1.5 V | 150 mA | 1900A, 2050A | 200 mA | -40°C ~ 140°C (TJ) | Chassis Mount | TO-240AA | 6,782 Cart + RFQ |
MCC94-22IO1B Hamlin / Littelfuse | 1 $60.2400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 104 A | 180 A | 1.5 V | 100 mA | 1700A, 1800A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 5,743 Cart + RFQ |
MCC26-12IO8B Hamlin / Littelfuse | 1 $26.2500 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 2,342 Cart + RFQ |
MCD56-16IO8B Hamlin / Littelfuse | 1 $30.9900 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 64 A | 100 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | TO-240AA | 3,693 Cart + RFQ |
MCMA65P1600TA Hamlin / Littelfuse | 1 $33.7700 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 65 A | 105 A | 1.5 V | 95 mA | 1150A, 1240A | 200 mA | -40°C ~ 140°C (TJ) | Chassis Mount | TO-240AA | 6,835 Cart + RFQ |
MCMA110P1200TA Hamlin / Littelfuse | 1 $38.7700 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 110 A | 170 A | 1.5 V | 150 mA | 1900A, 2050A | 200 mA | -40°C ~ 140°C (TJ) | Chassis Mount | TO-240AA | 4,098 Cart + RFQ |
MCMA140P1200TA Hamlin / Littelfuse | 1 $40.7400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 140 A | 220 A | 1.5 V | 150 mA | 2400A, 2590A | 200 mA | -40°C ~ 140°C (TJ) | Chassis Mount | TO-240AA | 7,983 Cart + RFQ |
