Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 395
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

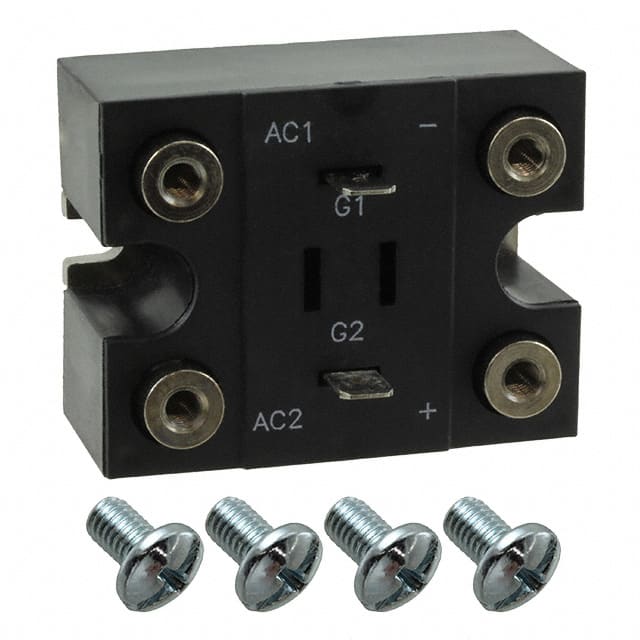

 M5010015F Crydom / Sensata Technologies | 1 $255.5400 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 4,071 Cart + RFQ |

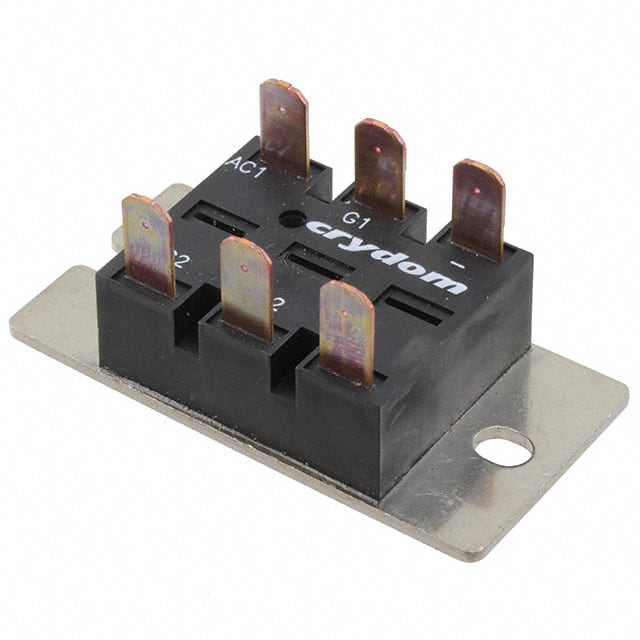

 M252513F Crydom / Sensata Technologies | 1 $80.6400 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | Chassis Mount | Module | 3,606 Cart + RFQ |

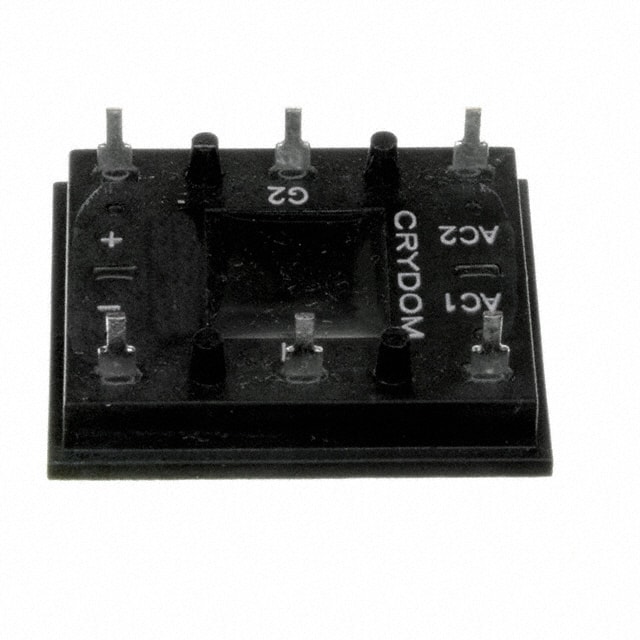

 L513F Crydom / Sensata Technologies | 1 $109.5800 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | Through Hole | Module | 5,200 Cart + RFQ |

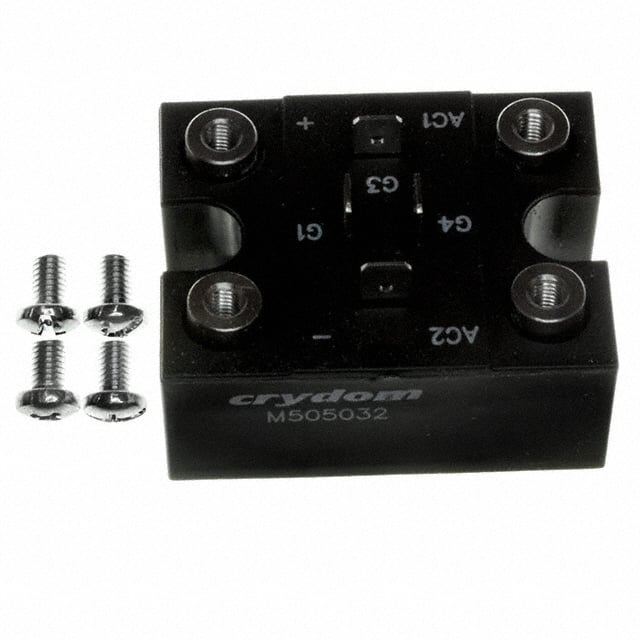

 M505032 Crydom / Sensata Technologies | 1 $144.4000 | Datasheet | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 7,588 Cart + RFQ |

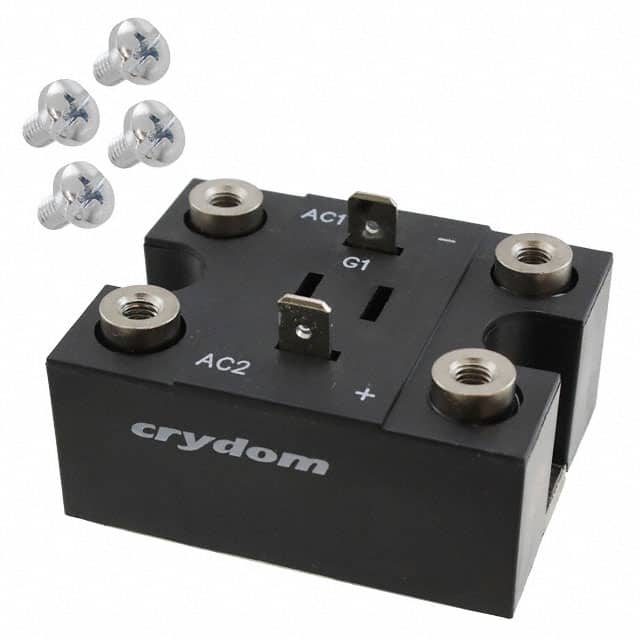

 M5010012F Crydom / Sensata Technologies | 1 $189.4500 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 1,939 Cart + RFQ |
 B554-2 Crydom / Sensata Technologies | 1 $69.0400 | Datasheet | 1-Phase Controller - All SCRs | 2 SCRs | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module with Isolation Barriers | 9,915 Cart + RFQ |
 B512F-2T-YEB Crydom / Sensata Technologies | 1 $70.6700 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 3,109 Cart + RFQ |
 L321F Crydom / Sensata Technologies | 1 $75.2300 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 400 V | - | - | 2.5 V | 100 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Through Hole | Module | 2,801 Cart + RFQ |

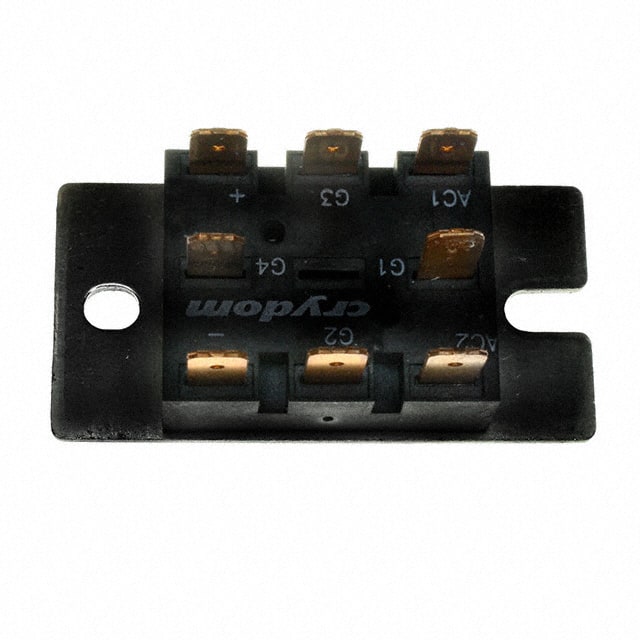

 M252532 Crydom / Sensata Technologies | 1 $89.3600 | Datasheet | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | Chassis Mount | Module | 3,680 Cart + RFQ |
T542 Crydom / Sensata Technologies | 1 $96.7200 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | Module | 8,997 Cart + RFQ |

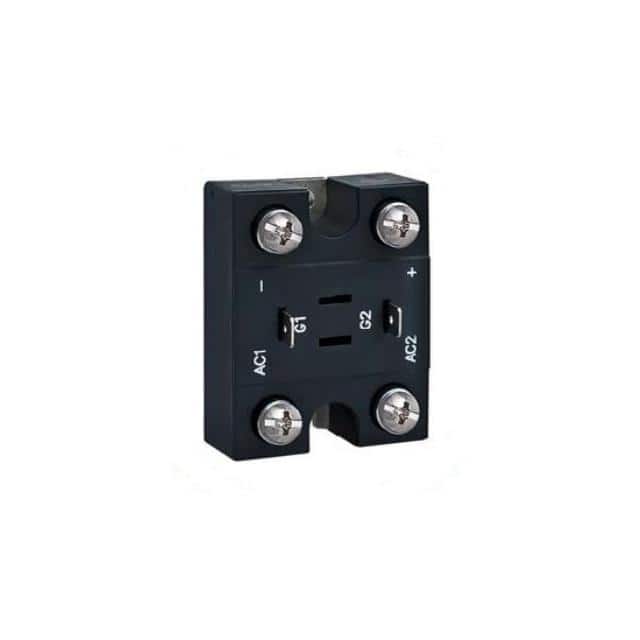

 M505052 Crydom / Sensata Technologies | 1 $102.3800 | Datasheet | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 5,944 Cart + RFQ |
T614F Crydom / Sensata Technologies | 1 $117.3800 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | Module | 1,732 Cart + RFQ |

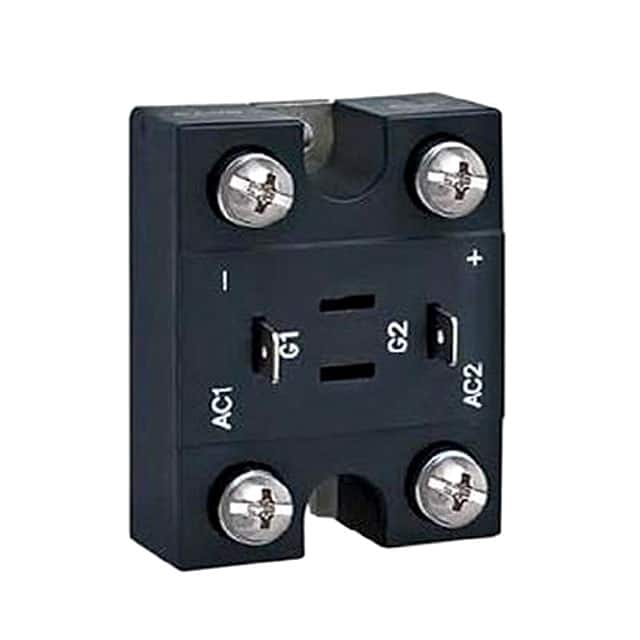

 M505012V Crydom / Sensata Technologies | 1 $119.4600 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 7,827 Cart + RFQ |

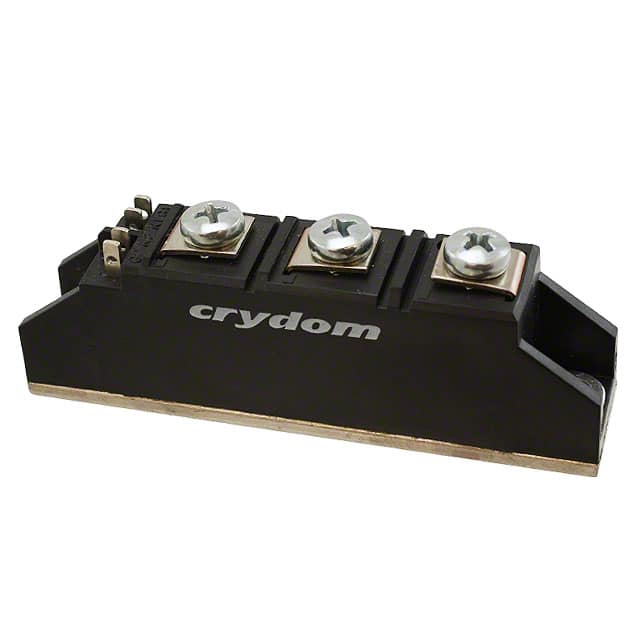

 F1827SD1000 Crydom / Sensata Technologies | 1 $158.7400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 5,938 Cart + RFQ |
B611F-2T Crydom / Sensata Technologies | 1 $68.3490 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 400 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 1,991 Cart + RFQ |
B514F-2T Crydom / Sensata Technologies | 1 $71.9100 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 5,283 Cart + RFQ |
B524F-2T Crydom / Sensata Technologies | 1 $71.9100 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 2,458 Cart + RFQ |
B612F-2 Crydom / Sensata Technologies | 1 $72.5360 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module with Isolation Barriers | 6,881 Cart + RFQ |
B622F-2T Crydom / Sensata Technologies | 1 $72.5360 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 3,760 Cart + RFQ |
B582-2T Crydom / Sensata Technologies | 1 $72.5360 | Datasheet | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 6,160 Cart + RFQ |
