Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 386
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CD431290B Powerex, Inc. | 1 $46.5400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 95 A | 150 A | 3 V | 150 mA | 2000A, 2100A | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 8,962 Cart + RFQ |
 T620163004DN Powerex, Inc. | 1 $94.6500 | Datasheet | Single | 1 SCR | 1.6 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8" Wire Lead | TO-200AB, A-PUK | 4,775 Cart + RFQ |
 LS431650 Powerex, Inc. | 1 $174.2100 | Datasheet | Single | 1 SCR | 1.6 kV | 575 A | 900 A | 3 V | 200 mA | 16300A, 17000A | - | -40°C ~ 130°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 5,210 Cart + RFQ |
 CD431690B Powerex, Inc. | 1 $44.3200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 95 A | 150 A | 3 V | 150 mA | 2000A, 2100A | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 9,260 Cart + RFQ |

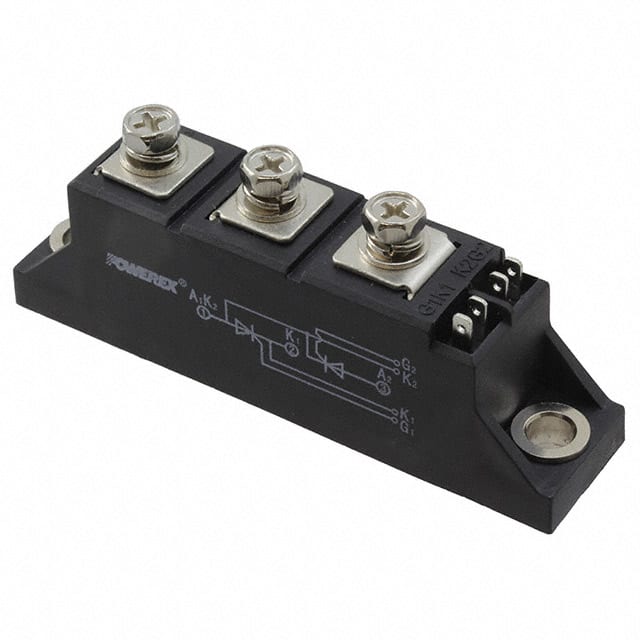

 CD431290C Powerex, Inc. | 1 $43.3400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 90 A | 141 A | 2.5 V | 100 mA | 2000A @ 50Hz | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 6,449 Cart + RFQ |
CD431690C Powerex, Inc. | 1 $44.0600 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 90 A | 141 A | 2.5 V | 100 mA | 2000A @ 50Hz | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 7,146 Cart + RFQ |

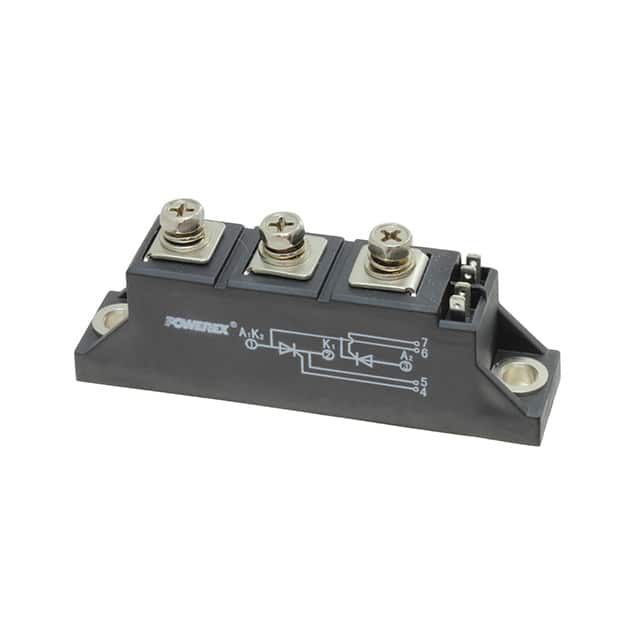

 CD431899C Powerex, Inc. | 1 $57.7200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 110 A | 173 A | 2.5 V | 100 mA | 2400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 2,036 Cart + RFQ |

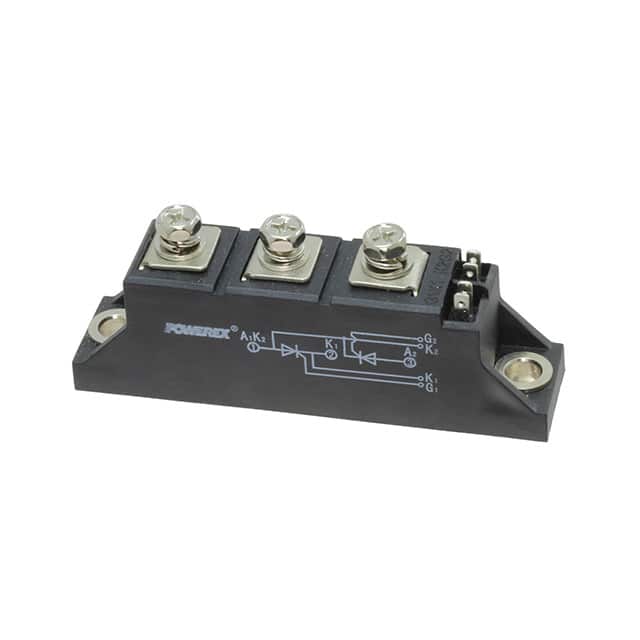

 CD431699C Powerex, Inc. | 1 $47.4700 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | 173 A | 2.5 V | 100 mA | 2400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 8,620 Cart + RFQ |
CD631615B Powerex, Inc. | 1 $68.3630 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 235 A | 2 V | 150 mA | 5000A, 5250A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 2,269 Cart + RFQ |
CD631815C Powerex, Inc. | 1 $69.4750 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount | Module | 5,200 Cart + RFQ |
T620103004DN Powerex, Inc. | 1 $69.5293 | Datasheet | Single | 1 SCR | 1 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8" Wire Lead | TO-200AB, A-PUK | 2,176 Cart + RFQ |
T620122004DN Powerex, Inc. | 1 $71.6000 | Datasheet | Single | 1 SCR | 1.2 kV | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8" Wire Lead | TO-200AB, A-PUK | 4,751 Cart + RFQ |
CD630815B Powerex, Inc. | 1 $71.7790 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 3,360 Cart + RFQ |
CD631015B Powerex, Inc. | 1 $71.7790 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 1,548 Cart + RFQ |
CD631215B Powerex, Inc. | 1 $71.7790 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 5,659 Cart + RFQ |
CD631415B Powerex, Inc. | 1 $71.7790 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | POW-R-BLOK™ Module | 4,652 Cart + RFQ |
T620123004DN Powerex, Inc. | 1 $73.7023 | Datasheet | Single | 1 SCR | 1.2 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8" Wire Lead | TO-200AB, A-PUK | 5,163 Cart + RFQ |
T7H8027504DN Powerex, Inc. | 1 $76.8207 | Datasheet | Single | 1 SCR | 200 V | 750 A | 1180 A | 3 V | 150 mA | 9600A, 10500A | - | -40°C ~ 125°C (TJ) | Chassis Mount | TO-200 Variation | 7,459 Cart + RFQ |
T620143004DN Powerex, Inc. | 1 $77.2753 | Datasheet | Single | 1 SCR | 1.4 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8" Wire Lead | TO-200AB, A-PUK | 7,249 Cart + RFQ |
T7H8026504DN Powerex, Inc. | 1 $77.4203 | Datasheet | Single | 1 SCR | 200 V | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | Chassis Mount | TO-200 Variation | 3,283 Cart + RFQ |
