Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 755
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

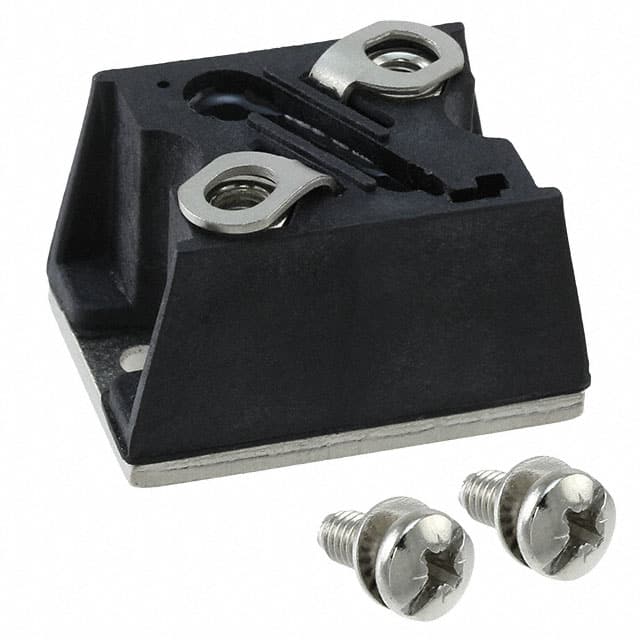

 VS-T90RIA120 Phoenix Passive Components / Vishay | 1 $43.4800 | Datasheet | Single | 1 SCR | 1.2 kV | 90 A | 141 A | 2.5 V | 120 mA | 1780A, 1870A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | D-55 T-Module | 1,898 Cart + RFQ |
 VS-VSKT91/16 Phoenix Passive Components / Vishay | 1 $50.0200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 95 A | 210 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | ADD-A-PAK (3 + 4) | 9,155 Cart + RFQ |
VS-VSKT162/08PBF Phoenix Passive Components / Vishay | 1 $78.2800 | Datasheet | Series Connection - All SCRs | 2 SCRs | 800 V | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3) | 5,210 Cart + RFQ |
VS-VSKL136/04PBF Phoenix Passive Components / Vishay | 1 $67.8300 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 8,719 Cart + RFQ |
VS-VSKH136/08PBF Phoenix Passive Components / Vishay | 1 $68.3713 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 4,372 Cart + RFQ |
VS-VSKL136/08PBF Phoenix Passive Components / Vishay | 1 $68.5080 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 5,054 Cart + RFQ |
VS-VSKH136/12PBF Phoenix Passive Components / Vishay | 1 $69.0540 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 3,615 Cart + RFQ |
VS-VSKL136/12PBF Phoenix Passive Components / Vishay | 1 $69.1927 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 1,609 Cart + RFQ |
VS-VSKH136/14PBF Phoenix Passive Components / Vishay | 1 $71.3693 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 8,859 Cart + RFQ |
VS-VSKL136/14PBF Phoenix Passive Components / Vishay | 1 $71.5093 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 6,466 Cart + RFQ |
VS-VSKH136/16PBF Phoenix Passive Components / Vishay | 1 $72.0833 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 4,842 Cart + RFQ |
VS-VSKL136/16PBF Phoenix Passive Components / Vishay | 1 $72.2240 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 9,881 Cart + RFQ |
VS-VSKT136/04PBF Phoenix Passive Components / Vishay | 1 $73.1893 | Datasheet | Series Connection - All SCRs | 2 SCRs | 400 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-Pak | 9,519 Cart + RFQ |
VS-VSKL142/08PBF Phoenix Passive Components / Vishay | 1 $73.5620 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 3,018 Cart + RFQ |
VS-VSKL26/04 Phoenix Passive Components / Vishay | 1 $73.6950 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | ADD-A-PAK (3 + 4) | 7,681 Cart + RFQ |
VS-VSKT136/08PBF Phoenix Passive Components / Vishay | 1 $73.9213 | Datasheet | Series Connection - All SCRs | 2 SCRs | 800 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-Pak | 1,376 Cart + RFQ |
VS-VSKL142/12PBF Phoenix Passive Components / Vishay | 1 $74.2980 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 9,564 Cart + RFQ |
VS-VSKL162/08PBF Phoenix Passive Components / Vishay | 1 $74.2980 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 6,689 Cart + RFQ |
VS-VSKH142/08PBF Phoenix Passive Components / Vishay | 1 $74.3653 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 3,756 Cart + RFQ |
VS-VSKH162/04PBF Phoenix Passive Components / Vishay | 1 $74.3653 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | INT-A-PAK (3 + 4) | 6,713 Cart + RFQ |
