Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 19
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NTE5351 NTE Electronics, Inc. | 1 $11.6100 | Datasheet | Single | 1 SCR | 600 V | 3.2 A | 5 A | 3.5 V | 40 mA | 65A, 80A | 50 mA | -40°C ~ 100°C (TC) | Through Hole | TO-213AA, TO-66-2 | 3,266 Cart + RFQ |
 NTE5711 NTE Electronics, Inc. | 1 $75.9800 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 55 A | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 1,004 Cart + RFQ |
 NTE5724 NTE Electronics, Inc. | 1 $76.4600 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 90 A | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 3,224 Cart + RFQ |
 NTE5700 NTE Electronics, Inc. | 1 $76.9600 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | 12.5 A | 17.5 A | 2 V | 60 mA | 357A, 375A | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 3,109 Cart + RFQ |
 NTE5714 NTE Electronics, Inc. | 1 $96.5000 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 70 A | - | 2.5 V | 100 mA | 1600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 4,872 Cart + RFQ |
 NTE5705 NTE Electronics, Inc. | 1 $106.8800 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 12.5 A | 15.5 A | 2 V | 60 mA | 357A, 375A | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 5,035 Cart + RFQ |
 NTE5720 NTE Electronics, Inc. | 1 $127.1200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 90 A | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 9,558 Cart + RFQ |
 NTE5704 NTE Electronics, Inc. | 1 $49.7800 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 12.5 A | 12.5 A | 2 V | 60 mA | 357A, 375A | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 1,970 Cart + RFQ |
 NTE5708 NTE Electronics, Inc. | 1 $58.2000 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 25 A | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 7,784 Cart + RFQ |

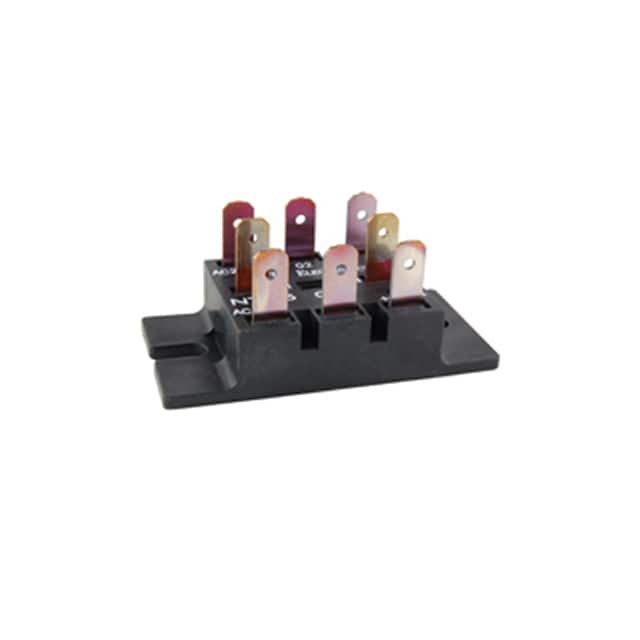

 NTE5701 NTE Electronics, Inc. | 1 $63.3100 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 1.2 kV | 12.5 A | 16.5 A | 2 V | 60 mA | 357A, 375A | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 2,103 Cart + RFQ |
 NTE5712 NTE Electronics, Inc. | 1 $70.2900 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 55 A | 86 A | 2.5 V | 100 mA | 1500A @ 60Hz | 150 mA | - | Chassis Mount | Module | 4,165 Cart + RFQ |
 NTE5710 NTE Electronics, Inc. | 1 $89.9600 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 55 A | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 4,516 Cart + RFQ |
 NTE5703 NTE Electronics, Inc. | 1 $113.0400 | Datasheet | 1-Phase Controller - All SCRs | 2 SCRs | 1.2 kV | 12.5 A | 13.5 A | 2 V | 60 mA | 357A, 375A | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 9,086 Cart + RFQ |

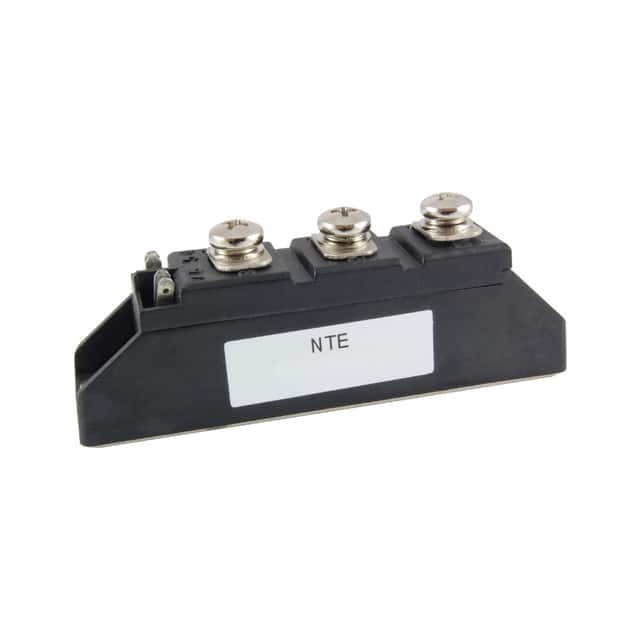

 NTE5721 NTE Electronics, Inc. | 1 $119.1700 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 90 A | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 3,883 Cart + RFQ |
 NTE5722 NTE Electronics, Inc. | 1 $119.1700 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 90 A | 141 A | 2.5 V | 100 mA | 2000A @ 60Hz | 100 mA | - | Chassis Mount | Module | 9,156 Cart + RFQ |

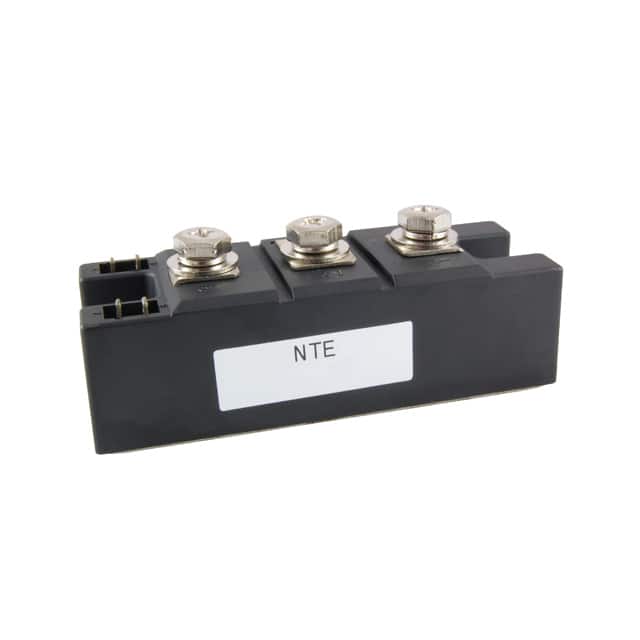

 NTE5726 NTE Electronics, Inc. | 1 $207.0000 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 360 A | 2.5 V | 150 mA | 5400A @ 60Hz | 150 mA | - | Chassis Mount | Module | 9,825 Cart + RFQ |
NTE5726 NTE Electronics, Inc. | 1 $207.0000 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 360 A | 2.5 V | 150 mA | 5400A @ 60Hz | 150 mA | - | Chassis Mount | Module | 3,481 Cart + RFQ |
NTE5728 NTE Electronics, Inc. | 1 $451.3600 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | 393 A | 3 V | 180 mA | 8500A @ 60Hz | 150 mA | - | Chassis Mount | Module | 3,858 Cart + RFQ |
NTE5702 NTE Electronics, Inc. | 1 $82.8600 | Datasheet | Bridge, Single Phase - SCRs/Diodes (Layout 3) | 2 SCRs, 2 Diodes | 1.2 kV | 12.5 A | 14.5 A | 2 V | 60 mA | 357A, 375A | 100 mA | -40°C ~ 125°C (TJ) | - | Module | 3,336 Cart + RFQ |
