Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 16
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

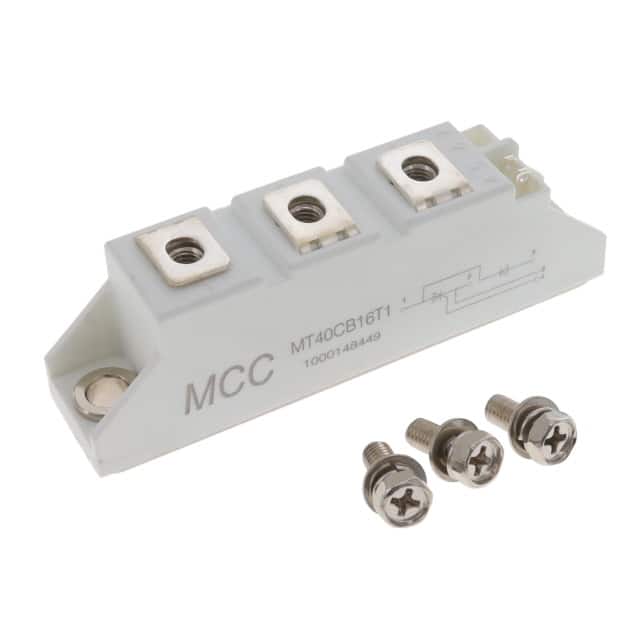

 MT40CB16T1-BP Micro Commercial Components (MCC) | 1 $30.6900 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 40 A | - | 2.5 V | 150 mA | 1000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | Module | 9,544 Cart + RFQ |
MT110CB16T1-BP Micro Commercial Components (MCC) | 1 $37.9500 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 6,079 Cart + RFQ |
MT200CB16T2-BP Micro Commercial Components (MCC) | 1 $54.4300 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 200 A | - | 3 V | 200 mA | 5500A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T2 | 6,679 Cart + RFQ |
MT25C16T1-BP Micro Commercial Components (MCC) | 1 $30.6900 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 8,609 Cart + RFQ |
MT40C16T1-BP Micro Commercial Components (MCC) | 1 $30.6900 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 40 A | - | 2.5 V | 150 mA | 1000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 3,359 Cart + RFQ |
MT25CB16T1-BP Micro Commercial Components (MCC) | 1 $30.6900 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 7,970 Cart + RFQ |
MT60C16T1-BP Micro Commercial Components (MCC) | 1 $36.8200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 1,513 Cart + RFQ |
MT60CB16T1-BP Micro Commercial Components (MCC) | 1 $36.8200 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 5,998 Cart + RFQ |
MT90C16T1-BP Micro Commercial Components (MCC) | 1 $37.9500 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 90 A | - | 3 V | 150 mA | 2000A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | Chassis Mount | T1 | 8,396 Cart + RFQ |
MT110C16T1-BP Micro Commercial Components (MCC) | 1 $37.9500 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | Chassis Mount | T1 | 5,670 Cart + RFQ |
MT90CB16T1-BP Micro Commercial Components (MCC) | 1 $37.9500 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 90 A | - | 3 V | 150 mA | 2000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T1 | 2,163 Cart + RFQ |
MT160CB16T2-BP Micro Commercial Components (MCC) | 1 $52.4700 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T2 | 9,660 Cart + RFQ |
MT130CB16T2-BP Micro Commercial Components (MCC) | 1 $53.1300 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | Chassis Mount | T2 | 7,146 Cart + RFQ |
MT160C16T2-BP Micro Commercial Components (MCC) | 1 $60.4300 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | Chassis Mount | T2 | 8,254 Cart + RFQ |
MT130C16T2-BP Micro Commercial Components (MCC) | 1 $61.2200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | Chassis Mount | T2 | 3,248 Cart + RFQ |
MT200C16T2-BP Micro Commercial Components (MCC) | 1 $66.7300 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 200 A | - | 3 V | 200 mA | 5500A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | Chassis Mount | T2 | 6,483 Cart + RFQ |
