Thyristors - SCRs - Modules
Products within the Silicon Controlled Rectifier (SCR) module family incorporate two or more SCR devices within a single device package, or a single SCR with one or more other devices, such as a rectifier diode. Commonly used for control of AC utility power, SCRs (also called thyristors) behave like a common rectifier diode, with an added ability to restrict current flow in the forward direction until a control pulse is applied.
Product List
Total Components: 640
| Product | Pricing | Datasheet | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT92N12KOF Infineon Technologies | 1 $117.3000 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.2 kV | - | - | 1.4 V | - | - | 200 mA | -40°C ~ 130°C (TJ) | Chassis Mount | Module | 4,685 Cart + RFQ |
 TD250N12KOF Infineon Technologies | 1 $137.0000 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 250 A | 410 A | 2 V | 200 mA | 9100A @ 50Hz | 300 mA | 125°C (TJ) | Chassis Mount | Module | 2,752 Cart + RFQ |
TTB6C135N16LOF Infineon Technologies | 1 $194.1400 | Datasheet | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 173 A | 100 A | 2.5 V | 150 mA | 1000A @ 50Hz | 200 mA | 125°C (TJ) | Chassis Mount | Module | 7,704 Cart + RFQ |
TTB6C165N16LOF Infineon Technologies | 1 $199.9600 | Datasheet | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 208 A | 120 A | 2.5 V | 150 mA | 1250A @ 50Hz | 200 mA | 125°C (TJ) | Chassis Mount | Module | 2,264 Cart + RFQ |

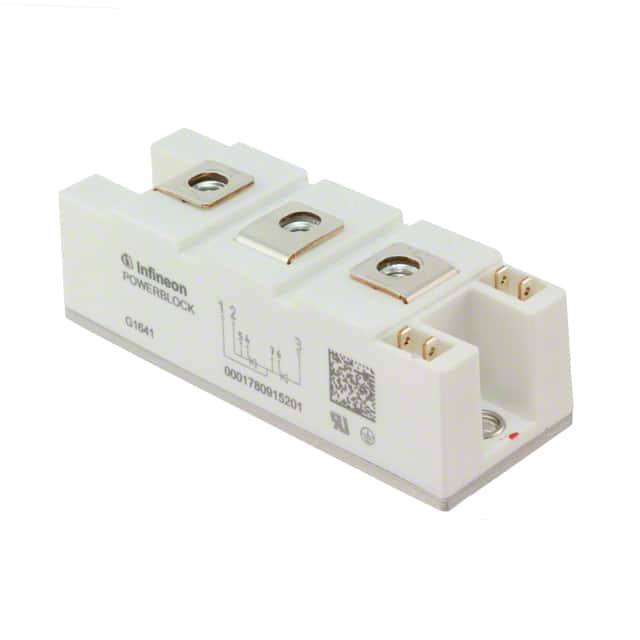

 TT190N16SOFHPSA2 Infineon Technologies | 1 $54.8400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 190 A | 275 A | 2.5 V | 145 mA | - | 200 mA | 125°C (TJ) | Surface Mount | Module | 2,572 Cart + RFQ |

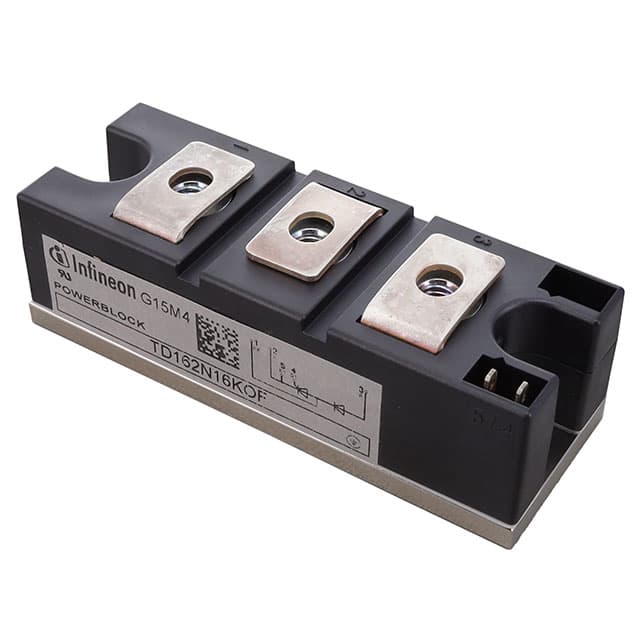

 TD162N16KOFHPSA1 Infineon Technologies | 1 $155.6600 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 162 A | 260 A | 2 V | 150 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | Chassis Mount | Module | 1,522 Cart + RFQ |

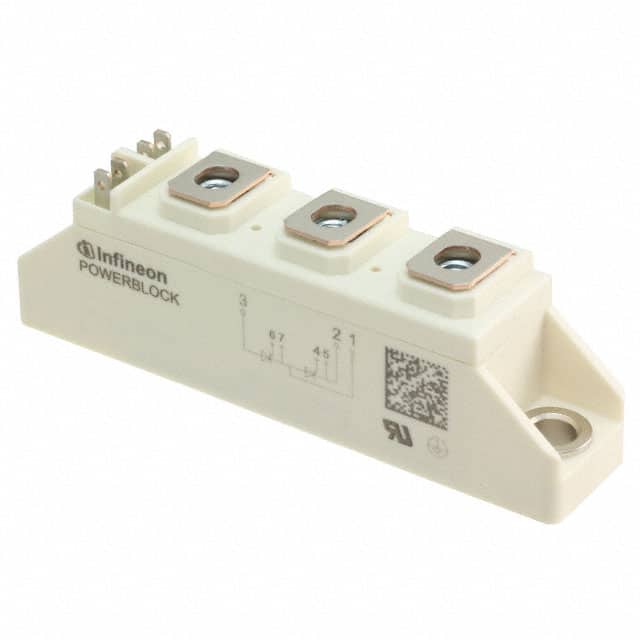

 TT60N16SOFHPSA1 Infineon Technologies | 1 $30.7800 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 55 A | 90 A | 2.5 V | 100 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C | Chassis Mount | Module | 8,804 Cart + RFQ |
TD250N16KOFHPSA1 Infineon Technologies | 1 $187.6000 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | Module | 3,340 Cart + RFQ |

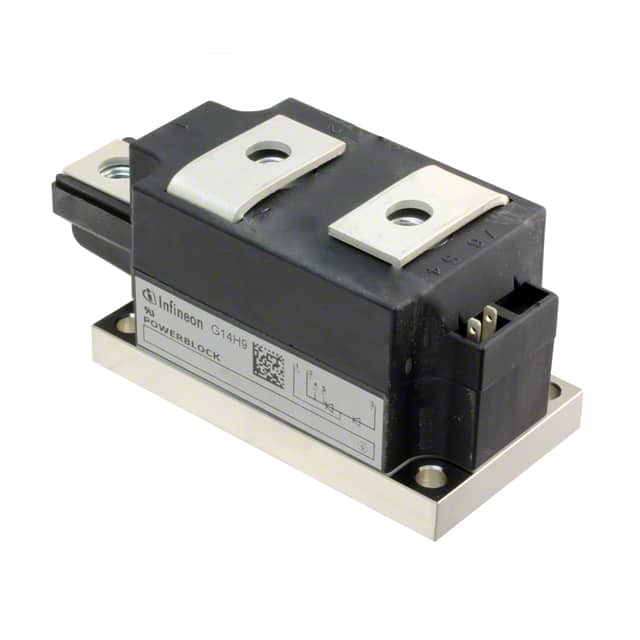

 TD330N16KOFHPSA2 Infineon Technologies | 1 $207.2000 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | - | 300 mA | 130°C (TJ) | Surface Mount | Module | 7,676 Cart + RFQ |
 TT330N16KOFHPSA2 Infineon Technologies | 1 $215.2500 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | - | 300 mA | 130°C (TJ) | Surface Mount | Module | 4,562 Cart + RFQ |
TD330N16KOFTIMHPSA1 Infineon Technologies | 1 $215.7800 | Datasheet | Series Connection - SCR/Diode | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | 12500A @ 50Hz | 300 mA | -40°C ~ 130°C | Chassis Mount | Module | 7,783 Cart + RFQ |
TZ600N16KOFHPSA1 Infineon Technologies | 1 $240.8900 | Datasheet | Series Connection - All SCRs | 1 SCR | 1.6 kV | 669 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 135°C (TJ) | Surface Mount | Module | 6,229 Cart + RFQ |

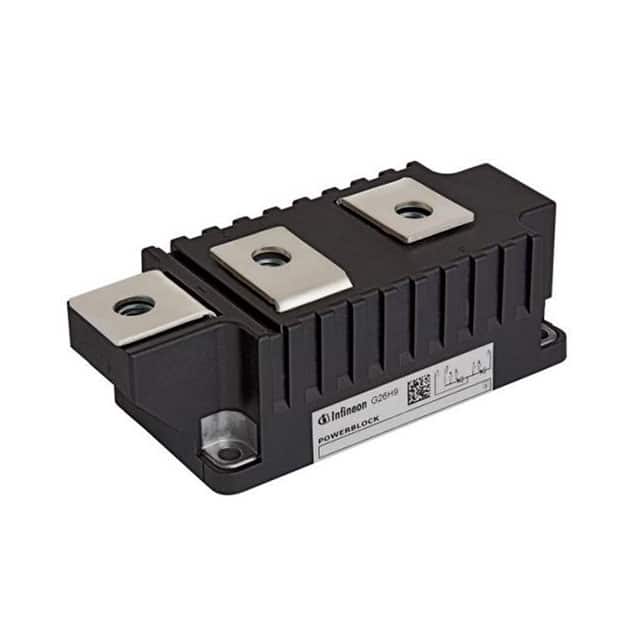

 ETD540N22P60HPSA1 Infineon Technologies | 1 $257.7800 | Datasheet | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 542 A | 700 A | 2.2 V | 250 mA | 16300A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | Chassis Mount | Module | 6,796 Cart + RFQ |

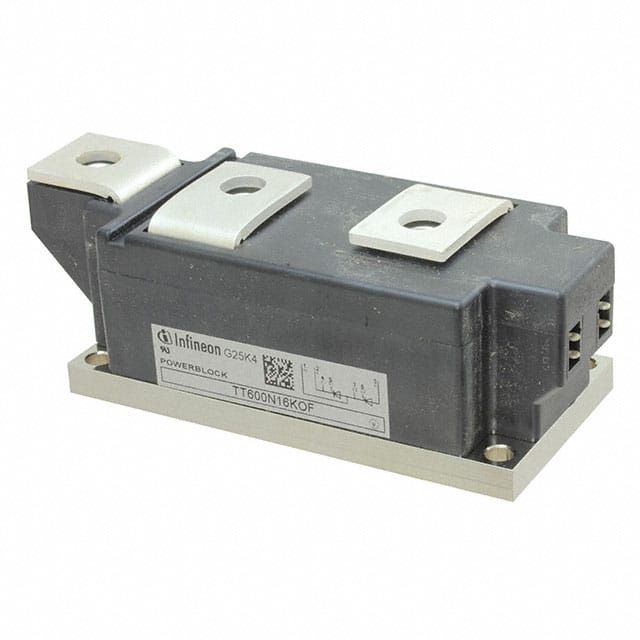

 TT600N16KOFHPSA2 Infineon Technologies | 1 $352.5400 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 600 A | 1050 A | 2 V | 250 mA | - | 300 mA | 125°C (TJ) | Surface Mount | Module | 5,294 Cart + RFQ |

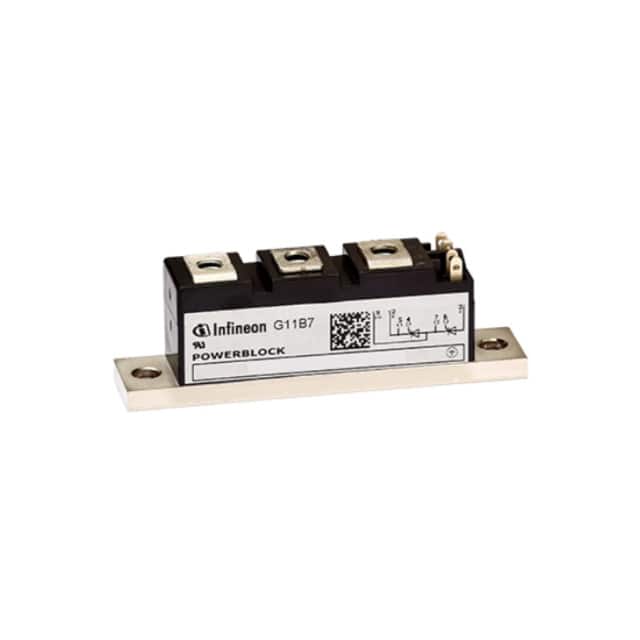

 TT92N16KOFHPSA1 Infineon Technologies | 1 $132.5300 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 130°C | Chassis Mount | Module | 5,084 Cart + RFQ |

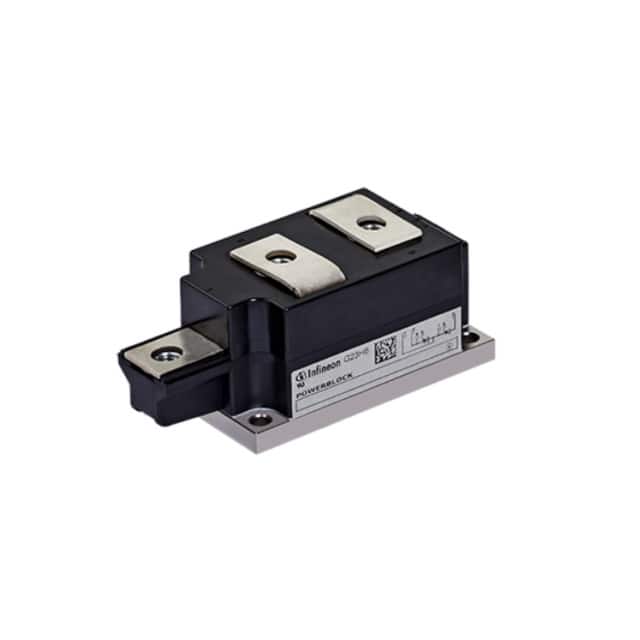

 TT162N14KOFHPSA1 Infineon Technologies | 1 $159.2500 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 162 A | - | 2 V | 150 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | Chassis Mount | Module | 8,536 Cart + RFQ |
TT215N22KOFHPSA1 Infineon Technologies | 1 $205.1900 | Datasheet | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 215 A | - | 2 V | 200 mA | 7000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | Module | 8,428 Cart + RFQ |

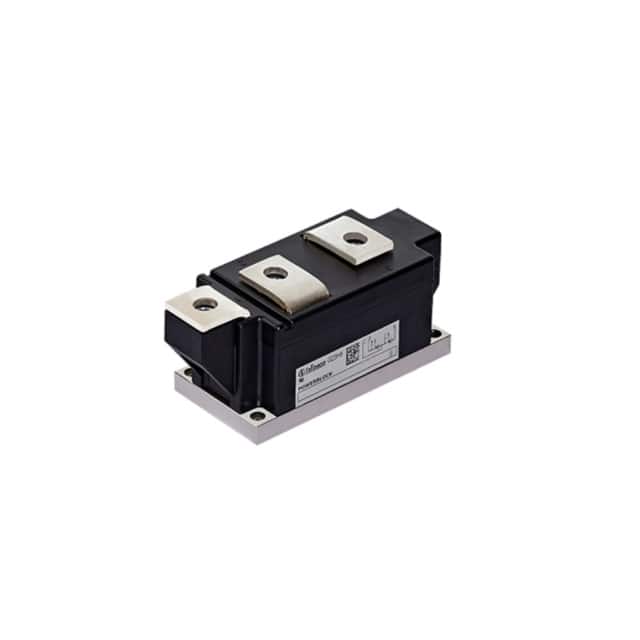

 TT425N18KOFHPSA2 Infineon Technologies | 1 $318.5900 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 471 A | 800 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | Module | 6,535 Cart + RFQ |
TT500N16KOFHPSA2 Infineon Technologies | 1 $320.5100 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | Module | 6,389 Cart + RFQ |
TT570N16KOFHPSA2 Infineon Technologies | 1 $336.5200 | Datasheet | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 600 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | Module | 7,239 Cart + RFQ |
