Diodes - Variable Capacitance (Varicaps, Varactors)
Variable capacitance diodes are produced and characterized for use as electronically-variable capacitors, and are widely used in tuning and frequency synthesis applications. While most all diodes exhibit a junction capacitance that decreases as the amount of reverse bias voltage applied increases and are capable of functioning as variable capacitance diodes, products specifically marketed as such are produced and characterized with this use in mind.
Product List
Total Components: 91
| Product | Pricing | Datasheet | Capacitance @ Vr, F | Capacitance Ratio | Capacitance Ratio Condition | Voltage - Peak Reverse (Max) | Diode Type | Q @ Vr, F | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MAVR-000409-0287FT MACOM Technology Solutions | 1 $1.9500 | Datasheet | 51.7pF @ 4V, 1MHz | 9.5 | C2/C20 | 22 V | 1 Pair Common Cathode | 150 @ 4V, 50MHz | -55°C ~ 125°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23 | 9,985 Cart + RFQ |
 MAVR-011020-14110P MACOM Technology Solutions | 1 $4.4300 | Datasheet | 0.05pF @ 15V, 1MHz | - | - | 22 V | Single | 3000 @ 4V, 50MHz | -40°C ~ 125°C (TJ) | Surface Mount | 2-XFDFN, FCDFN | 2-FlipChip | 9,073 Cart + RFQ |
 MAVR-000120-14110G MACOM Technology Solutions | 1 $3.1005 | Datasheet | 0.2pF @ 10V, 1MHz | - | - | 20 V | Single | 3000 @ 4V, 50MHz | -40°C ~ 125°C (TJ) | Surface Mount | 2-XFDFN, FCDFN | 2-FlipChip | 5,411 Cart + RFQ |
 MA46472-134 MACOM Technology Solutions | 1 $9.8941 | Datasheet | 1pF @ 4V, 1MHz | 7.4 | C2/C20 | 22 V | Single | 3000 @ 4V, 50MHz | -65°C ~ 175°C | Surface Mount | Die | Chip | 7,835 Cart + RFQ |
 MAVR-000120-12030P MACOM Technology Solutions | 1 $3.2100 | Datasheet | 1.1pF @ 0V, 1MHz | - | - | 15 V | Single | 3000 @ 4V, 50MHz | -40°C ~ 125°C | Surface Mount | Die | Chip | 3,275 Cart + RFQ |

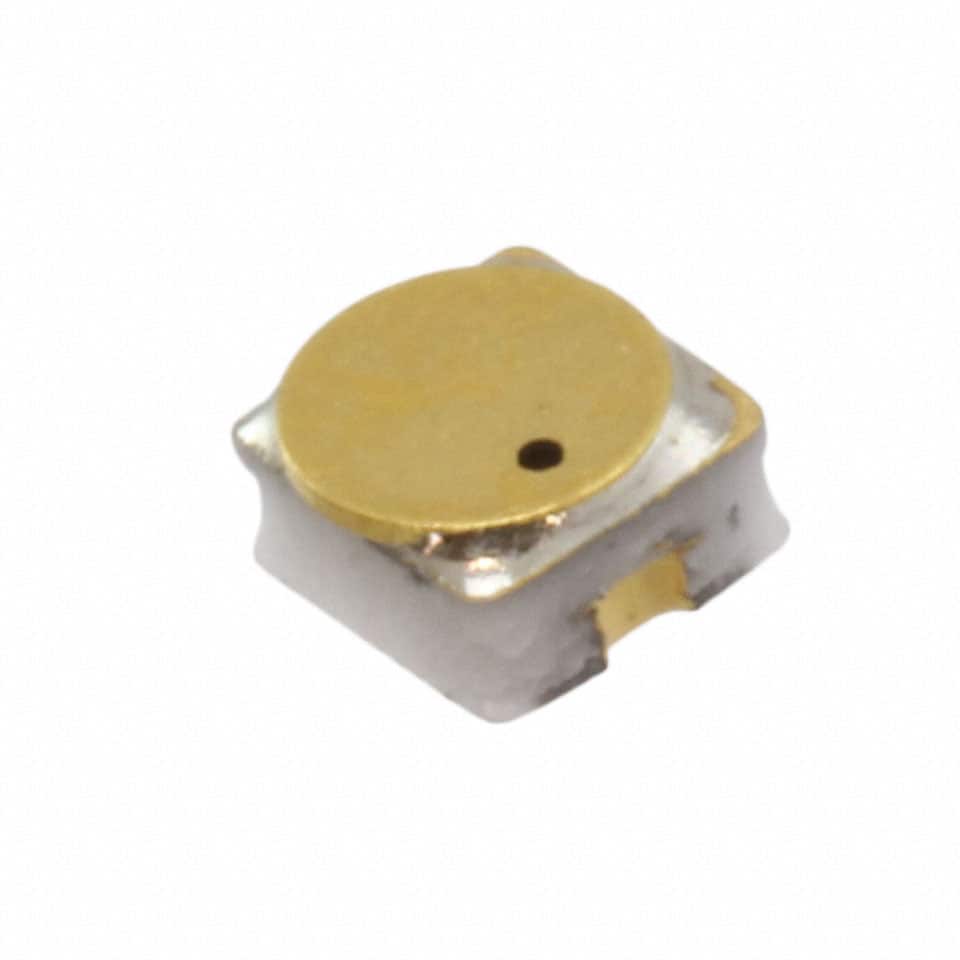

 MA46H204-1056 MACOM Technology Solutions | 1 $33.2000 | Datasheet | 11pF @ 4V, 1MHz | 10 | C2/C20 | 22 V | Single | 1500 @ 4V, 50MHz | -65°C ~ 150°C (TJ) | Surface Mount | 2-SMD | - | 7,781 Cart + RFQ |
MA46H200-1056 MACOM Technology Solutions | 1 $49.5500 | Datasheet | 0.7pF @ 4V, 1MHz | 3 | C2/C20 | 22 V | Single | 1500 @ 4V, 1MHz | -65°C ~ 150°C | Surface Mount | 2-SMD, No Lead | ODS-1056 | 1,084 Cart + RFQ |
MAVR-000403-0287AT MACOM Technology Solutions | 1 $1.4800 | Datasheet | 16.5pF @ 4V, 1MHz | 7 | C2/C20 | 22 V | Single | 250 @ 4V, 50MHz | -55°C ~ 125°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23 | 6,121 Cart + RFQ |
 MAVR-001350-12790T MACOM Technology Solutions | 1 $1.4800 | Datasheet | 3.6pF @ 4V, 1MHz | 3.2 | C0.5/C3 | 12 V | Single | - | -55°C ~ 125°C | Surface Mount | SC-79, SOD-523 | SC-79 | 4,662 Cart + RFQ |
MAVR-000404-0287FT MACOM Technology Solutions | 1 $1.6200 | Datasheet | 19.8pF @ 4V, 1MHz | 7 | C2/C20 | 22 V | 1 Pair Common Cathode | 175 @ 4V, 50MHz | -55°C ~ 125°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23 | 3,947 Cart + RFQ |
MAVR-045448-0287AT MACOM Technology Solutions | 1 $1.8000 | Datasheet | 36.3pF @ 4V, 1MHz | 4.7 | C0/C30 | 30 V | Single | 750 @ 4V, 50MHz | -55°C ~ 125°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23 | 4,749 Cart + RFQ |
MAVR-045440-0287FT MACOM Technology Solutions | 1 $2.3300 | Datasheet | 11pF @ 4V, 1MHz | 4.5 | C0/C30 | 30 V | 1 Pair Common Cathode | 1300 @ 4V, 1MHz | -55°C ~ 125°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23 | 1,906 Cart + RFQ |

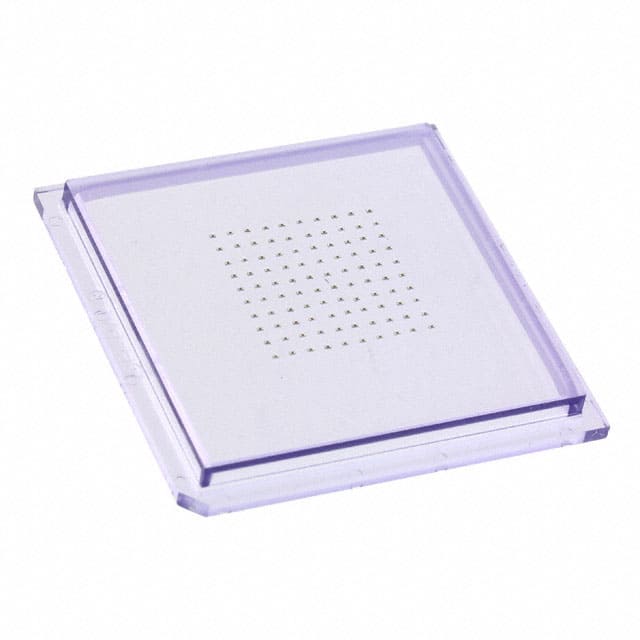

 MA46470-134 MACOM Technology Solutions | 1 $8.6390 | Datasheet | 0.5pF @ 4V, 1MHz | 4.1 | C2/C20 | 22 V | Single | 4000 @ 4V, 50MHz | -65°C ~ 175°C | Surface Mount | Die | Chip | 2,510 Cart + RFQ |
MA46480-134 MACOM Technology Solutions | 1 $9.8941 | Datasheet | 3.7pF @ 4V, 1MHz | 11 | C2/C20 | 22 V | Single | 2000 @ 4V, 50MHz | -65°C ~ 175°C | Surface Mount | Die | Chip | 5,692 Cart + RFQ |
MA46474-134 MACOM Technology Solutions | 1 $9.8941 | Datasheet | 1.5pF @ 4V, 1MHz | 7.4 | C2/C20 | 22 V | Single | 3000 @ 4V, 50MHz | -65°C ~ 175°C | Surface Mount | Die | Chip | 1,930 Cart + RFQ |
 MA46473-134 MACOM Technology Solutions | 1 $9.8941 | Datasheet | 1.2pF @ 4V, 1MHz | 7.4 | C2/C20 | 22 V | Single | 3000 @ 4V, 50MHz | -65°C ~ 175°C | Surface Mount | Die | Chip | 9,575 Cart + RFQ |
MA46600-134 MACOM Technology Solutions | 1 $9.8941 | Datasheet | 0.3pF @ 4V, 1MHz | 1.9 | C0/C30 | 30 V | Single | 8000 @ 4V, 50MHz | -65°C ~ 175°C | Surface Mount | Die | Die | 5,085 Cart + RFQ |
MGV125-20 MACOM Technology Solutions | 1 $21.4168 | Datasheet | 0.55pF @ 4V, 1MHz | 10 | C2/C20 | 22 V | Single | 4000 @ 4V, 50MHz | - | Surface Mount | Die | Chip | 4,702 Cart + RFQ |
 MGV125-08-0805-2 MACOM Technology Solutions | 1 $33.4900 | Datasheet | 0.42pF @ 4V, 1MHz | 7 | C2/C20 | 22 V | Single | 4000 @ 4V, 50MHz | - | Surface Mount | 0805 (2012 Metric) | 0805-2 | 7,253 Cart + RFQ |
MA46H201-1056 MACOM Technology Solutions | 1 $27.6760 | Datasheet | 1.1pF @ 4V, 1MHz | 4.1 | C2/C20 | 22 V | Single | 3000 @ 4V, 50MHz | -65°C ~ 150°C (TJ) | Surface Mount | 2-SMD | - | 3,161 Cart + RFQ |
