Diodes - Bridge Rectifiers
Diode bridge rectifiers are an arrangement of diodes in a bridge circuit configuration for conversion of an alternating current (AC) input to a direct current (DC) output. These components can be chassis, DIN rail, surface or through-hole mounted, and are selected by single phase or three phase diode type, forward voltage rating, average rectified current, and technology.
Product List
Total Components: 446
| Product | Pricing | Datasheet | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MB10S-13 Diodes Incorporated | 1 $0.0914 100 $0.0731 500 $0.0609 | Datasheet | Single Phase | Standard | 1 kV | 800 mA | 1.1 V @ 800 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | MBS | 750 Cart + RFQ |
 HD02-T Diodes Incorporated | 1 $0.4500 | Datasheet | Single Phase | Standard | 200 V | 800 mA | 1 V @ 400 mA | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-MiniDIP | 9,986 Cart + RFQ |
HD04-T Diodes Incorporated | 1 $0.4500 | Datasheet | Single Phase | Standard | 400 V | 800 mA | 1 V @ 400 mA | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-MiniDIP | 5,636 Cart + RFQ |
 DF01S-T Diodes Incorporated | 1 $0.1800 100 $0.1440 500 $0.1200 | Datasheet | Single Phase | Standard | 100 V | 1 A | 1.1 V @ 1 A | 10 µA @ 100 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DF-S | 2,000 Cart + RFQ |
HDS10M-13 Diodes Incorporated | 1 $0.4500 | Datasheet | Single Phase | Standard | 1 kV | 1 A | 950 mV @ 500 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | HDS | 6,687 Cart + RFQ |
DF06S-T Diodes Incorporated | 1 $1.2000 | Datasheet | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 10 µA @ 600 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DF-S | 100,000 Cart + RFQ |
DF04S-T Diodes Incorporated | 1 $0.1443 100 $0.1154 500 $0.0962 | Datasheet | Single Phase | Standard | 400 V | 1 A | 1.1 V @ 1 A | 10 µA @ 400 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DF-S | 144 Cart + RFQ |
DF08S-T Diodes Incorporated | 1 $0.5100 | Datasheet | Single Phase | Standard | 800 V | 1 A | 1.1 V @ 1 A | 10 µA @ 800 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DF-S | 8,751 Cart + RFQ |
DBF310-13 Diodes Incorporated | 1 $0.5800 | Datasheet | Single Phase | Standard | 1 kV | 3 A | 1 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | DBF | 2,574 Cart + RFQ |
DF10S-T Diodes Incorporated | 1 $0.5300 | Datasheet | Single Phase | Standard | 1 kV | 1 A | 1.1 V @ 1 A | 10 µA @ 1000 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DF-S | 3,618 Cart + RFQ |
DF1510S-T Diodes Incorporated | 1 $0.6500 | Datasheet | Single Phase | Standard | 1 kV | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 1000 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DF-S | 1,854 Cart + RFQ |

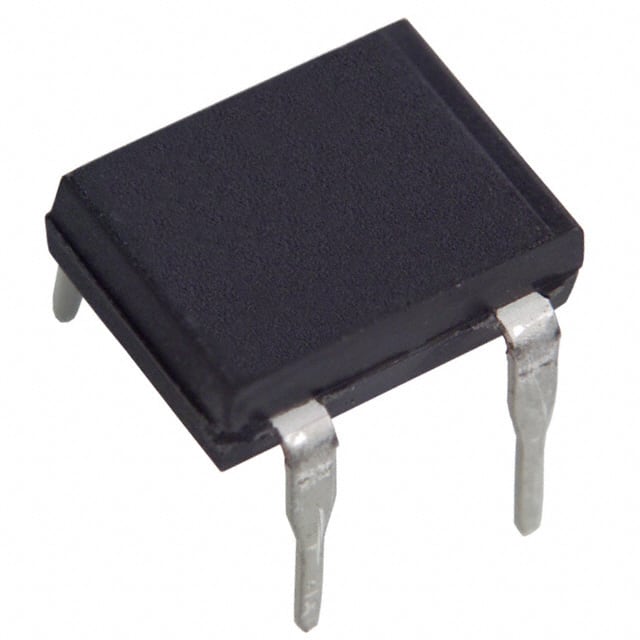

 DF02M Diodes Incorporated | 1 $0.4500 | Datasheet | Single Phase | Standard | 200 V | 1 A | 1.1 V @ 1 A | 10 µA @ 200 V | -65°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.300", 7.62mm) | DFM | 8,780 Cart + RFQ |
DF04M Diodes Incorporated | 1 $0.4800 | Datasheet | Single Phase | Standard | 400 V | 1 A | 1.1 V @ 1 A | 10 µA @ 400 V | -65°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.300", 7.62mm) | DFM | 2,437 Cart + RFQ |
DF10M Diodes Incorporated | 1 $0.5100 | Datasheet | Single Phase | Standard | 1 kV | 1 A | 1.1 V @ 1 A | 10 µA @ 1000 V | -65°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.300", 7.62mm) | DFM | 2,844 Cart + RFQ |

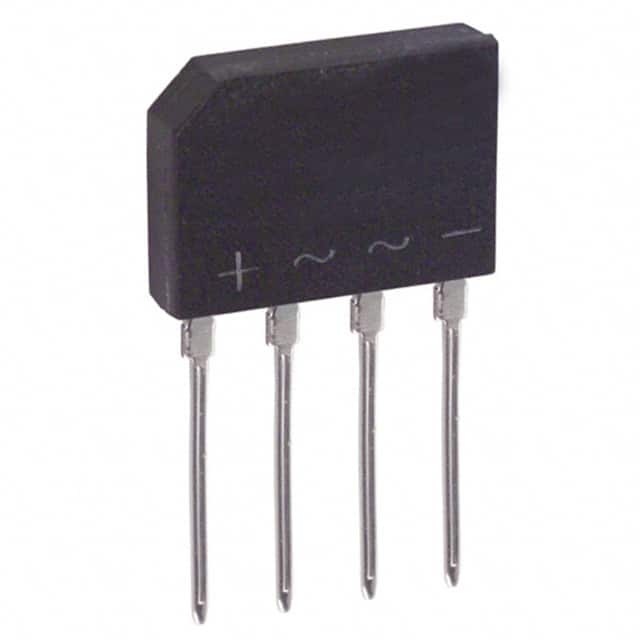

 KBP210G Diodes Incorporated | 1 $0.6600 | Datasheet | Single Phase | Standard | 1 kV | 2 A | 1.1 V @ 2 A | 5 µA @ 1000 V | -65°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBP | KBP | 4,357 Cart + RFQ |

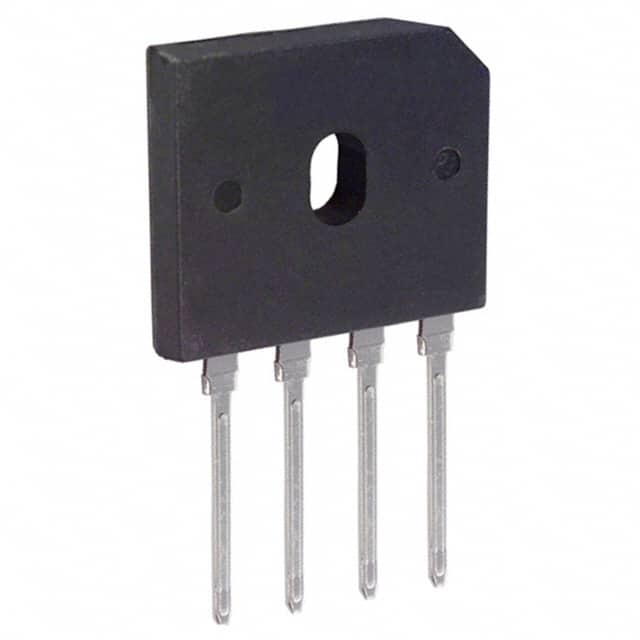

 GBU406 Diodes Incorporated | 1 $1.4200 | Datasheet | Single Phase | Standard | 600 V | 4 A | 1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 3,264 Cart + RFQ |
GBU806 Diodes Incorporated | 1 $1.4600 | Datasheet | Single Phase | Standard | 600 V | 8 A | 1 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 6,719 Cart + RFQ |
 GBJ2506-F Diodes Incorporated | 1 $1.4600 | Datasheet | Single Phase | Standard | 600 V | 25 A | 1.05 V @ 12.5 A | 10 µA @ 600 V | -65°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | GBJ | 4,804 Cart + RFQ |
GBU404 Diodes Incorporated | 1 $1.4200 | Datasheet | Single Phase | Standard | 400 V | 4 A | 1 V @ 2 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 2,863 Cart + RFQ |
GBU1006 Diodes Incorporated | 1 $1.5900 | Datasheet | Single Phase | Standard | 600 V | 10 A | 1 V @ 5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 7,904 Cart + RFQ |
