Diodes - Bridge Rectifiers
Diode bridge rectifiers are an arrangement of diodes in a bridge circuit configuration for conversion of an alternating current (AC) input to a direct current (DC) output. These components can be chassis, DIN rail, surface or through-hole mounted, and are selected by single phase or three phase diode type, forward voltage rating, average rectified current, and technology.
Product List
Total Components: 634
| Product | Pricing | Datasheet | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DF206ST-G Comchip Technology | 1 $0.6000 | Datasheet | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 2 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DFS | 9,369 Cart + RFQ |
 DF204ST-G Comchip Technology | 1 $0.6000 | Datasheet | Single Phase | Standard | 400 V | 2 A | 1.1 V @ 2 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | DFS | 7,992 Cart + RFQ |
 CDBHM1100L-HF Comchip Technology | 1 $1.2321 100 $0.9857 500 $0.8214 | Datasheet | Single Phase | Schottky | 100 V | 1 A | 850 mV @ 1 A | 500 µA @ 100 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | MBS | 500 Cart + RFQ |
CDBHM160L-HF Comchip Technology | 1 $0.7800 | Datasheet | Single Phase | Schottky | 60 V | 1 A | 650 mV @ 1 A | 500 µA @ 60 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | MBS | 2,484 Cart + RFQ |
CDBHM140L-HF Comchip Technology | 1 $0.7800 | Datasheet | Single Phase | Schottky | 40 V | 1 A | 550 mV @ 1 A | 500 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | MBS | 4,760 Cart + RFQ |
CDBHM260L-HF Comchip Technology | 1 $0.8600 | Datasheet | Single Phase | Schottky | 60 V | 2 A | 700 mV @ 2 A | 1 mA @ 60 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | MBS-2 | 9,711 Cart + RFQ |
CDBHM240L-HF Comchip Technology | 1 $0.8600 | Datasheet | Single Phase | Schottky | 40 V | 2 A | 550 mV @ 2 A | 1 mA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | MBS-2 | 2,870 Cart + RFQ |

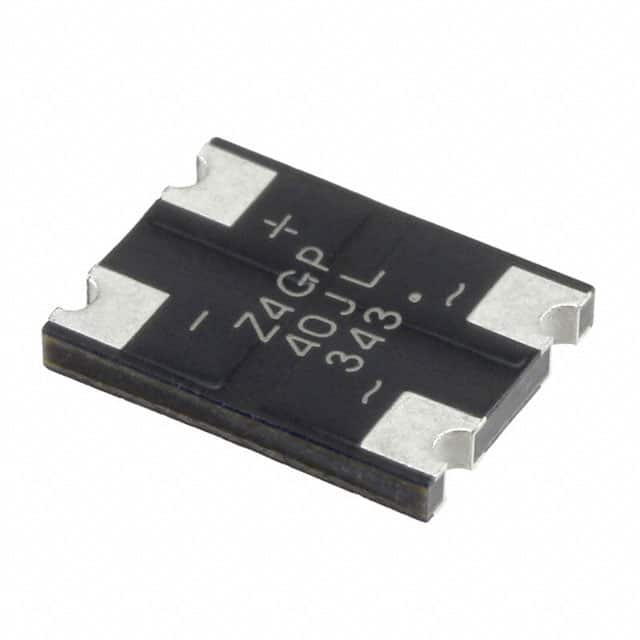

 Z4DGP406L-HF Comchip Technology | 1 $1.3600 | Datasheet | Single Phase | Standard | 600 V | 4 A | 950 mV @ 4 A | 5 µA @ 600 V | -55°C ~ 175°C (TJ) | Surface Mount | Z4-D | Z4-D | 5,912 Cart + RFQ |

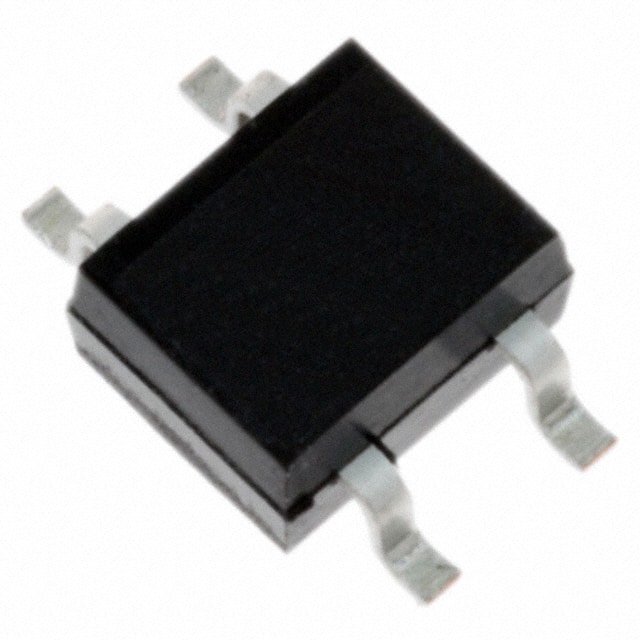

 CDBHD240-G Comchip Technology | 1 $1.4000 | Datasheet | Single Phase | Schottky | 40 V | 2 A | 500 mV @ 1 A | 500 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | Mini-Dip (TO-269AA) | 2,026 Cart + RFQ |
CDBHD2100-G Comchip Technology | 1 $1.3992 100 $1.1194 500 $0.9328 | Datasheet | Single Phase | Schottky | 100 V | 2 A | 850 mV @ 1 A | 500 µA @ 100 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | Mini-Dip (TO-269AA) | 1,000 Cart + RFQ |

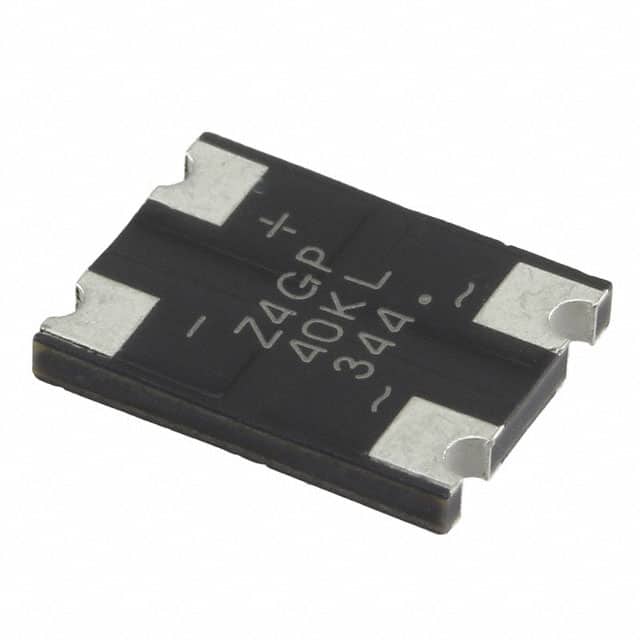

 Z4DGP408L-HF Comchip Technology | 1 $1.4200 | Datasheet | Single Phase | Standard | 800 V | 4 A | 950 mV @ 4 A | 5 µA @ 800 V | -55°C ~ 175°C (TJ) | Surface Mount | Z4-D | Z4-D | 8,283 Cart + RFQ |
 Z4DGP410L-HF Comchip Technology | 1 $1.4800 | Datasheet | Single Phase | Standard | 1 kV | 4 A | 950 mV @ 4 A | 5 µA @ 1000 V | -55°C ~ 175°C (TJ) | Surface Mount | Z4-D | Z4-D | 1,737 Cart + RFQ |
CDBHD1100L-G Comchip Technology | 1 $1.5400 | Datasheet | Single Phase | Schottky | 100 V | 1 A | 750 mV @ 1 A | 500 µA @ 100 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | Mini-Dip (TO-269AA) | 9,837 Cart + RFQ |
CDBHD140L-G Comchip Technology | 1 $1.5600 | Datasheet | Single Phase | Schottky | 40 V | 1 A | 440 mV @ 1 A | 500 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | Mini-Dip (TO-269AA) | 6,973 Cart + RFQ |
GBU2510-G Comchip Technology | 1 $1.8700 | Datasheet | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 7,944 Cart + RFQ |
 KBU1010-G Comchip Technology | 1 $2.0600 | Datasheet | Single Phase | Standard | 1 kV | 10 A | 1 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBU | KBU | 2,206 Cart + RFQ |
 GBPC3506W-G Comchip Technology | 1 $4.6400 | Datasheet | Single Phase | Standard | 600 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | GBPC-W | 1,631 Cart + RFQ |
GBPC5010W-G Comchip Technology | 1 $5.3000 | Datasheet | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | GBPC-W | 2,828 Cart + RFQ |
 GBPC5006-G Comchip Technology | 1 $5.3000 | Datasheet | Single Phase | Standard | 600 V | 50 A | 1.1 V @ 25 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | GBPC | 8,247 Cart + RFQ |
GBPC5006W-G Comchip Technology | 1 $5.3000 | Datasheet | Single Phase | Standard | 600 V | 50 A | 1.1 V @ 25 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | GBPC-W | 4,750 Cart + RFQ |
