Diodes - Bridge Rectifiers
Diode bridge rectifiers are an arrangement of diodes in a bridge circuit configuration for conversion of an alternating current (AC) input to a direct current (DC) output. These components can be chassis, DIN rail, surface or through-hole mounted, and are selected by single phase or three phase diode type, forward voltage rating, average rectified current, and technology.
Product List
Total Components: 247
| Product | Pricing | Datasheet | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MB4S onsemi | 1 $0.4500 | Datasheet | Single Phase | Standard | 400 V | 500 mA | 1 V @ 500 mA | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | 4-SOIC | 4,216 Cart + RFQ |
 MB2S onsemi | 1 $0.4500 | Datasheet | Single Phase | Standard | 200 V | 500 mA | 1 V @ 500 mA | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | 4-SOIC | 1,406 Cart + RFQ |
 MDB10S onsemi | 1 $0.5000 | Datasheet | Single Phase | Standard | 1 kV | 1 A | 1.1 V @ 1 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-MicroDIP/SMD | 7,292 Cart + RFQ |

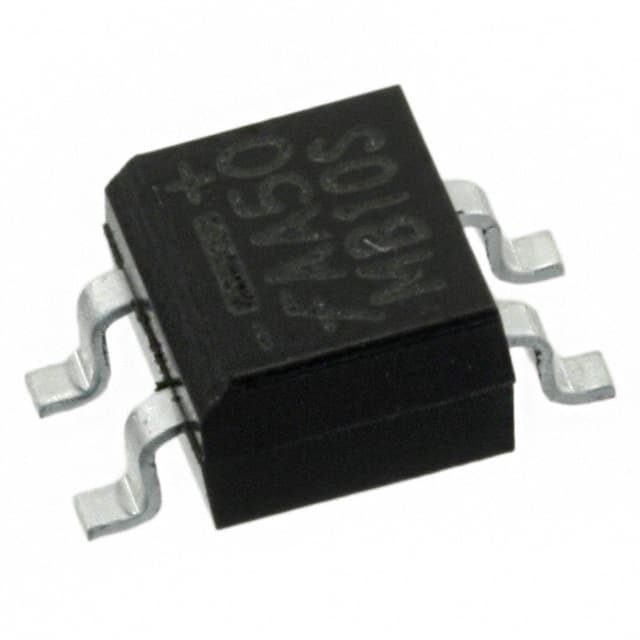

 MB10S onsemi | 1 $0.2436 | Datasheet | Single Phase | Standard | 1 kV | 500 mA | 1 V @ 500 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | 4-SOIC | 100,000 Cart + RFQ |

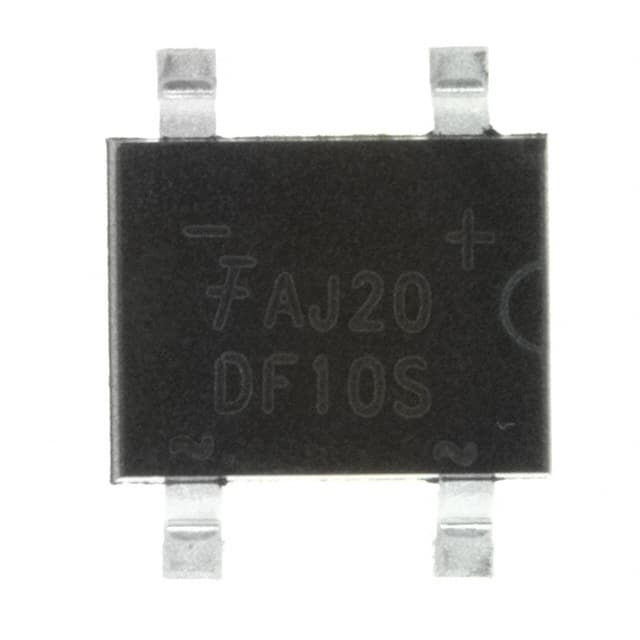

 DF10S onsemi | 1 $0.6800 | Datasheet | Single Phase | Standard | 1 kV | 1.5 A | 1.1 V @ 1.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-SDIP | 7,539 Cart + RFQ |

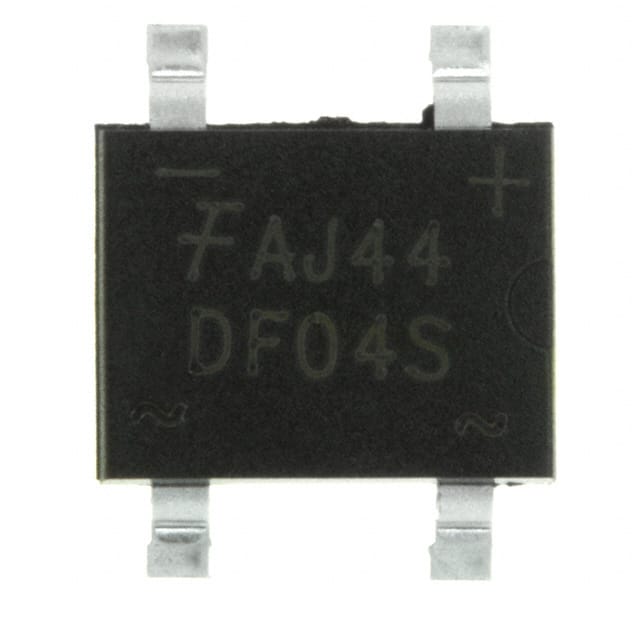

 DF04S onsemi | 1 $0.3848 | Datasheet | Single Phase | Standard | 400 V | 1.5 A | 1.1 V @ 1.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-SDIP | 100,000 Cart + RFQ |

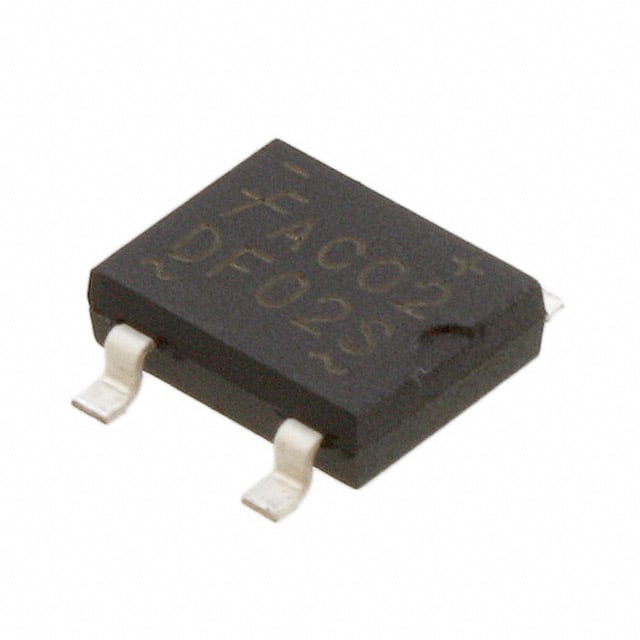

 DF02S onsemi | 1 $0.7100 | Datasheet | Single Phase | Standard | 200 V | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-SDIP | 6,348 Cart + RFQ |

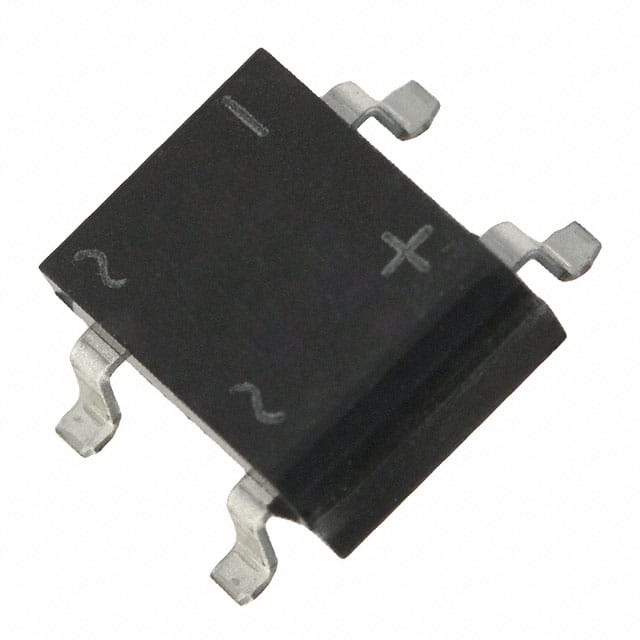

 DF08S onsemi | 1 $0.7100 | Datasheet | Single Phase | Standard | 800 V | 1.5 A | 1.1 V @ 1 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-SDIP | 7,459 Cart + RFQ |

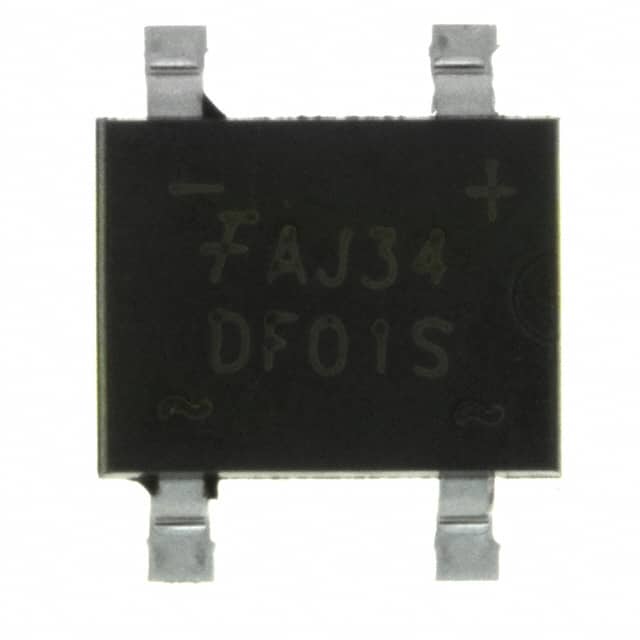

 DF01S onsemi | 1 $0.4800 | Datasheet | Single Phase | Standard | 100 V | 1.5 A | 1.1 V @ 1.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | 4-SDIP | 100,000 Cart + RFQ |
GBPC3504W onsemi | 1 $6.6500 | Datasheet | Single Phase | Standard | 400 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | GBPC-W | 5,551 Cart + RFQ |
GBU4B onsemi | 1 $1.6100 | Datasheet | Single Phase | Standard | 100 V | 4 A | 1 V @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 6,993 Cart + RFQ |
GBU6G onsemi | 1 $1.7000 | Datasheet | Single Phase | Standard | 400 V | 6 A | 1 V @ 6 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 4,894 Cart + RFQ |
GBU8M onsemi | 1 $1.1076 | Datasheet | Single Phase | Standard | 1 kV | 8 A | 1 V @ 8 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 100,000 Cart + RFQ |
GBPC1502 onsemi | 1 $5.8600 | Datasheet | Single Phase | Standard | 200 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | GBPC | 6,185 Cart + RFQ |
GBPC3501 onsemi | 1 $5.9800 | Datasheet | Single Phase | Standard | 100 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | GBPC | 6,034 Cart + RFQ |
GBPC2504 onsemi | 1 $6.0800 | Datasheet | Single Phase | Standard | 400 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | GBPC | 1,612 Cart + RFQ |
GBPC3508 onsemi | 1 $6.2500 | Datasheet | Single Phase | Standard | 800 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | GBPC | 6,960 Cart + RFQ |
GBU4G onsemi | 1 $1.5800 | Datasheet | Single Phase | Standard | 400 V | 4 A | 1 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 6,961 Cart + RFQ |
GBU6A onsemi | 1 $1.7000 | Datasheet | Single Phase | Standard | 50 V | 6 A | 1 V @ 6 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 6,618 Cart + RFQ |
GBU8A onsemi | 1 $1.7700 | Datasheet | Single Phase | Standard | 50 V | 8 A | 1 V @ 8 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | GBU | 9,615 Cart + RFQ |
