Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Products within this family provide a convenient means of evaluating the performance or behavior of devices used for switch-mode power conversion, including both DC-DC and AC-DC types. Devices described as "regulators" (those containing an internal power switching device) and "controllers" (those designed to control an external power switch) are both included.
Product List
Total Components: 18
| Product | Pricing | Datasheet | Main Purpose | Outputs and Type | Power - Output | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Board Type | Supplied Contents | Utilized IC / Part | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DC2407A ADI (Analog Devices, Inc.) | 1 $117.7000 | Datasheet | DC/DC, Step Down | 2, Non-Isolated | - | 3.3V, 5V | 4A | 5.4V ~ 42V | Buck | 2MHz | Fully Populated | Board(s) | LT8650S | 2,935 Cart + RFQ |
 DC2718A ADI (Analog Devices, Inc.) | 1 $235.4000 | Datasheet | DC/DC, Step Down | 1, Isolated | - | 12V | 3A | 100V ~ 600V | Flyback | - | Fully Populated | Board(s) | LT8316 | 3,155 Cart + RFQ |
 DC2237A ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 5V | 6A | 7.5V ~ 58V | Buck | 325kHz | Fully Populated | Board(s) | LTM8064 | 5,910 Cart + RFQ |
 DC2753A ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 3.3V or 5V | 1.2A | 3.4V ~ 40V | Buck | 2MHz | Fully Populated | Board(s) | LTM8074 | 8,290 Cart + RFQ |
 DC2522A ADI (Analog Devices, Inc.) | 1 $100.0500 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 5V | 2A | 5.5V ~ 42V | Buck | 2MHz | Fully Populated | Board(s) | LT8609S | 4,719 Cart + RFQ |
 DC2841A ADI (Analog Devices, Inc.) | 1 $117.7000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 5V | 15A | 5.7V ~ 42V | Buck | 400kHz | Fully Populated | Board(s) | LT8648S | 6,726 Cart + RFQ |
 DC2552A ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Step Down | 2, Non-Isolated | - | 1V, 1.8V | 25A, 25A | 4.5V ~ 16V | Buck | 500kHz | Fully Populated | Board(s) | LTM4678 | 5,288 Cart + RFQ |

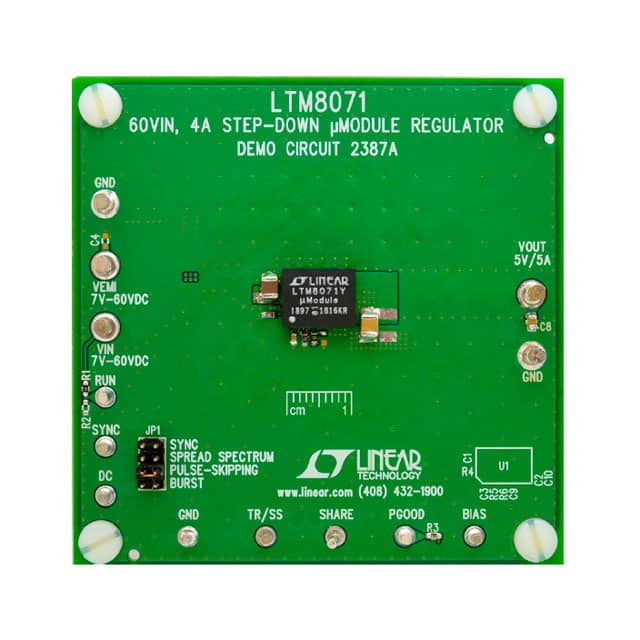

 DC2387A ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 0.97V ~ 15V | 5A | 3.6V ~ 60V | Buck | 2.2MHz | Fully Populated | Board(s) | LTM8071 | 9,019 Cart + RFQ |

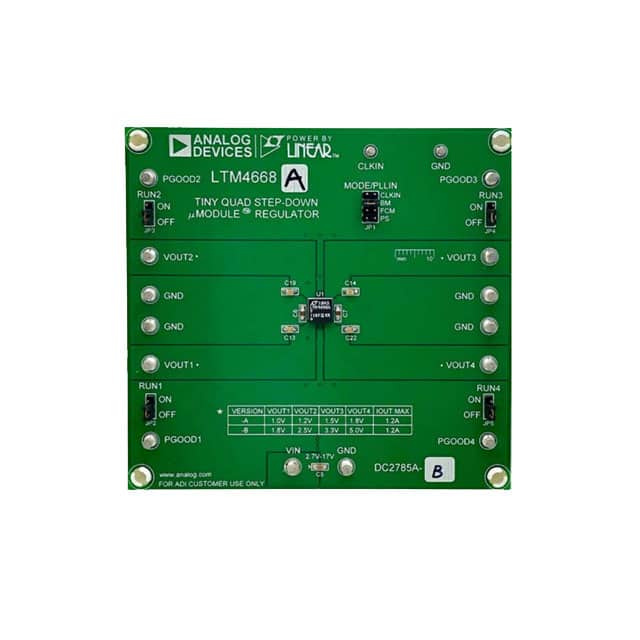

 DC2785A-B ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Step Down | 4, Non-Isolated | - | 1.8V, 2.5V, 3.3V, 5V | 1.2A | 2.7V ~ 17V | Buck | 2.25MHz | Fully Populated | Board(s) | LTM4668A | 4,491 Cart + RFQ |

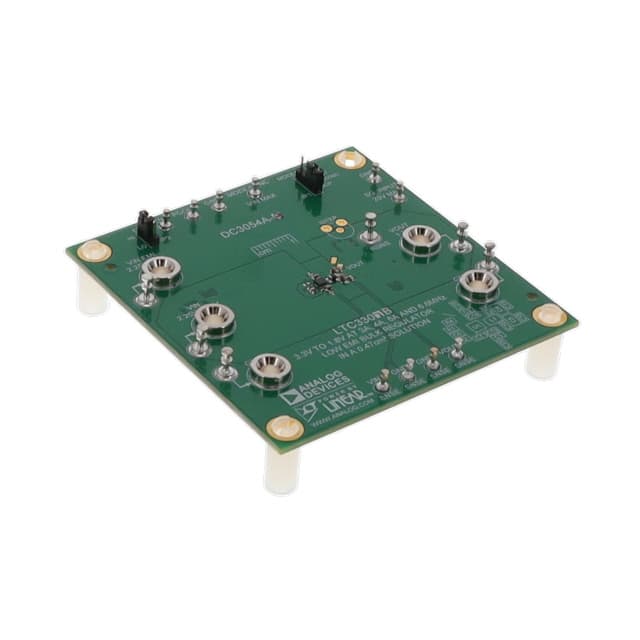

 DC3054A-A ADI (Analog Devices, Inc.) | 1 $110.0000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 1.8V | 3A | 2.25V ~ 5.5V | Buck | 6.6MHz | Fully Populated | Board(s) | LTC3307B | 3,397 Cart + RFQ |

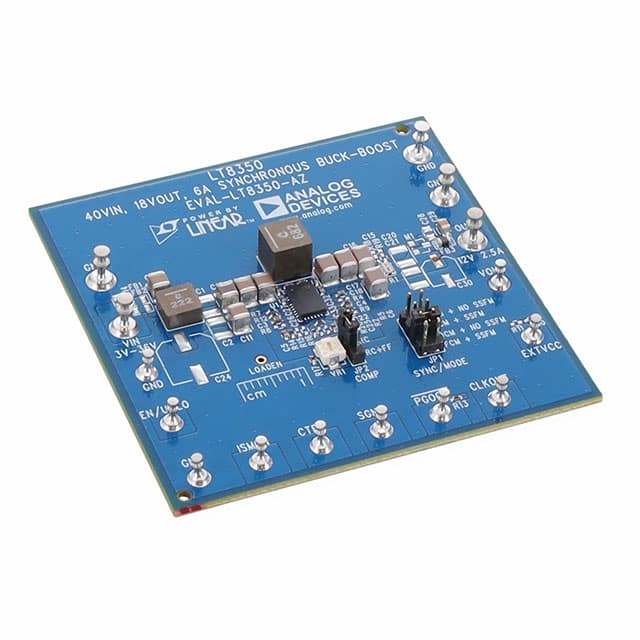

 EVAL-LT8350-AZ ADI (Analog Devices, Inc.) | 1 $160.5000 | Datasheet | DC/DC, Step Up or Down | 1, Non-Isolated | - | 12V | 2.5A | 3V ~ 40V | Buck-Boost | 350kHz | Fully Populated | Board(s) | LT8350 | 2,514 Cart + RFQ |

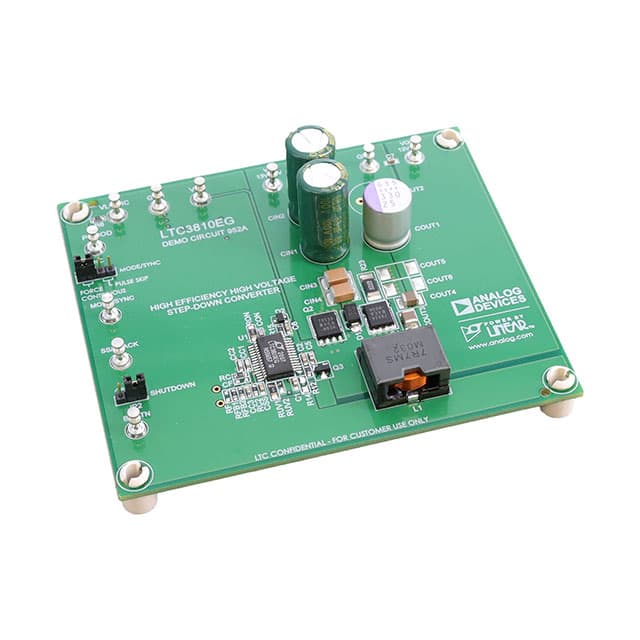

 DC952A ADI (Analog Devices, Inc.) | 1 $176.5500 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 12V | 6A | 13V ~ 80V | Buck | 230kHz | Fully Populated | Board(s) | LTC3810 | 1,379 Cart + RFQ |
 DC2456A ADI (Analog Devices, Inc.) | 1 $252.4600 | Datasheet | DC/DC, Step Up or Down | 1, Non-Isolated | - | 48V | 10A | 16V ~ 120V | Buck-Boost | 200kHz | Fully Populated | Board(s) | LTC3779 | 2,010 Cart + RFQ |
 DC2596A ADI (Analog Devices, Inc.) | 1 $385.2000 | Datasheet | DC/DC, Step Up or Down | 1, Non-Isolated | - | 48V | 6A | 36V ~ 75V | Buck-Boost | 200kHz | Fully Populated | Board(s) | LT8708 | 5,953 Cart + RFQ |
 MAX17701EVKITA# ADI (Analog Devices, Inc.) | 1 $36.4200 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 5V | 20A | 9V ~ 60V | Buck | 350kHz | Fully Populated | Board(s) | MAX17701 | 6,490 Cart + RFQ |
 MAX17220EVKIT# ADI (Analog Devices, Inc.) | 1 $50.7400 | Datasheet | DC/DC, Step Up | 1, Non-Isolated | - | 1.8V ~ 5V | 225mA | 0.4V ~ 5.5V | Boost | - | Fully Populated | Board(s) | MAX17220 | 5,848 Cart + RFQ |

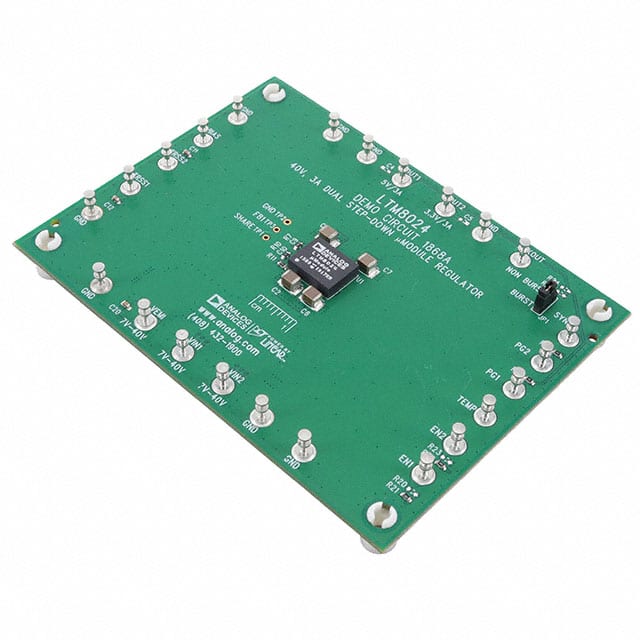

 DC1868A ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Step Down | 2, Non-Isolated | - | 3.3V, 5V | 3A, 3A | 7V ~ 40V | Buck | 1MHz | Fully Populated | Board(s) | LTM8024 | 9,740 Cart + RFQ |

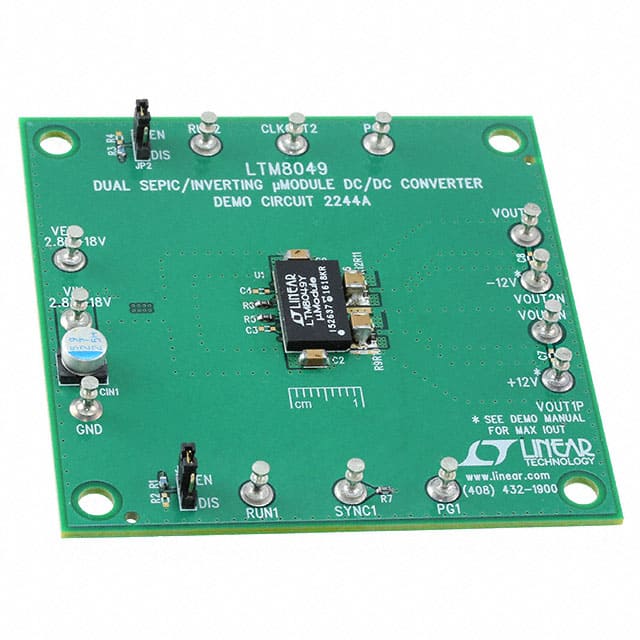

 DC2244A ADI (Analog Devices, Inc.) | 1 $76.5000 | Datasheet | DC/DC, Positive and Negative | 1, Non-Isolated | - | ±12V | 1A, 1A | 2.8V ~ 18V | SEPIC, Inverting | 1MHz | Fully Populated | Board(s) | LTM8049 | 6,832 Cart + RFQ |
