Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Products within this family provide a convenient means of evaluating the performance or behavior of devices used for switch-mode power conversion, including both DC-DC and AC-DC types. Devices described as "regulators" (those containing an internal power switching device) and "controllers" (those designed to control an external power switch) are both included.
Product List
Total Components: 44
| Product | Pricing | Datasheet | Main Purpose | Outputs and Type | Power - Output | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Board Type | Supplied Contents | Utilized IC / Part | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LM5145EVM-HD-20A Texas Instruments | 1 $118.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 5V | 20A | 24V ~ 72V | Buck | 220kHz | Fully Populated | Board(s) | LM5145 | 1,135 Cart + RFQ |
 TPS61094EVM-066 Texas Instruments | 1 $118.8000 | Datasheet | DC/DC, Step Up or Down | 2, Non-Isolated | - | 2.7V ~ 5.4V | 500mA, 250mA | 0.7V ~ 5.5V | Buck-Boost | 1MHz | Fully Populated | Board(s) | TPS61094 | 4,872 Cart + RFQ |

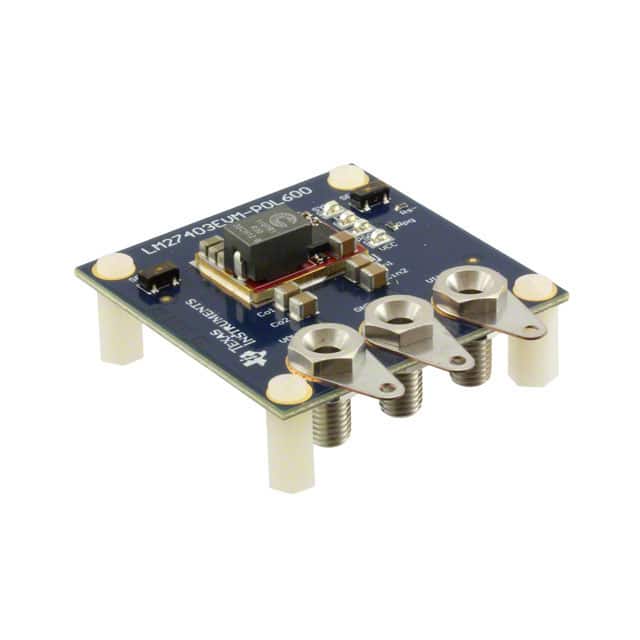

 LM27403EVM-POL600 Texas Instruments | 1 $88.3000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 1.8V | 30A | 4.5V ~ 20V | Buck | 600kHz | Fully Populated | Board(s) | LM27403 | 8,705 Cart + RFQ |

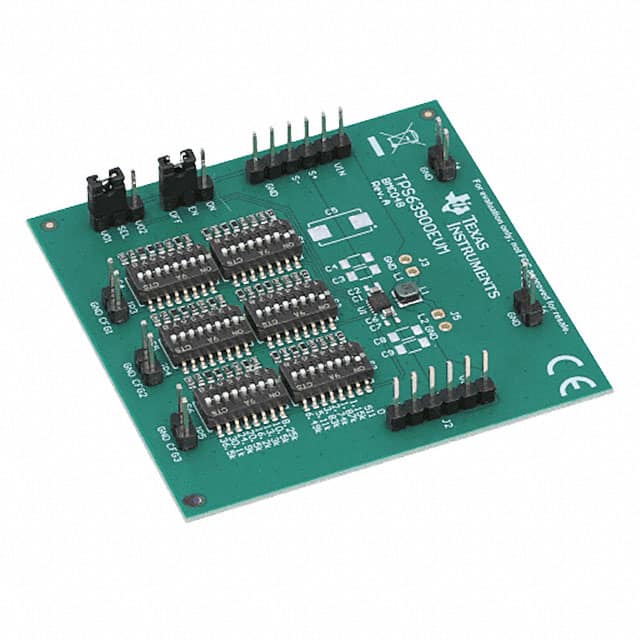

 TPS63900EVM Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Up or Down | 1, Non-Isolated | - | 1.8V ~ 5V | 330mA | 1.8V ~ 5.5V | Buck-Boost | - | Fully Populated | Board(s) | TPS63900 | 2,014 Cart + RFQ |

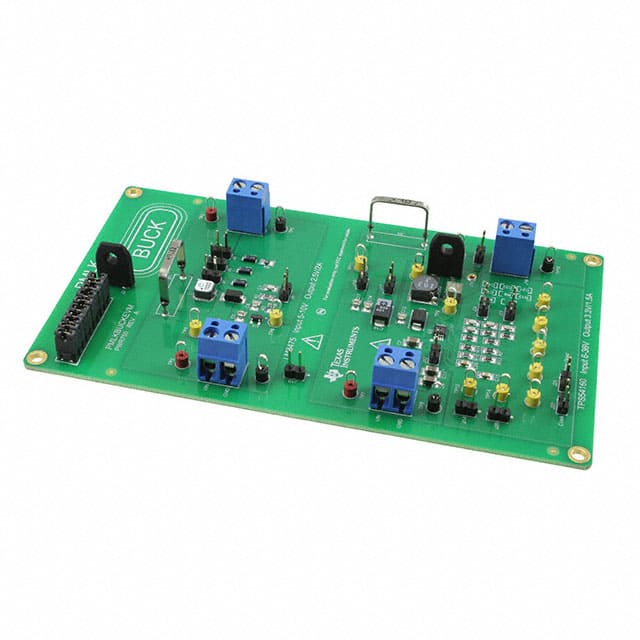

 PMLKBUCKEVM Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Down | 2, Non-Isolated | - | 2.5V, 3.3V | 2A, 1.5A | 5V ~ 10V, 6V ~ 36V | Buck | - | Fully Populated | Board(s) | LM3475, TPS54160 | 2,358 Cart + RFQ |

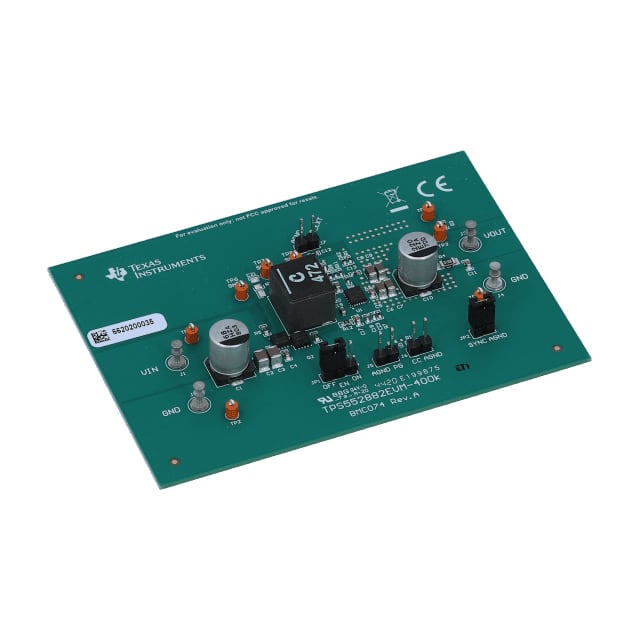

 TPS552882EVM-400K Texas Instruments | 1 $118.8000 | Datasheet | DC/DC, Step Up or Down | 1, Non-Isolated | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Fully Populated | Board(s) | TPS552882 | 4,749 Cart + RFQ |

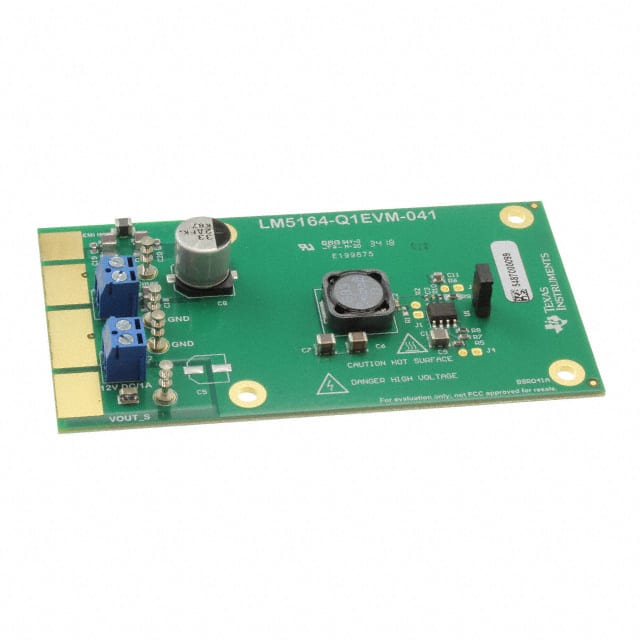

 LM5164-Q1EVM-041 Texas Instruments | 1 $118.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 12V | 1A | 15V ~ 100V | Buck | 300kHz | Fully Populated | Board(s) | LM5164-Q1 | 6,674 Cart + RFQ |

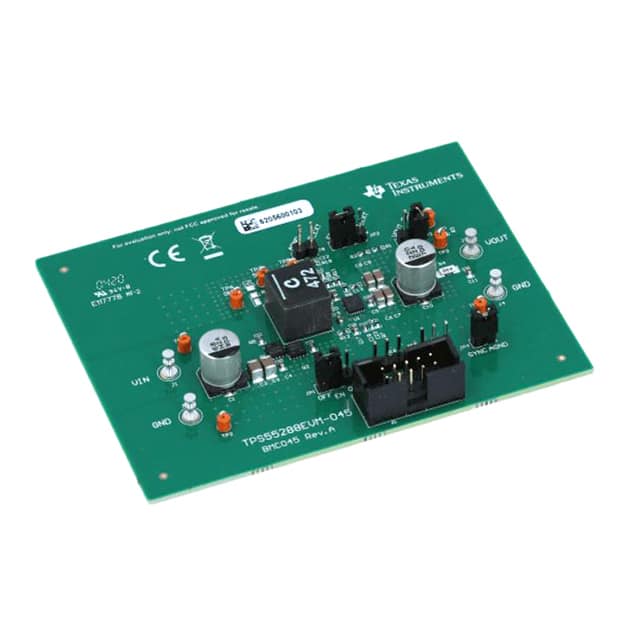

 TPS55288EVM-045 Texas Instruments | 1 $118.8000 | Datasheet | DC/DC, Step Up or Down | 1, Non-Isolated | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Fully Populated | Board(s) | TPS55288 | 9,121 Cart + RFQ |
 LM5170EVM-BIDIR Texas Instruments | 1 $238.8000 | Datasheet | DC/DC, Step Up or Down | 2, Non-Isolated | - | 14.5V, 50.5V | 60A | 3V ~ 48V, 6V ~ 75V | Boost, Buck | 100kHz | Fully Populated | Board(s) | LM5170-Q1 | 4,397 Cart + RFQ |
 TIEVM-HV-1PH-DCAC Texas Instruments | 1 $898.8000 | Datasheet | DC/AC Converter | 1, Non-Isolated | - | 110VAC | 4.5A | 380V | - | 20kHz | Fully Populated | Board(s), Cable(s) | - | 4,362 Cart + RFQ |
 LMR62014XMFDEMO/NOPB Texas Instruments | 1 $24.0000 | Datasheet | DC/DC, Step Up | 1, Non-Isolated | - | 12V | 450mA | 2.7V ~ 12V | Boost | 1.6MHz | Fully Populated | Board(s) | LMR62014 | 7,322 Cart + RFQ |
 LMR64010XMFDEMO/NOPB Texas Instruments | 1 $2.0308 | Datasheet | DC/DC, Step Up | 1, Non-Isolated | - | 24V | 125mA | 2.7V ~ 12V | Boost | 1.6MHz | Fully Populated | Board(s) | LMR64010 | 100,000 Cart + RFQ |
 LMR62421XSDDEMO/NOPB Texas Instruments | 1 $24.0000 | Datasheet | DC/DC, Step Up | 1, Non-Isolated | - | 12V | 500mA | 2.7V ~ 5.5V | Boost | 1.6MHz | Fully Populated | Board(s) | LMR62421 | 9,917 Cart + RFQ |

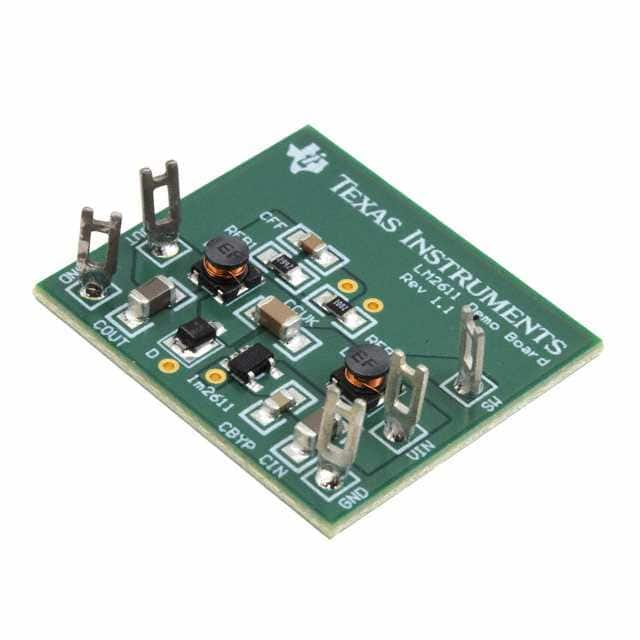

 LM2611EVAL Texas Instruments | 1 $30.0000 | Datasheet | DC/DC, Negative Inverter | 1, Non-Isolated | - | -5V | 300mA | 4.5V ~ 5.5V | Inverting | 1.4MHz | Fully Populated | Board(s) | LM2611 | 6,968 Cart + RFQ |

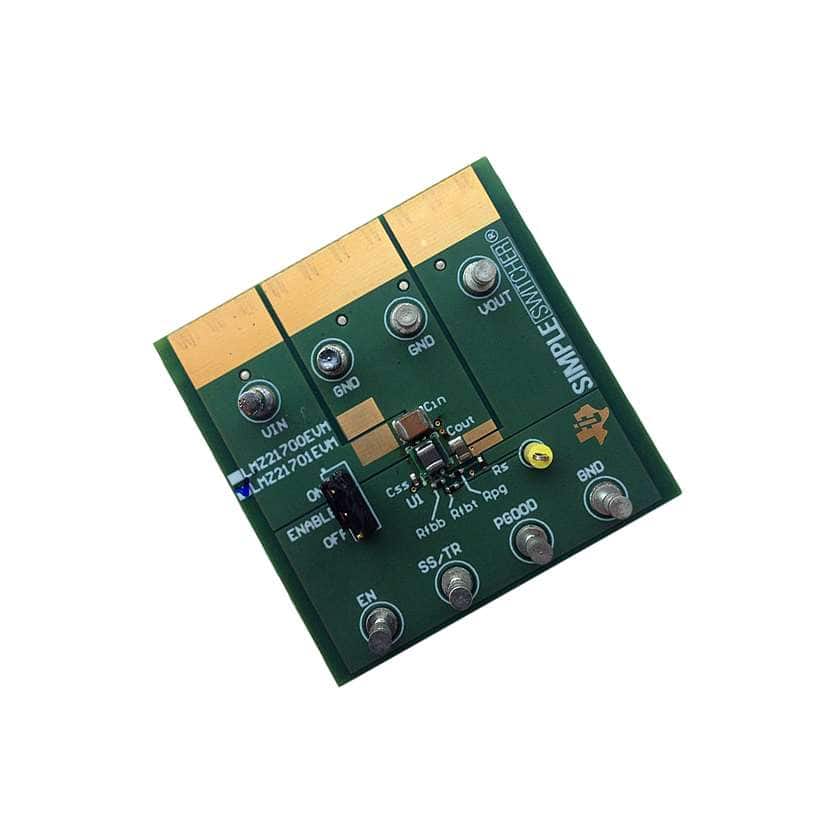

 LMZ21701EVM Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 3.3V | 1A | 5V ~ 17V | Buck | - | Fully Populated | Board(s) | LMZ21701 | 5,016 Cart + RFQ |

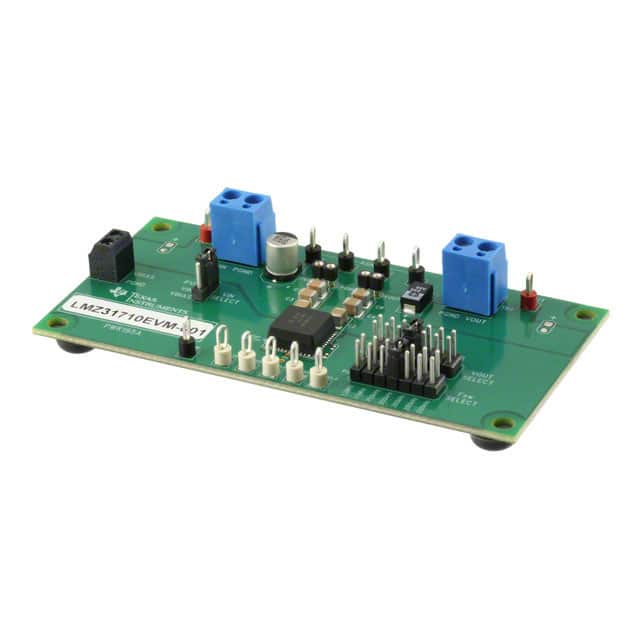

 LMZ31710EVM-001 Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Fully Populated | Board(s) | LMZ31710 | 4,210 Cart + RFQ |

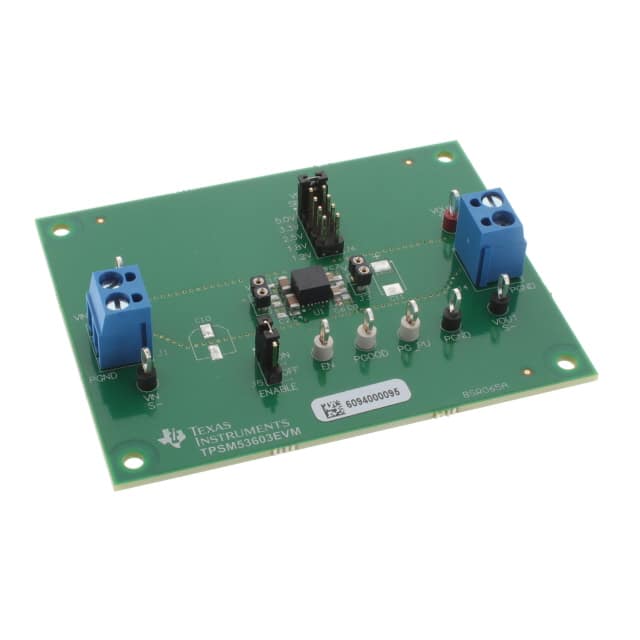

 TPSM53603EVM Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 3A | 3.8V ~ 36V | Buck | - | Fully Populated | Board(s) | TPSM53603 | 5,004 Cart + RFQ |

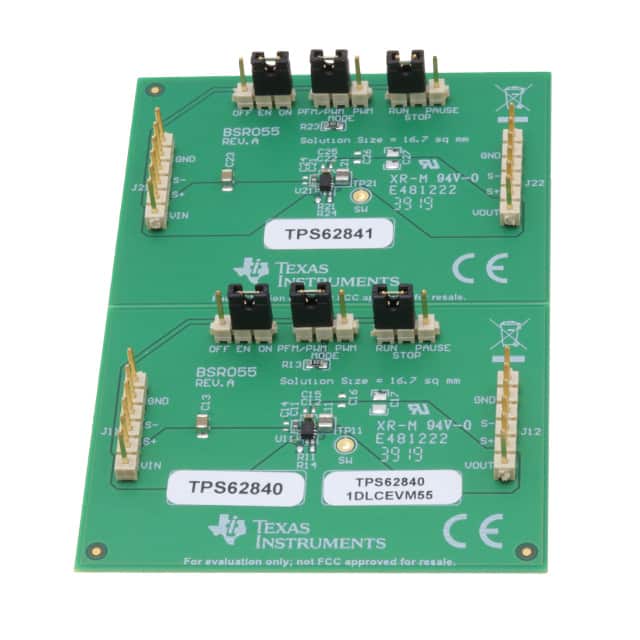

 TPS62840-1DLCEVM55 Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | - | - | 750mA | 1.8V ~ 6.5V | Buck | - | Fully Populated | Board(s) | TPS6284x | 2,389 Cart + RFQ |

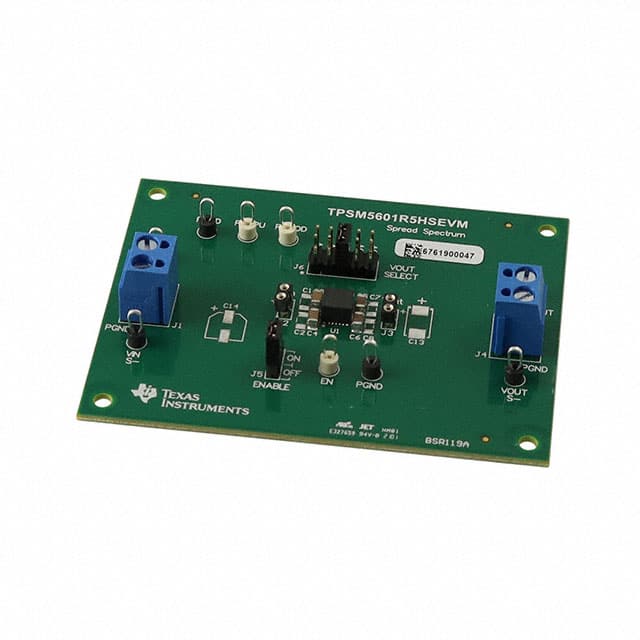

 TPSM5601R5HSEVM Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Down | 1, Non-Isolated | 18 W | 1V ~ 16V | 1.5A | 4.2V ~ 60V | Buck | 1MHz | Fully Populated | Board(s) | TPSM5601R5HS | 4,932 Cart + RFQ |

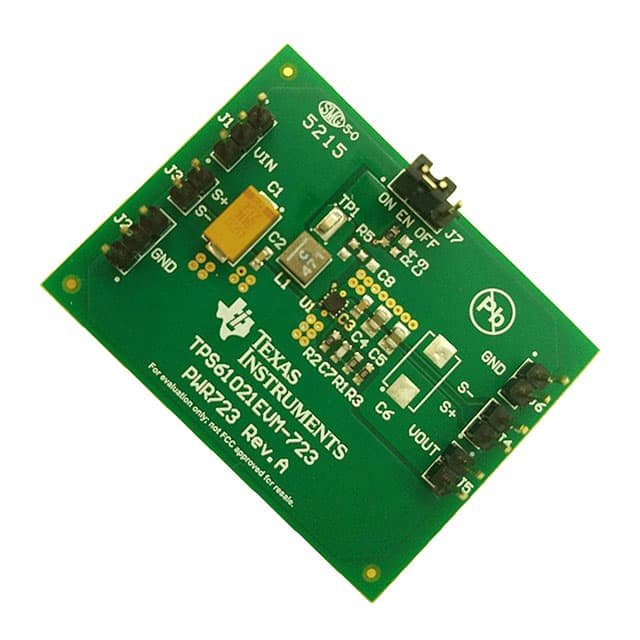

 TPS61021EVM-723 Texas Instruments | 1 $58.8000 | Datasheet | DC/DC, Step Up | 1, Non-Isolated | - | 3.3V | 2.3A | 0.9V ~ 3.2V | Boost | 2MHz | Fully Populated | Board(s) | TPS61021 | 7,496 Cart + RFQ |
